Raptool ApprovedApproved for use with the Raptool Client and all Raptool apps.Elo Touch · POS computer
Elo Touch EloPOS Z30 with Android
Built on Elo’s unified architecture, the EloPOS Z30 delivers a powerful point of sale system that outperforms the competition. Complete with a 15.6-inch Full HD interactive display, integrated connect
- Operating systemAndroid 14 with Google Play Services and EloView content deployment and management; Planned upgrade to…
- Display15.6'' diagonal, Active matrix TFT LCD (LED)
- SealingTouchscreen optically bonded to LCD
Datasheet at Elo Touch Product page at Elo Touch
Runs Raptool apps in the Raptool Client, with access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Overview

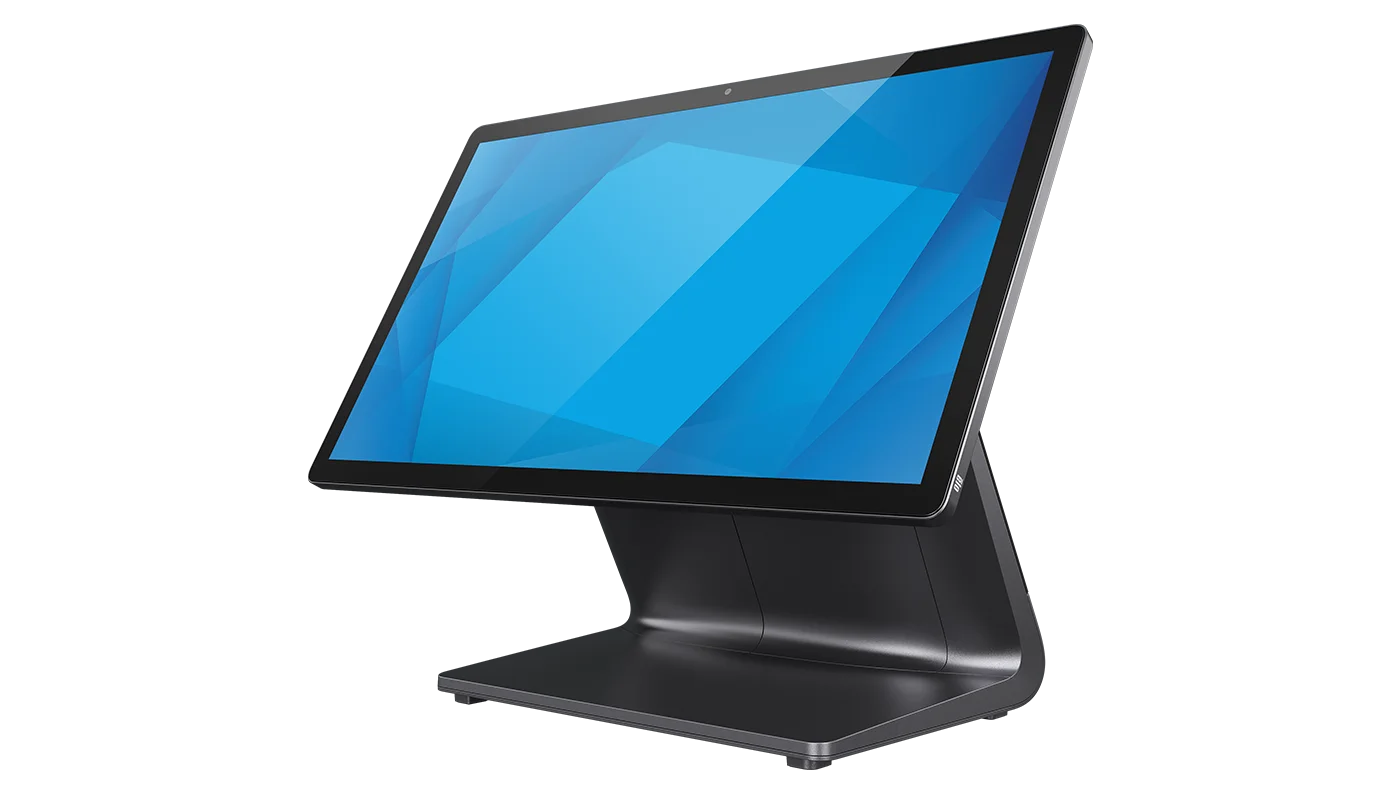

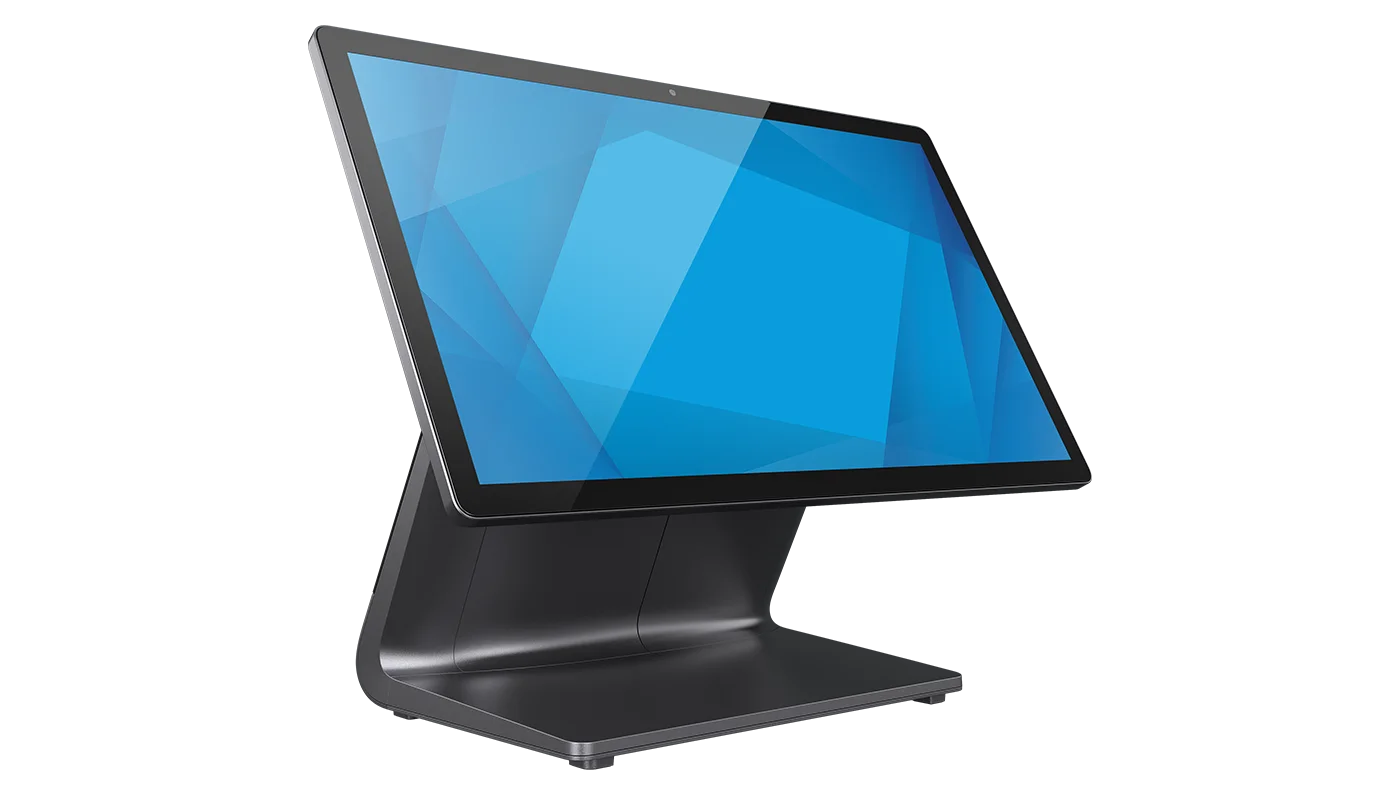

Built on Elo’s unified architecture, the EloPOS Z30 delivers a powerful point of sale system that outperforms the competition. Complete with a 15.6-inch Full HD interactive display, integrated connectivity hub, contained cable routing, optional customer-facing touchscreen display and Android 14 OS, the EloPOS Z30 brings one of the sleekest form factors to the market.
- Integrated I/O From payment devices and scanners to a cash drawer and printer, there is room for everything you need at point of sale.
- Conceal Your Cables Keep your counter clean with the integrated cable routing system.
- Single Cable Connection Connect a secondary display with a single USB‑C cable that provides touch, video and power.

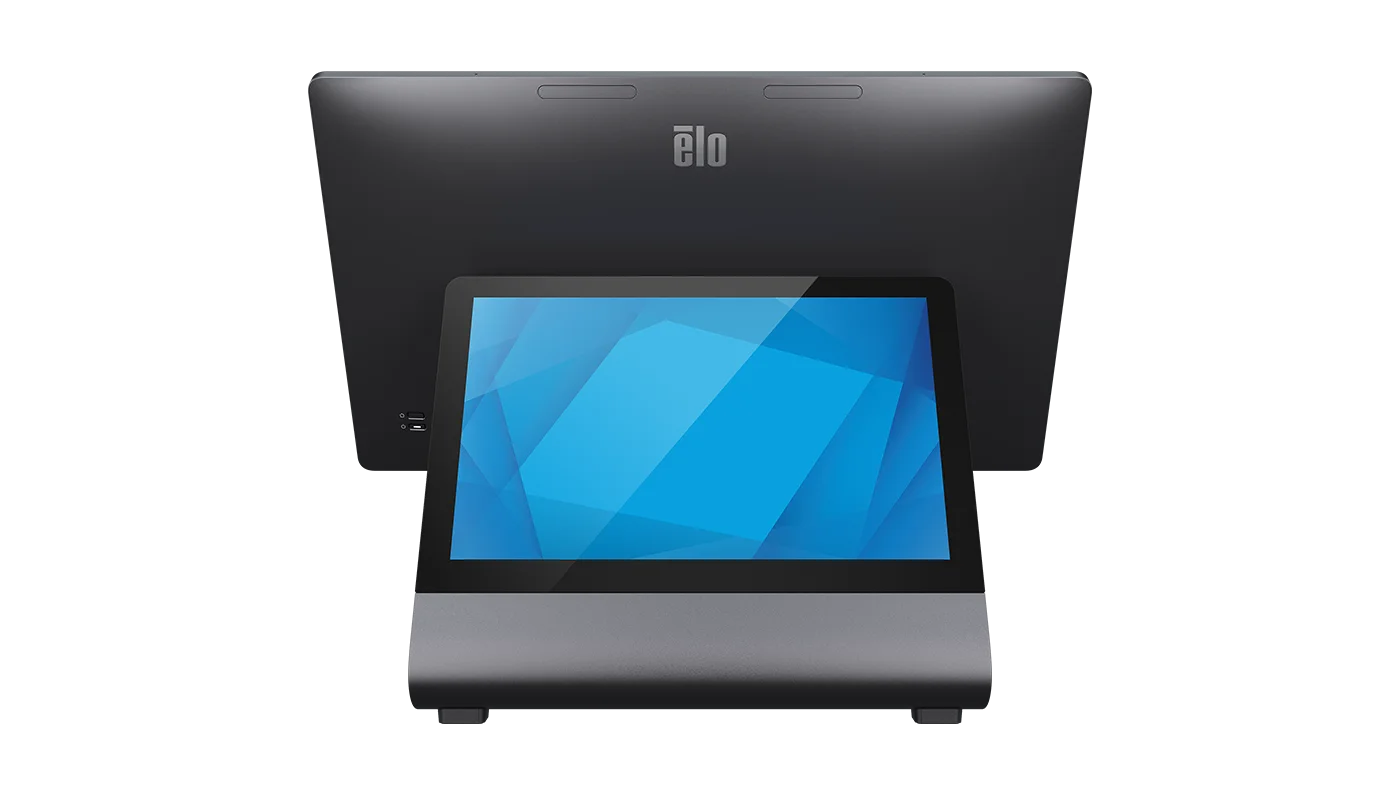

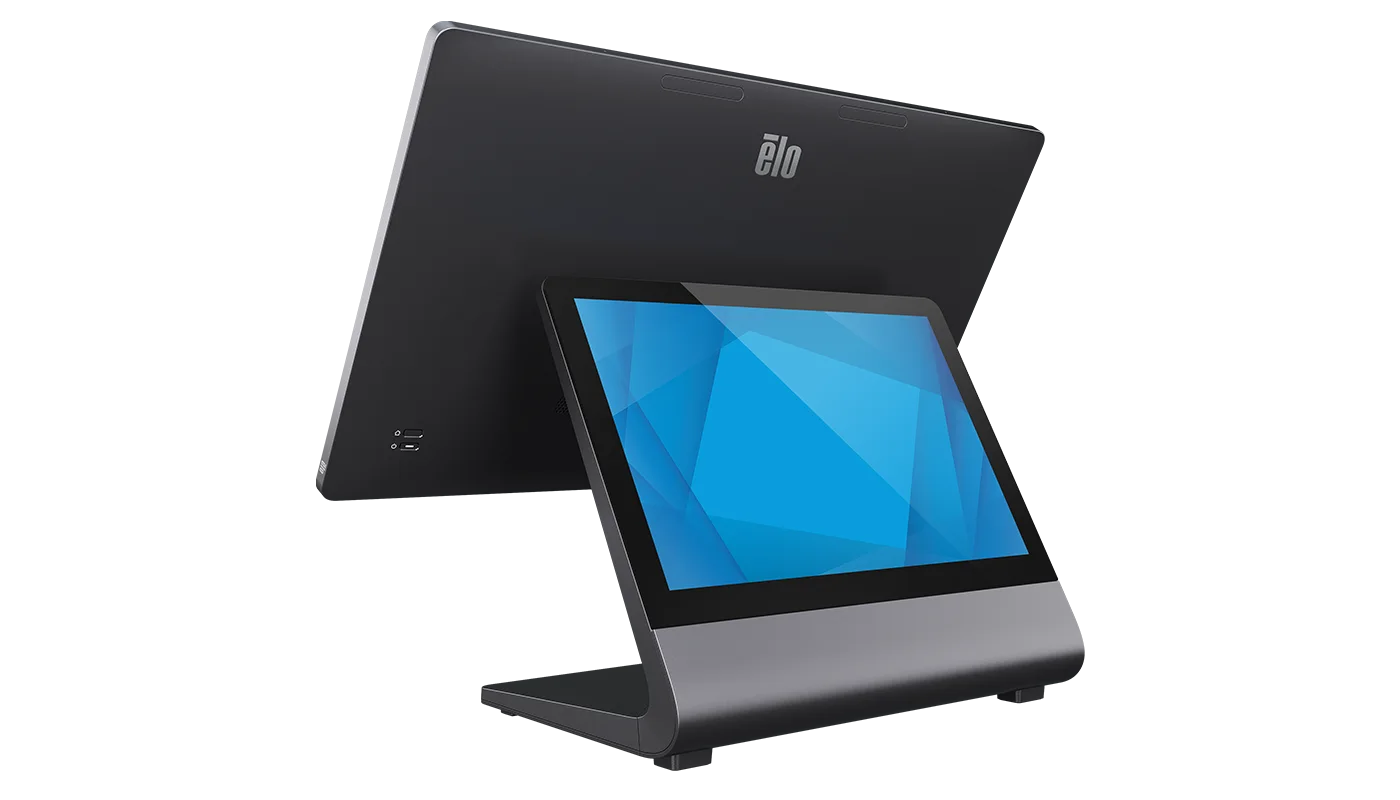

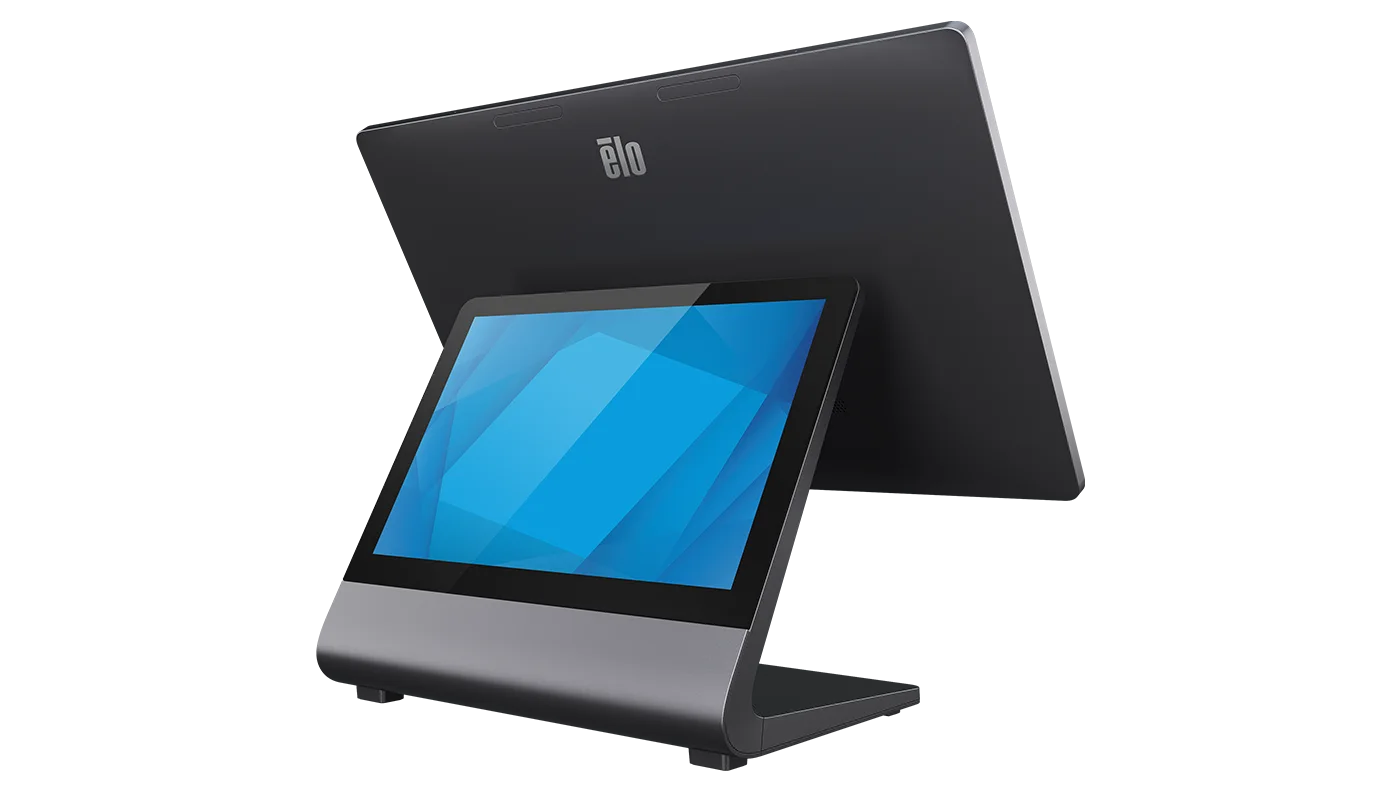

- With an integrated CFD, offer your customers a point of interaction to review transactions, participate in loyalty programs and see the latest promotions with the integrated customer-facing touchscreen display.

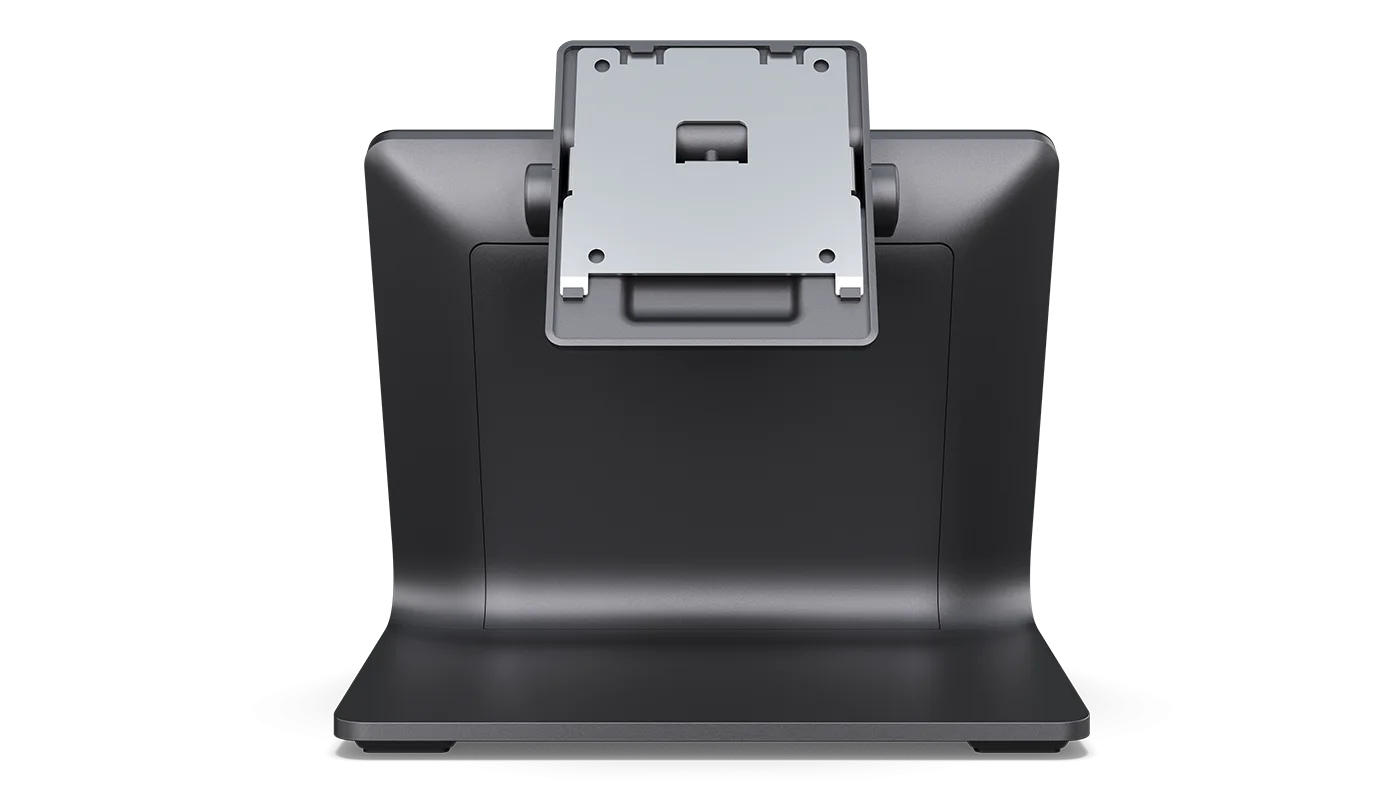

- The Z30 is designed to stay in place without being secured, but if permanent mounting is required, easily affix your POS terminal to any counter or surface.
Best for: POS Systems for Restaurants · Retail POS Systems · Android Retail POS Systems
Specifications
Technical
- Part Number(s)
- EloPOS Z30 with CFD: E543591; EloPOS Z30 without CFD: E543398
- Enclosure Color
- Dark Gray Metallic
- Touch Technology & Capacity
- PCAP (TouchPro® Projected Capacitive) - 10 Touch
- Processor
- Qualcomm Snapdragon QCS6490
- Memory (RAM)
- 8GB
- Storage
- 64GB
- OS
- Android 14 with Google Play Services and EloView content deployment and management; Planned upgrade to Android 16 and Android 18 available with OS 360 subscription
- Diagonal Size
- 15.6'' diagonal, Active matrix TFT LCD (LED)
- Aspect Ratio
- 16:9
- Active Area
- 13.55" x 7.62" / 344 mm x 194 mm
- Resolution
- 1920 x 1080 @ 60Hz
- Number of Colors
- 8-bit (16.7 million)
- Brightness (typical)
- 350 nits; TouchPro PCAP: 280 nits
- Response Time-total (typical)
- 20 ms
- Contrast Ratio
- 1000:1
- Viewing Angle
- Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
- I/O Ports
- DC Input; 4 x USB-A 3.0 (900mA); RJ45 Ethernet LAN (Gigabit); RJ12 (Serial/cash drawer)* 12/24V - User will need to select mode; Powered USB 24V; USB-C output - CFD (DisplayPort, touch and power delivery up to 27W)
- Integrated Customer-Facing Display
- Size -10.1 inch; Resolution - 1920 x 1200 @ 60 Hz; Active Display Area (H x V) - 8.53" x 5.33" / 216.58 mm x 135.36 mm; Viewing Angle - Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total; Brightness - LCD Panel: 450 nits, TouchPro PCAP: 387 nits; Number of Colors - 8-bit (16.7M); Touch Technology - TouchPro PCAP; Sealing - Touchscreen sealed to LCD; Number of Touches - 10
- Webcam
- 8MP; Max Resolution: 3264x2448 30fps; Auto Focus
- Wireless
- 802.11a/b/g/n/ac/ax + Bluetooth 5.2
- Audio Ports
- 2x built-in Digital Microphones
- Speakers
- 2x 1W
- Power Supply
- AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz
- Power Consumption (Typical)
- With CFD:; On: 18W; Off:
- Dimensions
- 14.58" x 11.72" x 7.08" / 370.3 mm x 297.8 mm x 179.8 mm
- Shipping Box Dimensions
- 18.22" x 11.22" x 17.64" / 463 mm x 285 x 448 mm
- Weight (Unpackaged)
- With CFD: 8.4 lbs / 3.84 kg; Without CFD: 7.8 lbs / 3.54 kg
- Weight (Packaged)
- With CFD: 16.2 lbs / 7.36 kg; Without CFD: 15.7 lbs / 7.12 kg
- Operating Temperature
- 0°C to 40°C / 32°F to 104°F
- Storage Temperature
- -20°C to 50°C / -4°F to 122°F
- Humidity
- Operating: 20% to 80%; Storage: 10% to 90%
- Regulatory approvals and declarations
- UL/cUL (US); FCC (US) Class B; IC (Canada); CE (Europe); CB (International); VCCI, MIC (Japan); RCM (Australia); BSMI/NCC (Taiwan); KCC (Korea); CCC/SRRC (China); United Kingdom UKCA
- Supported Countries
- Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey
- Real-Time Clock
- lithium coin cell battery
- MTBF
- 50,000 hours demonstrated
- Warranty
- 2-year
- Extended Service Options
- 3 year OS 360 - Elo P/N: E897877; 4 year OS 360 - Elo P/N: E898079; 5 year OS 360 - Elo P/N: E898282; 3 year Warranty Coverage – Elo P/N: E819394; 4 year Warranty Coverage – Elo P/N: E819598; 5 year Warranty Coverage – Elo P/N: E819795; 3 year Warranty Coverage + ADP – Elo P/N: E130329; 4 year Warranty Coverage + ADP – Elo P/N: E130530; 5 year Warranty Coverage + ADP – Elo P/N: E130719; 2 year Warranty Coverage + AUR – Elo P/N: E819985; 3 year Warranty Coverage + AUR – Elo P/N: E820186; 4 year Warranty Coverage + AUR – Elo P/N: E820388; 5 year Warranty Coverage + AUR – Elo P/N: E820582; 2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490; 3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674; 4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859; 5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053
- OS Support
- Bi-monthly Android security updates available with Elo OS 360 package.
- Sealability
- Touchscreen optically bonded to LCD
- What's in the Box
- EloPOS Z30; North American Power Cable; European Power Cable; Quick Install Guide; 150W Power Brick; 2 x Zip Ties; 1 x M4x8 mm screw in a plastic bag; Base Plate – for mounting to a countertop
- Stands, Mounts & Kits
- 0702L - Elo P/N: E796382; 1002L - Elo P/N: E155834; 1002L - Elo P/N: E324341; 1302L - Elo P/N: E683595; 1502L - Elo P/N: E125496
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
