Elo Touch EloPOS Z30 with Android (Gen 1)

Operating systemAndroid 10 with Google Play Services and EloView content deployment and management
Display15.6'' diagonal, Active matrix TFT LCD (LED)
SealingStandard Model: Touchscreen optically bonded to LCD; Value Model: Touchscreen sealed to LCD

Datasheet at Elo Touch Product page at Elo Touch

Runs Raptool apps in the Raptool Client, with access to the scanner, camera, RFID and printers, online and offline. Scanner apps

Overview

Built on Elo’s unified architecture, the EloPOS Z30 delivers a powerful point of sale system that outperforms the competition. Complete with a 15.6-inch Full HD interactive display, integrated connectivity hub, contained cable routing, optional customer-facing touchscreen display and Android 10 OS, the EloPOS Z30 brings one of the sleekest form factors to the market.

Integrated I/O From payment devices and scanners to a cash drawer and printer, there is room for everything you need at point of sale.
Conceal Your Cables Keep your counter clean with the integrated cable routing system.
Single Cable Connection Connect a secondary display with a single USB‑C cable that provides touch, video and power.

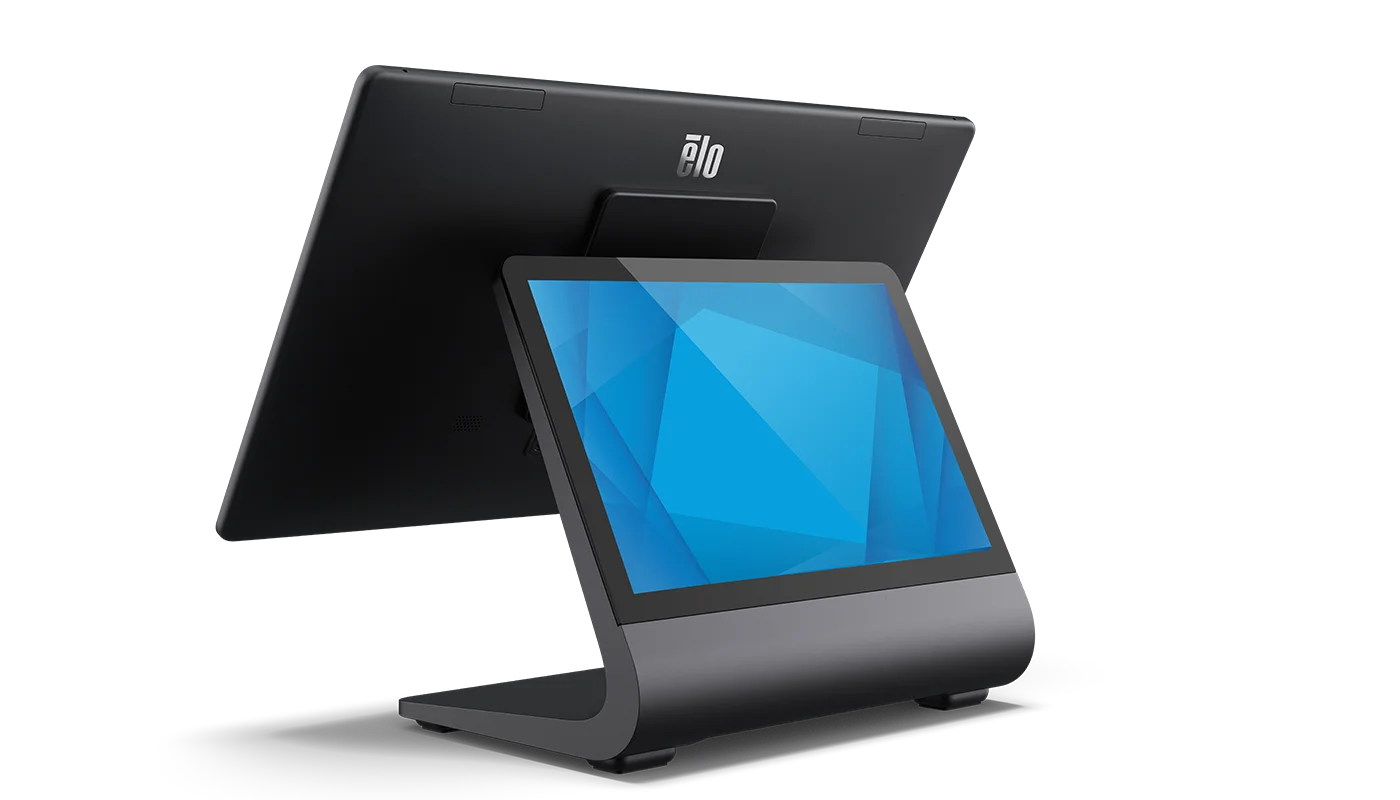

With an integrated CFD, offer your customers a point of interaction to review transactions, participate in loyalty programs and see the latest promotions with the integrated customer-facing touchscreen display.
The Z30 is designed to stay in place without being secured, but if permanent mounting is required, easily affix your POS terminal to any counter or surface.

Specifications

Technical

Part Number(s): EloPOS Z30 Standard Model with CFD: E482347; EloPOS Z30 Value Model with CFD: E482746; EloPOS Z30 Standard Model without CFD: E392186; EloPOS Z30 Value Model without CFD: E392977
Enclosure Color: Dark Gray Metallic
Touch Technology & Capacity: PCAP (TouchPro® Projected Capacitive) - 10 Touch
Processor: Standard Model: Qualcomm Snapdragon SDA660; Value Model: Rockchip RK3399
Memory (RAM): 4GB
Storage: Standard Model: 64GB; Value Model: 32GB
OS: Android 10 with Google Play Services and EloView content deployment and management
Diagonal Size: 15.6'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 16:9
Active Area: 13.55" x 7.62" / 344 mm x 194 mm
Resolution: 1920 x 1080 @ 60Hz
Number of Colors: 8-bit (16.7 million)
Brightness (typical): Standard Model:; LCD Panel: 350 nits; TouchPro PCAP: 280 nits; Value Model:; LCD Panel: 350 nits; TouchPro PCAP: 280 nits
Response Time-total (typical): 20 ms
Contrast Ratio: 1000:1
Viewing Angle: Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
I/O Ports: DC Input; 4 x USB-A 3.0 (900mA); RJ45 Ethernet LAN (Gigabit); RJ12 (Serial/cash drawer)* 12/24V - User will need to select mode; Powered USB 24V; USB-C output - CFD (DisplayPort, touch and power delivery up to 27W)
Integrated Customer-Facing Display: Size -10.1 inch; Resolution - 1280 x 800 @ 60 Hz; Active Display Area (H x V) - 8.7" x 5.3" / 216.96 mm x 135.6 mm; Viewing Angle - Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total; Brightness - LCD Panel: 400 nits, TouchPro PCAP: 344 nits; Number of Colors - 8-bit (16.7M); Touch Technology - TouchPro PCAP; Sealing - Touchscreen sealed to LCD; Number of Touches - 10
Webcam: 5MP; Max Resolution: 1920x1080 30fps; Auto Focus
Wireless: 802.11a/b/g/n/ac + Bluetooth 5.0
Audio Ports: Standard Model: 2x built-in Digital Microphones; Value Model: 1x built-in Analog Microphone
Speakers: Standard Model: 2x 0.7W; Value Model: 2x 1W
Power Supply: AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz
Power Consumption (Typical): Standard Model wIth CFD:; On: 18W; Off:
Dimensions: 11.6" x 7.4" x 14.6" / 294 mm x 188 mm x 371 mm
Shipping Box Dimensions: 18.22" x 11.22" x 17.64" / 463 mm x 285 x 448 mm
Weight (Unpackaged): 9.6 lbs / 4.4 kg
Weight (Packaged): 17.1 lbs / 7.75 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
Storage Temperature: -20°C to 50°C / -4°F to 122°F
Humidity: Operating: 20% to 80%; Storage: 5% to 95%
Regulatory approvals and declarations: UL/cUL (US); FCC (US) Class B (CFD Version is Class A only); IC (Canada); CE (Europe); CB (International); VCCI, MIC (Japan); RCM (Australia)
Supported Countries: Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey
Real-Time Clock: lithium coin cell battery
MTBF: 50,000 hours demonstrated
Mounting Options: VESA 75mm
Warranty: 2-year
Extended Service Options: 3 year OS 360 - Elo P/N: E873133; 3 year Warranty Coverage – Elo P/N: E819394; 4 year Warranty Coverage – Elo P/N: E819598; 5 year Warranty Coverage – Elo P/N: E819795; 3 year Warranty Coverage + ADP – Elo P/N: E130329; 4 year Warranty Coverage + ADP – Elo P/N: E130530; 5 year Warranty Coverage + ADP – Elo P/N: E130719; 2 year Warranty Coverage + AUR – Elo P/N: E819985; 3 year Warranty Coverage + AUR – Elo P/N: E820186; 4 year Warranty Coverage + AUR – Elo P/N: E820388; 5 year Warranty Coverage + AUR – Elo P/N: E820582; 2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490; 3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674; 4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859; 5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053
OS Support: Monthly Android security updates available with Elo OS 360 package.
Sealability: Standard Model: Touchscreen optically bonded to LCD; Value Model: Touchscreen sealed to LCD
What's in the Box: EloPOS Z30; North American Power Cable; European Power Cable; Quick Install Guide; 150W Power Brick; 2 x Zip Ties; 1 x M4x8 mm screw in a plastic bag; 1 x M3x6 mm screw in a plastic bag; Base Plate – for mounting to a countertop
Stands, Mounts & Kits: 0702L - Elo P/N: E796382; 1002L - Elo P/N: E155834; 1002L - Elo P/N: E324341; 1302L - Elo P/N: E683595; 1502L - Elo P/N: E125496

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
