Elo Touch Elo Pay Z30 'Tap to Pay'
Experience enterprise-grade performance with the Elo Pay Z30 point-of-sale terminal. Powered by Android 14 and the Qualcomm 6490 processor, the Z30 combines merchant- and customer-facing displays and
- Operating systemAndroid 14 with Google Play Services and EloView content deployment and management; Planned upgrade to…
- Display15.6'' diagonal, Active matrix TFT LCD (LED)
- SealingTouchscreen optically bonded to LCD
Datasheet at Elo Touch Product page at Elo Touch
Runs Raptool apps in the Raptool Client, with access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Overview
Experience enterprise-grade performance with the Elo Pay Z30 point-of-sale terminal. Powered by Android 14 and the Qualcomm 6490 processor, the Z30 combines merchant- and customer-facing displays and integrated NFC for fast, secure, contactless payments.
- The Elo Pay Z30 offers two fully integrated 10-touch TouchPro PCAP displays including a 15.6" Full HD merchant-facing display and a 10.1" customer-facing display.
- Integrated I/O From payment devices and scanners to a cash drawer and printer, there is room for everything you need at point of sale.
- Conceal Your Cables Keep your counter clean with the integrated cable routing system.
- Single Cable Connection Connect a secondary display with a single USB-C cable that provides touch, video and power.
- The Elo Pay Z30 is designed to stay in place without being secured, but if permanent mounting is required, easily affix your POS terminal to any counter or surface.
Best for: POS Systems for Restaurants · Retail POS Systems · Elo Pay Retail POS Systems · Android Retail POS Systems
Specifications
Technical
- Part Number(s)
- E769124
- Enclosure Color
- Dark Gray Metallic
- Touch Technology & Capacity
- PCAP (TouchPro® Projected Capacitive) - 10 Touch
- Processor
- Qualcomm Snapdragon QCS6490
- Memory (RAM)
- 8GB
- Storage
- 64GB
- OS
- Android 14 with Google Play Services and EloView content deployment and management; Planned upgrade to Android 16 and Android 18 available with OS 360 subscription
- Diagonal Size
- 15.6'' diagonal, Active matrix TFT LCD (LED)
- Aspect Ratio
- 16:9
- Active Area
- 13.55" x 7.62" / 344 mm x 194 mm
- Resolution
- 1920 x 1080 @ 60Hz
- Number of Colors
- 8-bit (16.7 million)
- Brightness (typical)
- 350 nits; TouchPro PCAP: 280 nits
- Response Time-total (typical)
- 20 ms
- Contrast Ratio
- 1000:1
- Viewing Angle
- Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
- I/O Ports
- DC Input; 4 x USB-A 3.0 (900mA); RJ45 Ethernet LAN (Gigabit); RJ12 (Serial/cash drawer)* 12/24V - User will need to select mode; Powered USB 24V; USB-C output - CFD (DisplayPort, touch and power delivery up to 27W)

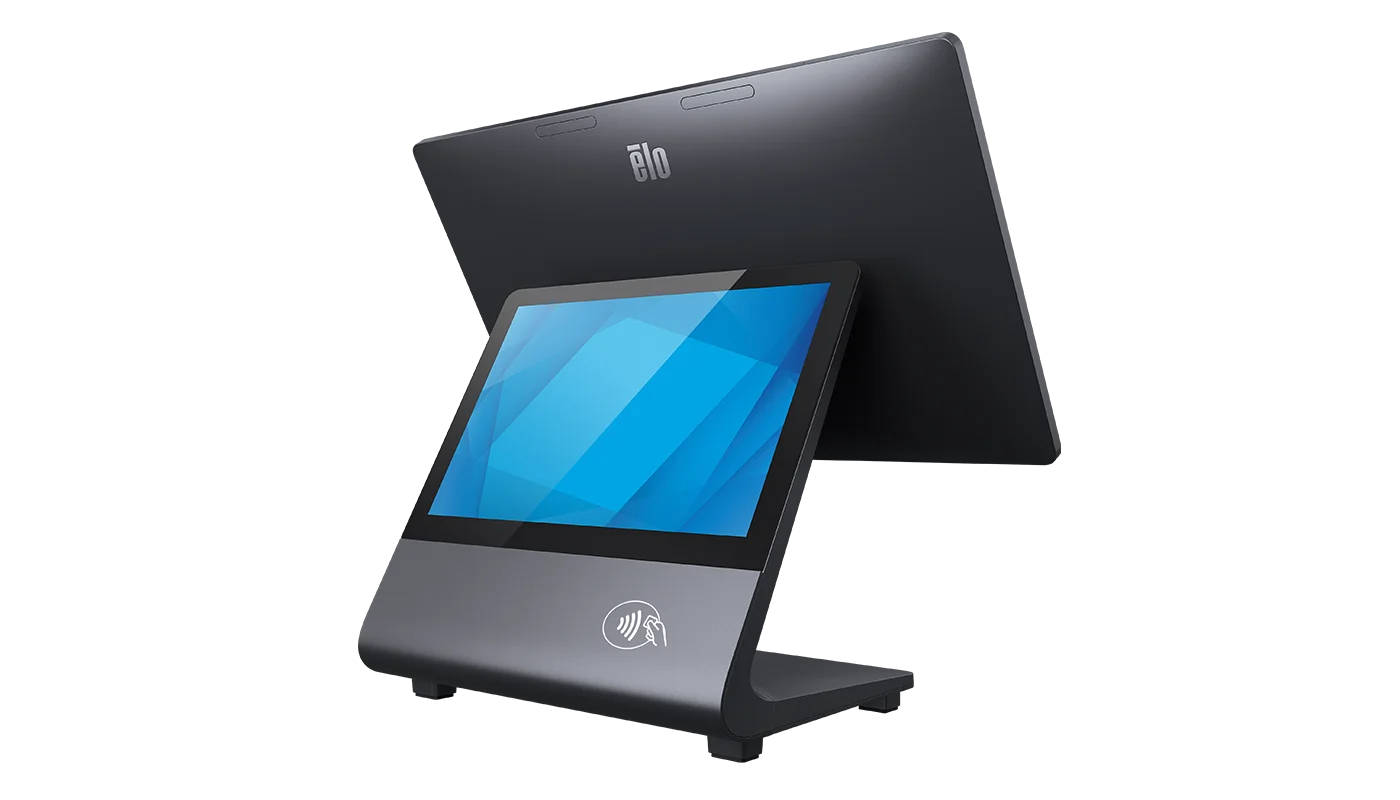

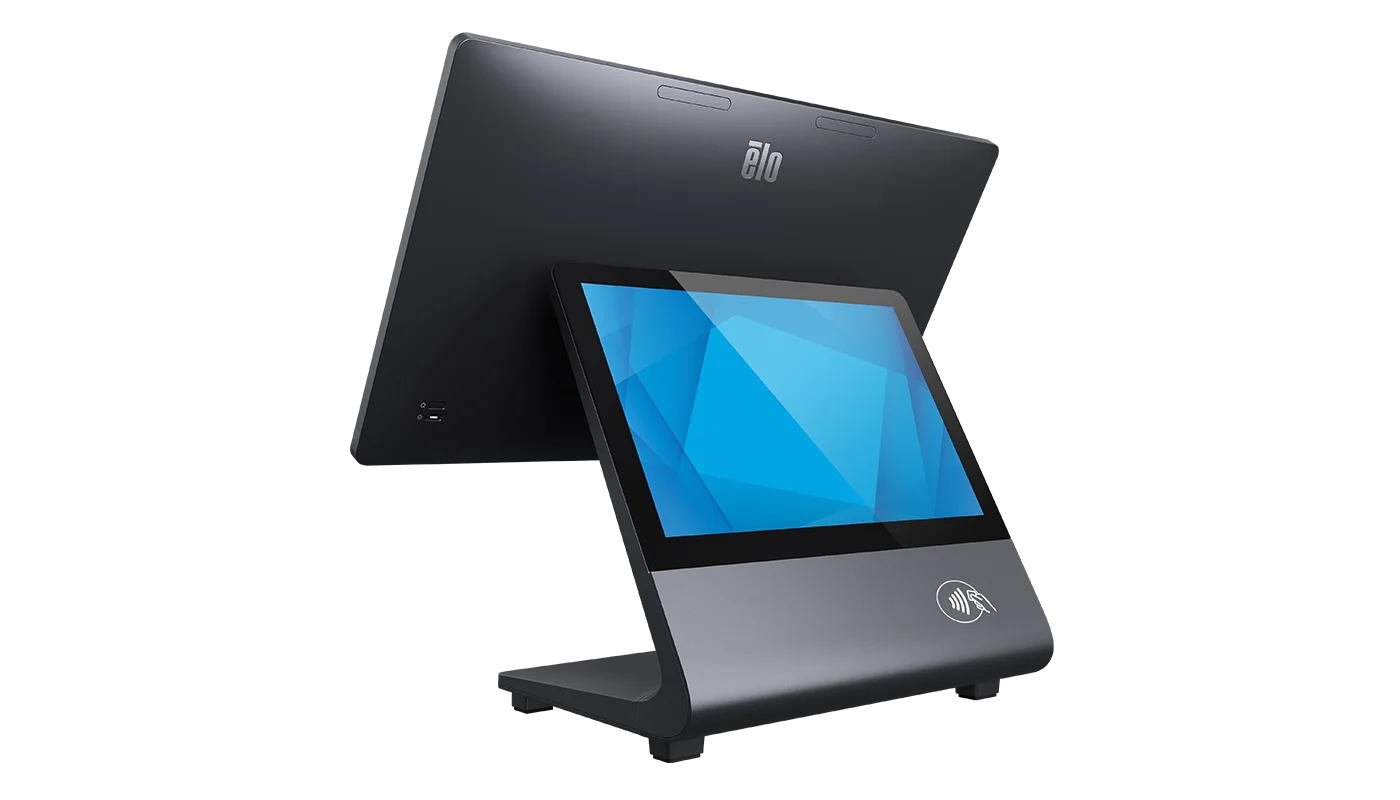

- Integrated Customer-Facing Display
- Size -10.1 inch; Resolution - 1920 x 1200 @ 60 Hz; Active Display Area (H x V) - 8.53" x 5.33" / 216.58 mm x 135.36 mm; Viewing Angle - Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total; Brightness - LCD Panel: 450 nits, TouchPro PCAP: 387 nits; Number of Colors - 8-bit (16.7M); Touch Technology - TouchPro PCAP; Sealing - Touchscreen sealed to LCD; Number of Touches - 10
- NFC
- Front facing NFC antenna; Programmable rear-lit LED illuminates NFC contactless logo (red, green and white); Fully SoftPOS compatible
- Webcam
- 8MP; Max Resolution: 3264x2448 30fps; Auto Focus
- Wireless
- 802.11a/b/g/n/ac/ax + Bluetooth 5.2
- Audio Ports
- 2x built-in Digital Microphones
- Speakers
- 2x 1W
- Power Supply
- AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz
- Power Consumption (Typical)
- On: 18W; Off:
- Dimensions
- 14.58" x 12.80" x 7.63" / 370.3 mm x 325.2 mm x 193.9 mm
- Shipping Box Dimensions
- 19.41" x 15.08" x 13.19" / 493 mm x 383 mm x 335 mm
- Weight (Unpackaged)
- 9.1 lbs / 4.14 kg
- Weight (Packaged)
- 17.2 lbs / 7.84 kg
- Operating Temperature
- 0°C to 40°C / 32°F to 104°F
- Storage Temperature
- -20°C to 50°C / -4°F to 122°F
- Humidity
- Operating: 20% to 80%; Storage: 10% to 90%
- Regulatory approvals and declarations
- UL/cUL (US); FCC (US) Class B; IC (Canada); CE (Europe); CB (International); VCCI, MIC (Japan); RCM (Australia); BSMI/NCC (Taiwan); KCC (Korea); CCC/SRRC (China); United Kingdom UKCA
- Supported Countries
- Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey
- Real-Time Clock
- lithium coin cell battery
- MTBF
- 50,000 hours demonstrated
- Warranty
- 2-year
- Extended Service Options
- 3 year OS 360 - Elo P/N: E897877; 4 year OS 360 - Elo P/N: E898079; 5 year OS 360 - Elo P/N: E898282; 3 year Warranty Coverage – Elo P/N: E819394; 4 year Warranty Coverage – Elo P/N: E819598; 5 year Warranty Coverage – Elo P/N: E819795; 3 year Warranty Coverage + ADP – Elo P/N: E130329; 4 year Warranty Coverage + ADP – Elo P/N: E130530; 5 year Warranty Coverage + ADP – Elo P/N: E130719; 2 year Warranty Coverage + AUR – Elo P/N: E819985; 3 year Warranty Coverage + AUR – Elo P/N: E820186; 4 year Warranty Coverage + AUR – Elo P/N: E820388; 5 year Warranty Coverage + AUR – Elo P/N: E820582; 2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490; 3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674; 4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859; 5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053
- OS Support
- Bi-monthly Android security updates available with Elo OS 360 package.
- Sealability
- Touchscreen optically bonded to LCD
- What's in the Box
- Elo Pay Z30; North American Power Cable; European Power Cable; Quick Install Guide; 150W Power Brick; 2 x Zip Ties; 1 x M4x8 mm screw in a plastic bag; Base Plate – for mounting to a countertop
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
