Elo Touch · Accessory

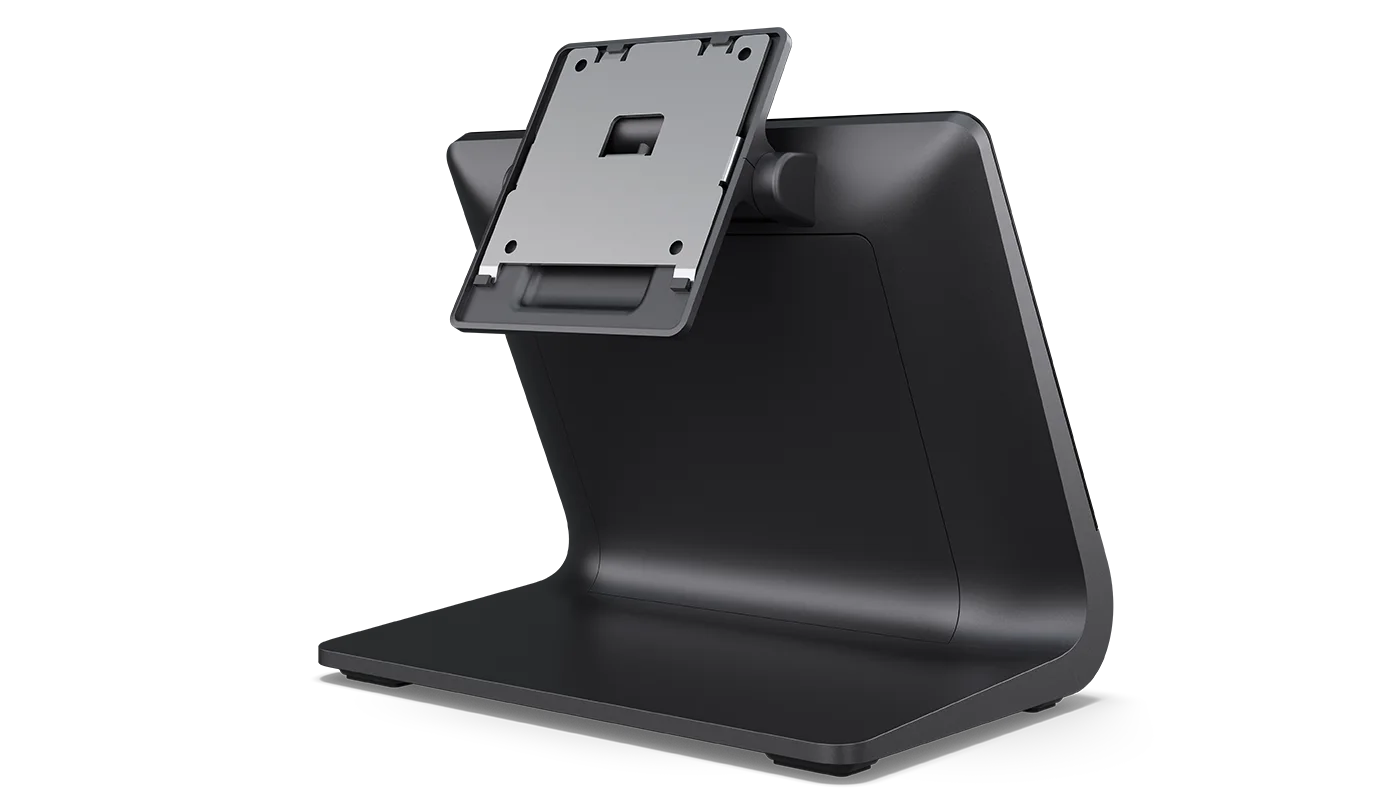

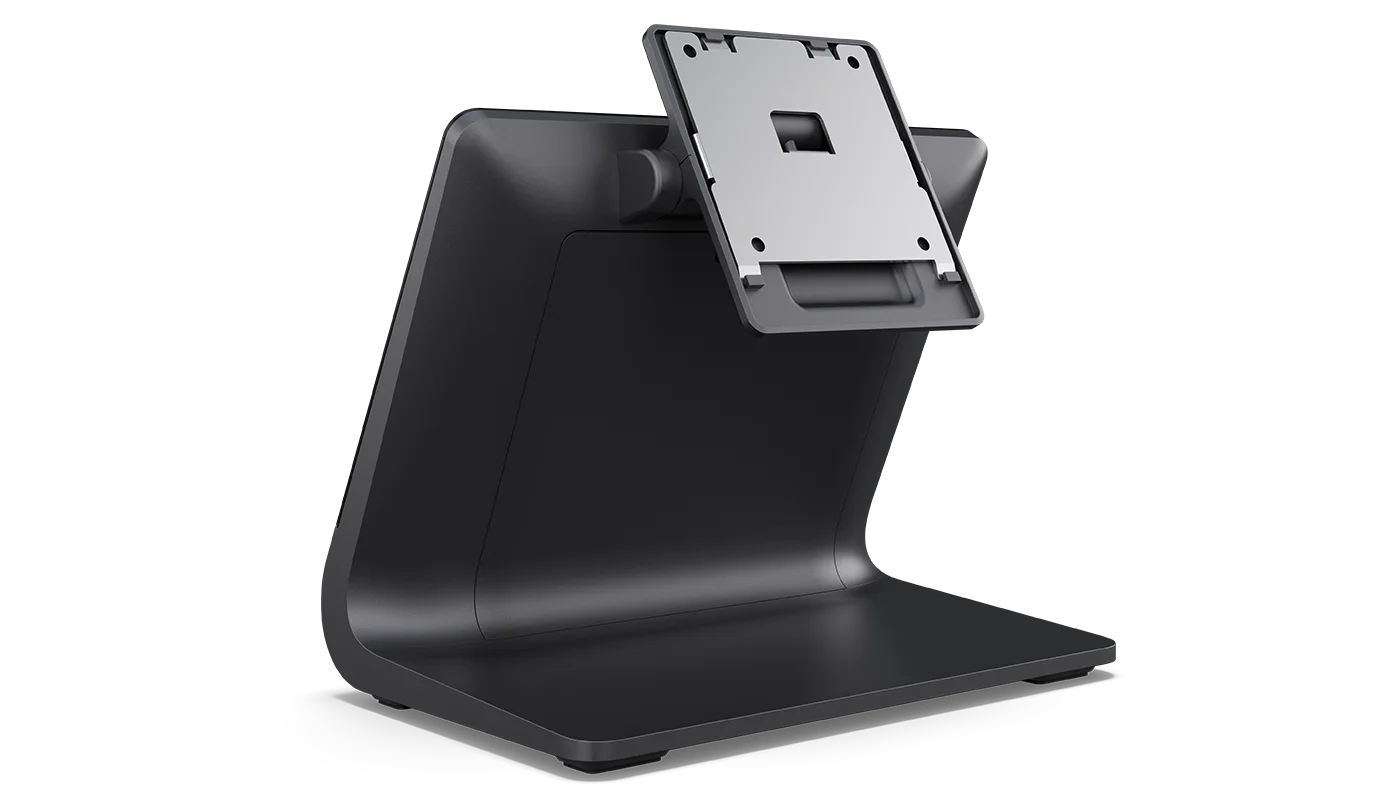

Elo Touch Z30 POS Stand (Gen 1)

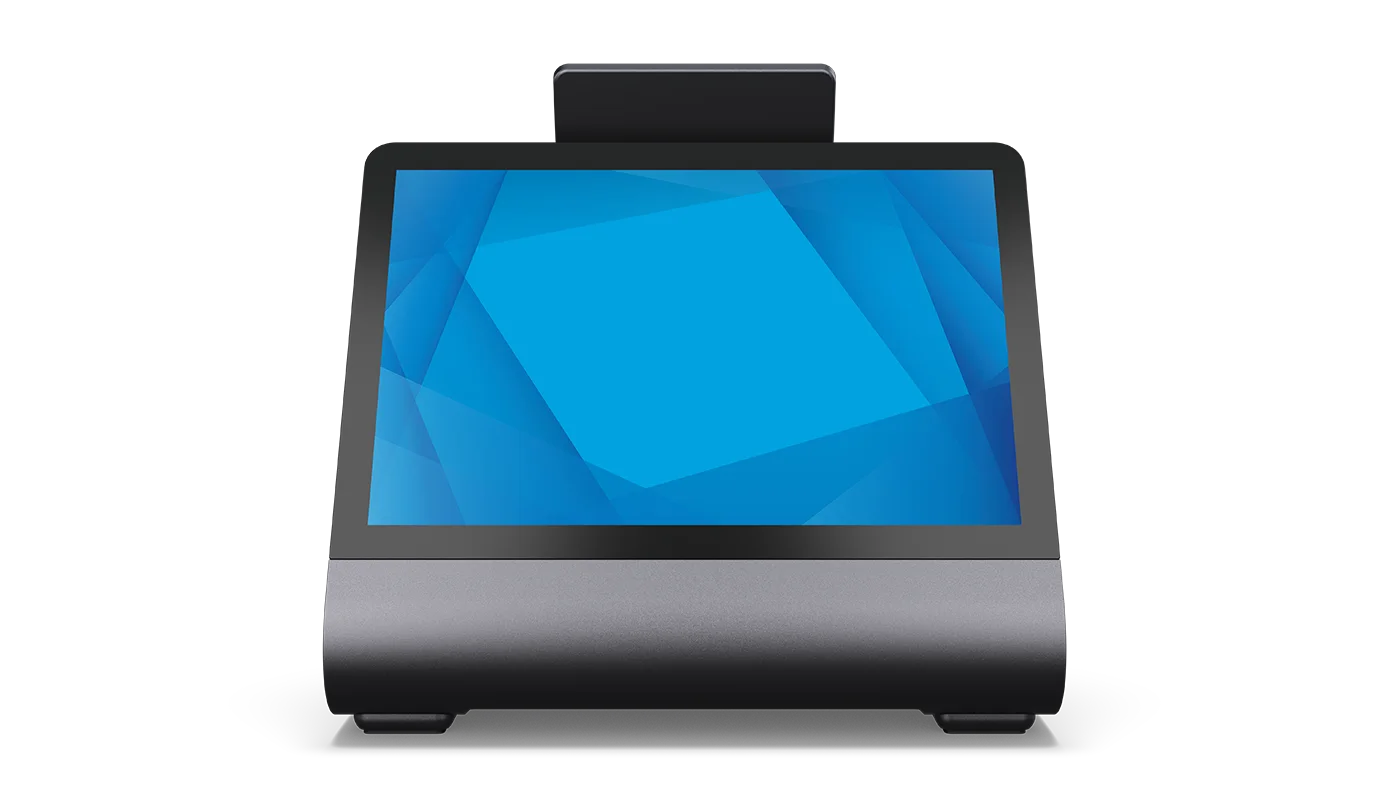

Complete with a built-in customer-facing touchscreen display, integrated connectivity hub and concealed cable routing, the Z30 delivers a beautifully robust point-of-sale stand.
Overview
Complete with a built-in customer-facing touchscreen display, integrated connectivity hub and concealed cable routing, the Z30 delivers a beautifully robust point-of-sale stand.
- Integrated I/O From payment devices and scanners to a cash drawer and printer, there is room for everything you need at point of sale.
- Conceal Your Cables Keep your counter clean with the integrated cable routing system.
- Single Cable Connection Connect a secondary display with a single USB‑C cable that provides touch, video and power.
- From integrated I/O and a customer-facing display to concealed cable routing, Elo’s modular point of sale solutions can be tailored to fit any business.
- I/O EloPOS Z10 EloPOS Z20 EloPOS Z30 Ethernet 4x USB-A 3.0 Cash Drawer Port 24V powered USB USB-C Edge Connect Ports ** Main Display I-Series 4 I-Series 4 Slate Secondary Display Integrated Mount for CFD *RJ12 (serial/cash drawer) **On I‑Series 4
Specifications
Technical
- Part Number(s)
- E483135 - Z30 POS Stand without CFD; E482940 - Z30 POS Stand with CFD
- Enclosure Color
- Dark Gray Metallic
- Compatibility
- Main Display:; 15" I-Series 4 Slate; Customer-facing Display (for use with E483135):; 0702L – Elo P/N: E796382; 1002L – Elo P/N: E155834 and E324341; 1302L – Elo P/N: E683595 and E683787; 1502L – Elo P/N: E125496
- Display Head Connection
- USB-C
- I/O Ports
- DC Input; 4 x USB-A 3.0 (900mA); RJ45 Ethernet LAN (Gigabit); RJ12 (Serial/cash drawer)* 12/24V; Powered USB 24V; USB-C output - CFD (DisplayPort, Touch & Power Delivery up to 27W); *User will need to select mode
- Power
- AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz
- Power Consumption (Typical)
- On:; No CFD Model: 3.5W; With CFD Model: 8.32W; Off:
- Real-Time Clock
- lithium coin cell battery
- Mounting Options
- VESA 75 mm

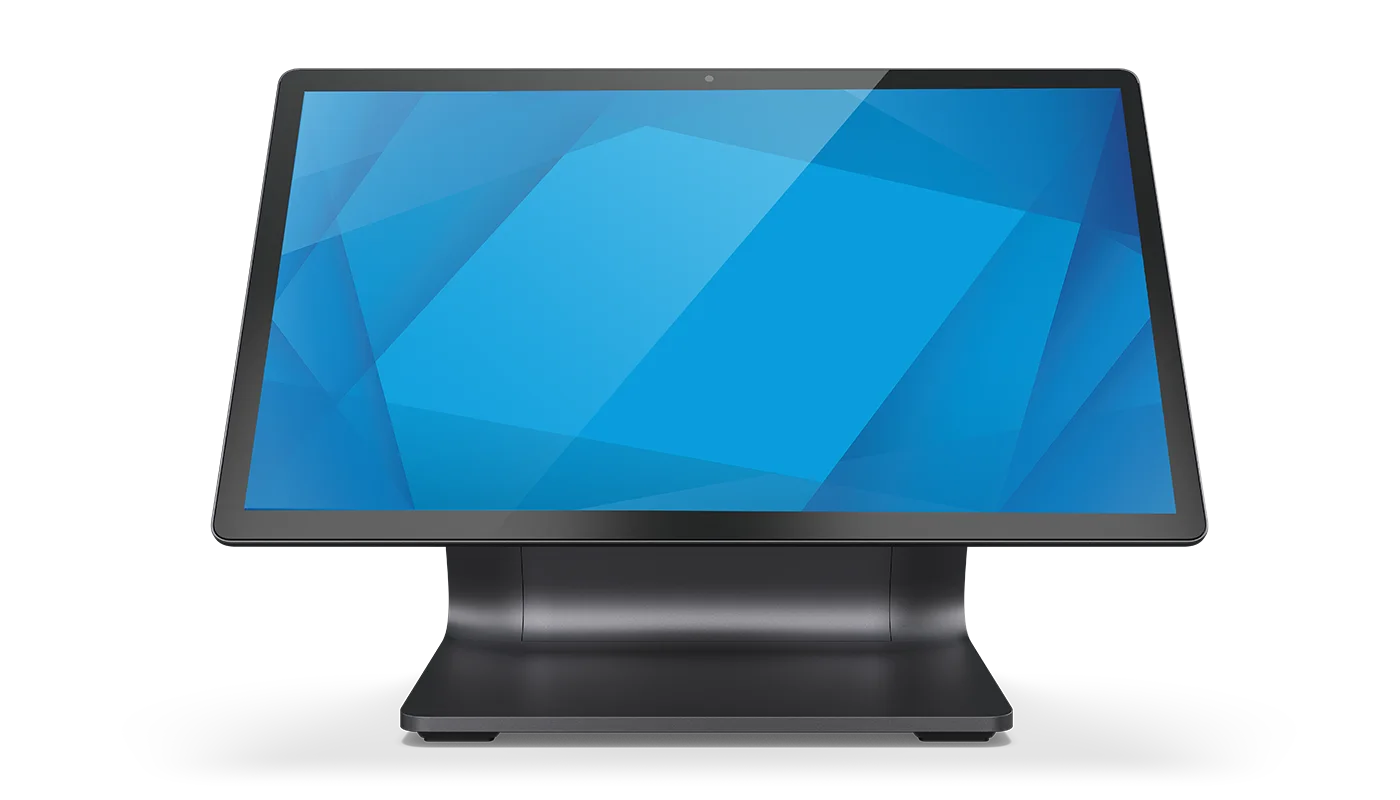

- Integrated Customer-Facing Display
- Size -10.1 inch; Resolution - 1280x800 @ 60 Hz; Active Display Area (H x V) - 8.7” x 5.3” / 216.96 mm x 135.6 mm; Viewing Angle - Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total; Brightness - LCD Panel: 400 nits, TouchPro PCAP 344 nits; Number of Colors - 8-bit (16.7M); Touch Technology - TouchPro PCAP; Sealing - Touchscreen sealed to LCD; Number of Touches - 10
- Weight (Unpackaged)
- 5.7 lbs / 2.6 kg
- Weight (Packaged)
- 10.8 lbs / 4.9 kg
- Dimensions
- 6.34" x 9.55" x 7.99" / 162 mm x 242.6 mm x 203 mm
- Shipping Box Dimensions
- 11.65" x 11.42" x 12.6" / 296 mm x 290 mm x 320 mm
- Operating Temperature
- 0° C to 40° C / 32° F to 104° F
- Storage Temperature
- -20° C to 50° C / -4° F to 122° F
- Humidity
- Operating: 20% - 80% / Storage: 5% - 95%
- MTBF
- 50,000 hours demonstrated
- Warranty
- 2-year
- Extended Service Options
- 3 year warranty coverage - Elo P/N: E375367; 4 year warranty coverage - Elo P/N: E375573; 5 year warranty coverage - Elo P/N: E375771; 2 year warranty coverage + AUR - Elo P/N: E375970; 3 year warranty coverage + AUR - Elo P/N: E376169; 4 year warranty coverage + AUR - Elo P/N: E376362; 5 year warranty coverage + AUR - Elo P/N: E376547
- Regulatory approvals and declarations
- FCC (US) Class B (With CFD Model is Class A only); IC (Canada); CE (Europe); VCCI (Japan); RCM (Australia)
- What's in the Box
- Z30 POS Stand; North American Power Cable; European Power Cable; Quick Install Guide; 150W Power Brick; 2 x Zip Ties; 4 x M4x6 mm screws in a plastic bag; 1 x M4x8 mm screw in a plastic bag; 1 x M3x6 mm screw in a plastic bag; Base Plate – for mounting to a countertop
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
