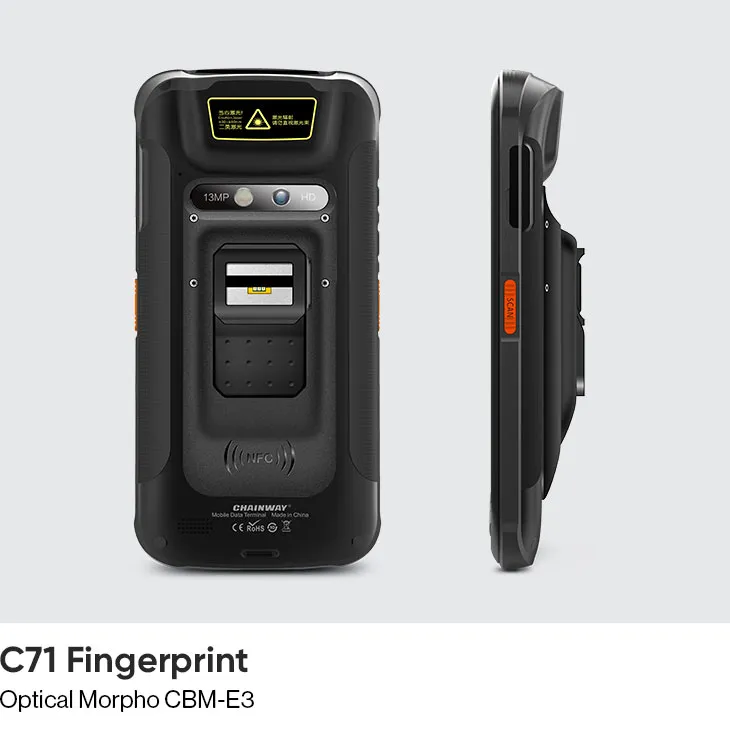

Chainway C71 Optical Fingerprint Scanner
Chainway C71 is an Android rugged mobile computer. It is improved to enable optical fingerprint sensor CBM-E3. C71 is revolutionized to be FIPS 201 compliant, and enable secure data encryption and fake finger detection.
- Operating systemAndroid 11 / 13; GMS, FOTA, Soti MobiControl, SafeUEM supported.
- Display5.2'' IPS LTPS 1920x1080P
- Scanning1D Linear Scanner Honeywell N4313
- SealingIP65 dependent
- DropMultiple 1.5 m / 4.92 ft drops to the concrete across the operating temperature range
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- Android 11 / 13; GMS, FOTA, Soti MobiControl, SafeUEM supported.
- Processor
- Octa-core 2.3GHz
- RAM / storage options
- 4GB + 128GB 4GB + 64GB (optional)
Display
- Display size
- 5.2'' IPS LTPS 1920x1080P
- Touch panel
- Corning Gorilla Glass 3, multi-touch panel, gloves and wet hands supported
- Keyboard / keys
- 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
Data capture
- Scan engines / capture options
- 1D Linear Scanner Honeywell N4313
- NFC
- Frequency 13.56MHz
- Cameras
- 13MP autofocus rear camera with flash Facial Recognition lSO19794-5 Compatible Camera 13MP autofocus camera with flash
Power
- Charging / power
- Main battery: Li-ion, rechargeable, 5000mAh Standby: over 350 hours Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable) Main battery: Li-ion, rechargeable, 5000 mAh
Connectivity
- Wi-Fi / WLAN
- IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
- Cellular / WWAN
- 2G: GSM850/GSM900/DCS1800/PCS1900 3G: WCDMA：B1/B2/B4/B5/B8        CDMA2000 EVDO: BC0        TD-SCDMA：A/F 4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A        B28B/B34/B38/B39/B40/B41 2G: GSM850/GSM900/DCS1800/PCS1900
- Bluetooth
- Bluetooth 5.0
- Location / GPS
- GPS/AGPS, GLONASS, BeiDou; internal antenna
- Ports / interfaces
- USB 2.0 Type-C, OTG, Type-C headphones supported
Rugged
- IP / sealing
- IP65 dependent
- Drop specification
- Multiple 1.5 m / 4.92 ft drops to the concrete across the operating temperature range
- Tumble specification
- 1000 x 0.5 m / 1.64 ft falls at room temperature
- Operating temperature
- 4°F to 122°F / -20°C to 50°C
- Storage temperature
- -40°F to 158°F / -40°C to 70°C
- Humidity
- 5%RH - 95%RH non condensing
Size
- Weight
- ＜314g/11.08oz
- Dimensions
- 164.2*78.8*17.5mm/6.46*3.10*0.69in; ( the thickest: 31.5mm/1.24in)
