Chainway · Fingerprint scanner

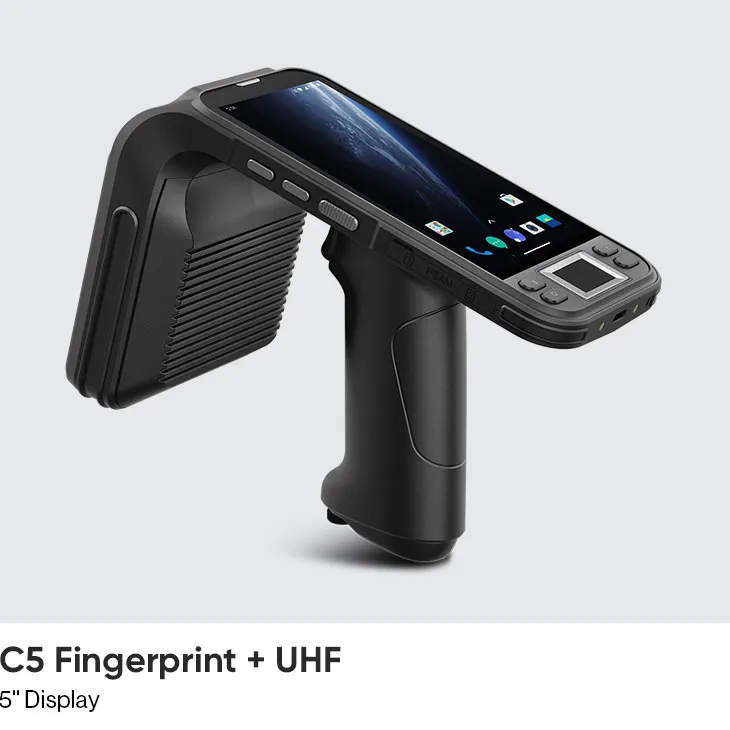

Chainway C5 Fingerprint Scanner

A rugged fingerprint scanner and UHF RFID reader running Android 11 / 13, the C5 features an octa-core 2.3GHz processor, precise fingerprint recognition, dual PSAM card slots, and Impinj Gen2X support. It delivers a 1300+tags/s read rate and a range of over 30m, with barcode scanning, NFC, and a removable battery.

Operating systemAndroid 11/13
Display5-inch (Fingerprint) 1280 x 720
Battery7000mAh / 13400mAh removable pistol battery
SealingIP65 per IEC sealing specifications
DropMultiple 1.5m / 4.9ft. drops to the concrete across the operating temperature range

Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps

Videos

Chainway C5 Fingerprint Scanner

Specifications

Platform

Operating system: Android 11/13
Processor: Octa-core, 2.3GHz
RAM / storage options: 4GB + 128GB 4GB + 64GB (optional)

Display

Display size: 5-inch (Fingerprint) 1280 x 720
Touch panel: Multi-touch panel, gloves and wet hands supported; Corning Gorilla Glass
Keyboard / keys: 1 power key, 2 scan keys, 1 user-defined key, 2 volume keys (+/-)

Data capture

Cameras: 5MP Rear 13MP Autofocus with flash Front camera 5MP

Power

Battery / runtime: 7000mAh / 13400mAh removable pistol battery
Charging / power: 7000mAh / 13400mAh removable pistol battery Built in 100mAh backup battery, supporting battery hot swap

Connectivity

Wi-Fi / WLAN: 802.11 a / b / g / n / ac, 2.4G / 5G dual-band
Cellular / WWAN: 2G: GSM (B2 / B3 / B5 / B8) 3G: WCDMA (B1 / B2 / B4 / B5 / B8) &nbspCDMA2000 ECDO: BC0 4G: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B17 / B20 / B28A / B28B / B38 / B39 / B40 / B41 2G: GSM (B2 / B3 / B5 / B8)
Bluetooth: 5.0
Location / GPS: GPS / AGPS, GLONASS, BeiDou, Galileo
Ports / interfaces: USB 2.0 Type-C, OTG, Type-C headphones supported

Rugged

IP / sealing: IP65 per IEC sealing specifications
Drop specification: Multiple 1.5m / 4.9ft. drops to the concrete across the operating temperature range
Tumble specification: 1000 x 0.5m / 1.64 ft. falls at room temperature Specification 1000 x 0.5m / 1.64 ft. falls at room temperature
Operating temperature: -20 °C to 50 °C / 4 °F to 122 °F
Storage temperature: -40 °C to 70 °C / -40 °F to 158 °F
Humidity: 5% RH - 95% RH (non condensing)

Size

Weight: 626g / 22.08oz. (device with battery)
Dimensions: 178.8 x 96.5 x 128.4mm / 7.03 x 3.80 x 5.06in
