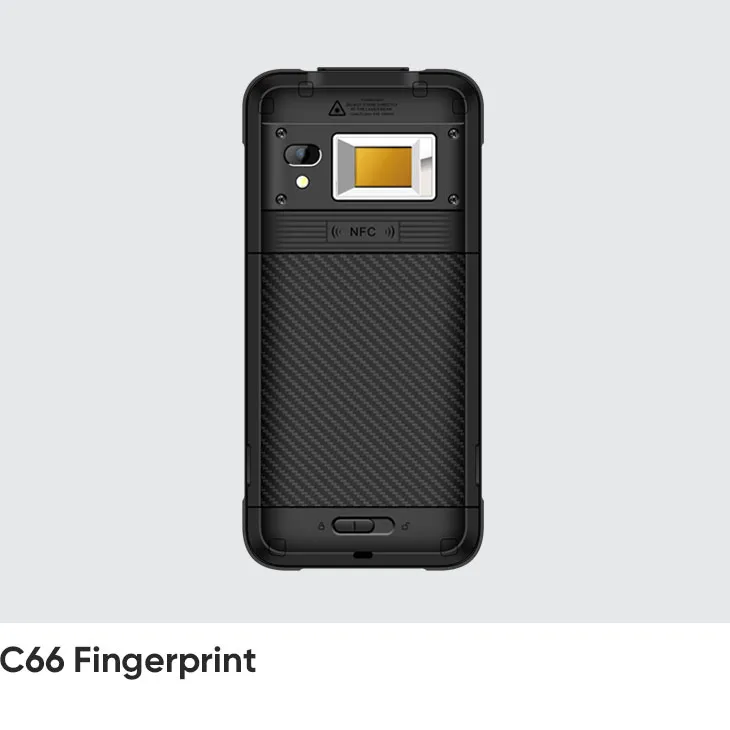

Chainway C66 Fingerprint Scanner

A biometric handheld terminal running Android 11 / 13, the C66 features precise fingerprint identification and face recognition. It also offers a Qualcomm octa-core 2.0GHz processor, a 5.5-inch HD display, Wi-Fi 6-ready connectivity, optional barcode scanning and NFC, and a 5200mAh removable battery.

Operating systemAndroid 16/13/11; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, Soti…
Display5.5-inch high definition full display (18:9), IPS IGZO 1440 x 720
BatteryRemovable main battery (normal version:4420 mAh; Android 11 with
SealingIP65 per IEC sealing specifications
DropMultiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete across the operating temperature range…

Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps

Specifications

Platform

Operating system: Android 16/13/11; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported Android 11/13/16; GMS, 90-day security updates, Android Enterprise
Processor: Octa-core, 2.0GHz
RAM / storage options: 3GB + 32GB / 4GB + 64GB / 6GB + 64GB

Display

Display size: 5.5-inch high definition full display (18:9), IPS IGZO 1440 x 720
Touch panel: Multi-touch panel, gloves and wet hands supported

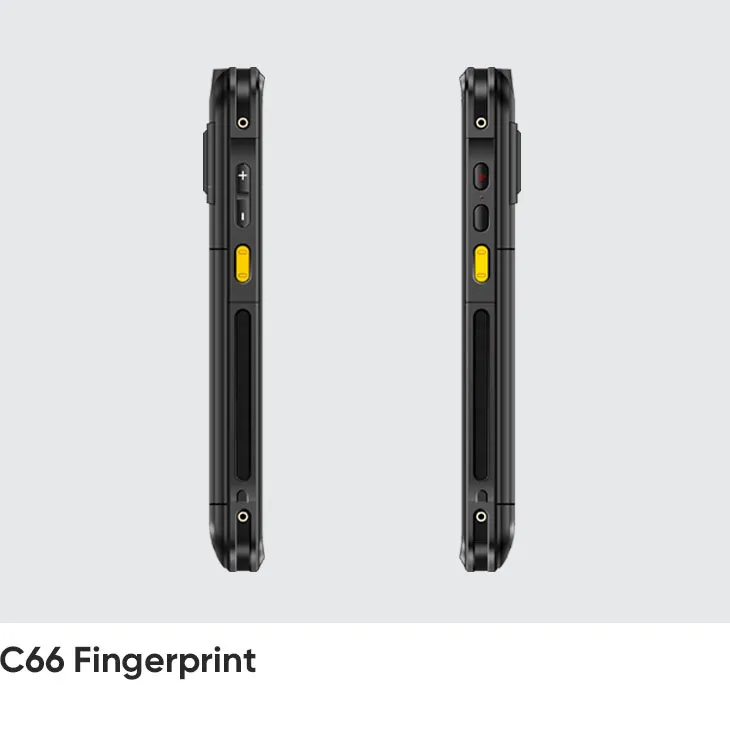

Keyboard / keys: 1 power key, 2 scan keys, 2 volume keys

Data capture

NFC: Frequency 13.56MHz
Cameras: 13MP autofocus rear camera with flash Facial Recognition lSO19794-5 Compatible Rear Camera Rear 13MP Autofocus with flash

Power

Battery / runtime: Removable main battery (normal version:4420 mAh; Android 11 with
Charging / power: Removable main battery 5200mAh, support QC3.0 and RTC Standby: up to 490 hours (only main battery ; WiFi: up to 470h; 4G: up to 440h) Continuous use: over 12 hours (depending on user environment) Charging time: 2.5 hours (charge device by standard adaptor and USB cable) 1W (30dBm, +5dBm to +30dBm adjustable)

Connectivity

Wi-Fi / WLAN: Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4, IPV6, 5G PA Fast roaming: PMKID caching, 802.11r, OKC Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165), Depends on local regulations Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI-PSK—EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC,etc Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4,
Bluetooth: Bluetooth 5.1
Location / GPS: GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna
Ports / interfaces: USB Type-C, USB 3.1, OTG, extended thimble

Rugged

IP / sealing: IP65 per IEC sealing specifications
Drop specification: Multiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete across the operating temperature range Multiple 2.4 m / 7.87 ft. drops (at least 20 times) to the concrete after installed rubber boot Multiple 1.8m / 5.91ft. drops (at least 20 times) to the concrete across the
Tumble specification: 1000 x 0.5 m / 1.64 ft. falls at room temperature Specification 1000 x 0.5m / 1.64ft. falls at room temperature
Operating temperature: -4oF to 122oF / -20 ℃ to +50 ℃ Multiple 2.4m / 7.87ft. drops (at least 20 times) to the concrete after
Storage temperature: -40oF to 158oF / -40 ℃ to +70 ℃
Humidity: 5% RH - 95% RH non condensing

Size

Weight: 297 g / 10.47 oz. (device with battery)
Dimensions: 160.0 x 76.0 x 17.0 mm / 6.3 x 2.99 x 0.67 in.
