CAEN RFID trID

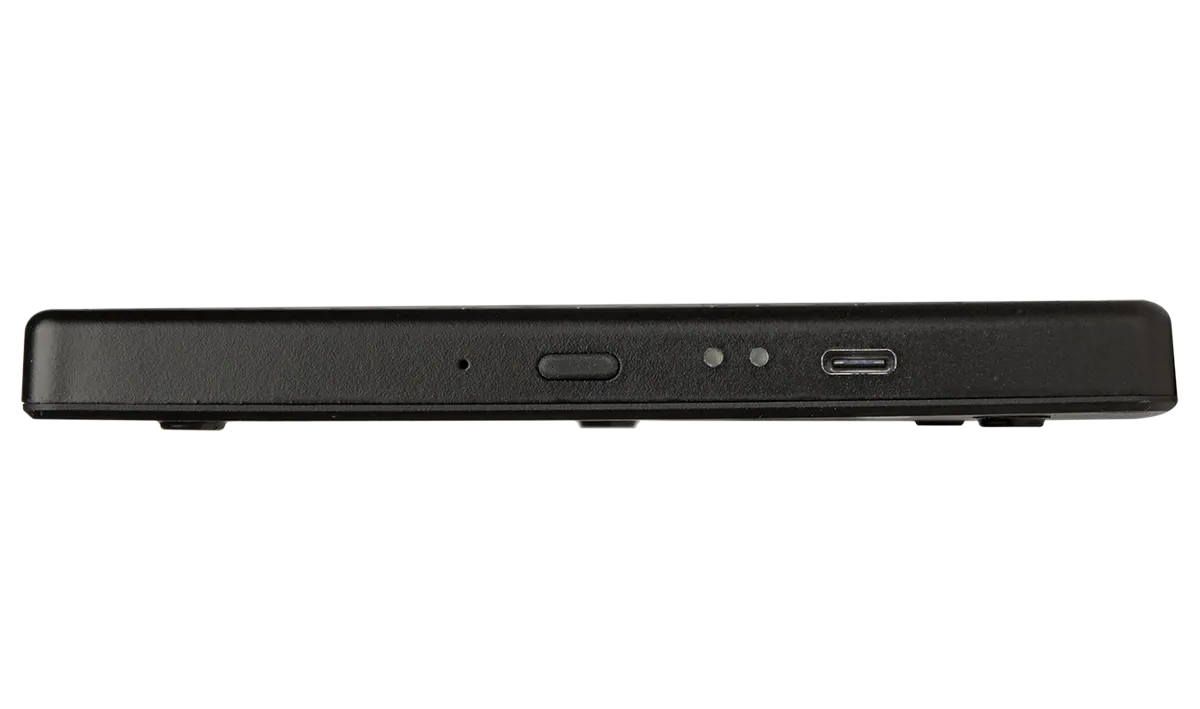

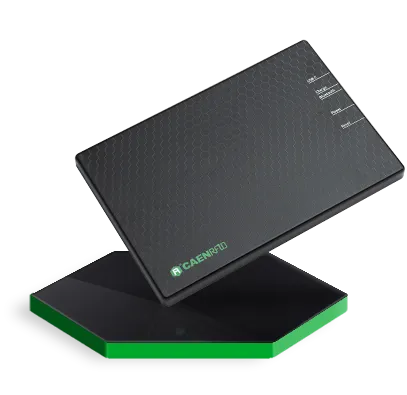

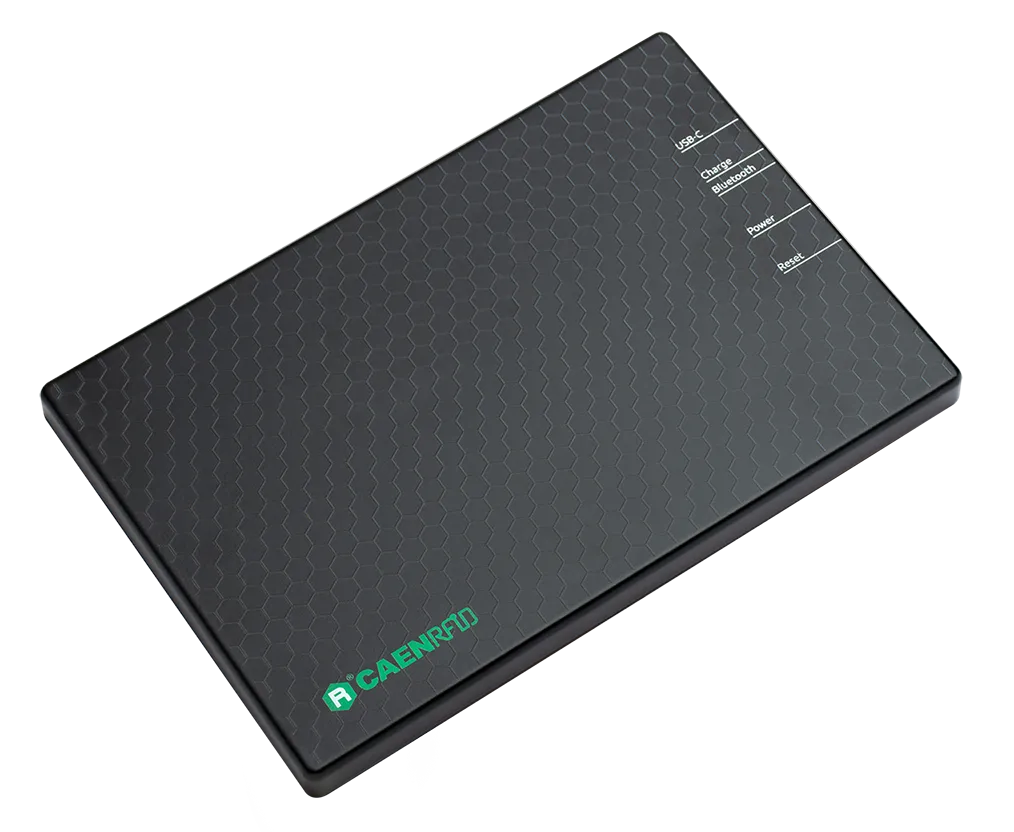

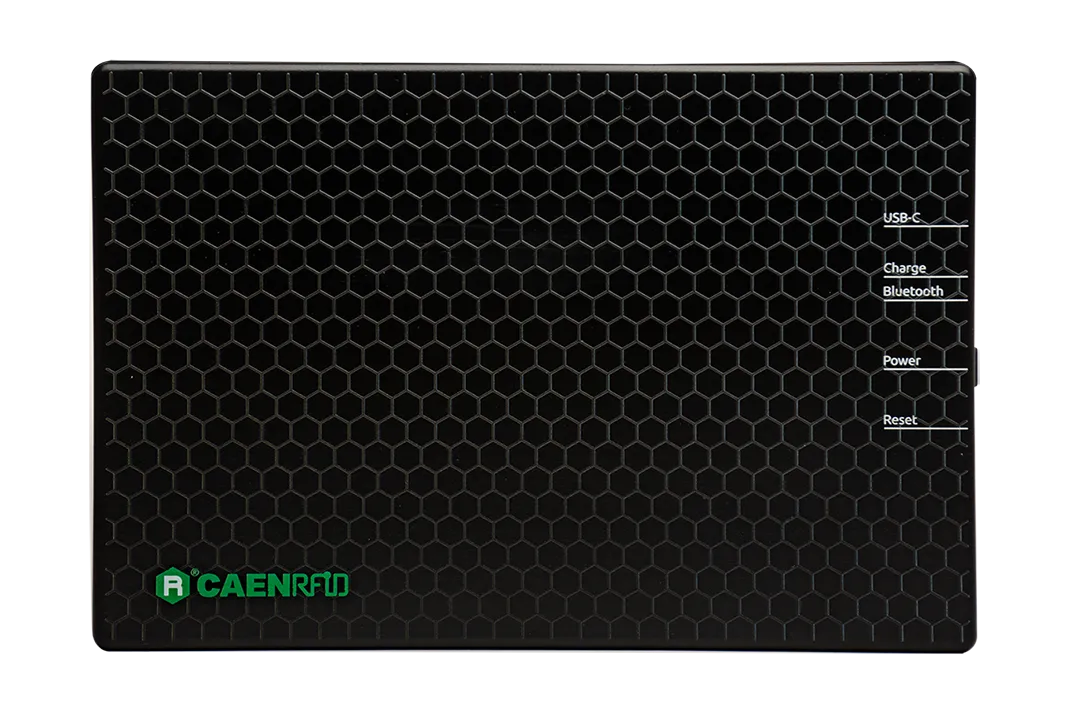

The trID (Model R1210I) is a slim RAIN RFID reader of the easy2read © product line with integrated antenna for short range applications. The reader hosts an internal rechargeable battery and can operate both in wired mode, using a USB cable, or in wireless mode through the Bluetooth® interface.
- BatteryLi-ion 3.7V, 2100mAh – Operating: > 18 h (with 60,000 tag readings) – Standby: > 30 days (powered off, no…
- SealingIP30
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Frequency Range
- 865.600÷867.600 MHz (ETSI EN 302 208 v. 3.1.1) (Mod. R1210IE) 902÷928 MHz (FCC part 15.247) (Mod. R1210IU)
- RF Power
- Configurable from -8 dBm ERP to 6 dBm ERP (Mod. R1210IE) Configurable from -6 dBm EIRP to 8 dBm EIRP (Mod. R1210IU)
- Number of Channels
- 4 channels (compliant to ETSI EN 302 208 V3.1.1) (Mod. R1210IE) 50 hopping channels (compliant to FCC part 15.247) (Mod. R1210IU)
- Standard Compliance
- EPC Class 1 Gen 2 – ISO18000-63
- Antenna gain
- -19 dBi (typical)
- Antenna polarization
- Near Field UHF Antenna
- Scan range / decode distances
- up to 15 cm (typical)
- USB Interface
- USB 2.0 Full Speed (12 Mbit/s) via USB Type-C connector
- Bluetooth Interface
- – Bluetooth 4.1 Smart Ready compliant – 12dBm EIRP output power BR/EDR – 8dBm EIRP output power BLE – HID and Serial over GATT (BLE) – HID and SPP profiles (Bluetooth classic)
- Battery / runtime
- Li-ion 3.7V, 2100mAh
- Battery / runtime
- – Operating: > 18 h (with 60,000 tag readings) – Standby: > 30 days (powered off, no LED blinking)
- Battery Charging Time
- – 6h connected to a PC USB port – 2h 40min with 1A AC/DC power supply
- IP / sealing
- IP30
- Dimensions
- 217 x 146 x 14 mm 3 8.54 x 5.75 x 0.55 inches 3
- Length of USB cable
- 1.5 m
- Operating temperature
- -10°C to +55°C
- Weight
- 375 g
