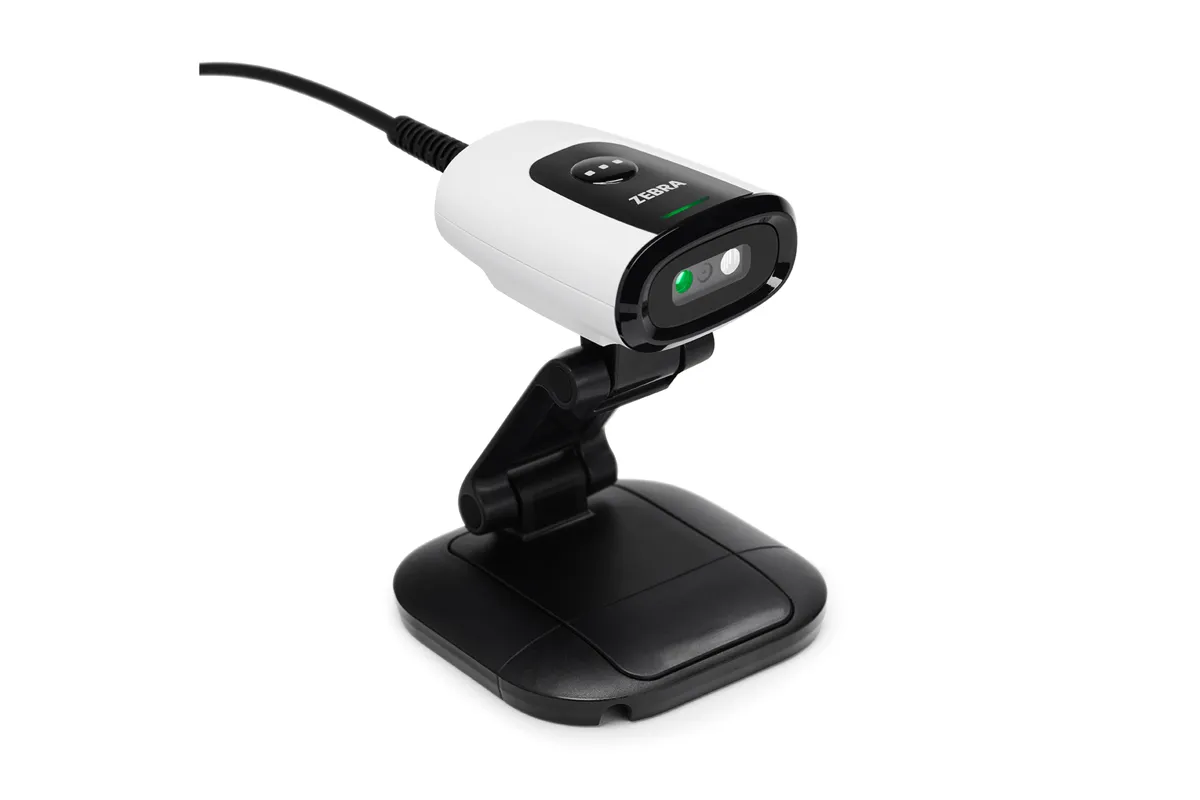

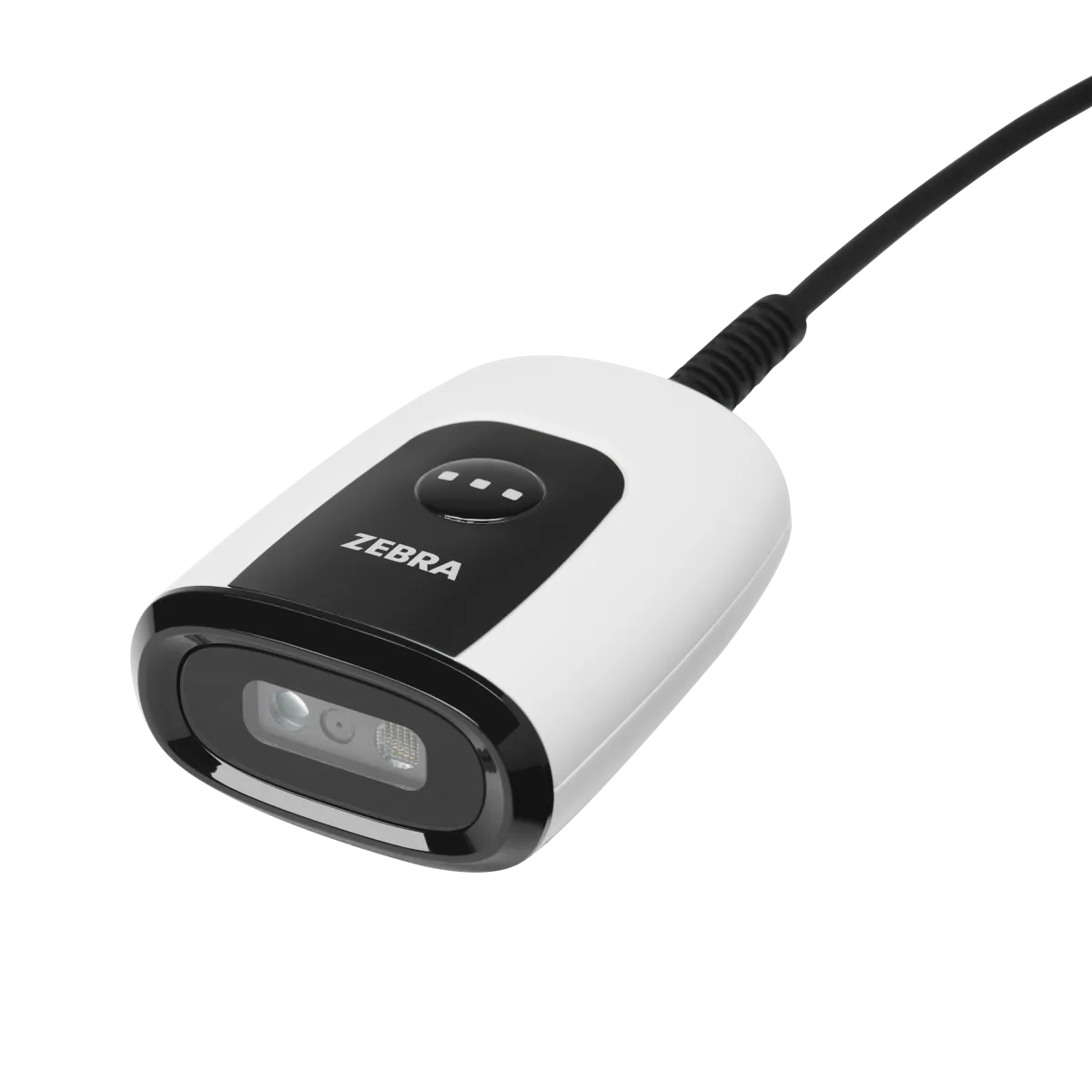

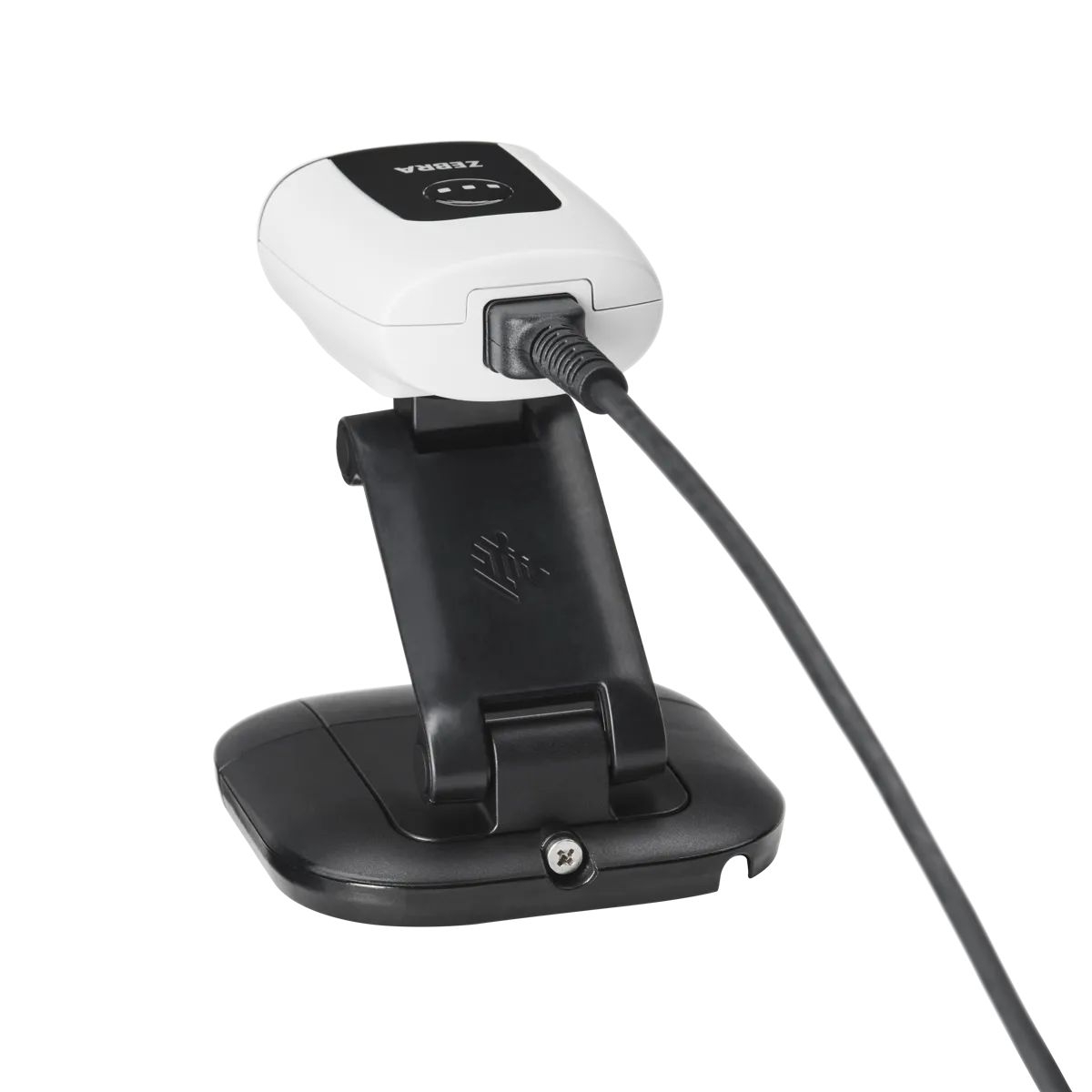

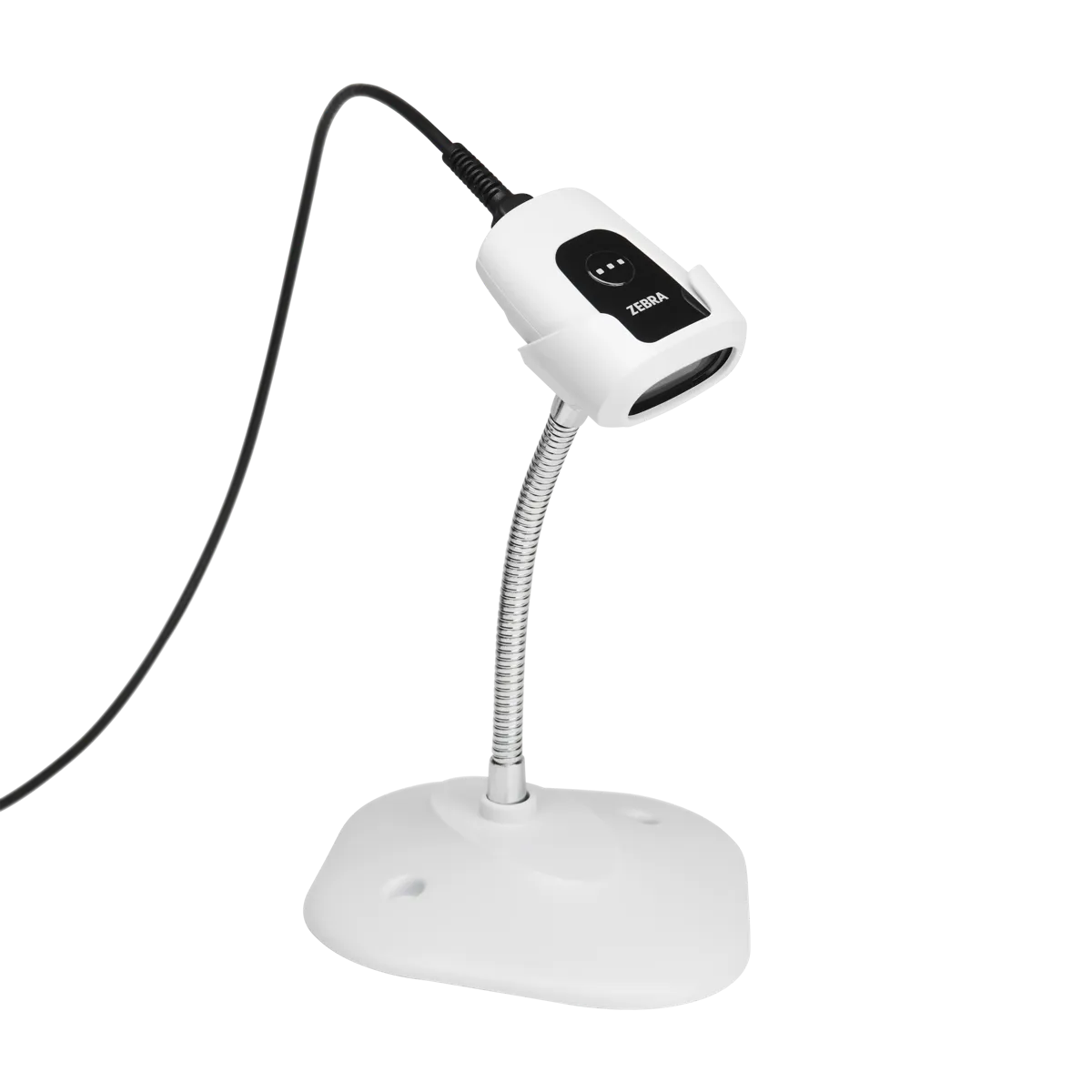

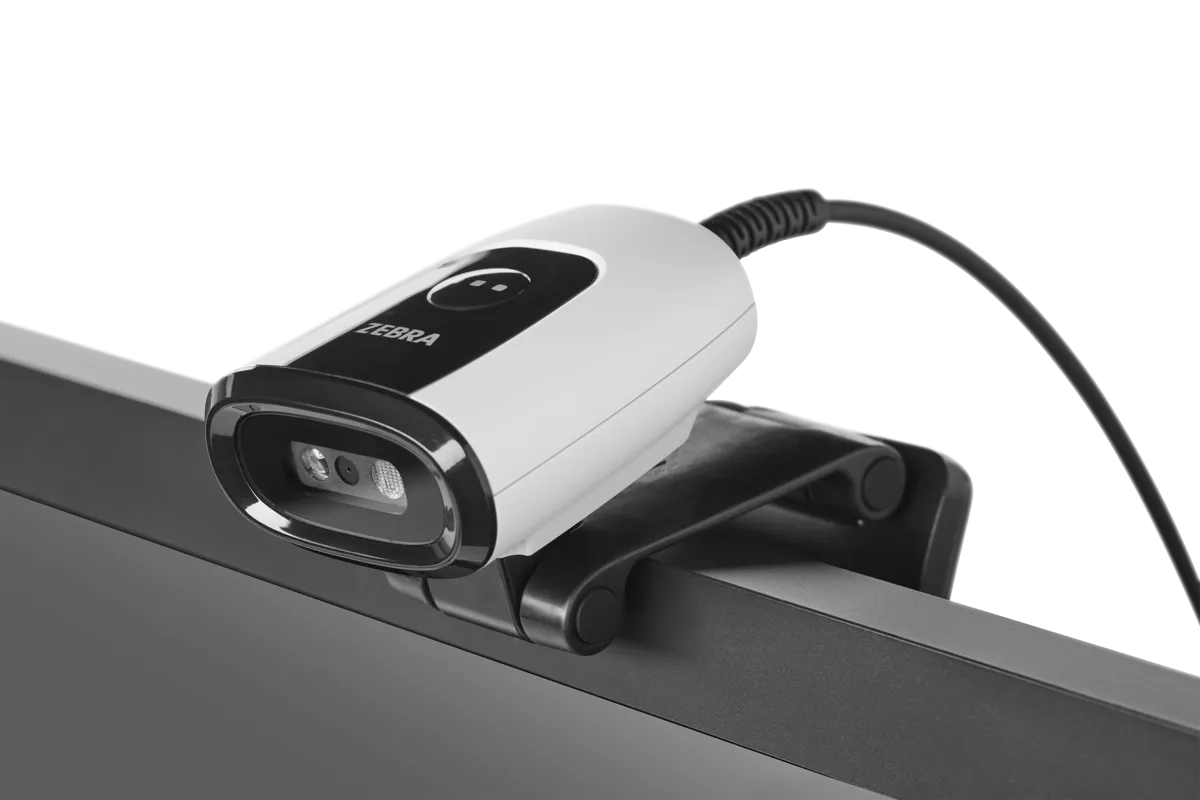

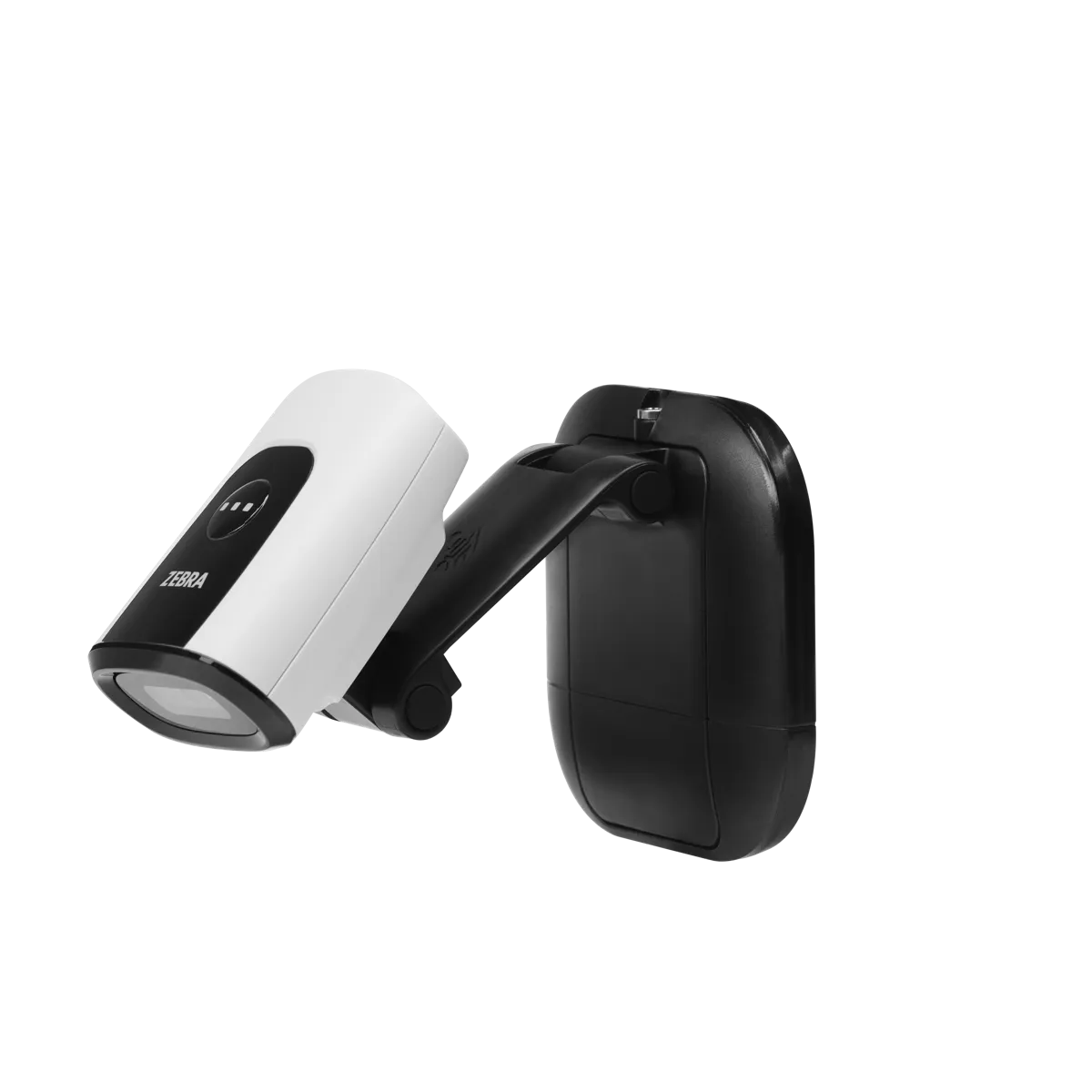

Zebra DS5502-LB for Labs Fixed Mount Scanner

Specifications

Scan Type

1D, 2D, OCR

Image Sensor

1280x800 pixels

Scan Range

Standard Range

Corded/Cordless

Corded

Dimensions

1.2 in H x 2.2 in W x 2.8 in D ; (3.0cm H x 5.6cm W x 7.2cm D)

Weight

2.3 oz (65.2g)

Input Voltage Range

4.75 to 5.25 VDC Host Powered; 4.75 to 5.25 VDC External Power Supply

Operating Current at Nominal Voltage (average)

Presentation Mode: 360 mA RMS (Typical), ; Trigger Mode: 350 mA RMS (Typical)

Standby Current (Idle) at Nominal Voltage (average)

Presentation Mode: 185 mA RMS (Typical), ; Trigger Mode: 155 mA RMS (Typical)

Color

Alpine White

Supported Host Interfaces

USB, RS232

USB Certification

USB Certification

User Indicators

Good Decode LEDs, Speaker (adjustable tone and volume)

Swipe Speed (Hands-Free)

Up to 100 in (254cm) per second for 13 mil UPC in optimized mode

Aiming pattern

Circular 525 nm True Green LED

Illumination

(1) Warm White LED

Imager Field of View

48° H x 30° V nominal

Minimum Print Contrast

15% minimum reflective difference

Skew Tolerance

+/- 60°

Pitch Tolerance

+/- 60°

Roll Tolerance

0°-360°

Graphics Format

Images can be exported as Bitmap, JPEG or TIFF

Image Quality

200 PPI on a 6.0 x 3.8 in. (15.2 x 9.5 cm) document @ 7.0 in. (17.8 cm)

Operating Temperature

-4F to +122F (-20C to +50C)

Storage Temperature

-40F to +158F (-40C to +70C)

Humidity

5% to 95% RH, non-condensing

Environmental Sealing

IP54

Drop Specification

Designed to withstand multiple drops at 5 ft (1.5m) to concrete

Approved Cleaners

Refer to the product reference guide for the complete list of approved cleaners.

Electrostatic Discharge (ESD)

ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect

Ambient Light Immunity

0 to 10,000 Foot Candles / 0 to 107,600 Lux

1D

All major 1D barcodes including Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)

2D

All major 2D barcodes including PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm

OCR

OCR-A, OCR-B, MICR, US Currency

Minimum Input Resolution

Code 39: 3.0 mil; Code 128: 3.0 mil; Data Matrix: 5.0 mil; QR Code: 5.0 mil

Symbology/Resolution

Near/Far

Code 39: 3 mil

Trigger Mode: 2.8 in to 5.6 in (7.1cm to 14.2cm); Presentation: 2.8 in to 5.6 in (7.1cm to 14.2cm)

Code 39: 4 mil

Trigger Mode: 2.4 in to 8.0 in (6.1cm to 20.3cm); Presentation: 2.4 in to 8.0 in (6.1cm to 20.3cm)

Code 39: 5 mil

Trigger Mode: 1.6 in to 10.0 in (4.1cm to 25.4cm); Presentation: 1.6 in to 9.0 in (4.1cm to 22.9cm)

Code 39: 7.5 mil

Trigger Mode: 2.1 in to 15.0 in (5.3cm to 38.1cm); Presentation: 2.2 in to 10.0 in (5.6cm to 25.4cm)

Code 39: 20 mil

Trigger Mode: 1.6 in to 35.9 in (4.1cm to 91.2cm); Presentation: 2.0 in to 18.0 in (5.1cm to 45.7cm)

Code 128: 3 mil

Trigger Mode: 2.9 in to 5.5 in (7.1cm to 14.0cm); Presentation: 2.9 in to 5.5 in (7.1cm to 14.0cm)

Code 128: 5 mil

Trigger Mode: 2.1 in to 9.6 in (5.3cm to 24.4cm); Presentation: 2.1 in to 8.5 in (5.3cm to 21.6cm)

PDF 417: 6.7 mil

Trigger Mode: 2.3 in to 9.9 in (5.8cm to 25.1cm); Presentation: 2.3 in to 8.9 in (5.8cm to 22.6cm)

UPC: 13 mil (100%)

Trigger Mode: 1.6 in to 24.7 in (4.1cm to 62.7cm); Presentation: 1.6 in to 14 in (4.1 cm to 35.6cm)

Data Matrix: 10 mil

Trigger Mode: 1.9 in to 10.8 in (4.8cm to 27.4cm); Presentation: 1.9 in to 9.5 in (4.8cm to 24.1cm)

QR: 20 mil

Trigger Mode: 0.9 in to 17.3 in (2.3cm to 43.9cm); Presentation: 0.9 in to 14.0 in (2.3cm to 35.6cm)

Environmental

RoHS - EN IEC 63000:2018 Amendment 2015/863; WEEE RECAST 2012/19/EU; China RoHS - SJ/T 11364; REACH - EC 1907/2006

Electrical Safety

EN 62368-1:2014/AC:2015; EN 62368-1:2014/A11:2017; IEC 62368-1:2014; EN IEC 62368-1:2020+A11:2020; IEC 62368-1:2018; UL 62368-1, third edition; CAN/CSA-C22.2 No. 62368-1-19

LED Safety

EN 62471, IEC 62471 plus all amendments and all national deviations

EMI/RFI

FCC 47 CFR Part 15B, ICES-003, EN55032, EN55035, EN61000-6-2, EN60601-1-2, IEC60601-1-2, VCCI, and SABS

123Scan

Programs scanner parameters, upgrades firmware, displays scanned barcode data, scanning statistics, battery health, asset data and prints reports.; www.zebra.com/123scan

Scanner SDK

Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code.; www.zebra.com/scannersdkforwindows

Scanner Management Service (SMS)

Remotely manages your Zebra scanner and queries its asset information.; www.zebra.com/sms
