Newland · Fixed barcode scanner

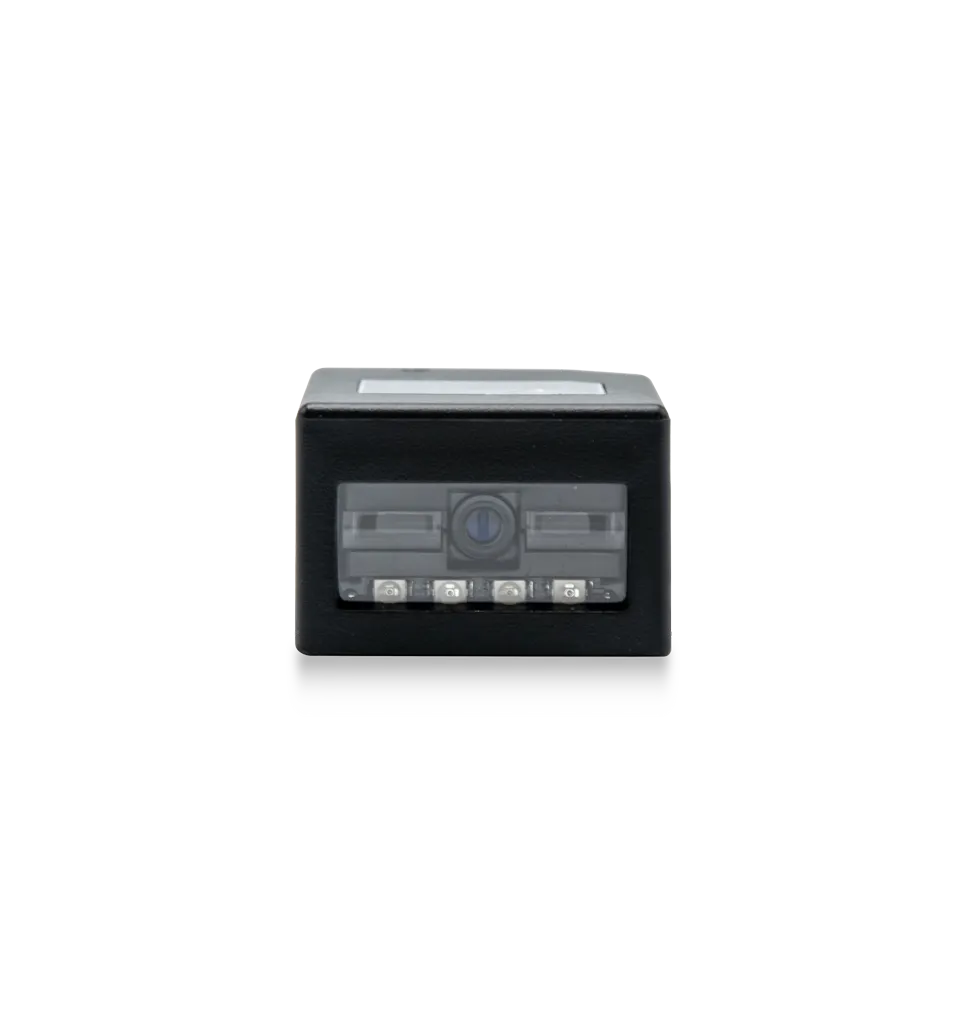

Newland FM100
Designed for OEM applications, this high-performance fixed CCD scan engine can easily be integrated into various solutions such as kiosks, ticketing machines, (Reverse) Vending Machines, and many more.
- Scanning1D All major 1D symbologies, including Code128, EAN-13, EAN-8, Code39, UPC-A, UPCE,Codabar, Interleaved 2 of…
- SealingIP54
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Data capture
- Scan engines / capture options
- 1D All major 1D symbologies, including Code128, EAN-13, EAN-8, Code39, UPC-A, UPCE,Codabar, Interleaved 2 of 5, ISBN/ISSN, Code 93,UCC/EAN-128, GS1Databar.
Power
- Charging / power
- 5 VDC ±5%
Connectivity
- Ports / interfaces
- RS-232, USB IP54 Warranty
Rugged
- IP / sealing
- IP54
- Operating temperature
- -5°C to 45°C (23˚F to 113˚F)
- Storage temperature
- -40°C to 60°C (-4˚F to 140˚F)
- Humidity
- 5% to 95% (non-condensing)
Size
- Weight
- 70 g
- Dimensions
- 49(W) x 37(D) x 26(H) mm
Software & service
- Warranty
- 5 Years Warranty Standard 5 Years
