Urovo · Display
Urovo DT610
Qualcomm Dragonwing™ Q-6690 Processor The World's First Enterprise Mobile Processor Integrating UHF RFID, AI, and Next-generation Wireless Connectivity， with Long-Term Platform Support Through 2034
- Operating systemAndroid 15.0，Upgradable to Android 19
- Display6.0" FHD+ LCD (1080 × 2160)，500 nits | 6.0" FHD+ LCD (1080 × 2160)，600 nits
- ScanningStandard Range 1D/2D scan engine； FlexRange 1D/2D scan engine (Optional)
- BatteryUser replaceable battery standard capacity 3.85V 4000mAh/15.4Wh（Optional 4,950mAh);Smart Battery…
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Operating system
- Android 15.0，Upgradable to Android 19
- Processor

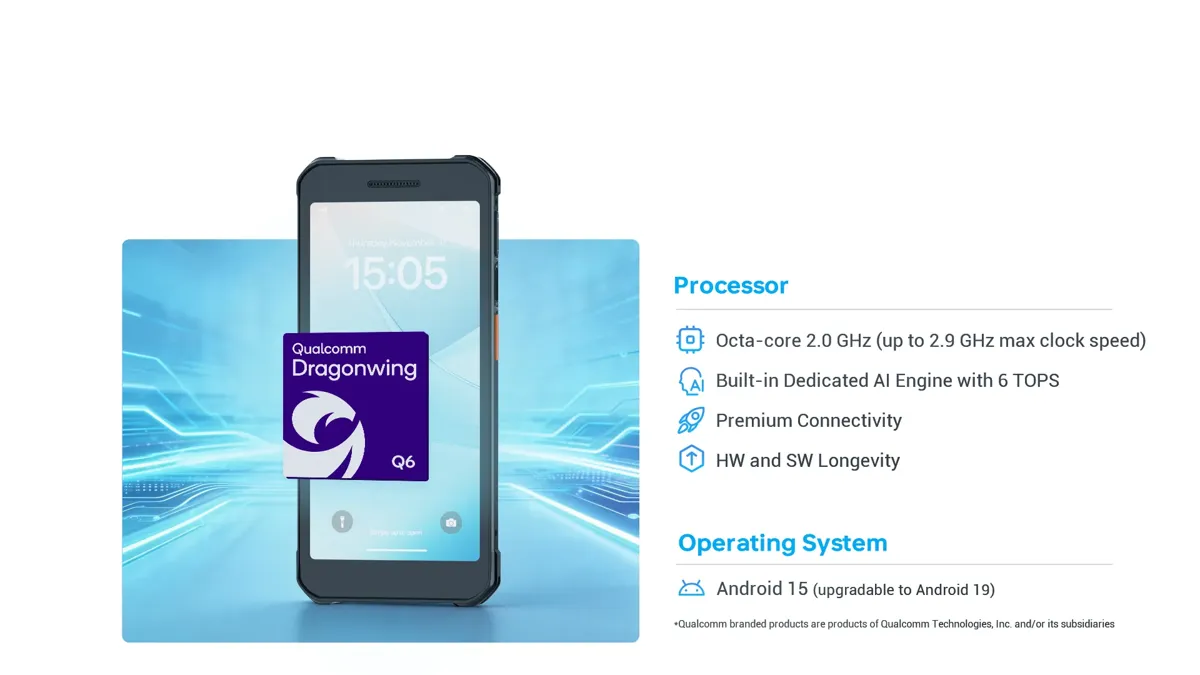

- Octa-core 2.0GHz / 2.9GHz，Antutu Score 1,114,080
- RAM / storage options
- RAM: 8GB ROM: 128GB RAM: 12GB ROM: 256GB (optional) Micro SD Card, Up to 2 TB
- Battery / runtime
- User replaceable battery standard capacity 3.85V 4000mAh/15.4Wh（Optional 4,950mAh);Smart Battery Managemen；Support Hot swap | User replaceable battery Standard capacity 3.85V 5200mAh / 21.175Wh;Smart Battery Management，Support Hot swap
- Dimensions

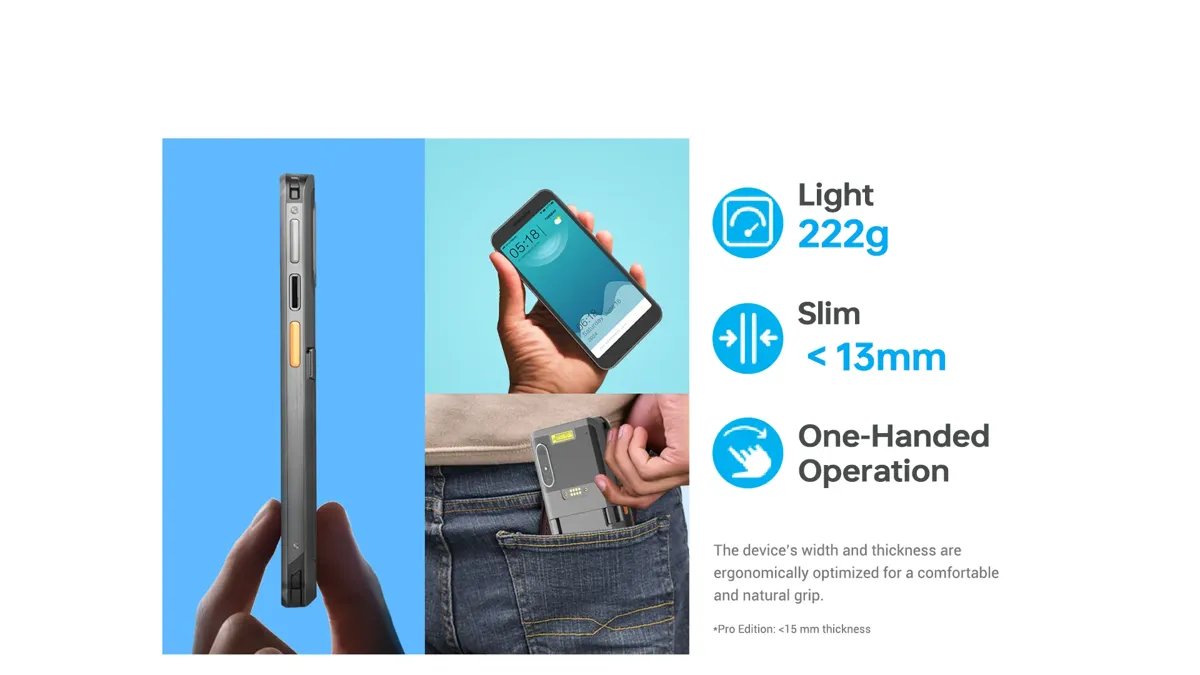

- 165 × 76.2 × 12.9 mm Weight: 222g (with standard battery) | 169 × 78.2 × 15.8 mm Weight: 270g (with standard battery)
- Display
- 6.0" FHD+ LCD (1080 × 2160)，500 nits | 6.0" FHD+ LCD (1080 × 2160)，600 nits
- Protection
- IP67 dustproof and waterproof 1.5m drop resistance | IP68 dustproof and waterproof 1.8m drop resistance
- Touch panel
- Multi-mode capacitive touch with bare or gloved fingertip input or stylus (sold separately), Corning Gorilla Glass; Water droplet rejection; Fingerprint resistant anti-smudge coating
- Scan engines / capture options
- Standard Range 1D/2D scan engine； FlexRange 1D/2D scan engine (Optional)
- Cameras
- Rear: 16MP autofocus; Flash LED, PDAF; Torch mode; Front : 8MP Fixed, FF; AR Core Certification | Rear: 50MP autofocus; Flash LED, PDAF; Torch mode; Front : 8MP Fixed, FF; AR Core Certification
- NFC
- Support ISO 14443 Type A and B; Sony FeliCa and ISO 15693 cards; Card Emulation via Host; ECP1.0 and ECP2.0 polling support;; MIFARE 1K/4K, MIFARE DESFire, ISO/IEC 18092 (Type F) | ISO 14443 Type A and B; Sony FeliCa and ISO 15693 cards; Card Emulation via Host; Contactless payment support; MIFARE 1K/4K, MIFARE DESFire, ISO/IEC 18092 (Type F); Host Card Emulation ;Peer-to-Peer; Reader/Writer， ECP1.0 and ECP2.0 polling support; Apple VAS certified;
- RFID(UHF)
- Built-in Impinj Gen2X；Read Range ≤1.5m；Read Rate: 50+ tags/s
- Audio
- Dual noise-canceling mics；Single speaker；PTT USB-C/BT headset；SWB & FB audio；HD Voice
- Location / GPS
- GPS、A-GPS BEIDOU、GLONASS Galileo、QZSS | GPS, A-GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC; Concurrent L1/G1/E1/B1 (GPS/QZSS, GLO, GAL, BeiDou) + L5/E5a/BDS B2a (GPS/QZSS, GAL, BeiDou); A-GPS; Supports XTRA ;SBAS
- Communication
- 5G/4G/3G/2G Wi-Fi: Wi-Fi 7，2.4Ghz/5Ghz/6Ghz TriBand 2x2 MU-MIMO IEEE 802.11a/b/g/n/ac/d/e/h/i/k/r/v/w/ax/be Roaming：802.11r(Over-the-Air); OKC，Configurable Wi-Fi roaming thresholds
- Sensor
- Light + Accelerator+ Proximity + Geomagnetic + Gyro
- Environmental
- Operating: -20°C~60°C； Storage: -40°C~70°C； Humidity: 5%~95% RH； Vibration: 12.2g PK； Thermal Shock: -40~70°C×12cyc； ESD: ±15kV
- Certifications
- GMS、AER、ARCore、CE、RED、EU RoHS、FCC、TELEC、EMV contactless、3C、PSE
