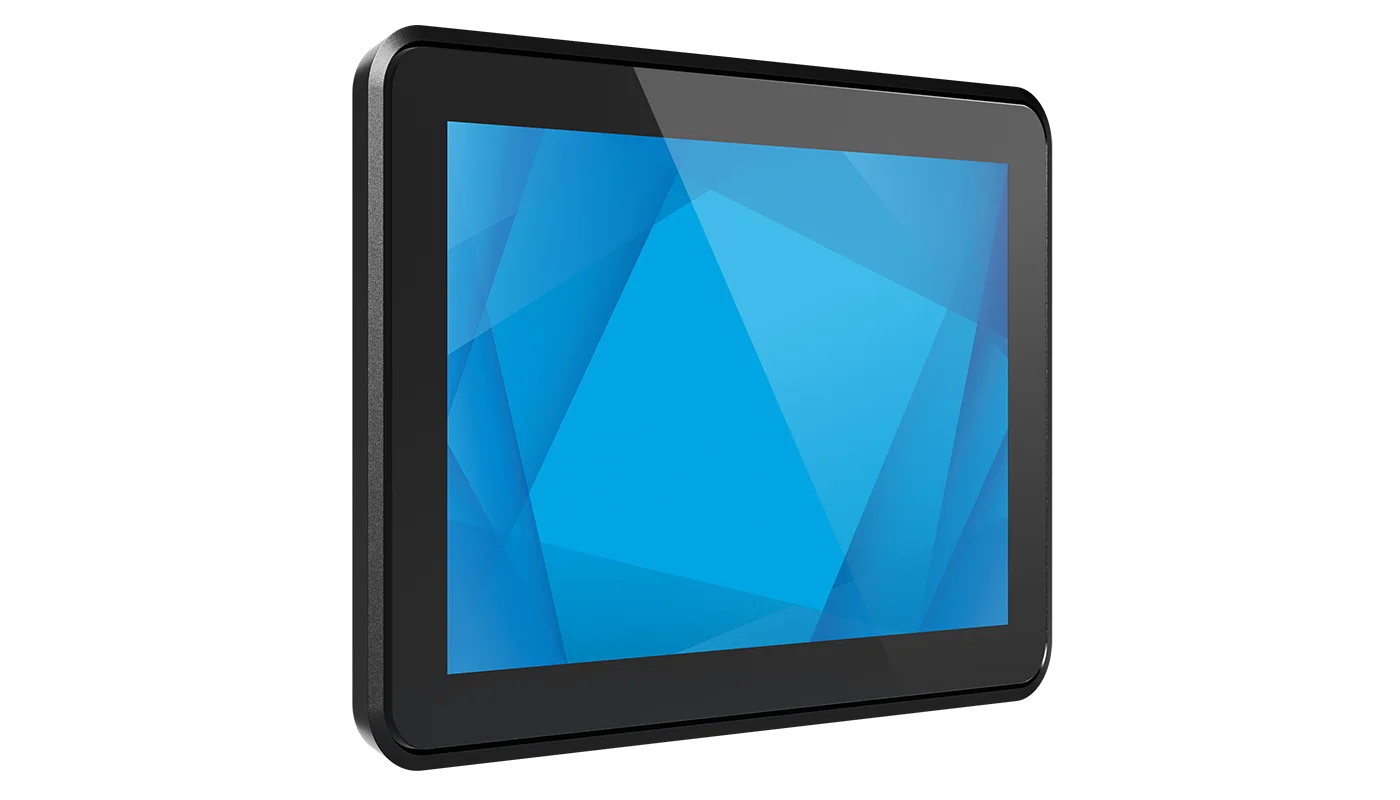

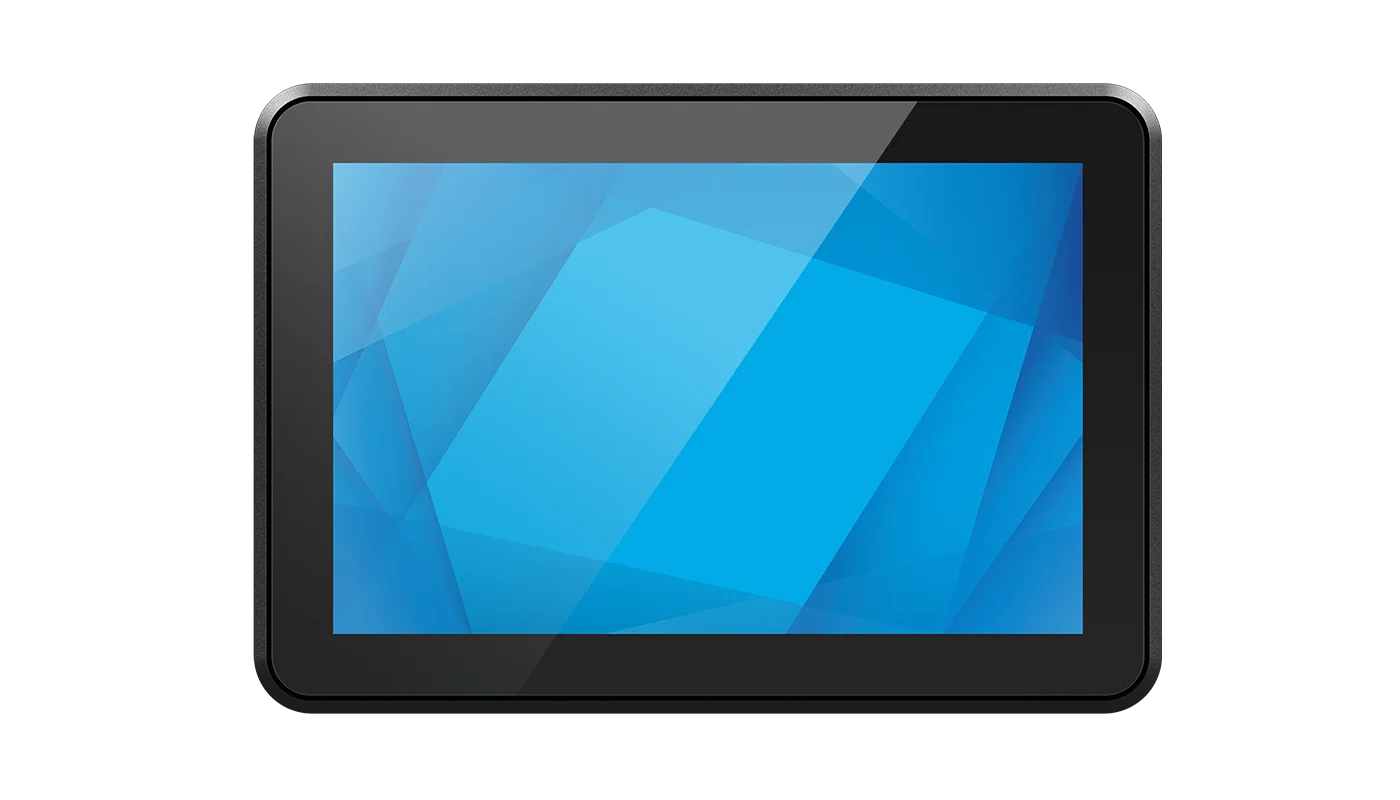

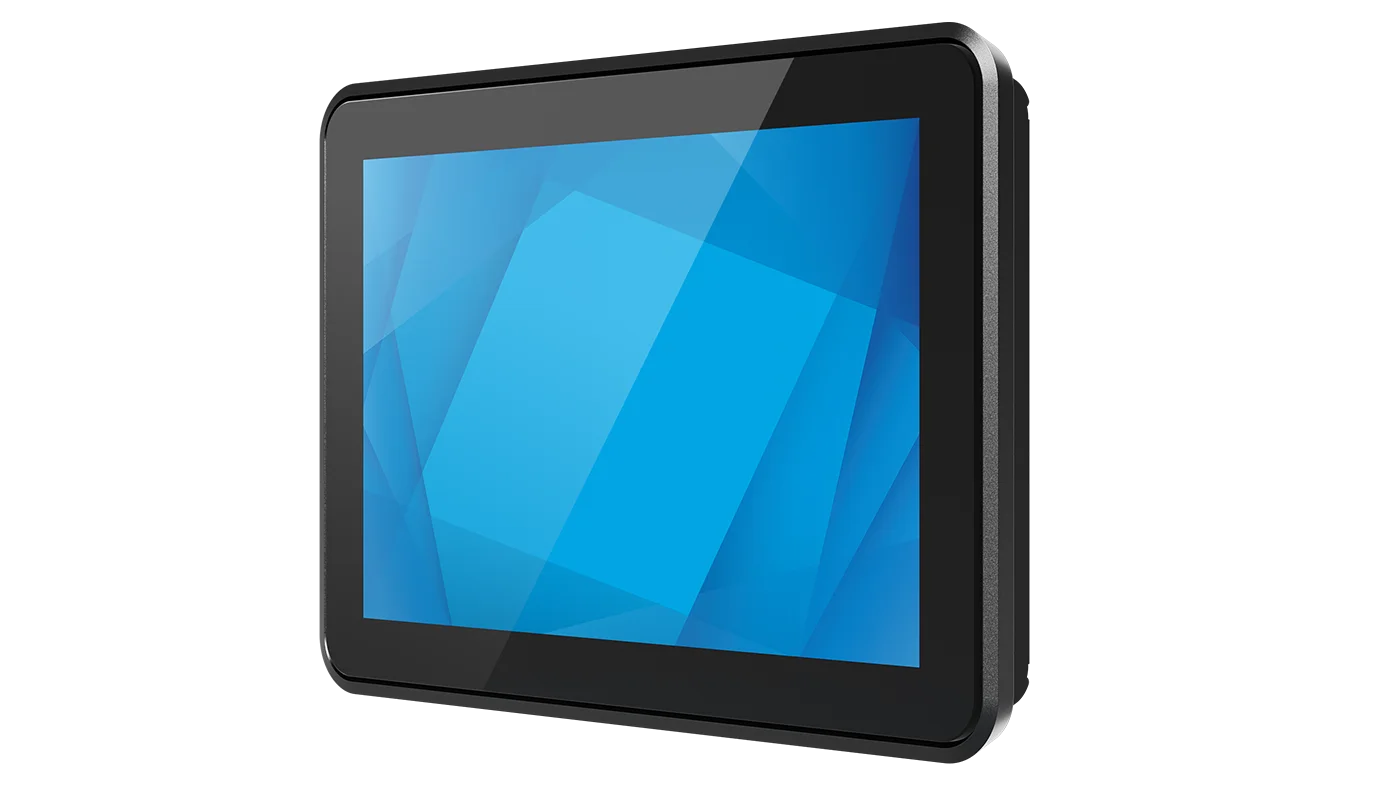

Elo Touch 0764L 7" Open Frame Touchscreen
Open Frame Touch Display
- Display7'' diagonal, Active matrix TFT LCD (LED)
- SealingIPX1 for front side
Datasheet at Elo Touch Product page at Elo Touch
Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps
Overview
Elo's 0764L 7-inch HD open-frame delivers a brilliant, industrial-grade touchscreen monitor designed for easy integration into enclosures. With sleek, narrow borders and a modern form factor, the 0764L is well-suited for industrial controls, HMI, warehouse automation, gaming and more.
- The 7-inch 0764L optically-bonded display offers an enhanced, 10-touch tablet-like experience with the durability, touch performance and premium optics required for industrial and commercial applications.
- We have made it easier to manage your On-Screen Display (OSD) controls – Now you can use the touchscreen or the controls you are used to on the rear side of the monitor.
- For installations that require specific IP ratings or protection from vandalism and harsh environments, Elo’s TouchPro PCAP displays offer touch thru capability. With touch thru technology, the display can be mounted behind a front layer of glass up to 6 mm or plastic up to 3 mm to create a fully enclosed kiosk.
- Elo’s 7-inch touchscreen monitor can be mounted in landscape, portrait and upward facing orientations, providing optimal flexibility for integrating in any counter, kiosk or cabinet design. Whether viewing up close or from a distance, our optically bonded display offers what you need while maintaining optimal clarity for the viewing experience.
- With the Elo Backpack you get a powerful, commercial-grade Android compute engine that can easily connect to the display with a single USB-C. Boasting a small footprint in both size and weight, the Elo Backpack can secure inside any kiosk with the built-in VESA mount. Scaling Elo’s commercial Android platform across sizes and form factors has never been easier.
Specifications
Technical
- Part Number(s)
- TouchPro PCAP - E970862
- Enclosure Color
- Black
- Touch Technology & Capacity
- PCAP (TouchPro® Projected Capacitive) - 10 Touch
- Touch Thru
- TouchPro™ PCAP supports up to an additional 6mm glass/3mm plastic with up to 2 touches.
- Touch Interface
- USB 2.0
- Diagonal Size
- 7'' diagonal, Active matrix TFT LCD (LED)
- On Screen Display
- On screen OSD with menu and power buttons on the back of the unit.; Supported Touch gestures include:; 1. Call out the OSD menu.; 2. lock/unlock the OSD button function.; 3. lock/unlock the power button function.; Settings: Auto Scan, Video Priority, Brightness, Contrast, Aspect Ratio, Sharpness, Color Temperature, Color Enhance, Low Blue Light, OSD Timeout, OSD Language, Recall Defaults, Information, Touch On Sleep Mode, Touch Through; Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese; Lockouts: OSD, Power
- Aspect Ratio
- 16:10
- Active Area
- 5.90" x 3.69" / 149.76 mm x 93.60 mm
- Resolution
- 1280 x 800
- Other Supported Resolutions
- 640x480 60Hz; 800x500 60Hz; 800x600 56, 60Hz; 1024x768 60Hz; 1280x800 60Hz, 60Hz RB
- Viewing Angle
- Horizontal: ±88° or 176° total / Vertical: ±88° or 176° total
- Number of Colors
- 16.7 million
- Brightness (typical)
- LCD panel: 400 nits; TouchPro PCAP: 360 nits
- Response Time-total (typical)
- 40 msec
- Contrast Ratio
- 800:1
- Video

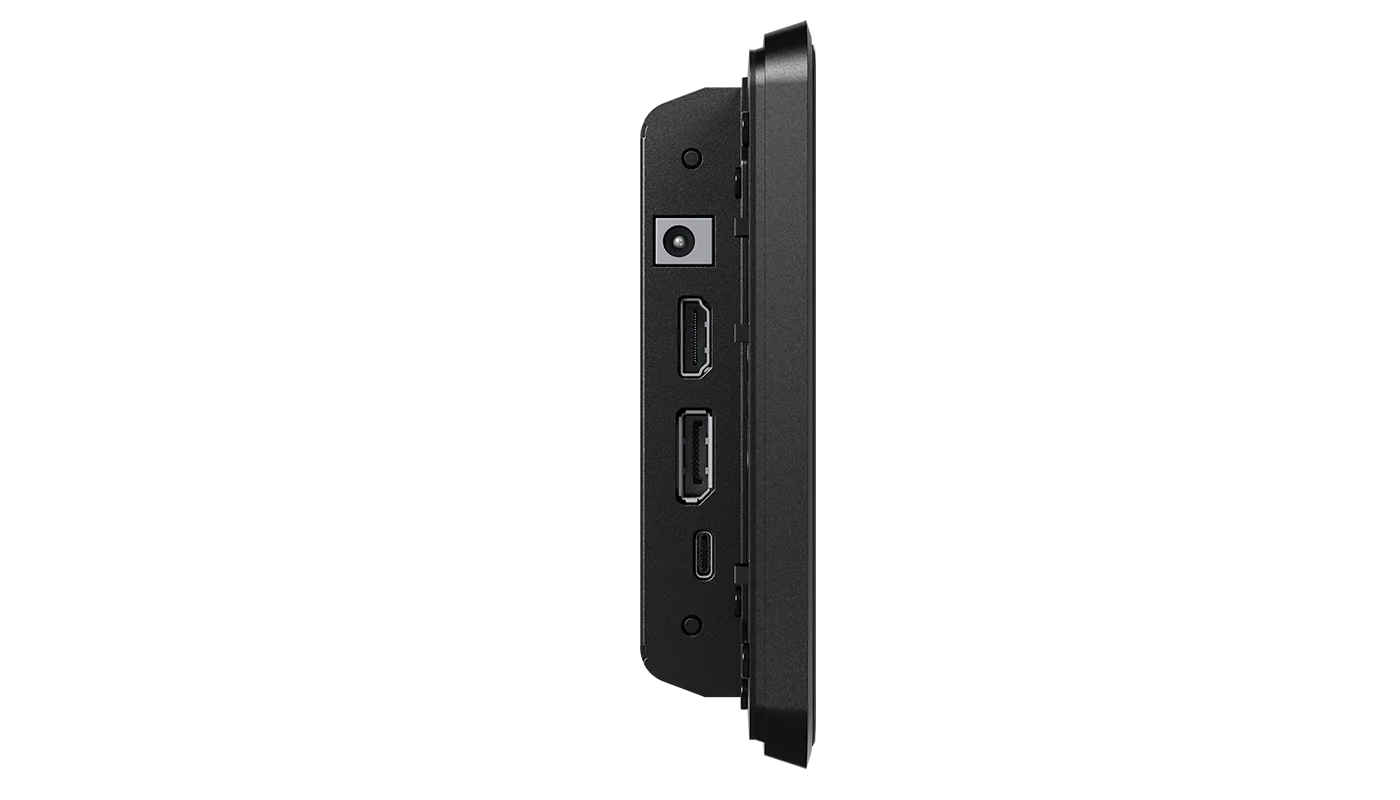

- HDMI V1.4 Type A receptacle for HDMI input; DisplayPort V1.2 - Supports later versions of Display Port video input; USB Type-C; *Suggest using Elo USB Type-C to Type-C (Elo P/N: E129019) cable to prevent any compatibility issues; Input Video Horizontal Sync frequency range: 30 – 80K KHz; Input Video Vertical Sync (frame rate) frequency range: 50-75Hz
- Power
- Option1:; External DC - Optional power brick (sold separately); Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth); Monitor input power signal specifications: 12V – 24V DC +/- 5%; Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length); Option 2:; USB Type-C Input range:; 5V±5%@3A / 9V±5%@3A / 15V±5% @1.8A / 20V±5%@1.35A
- Maximum Operating Time
- 24/7
- Power Consumption (Typical)
- ON (Default - 80% Brightness): 4.57W; ON (Typical - 100% Brightness): 6.84W; SLEEP (monitor + adapter): 0.40W; OFF (monitor + adapter): 0.25W
- Dimensions
- 6.94" x 4.72" x 1.25" / 176.2 mm x 120.0 mm x 31.7 mm
- Shipping Box Dimensions
- 9.13" x 6.70" x 3.74" / 232 mm x 170 mm x 95 mm
- Weight (Unpackaged)
- 1.47 lbs / 0.66 kg
- Weight (Packaged)
- 2.87 lbs / 1.3 kg
- Operating Temperature
- 0°C to 40°C / 32°F to 104°F
- Storage Temperature
- -20°C to 60°C / -4°F to 140°F
- Humidity
- Operating: 20% to 80%; Storage: 10% to 95%
- Sealability
- IPX1 for front side
- MTBF
- 50,000 hours demonstrated
- Warranty
- 3-year
- Regulatory approvals and declarations
- Australia RCM; Canada cUL, IC; China CCC; Europe CE, TUV; United Kingdom UKCA; Japan VCCI; Korea KCC; Mexico NoM; Taiwan BSMI; United States UL, FCC; International CB; RoHS, China RoHS, WEEE
- Compliance
- GLI 27 kV air / 8 kV contact ESD compliance; UL62368 ball-drop compliant; IK08 impact compliant; TUV Rheinland (Low Blue Light); Power collection function via DDCCI
- Energy Star
- Energy Star 7.0
- Mounting Options

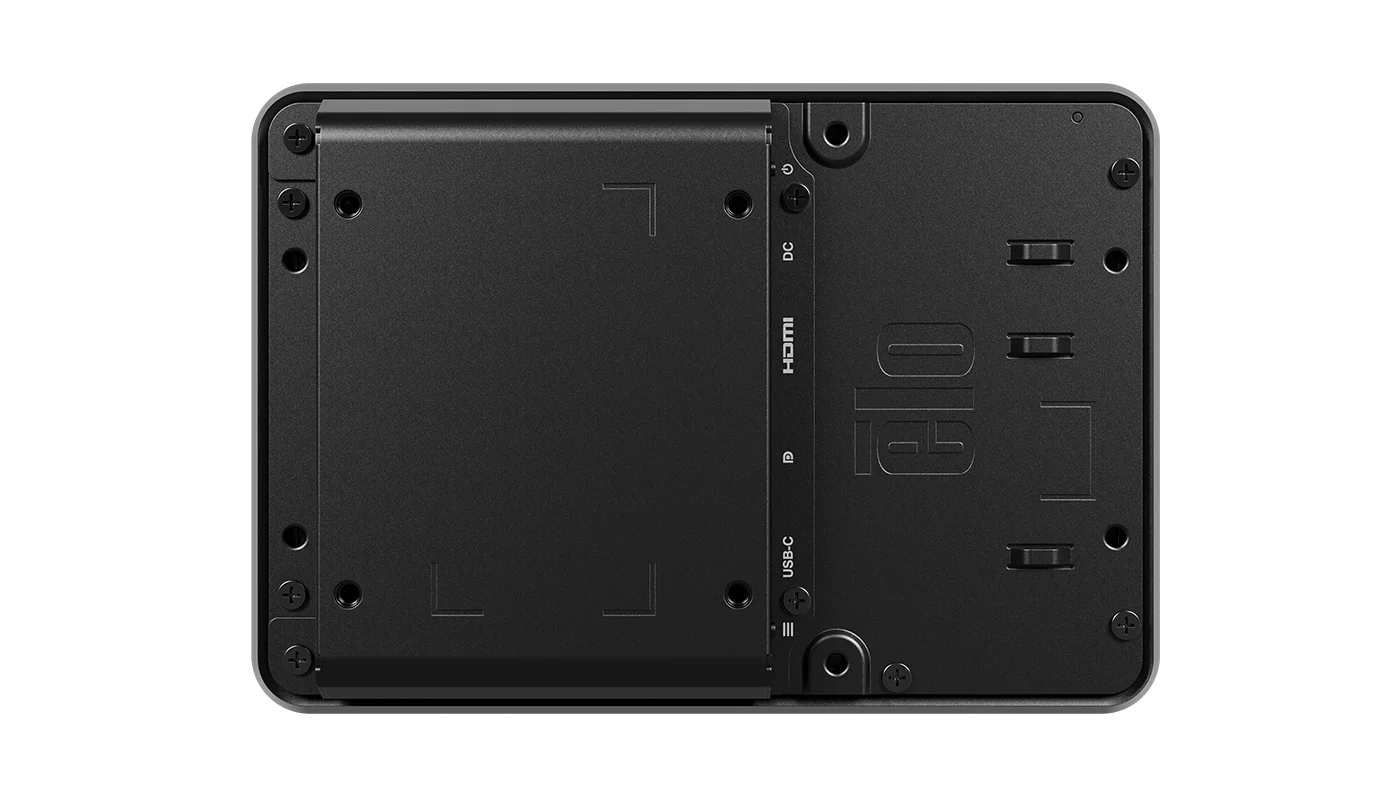

- 75 mm VESA mount; Mounting interface on all 4 sides; Flush mount with included brackets; See dimensional drawings for details
- What's in the Box
- 0764L; HDMI cable; Touch USB Cable (USB-A to USB-C); Flush Mount Brackets w/Screws; Quick Install Guide; EEI Label
- Options / Peripherals / Upgrades
- Cable Kit DVI-D to HDMI – Elo P/N: E538507; North America power adapter and cable kit - Elo P/N: E005277; European & Korea power adapter and cable kit - Elo P/N: E571601; UK power adapter and cable kit - Elo P/N: E180092; China power adapter and cable kit - Elo P/N: E558862; Taiwan power adapter and cable kit - Elo P/N: E818655; Japan power adapter and cable kit - Elo P/N: E182546; Argentina power adapter and cable kit - Elo P/N: E887099; Optional PCAP Stylus Pen - Elo P/N: E066148
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
