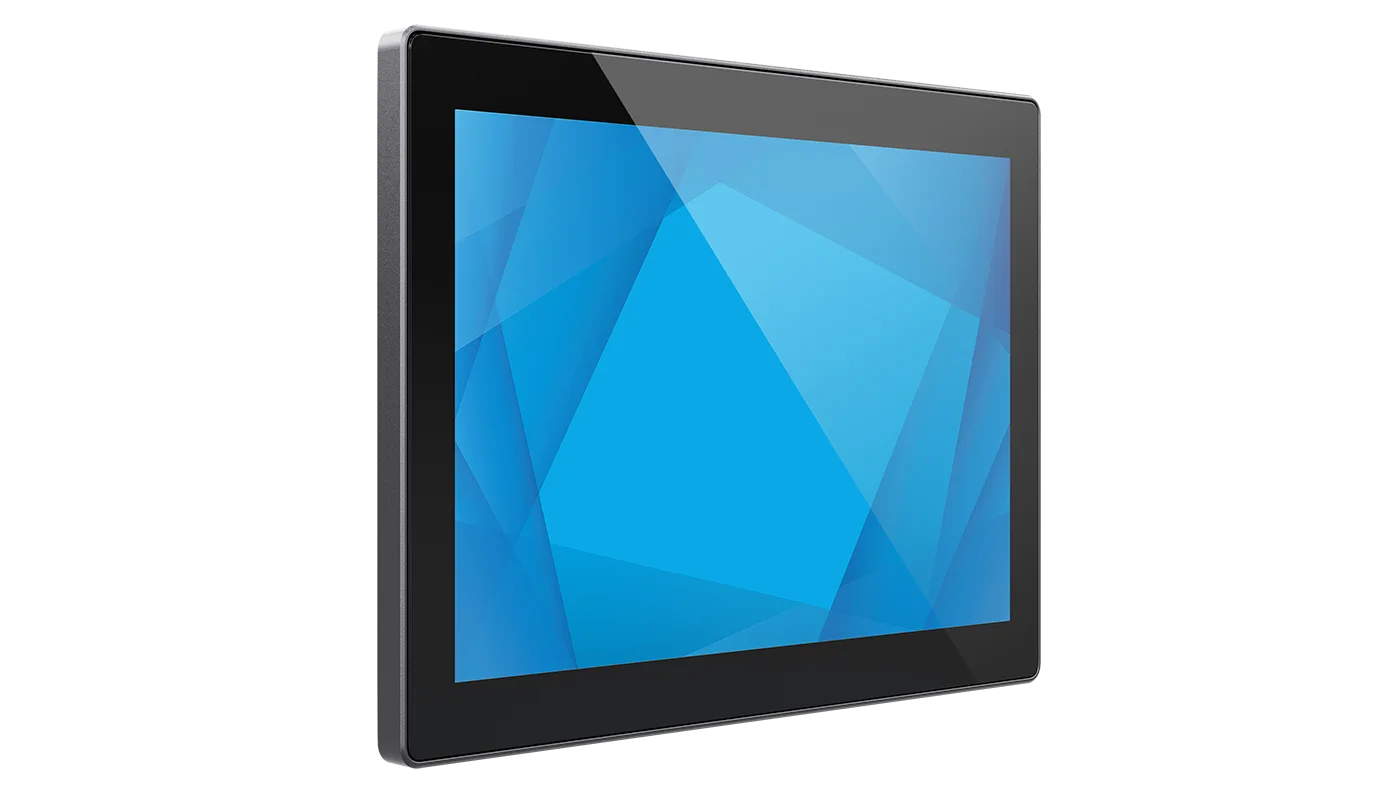

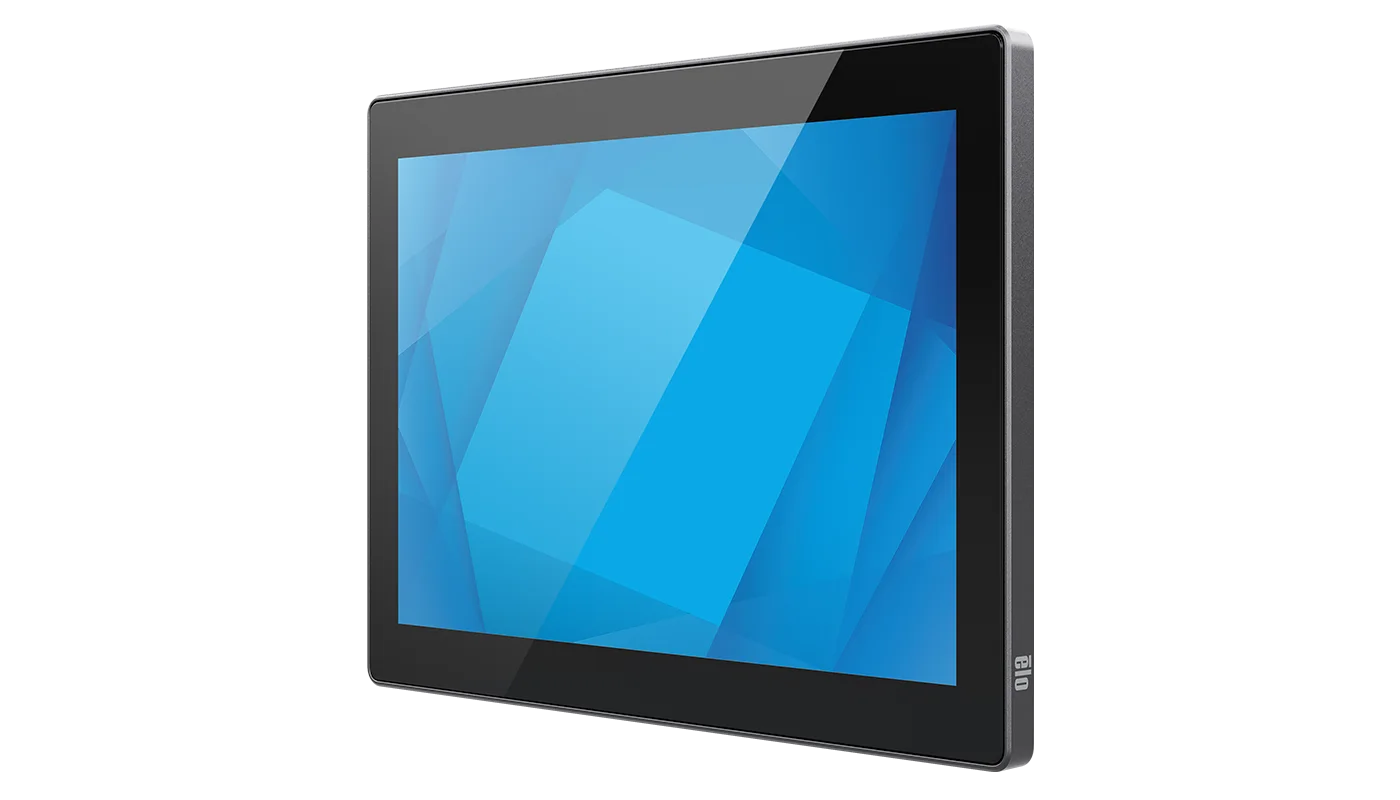

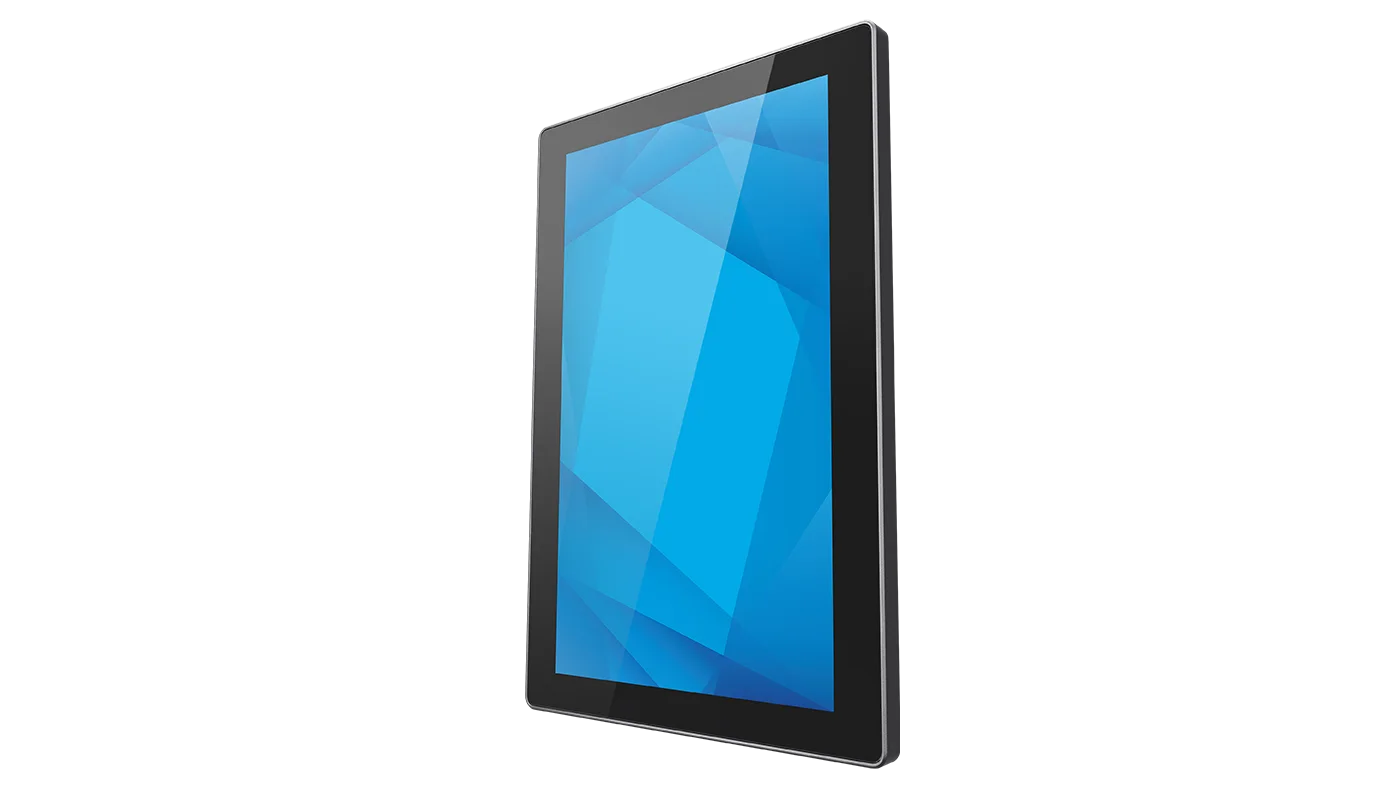

Elo Touch 0704LS 7" Touchscreen Monitor
Razor thin design. Brilliant touchscreen.
- Display7'' diagonal, Active matrix TFT LCD (LED)
Datasheet at Elo Touch Product page at Elo Touch
Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps
Overview
Built to be one of the thinnest commercial-grade 7-inch touchscreen monitors, the 04LS-Series delivers a stunning design with thin borders, enhanced durability and state-of-the- art optical bonding - all with brilliant display clarity.
- Streamline setup with USB‑C to enable power, video and touch integration all in a single cable.

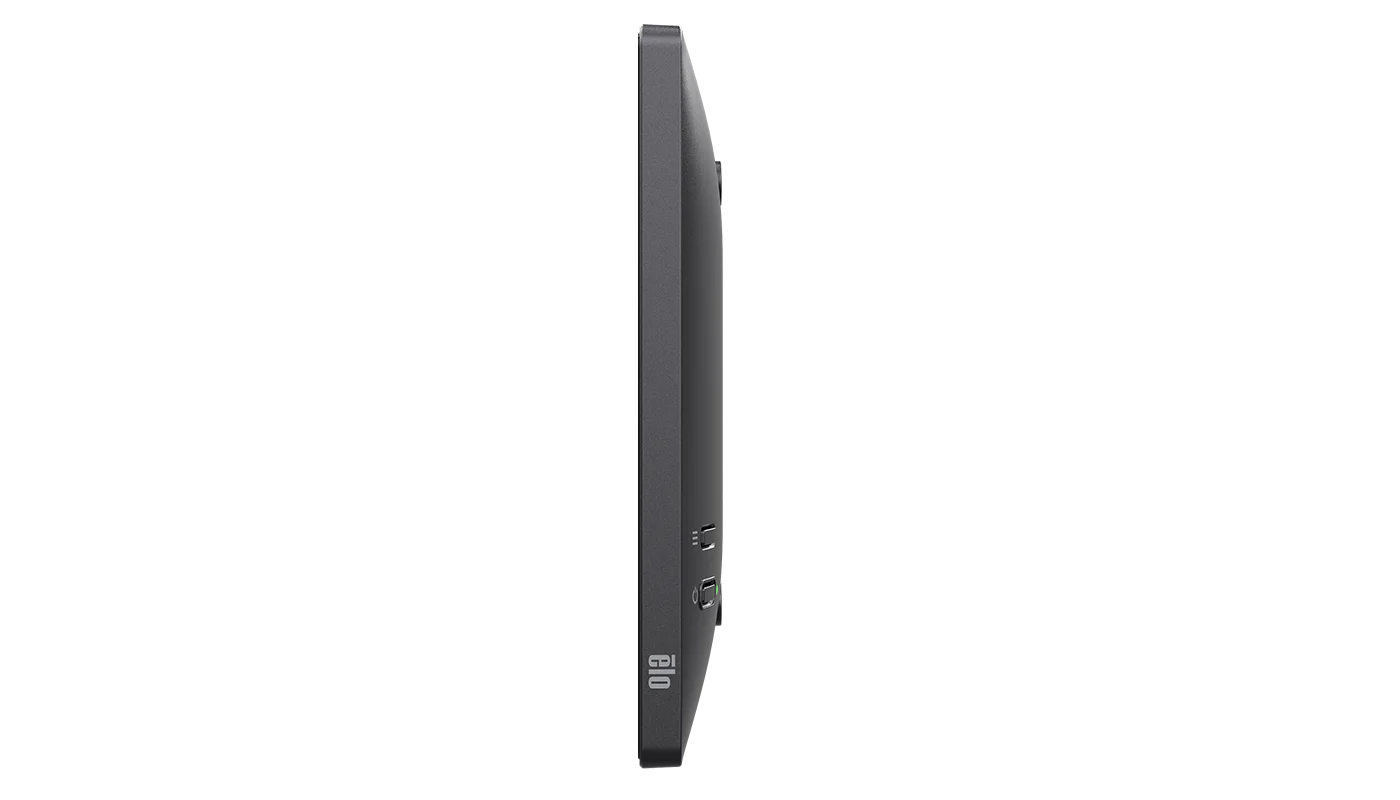

- With a port cover that can be locked into place, cables are less prone to becoming disconnected, minimizing disruptions to the device.
- The 04LS slate monitors offers the perfect compact touch display with the sleekness you desire at the point of sale.
- From advance unit replacement to extended warranties, EloCare delivers service and support from the people who know your Elo products best.
Best for: Kitchen Display Systems · Conference Room Technology · Conference Room Scheduler Touch Monitors
Specifications
Technical
- Part Number(s)
- E967730
- Enclosure Color
- Dark Gray Metallic
- Touch Technology & Capacity
- PCAP (Projected Capacitive) - 10 Touch
- Diagonal Size
- 7'' diagonal, Active matrix TFT LCD (LED)
- Aspect Ratio
- 16:10
- Active Area
- 5.90" x 3.69" / 149.76 mm x 93.60 mm
- Resolution
- 1280 x 800
- Other Supported Resolutions
- 1280 x 800 60Hz; 1280 x 800 60Hz RB; 1280 x 720 60hz; 1024 x 768 60Hz; 800 x 600 60Hz; 800 x 500 60Hz; 640 x 480 60Hz
- Viewing Angle
- Horizontal: ±88° or 176° total / Vertical: ±88° or 176° total
- Number of Colors
- 16.7 million
- Brightness (typical)
- Panel: 400 nits; TouchPro PCAP: 360 nits
- Response Time-total (typical)
- 35 msec
- Contrast Ratio
- 800:1
- Touch Interfaces
- USB
- Surface Treatment
- Anti-glare
- On Screen Display
- Accessible through touch OSD, and press Menu button to pop up touch OSD diagram.; Controls: Menu, Power; Settings: Brightness, Contrast, Aspect Ratio, Sharpness, Color Temperature, Low Blue Light, OSD Timeout, OSD Language, Touch on Sleep mode, Power LED, Touch Through, Recall Defaults; Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese,; Lockouts: OSD, Power
- I/O Ports
- USB Type-C connector
- Video
- USB Type-C connector; Input Video Horizontal Sync frequency range: 30 – 60KHz; Input Video Vertical Sync (frame rate) frequency range: 60Hz
- Power
- Power Delivery compatible via USB Type-C connector; Input range: (5V±5% 3A/9V±5% 3A/15V±5% 1.8A/20V±5% 1.35A)
- Power Consumption (Typical)
- ON (Default - 100% Brightness): 4.8W; SLEEP: 0.8 W; OFF: 0.15 W
- Monitor Dimensions (without Stand)
- 6.81" x 4.78" x 0.57" / 173.06 mm x 121.56 mm x 14.6 mm
- Shipping Box Dimensions
- 9.13" x 6.61" x 2.80" / 232 mm x 168 mm x 71mm
- Weight (Unpackaged)
- 0.71 lbs / 0.32 kg
- Weight (Packaged)
- 1.48 lbs / 0.67 kg
- Operating Temperature
- 0°C to 40°C / 32°F to 104°F
- Storage Temperature
- -20°C to 60°C / -4°F to 140°F
- Humidity
- Operating: 20% to 80%; Storage: 10% to 95% (38.7 ℃ max wet bulb temperature)
- MTBF
- 50,000 hours demonstrated
- Mounting Options

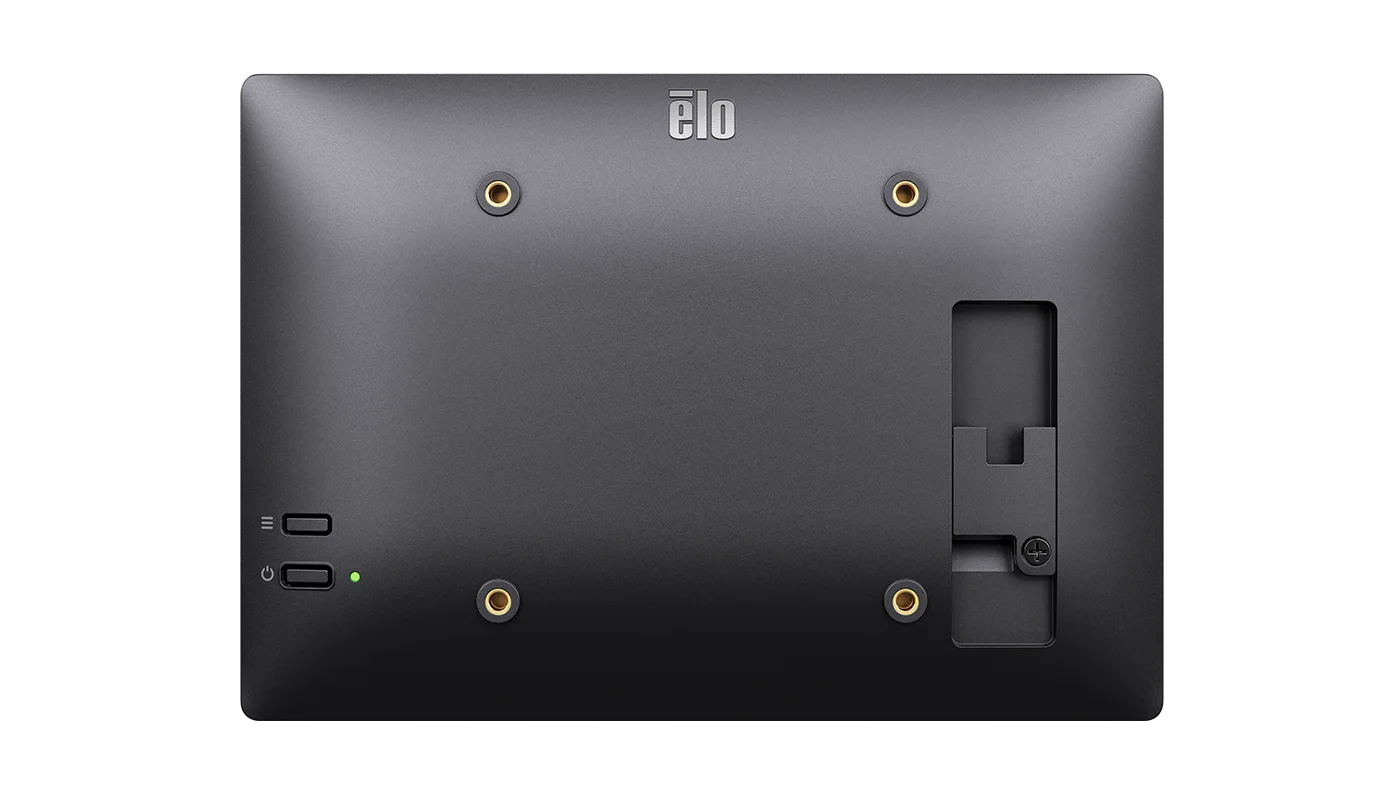

- VESA via 4-hole 75mm mounting adapter on rear of unit.
- Other Features
- TUV Rhineland (Low Blue Light); TUV Rhineland (Flicker Free); Power collection function via DDCCI
- Warranty
- 3-year
- Extended Service Options
- 4 year warranty coverage - Elo P/N: E898247; 5 year warranty coverage - Elo P/N: E898449; 3 year warranty coverage + AUR - Elo P/N: E898648; 4 year warranty coverage + AUR - Elo P/N: E894921; 5 year warranty coverage + AUR - Elo P/N: E895125
- Regulatory approvals and declarations
- Canada CUL, IC; Europe CE; Korea KCC; Taiwan BSMI; United States FCC, UL; Japan VCCI; International CB; Australia RCM; RoHS, China RoHS, WEEE, REACH; United Kingdom UKCA
- Impact Protection
- IK07
- What's in the Box
- Touchmonitor; Quick Install Guide; USB Type-C cable
- Optional Peripherals
- PCAP Stylus Pen - Elo P/N: E066148
- Stands, Mounts & Kits
- Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088; Rear Facing display Pole Mount Kit – Elo P/N: E038989; Short Tabletop Stand for 10'' I-Series - Elo P/N: E160104; Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382; Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069; Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458; Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663; Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864; Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151; Wallaby™ POS Stand (Black) - Elo P/N: E949536; USB-C to USB-C Cable Kit – Elo P/N: E129019; Z10 POS Stand (75mm VESA) - Elo P/N: E767159; Wallaby Pro Merchant-facing Display Kit – Elo P/N: E801367
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
