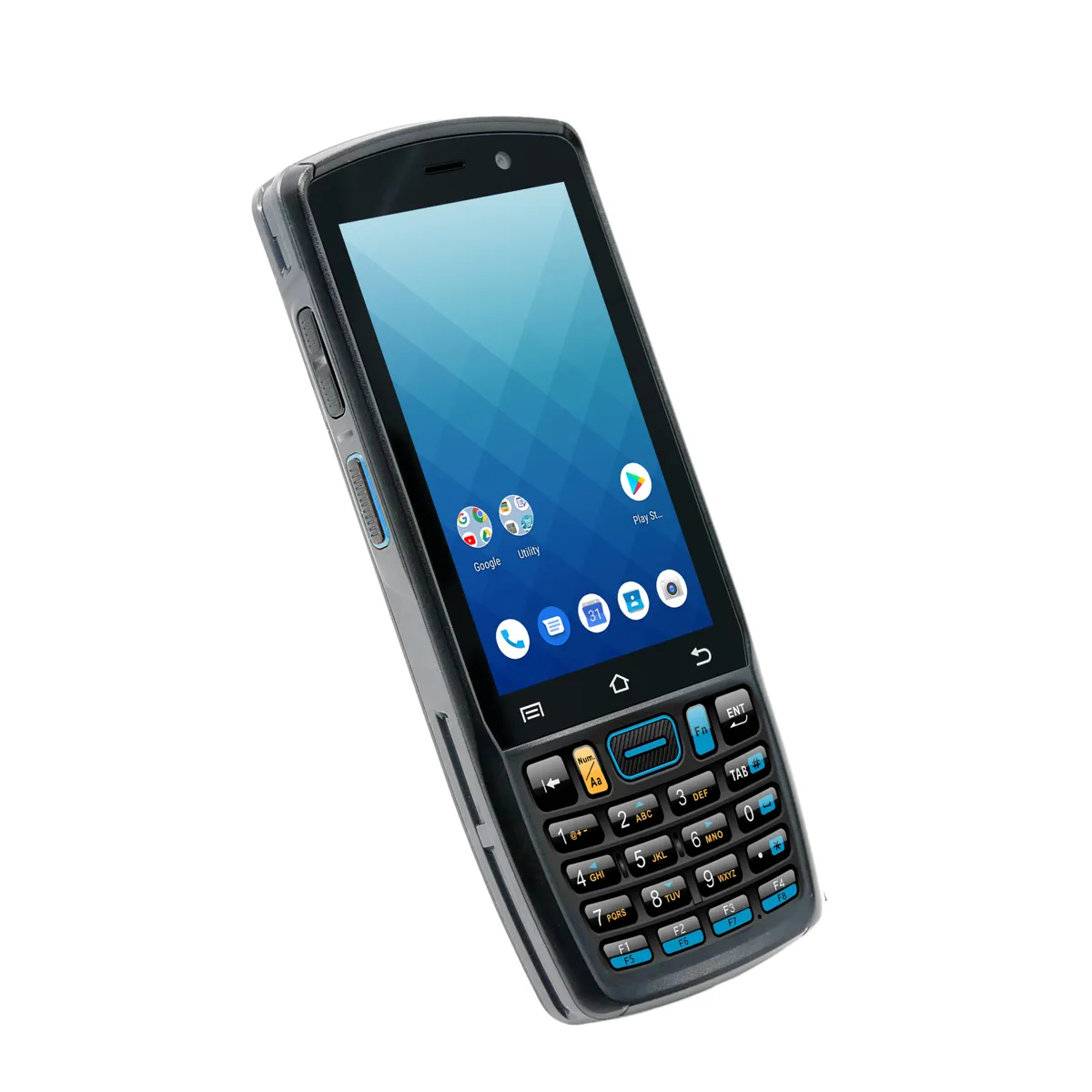

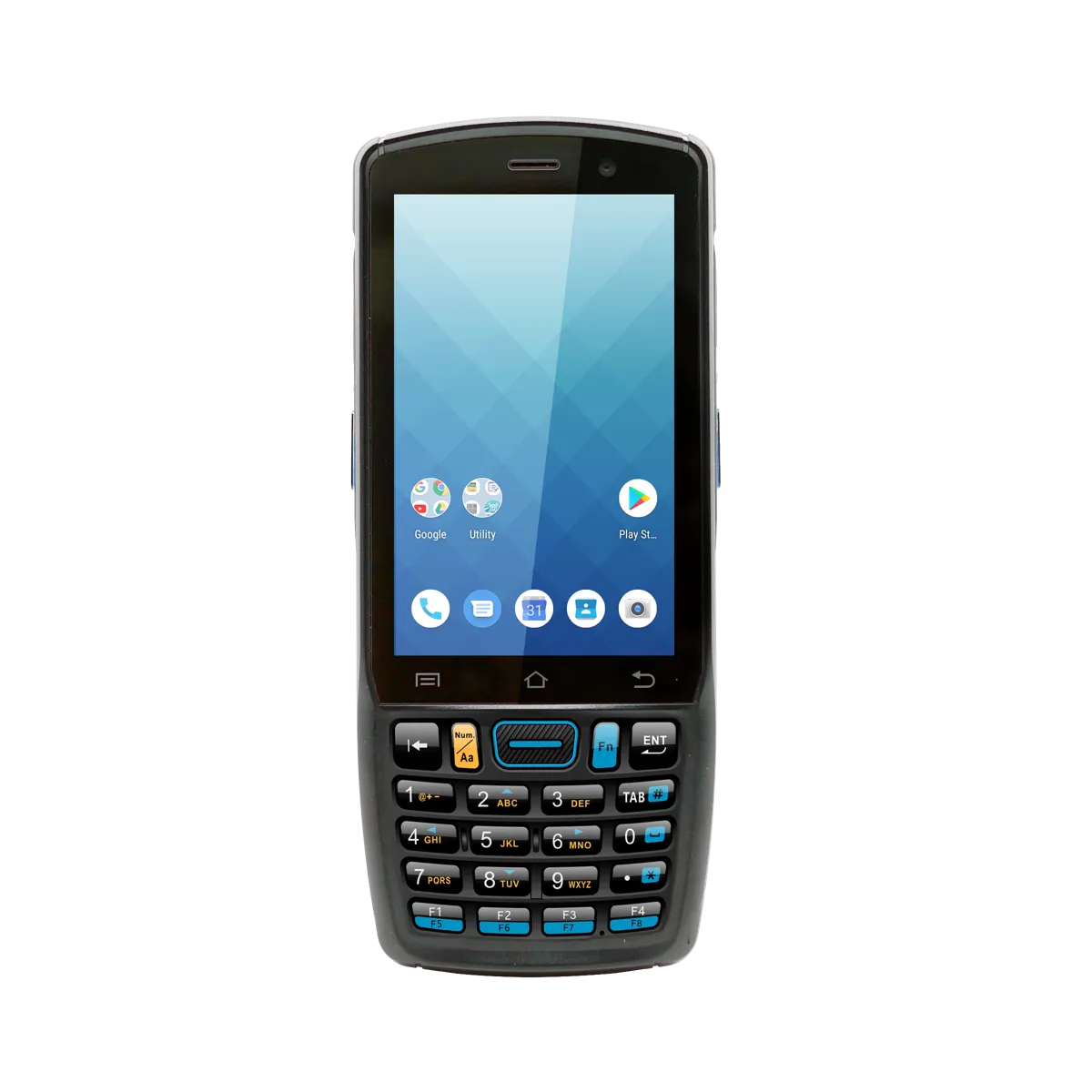

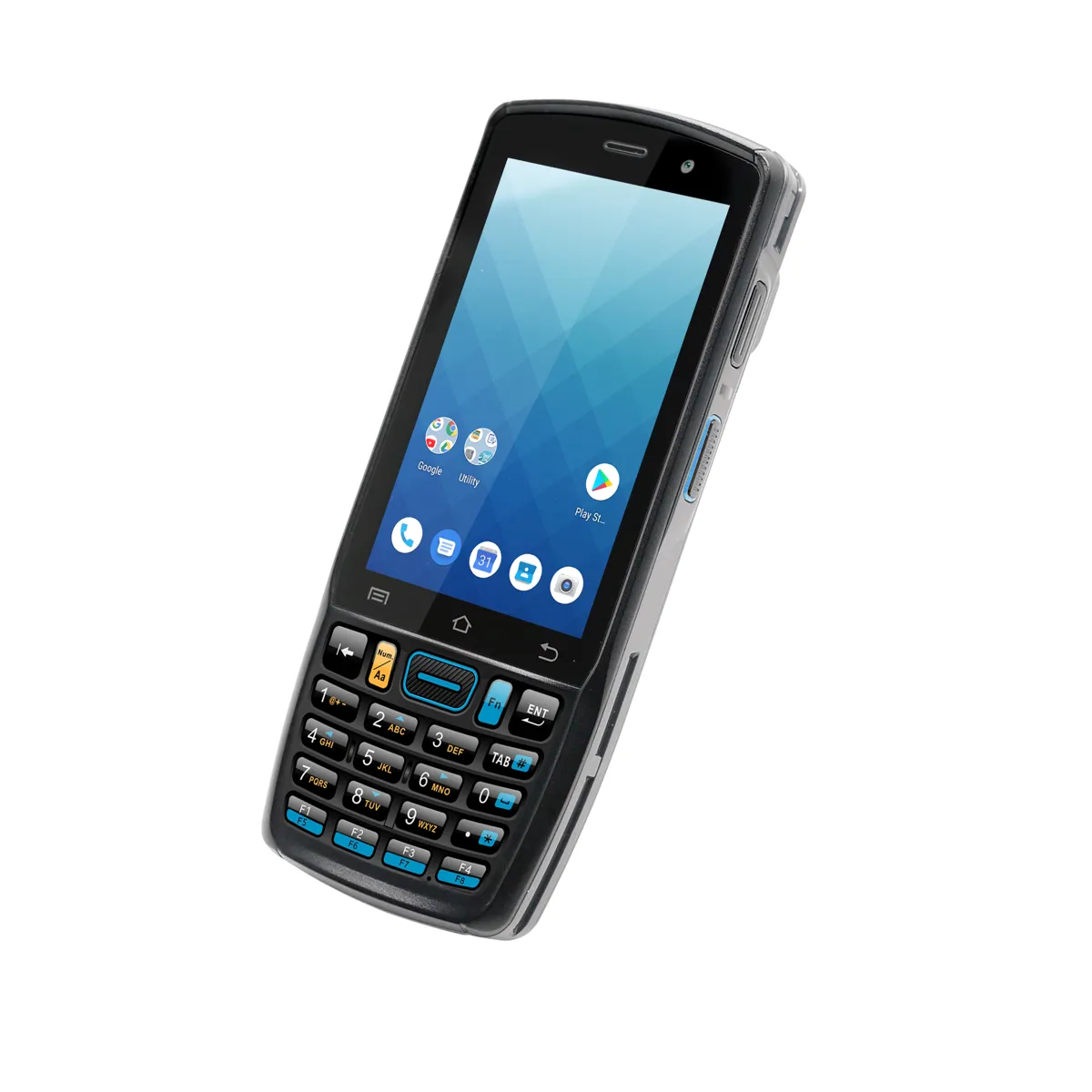

Unitech EA320
EA320 (Android 9) is a 4” industrial PDA with a keypad and GMS certified.
- Operating systemAndroid 9
- Display4”, TFT-LCD WVGA (480 x 800) color screen (400nits)
- BatteryRechargeable and swappable 3.8V 4500mAh Li-polymer battery
- SealingIP65
- Drop1.5m
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- Android 9
- Processor
- 1.8GHz, Qualcomm® Snapdragon™ 450, 64bits Octa-core Processor
- RAM / storage options
- 2GB DDR RAM, 16GB ROM 4GB DDR RAM, 64GB ROM (optional)
Display
- Display size
- 4”, TFT-LCD WVGA (480 x 800) color screen (400nits)
- Touch panel
- Gorilla® 3 Glass with 5-point Capacitive Touch Panel, compatible with gloves and supports wet resistance
Data capture
- Cameras
- 2MP front camera 13MP rear camera with LED flash and auto-focus function
Power
- Battery / runtime
- Rechargeable and swappable 3.8V 4500mAh Li-polymer battery
Connectivity
- Wi-Fi / WLAN
- IEEE 802.11 a/b/g/n/ac/d/e/h/i/k/r/v/w, IPv6
- Cellular / WWAN
- 4G LTE TDD (B34/B38/B39/B40/B41) FDD (B1/ B2/ B3/ B4/ B5/ B7/ B8/ B12/ B13/ B14/ B17/ B19/B20/ B25/ B26/ B28/ B66) WCDMA (B1/ B2/ B4/ B5/ B8) GSM/EDGE/GPRS (850/ 900/ 1800/ 1900) TD-SCDMA (B34/ B39) CDMA2000 1x EV-DO Rev.A BC0 (800MHz) CDMA 1x GSM/EDGE/GPRS (850/ 900/ 1800/ 1900)
- Bluetooth
- Bluetooth® 4.2
- Location / GPS
- GPS, AGPS, Glonass, BeiDou, Galileo
Rugged
- IP / sealing
- IP65
- Drop specification
- 1.5m
- Tumble specification
- Tumble 600 times (1.6 ft./0.5 m)
- Operating temperature
- -20°C to +60°C
- Humidity
- 5% ~ 95% (non-condensing)
Size
- Weight
- 280g
- Dimensions
- 164.5 mm x 68.6 mm x 17.5 mm
