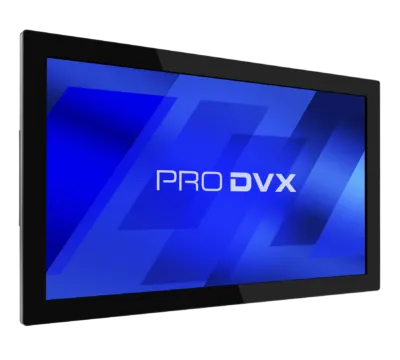

ProDVX TMP-22X
TMP-22X (R24-1001) Art. No: 3022105 21.5" Touch Monitor Display 10-Point PCAP touch Non-glare panel Get Quote Request demo device
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Panel type
- TFT LCD IPS
- Aspect ratio
- 16:9 wide
- Backlight
- Edge-LED backlight
- Brightness
- 250 cd/m2
- Viewing angle
- H178 / V178
- Contrast ratio
- 3000 to 1
- Touch Type
- 10 TP Pcap 20ms
- Treatment
- Non-glare
- Convenience
- Landscape,Portrait,Table Mode
- Operation hours
- 24h / 7d
- Cooling
- Fanless
- Video input
- Yes, HDMI in
- Ports / interfaces
- 12 V DC-IN,HDMI-in 1.4,USB 2.0
- Speakers
- 2 x 3 W
- Audio Jack Output 3.5mm
- YES
- Housing
- ABS+PC (Macrolon)
- Color
- Black
- Weight
- 3300 g
- Dimensions
- 530,5 x 321,22x 35 mm
- Mounting / VESA
- VESA 100
- Charging / power
- 12 V / 2 A (EU, UK, US)
- Power Usage
- 20 Watt
- OSD Language
- no OSD
- Storage temperature
- -10~55 degrees C
- Working Temp
- 0 ~ 40 degrees C
- Storage/Working Humidity
- 0 ~ 95% non-condensing
- MTBF
- 50,000 hours demonstrated
- Standard Warranty
- 3 years
- Certifications
- CE, RoHS, REACH
- Art. No
- 3022105
