Newland · Panel PC
Newland NQuire 750 Stingray II
Enabling self-service is easy with NQuire 750 Stingray II! With its interactive 7" touchscreen, various wireless options, and a megapixel scan engine, it's a perfect device for table-top ordering, shelf labeling, and price-checking applications.
- Scanning1D All major 1D symbologies
- SealingIP54 (front only)
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Processor
- 2.0 GHz octa-core, 64-bit
Display
- Touch panel
- Capacitive touchscreen
- Keyboard / keys
- Up/down keys, Vol+/Vol-keys, Menu key 5 keys
Data capture
- Scan engines / capture options
- 1D All major 1D symbologies
- Scan range / decode distances
- 110 mm - 290 mm 110 mm - 260 mm 70 mm - 610 mm 110 mm - 230 mm 55 mm - 410 mm GS1 Ready Yes

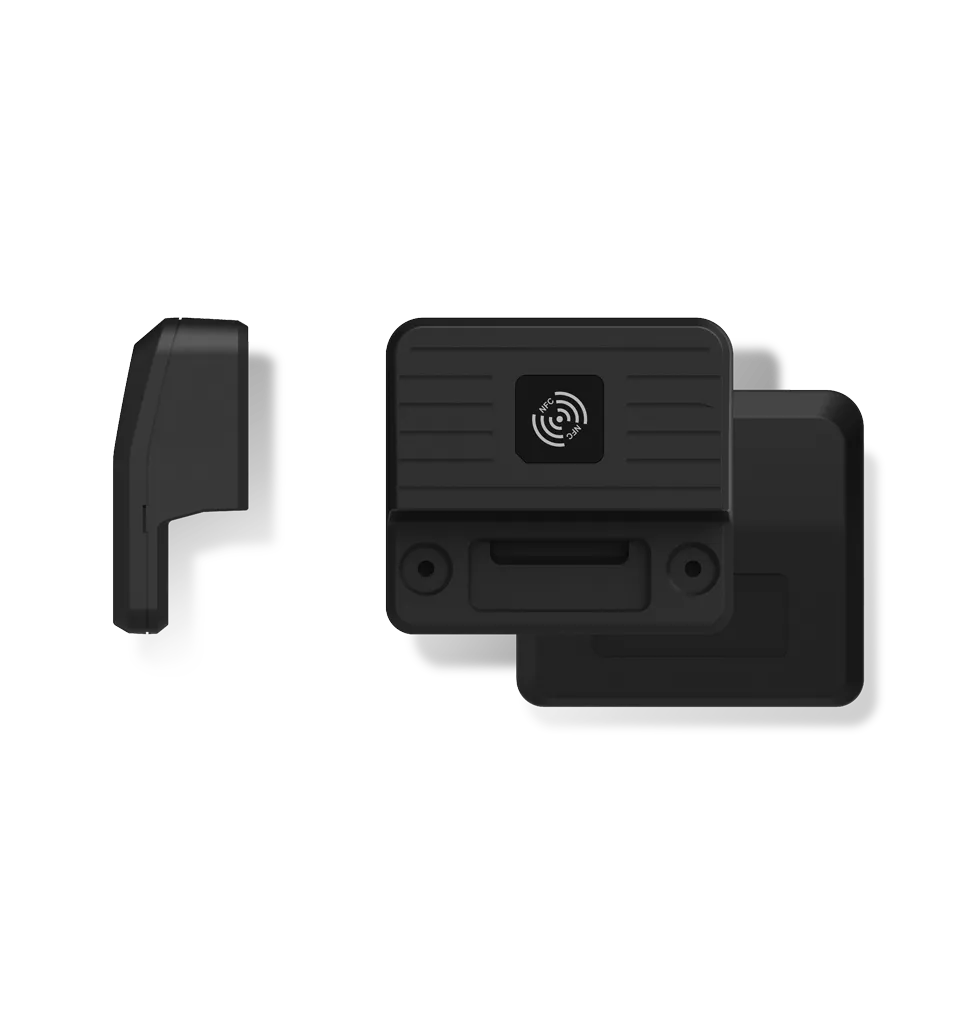

- NFC
- 13.56MHz RFID: ISO14443A/B, MIFARE, FeliCa, NFC Forum Tags, ISO15693. Supports ID card reading, supports reader/writer modes. (optional NFC module is required)
- Cameras
- 8 MP GS1
Connectivity
- Bluetooth
- 5.2
- Ports / interfaces
- USB-C, MicroSD Card, USB-A, GPIO, Ethernet
Rugged
- IP / sealing
- IP54 (front only)
- Operating temperature
- -10°C to 50°C (14°F to 122°F)
- Storage temperature
- -20°C to 60°C (-4°F to 140°F)
- Humidity
- 5% to 90% (non-condensing)
Size
- Dimensions
- 185.9(W) x 132.5(D) x 32(H) mm
Software & service
- Warranty
- 2 Years Comprehensive Service Contract 3 Years, 5 Years
