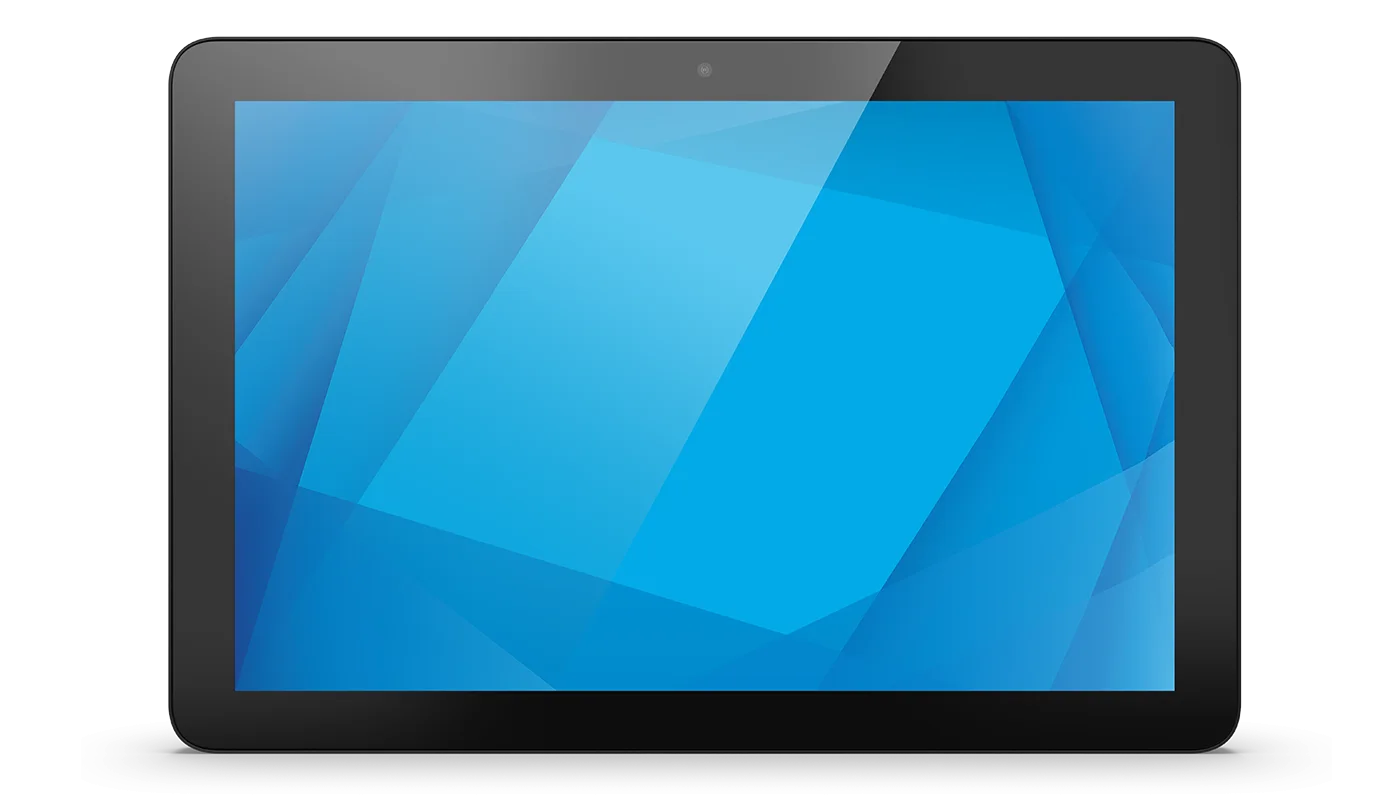

Elo Touch 10-inch I-Series with Linux

Modular, Linux touchscreen platform.

Operating systemLinux Debian 10
Display10.1'' diagonal, Active matrix TFT LCD (LED)
SealingTouchscreen sealed to LCD

Datasheet at Elo Touch Product page at Elo Touch

Works alongside Raptool apps running in the Raptool Client on Android, iOS, Windows and Mac. Scanner apps

Overview

Used across the globe for everything from self-service, point-of-sale and price checkers to industrial controls and visitor management, the I-Series platform provides a versatile Linux touchscreen computer to power almost any application.

With decades of development and customizations made to support global enterprise customers, Elo’s Linux-based platform offers Linux device drivers, uniform SDKs, a constantly growing set of tools and an expansive lineup across sizes and form factors.
Transform the I-Series Linux computer into a powerful, industrial-design POS system that scales with your business.
From self-order and self-checkout to order pickup and virtual assistants, pair the I-Series Linux device with a variety of stands to create your perfect kiosk.
Educate buyers, create brand awareness and drive purchases in store with an easy-to-use Linux touchscreen platform that can adapt as needs change.
Equipped with Rockchip 6-core processor and your choice of Debian 10 OS distributions or newer, the I-Series Linux computer delivers the performance your business needs.

Best for: Kitchen Display Systems · All-in-One Interactive Kitchen Display Systems · Conference Room Technology · Conference Room Scheduler Touch Computers

Specifications

Technical

Part Number(s): E143205
Enclosure Color: Black
Touch Technology & Capacity: PCAP (TouchPro® Projected Capacitive) - 10 Touch
Touch Thru: Supports up to 6mm / 0.24" glass or 3mm / 0.12" plastic with up to 2 touches
Processor: Rockchip RK3399
Memory (RAM): 4GB
Storage: 32GB
OS: Linux Debian 10
Diagonal Size: 10.1'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 16:10
Active Area: 8.54" x 5.34" / 217 mm x 136 mm
Resolution: 1280 x 800 @ 60Hz
Number of Colors: 8-bit (16.7 million)
Brightness (typical): LCD Panel: 300 nits; TouchPro PCAP: 250 nits
Response Time-total (typical): 25 msec
Contrast Ratio: 800:1
Viewing Angle: Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
Peripheral Mounting: 4x micro-USB 2.0 Elo Edge Connect ports; Support for 1.2A on one port and 500mA for the remaining three ports
I/O Ports: 1x USB 3.0 support (900mA); Type C USB output; Micro SD slot; GPIO; Ethernet 1x LAN (Gigabit); DC in
Webcam: 5MP, Max Resolution: 1920x1080 30fps, Auto Focus
Wireless: 802.11a/b/g/n/ac + Bluetooth 5.0
Audio Ports: 1x built-in Analog Microphone
Speakers: 2x 2W
Power Supply: AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz; power adapter (included in accessory box)
Power Consumption (Typical): On: 7.2W; Off: 0.4W; Sleep: 3.4W
Power Over Ethernet (PoE): Supported via Elo PoE Device PN: E413396; Reference the I-Series user guide for details.
Dimensions: 9.96" x 6.65" x 0.87" / 252.9 mm x 169.0 mm x 22.1 mm
Shipping Box Dimensions: 12.4" x 5.5" x 9.0" / 315 mm x 140 mm x 228 mm
Weight (Unpackaged): 1.8 lbs / 0.8 kg
Weight (Packaged): 4.9 lbs / 2.2 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
Storage Temperature: -20°C to 50°C / -4°F to 122°F
Humidity: Operating: 20% to 80%; Storage: 5% to 95%
Regulatory approvals and declarations: UL/cUL (US); FCC (US); IC (Canada); CE (Europe); CB (International); VCCI, MIC (Japan); RCM (Australia); ANATEL (Brazil)
Real-Time Clock: lithium coin cell battery
MTBF: 50,000 hours demonstrated
Mounting Options: VESA 75mm
Extended Service Options: 3 year Warranty Coverage – Elo P/N: E819394; 4 year Warranty Coverage – Elo P/N: E819598; 5 year Warranty Coverage – Elo P/N: E819795; 3 year Warranty Coverage + ADP – Elo P/N: E130329; 4 year Warranty Coverage + ADP – Elo P/N: E130530; 5 year Warranty Coverage + ADP – Elo P/N: E130719; 2 year Warranty Coverage + AUR – Elo P/N: E819985; 3 year Warranty Coverage + AUR – Elo P/N: E820186; 4 year Warranty Coverage + AUR – Elo P/N: E820388; 5 year Warranty Coverage + AUR – Elo P/N: E820582; 2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490; 3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674; 4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859; 5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053
Sealability: Touchscreen sealed to LCD
What's in the Box: I-Series 4; North American Power Cable; European Power Cable; 1x Power Brick; Quick Install Guide; Screws for cable cover door (located in the power/Ethernet bay)
Optional Peripherals: Magnetic Stripe Reader (MSR) – Elo P/N: E001002; Fingerprint Scanner – Elo P/N: E134286; GPIO Cable - Elo P/N: E211544; POE Module Kit - Elo P/N: E413396; EMV Cradle for MagTek eDynamo - Elo P/N: E375343; EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981; EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930; Status Light (Micro-USB Connectivity) - Elo P/N: E644767; 3D Camera - Elo P/N: E134699; Webcam - Elo P/N: E201494
Stands, Mounts & Kits: Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088; Short Tabletop Stand for 10'' I-Series - Elo P/N: E160104; Tabletop Flip Stand for 10'' & 15'' I-Series - Elo P/N: E924077; Z20 Stand for 10'' & 15'' I-Series - Elo P/N: E809321; Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382; Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069; Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458; Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663; Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864; Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151; Expansion Module - Long Cable Kit - Mounted under the flip stand - Elo P/N: E923781; 65W Replacement Cable Kit (NA & EU power cables and power brick) – Elo P/N: E514304; 90W Replacement Cable Kit (NA & EU power cables and 90W power brick) - Elo P/N: E413579; Replacement Cable Kit (NA & EU power cables) – Elo P/N: E512363

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
