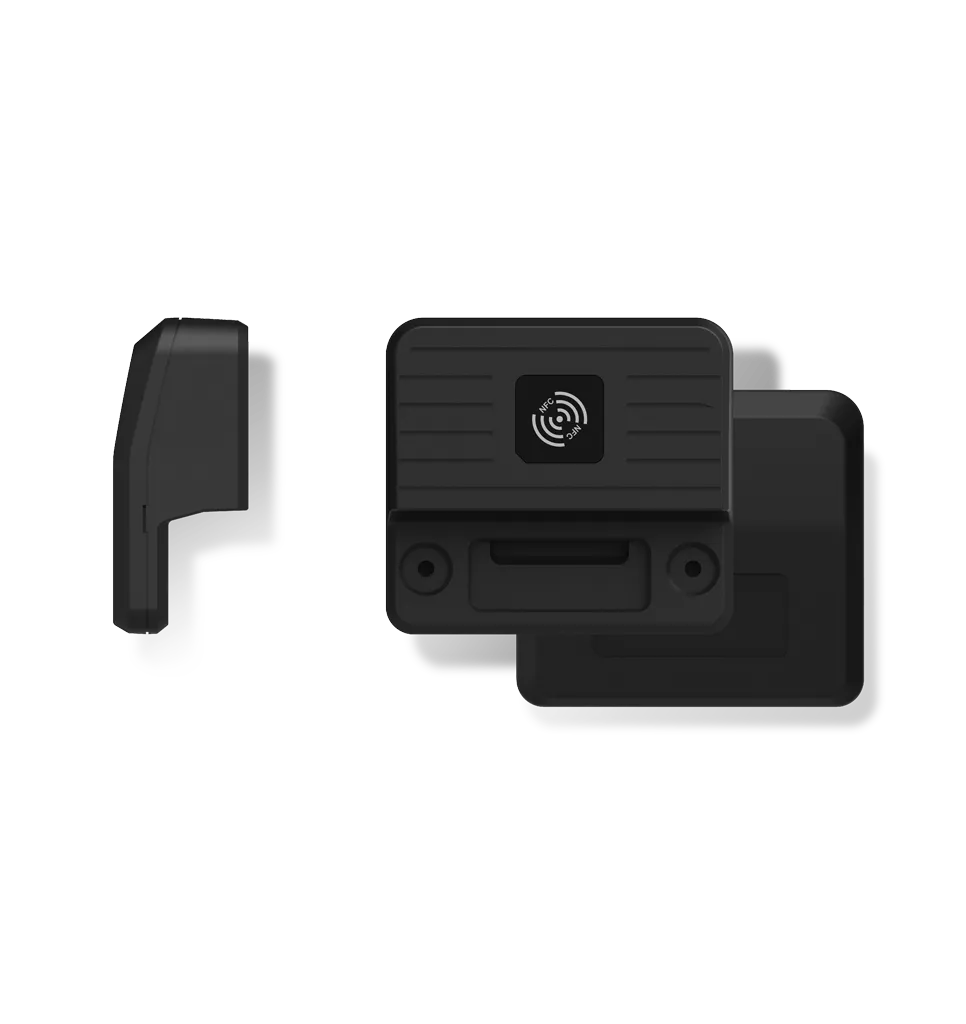

Newland NLS-NQNFC-01 NFC Reader Module for NQuire Series
NFC reader module for NQuire 500 Skate II, 700 Stingray II, Manta 1000 III and Mobula II.
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Dimensions
- 62,5(L) x 57(W) x 24,4(H) mm
- Power Consumption
- Operating current: 100ma; Maximum current: 250ma
- Weight
- 42g
- NFC
- Comply with ISO14443A/B protocol, such as MIFARE, NFC Forum Tags (NFC Forum Tags only partially support 14443A/B protocol), second generation ID cards, bus cards, bank cards, social security cards, access cards, membership cards and other cards that meet this standard.
- NFC: Reading Distance
- 0-3cm
- Operating temperature
- -10°C to 50°C (14°F to 122°F)
- Storage temperature
- -20°C to 60°C (-4°F to 140°F)
- Warranty
- 1 Year
- Part Number
- Description
- NLS-NQNFC-01
- NFC reader module for NQuire 500 Skate II, 700 Stingray II, Manta 1000 III and Mobula II.
- Dimensions
- 62,5(L) x 57(W) x 24,4(H) mm
- Power Consumption
- Operating current: 100ma; Maximum current: 250ma
- Weight
- 42g
- NFC
- Comply with ISO14443A/B protocol, such as MIFARE, NFC Forum Tags (NFC Forum Tags only partially support 14443A/B protocol), second generation ID cards, bus cards, bank cards, social security cards, access cards, membership cards and other cards that meet this standard.
- Operating temperature
- -10°C to 50°C (14°F to 122°F)
- Storage temperature
- -20°C to 60°C (-4°F to 140°F)
- Warranty
- 1 Year
- Wireless
- NFC
- Warranty Standard
- 1 Year
- Fits
- NQuire 500 Skate II, NQuire 750 Stingray II
