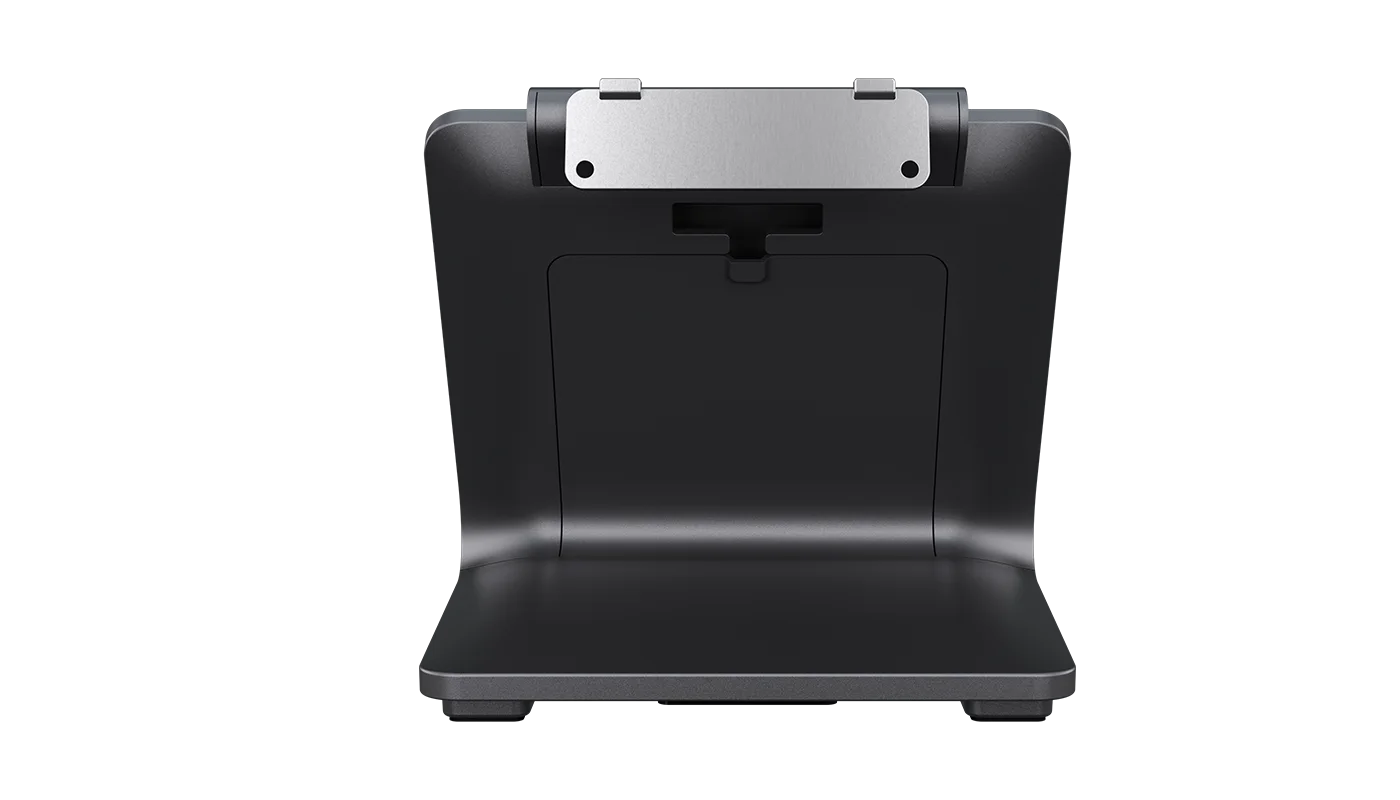

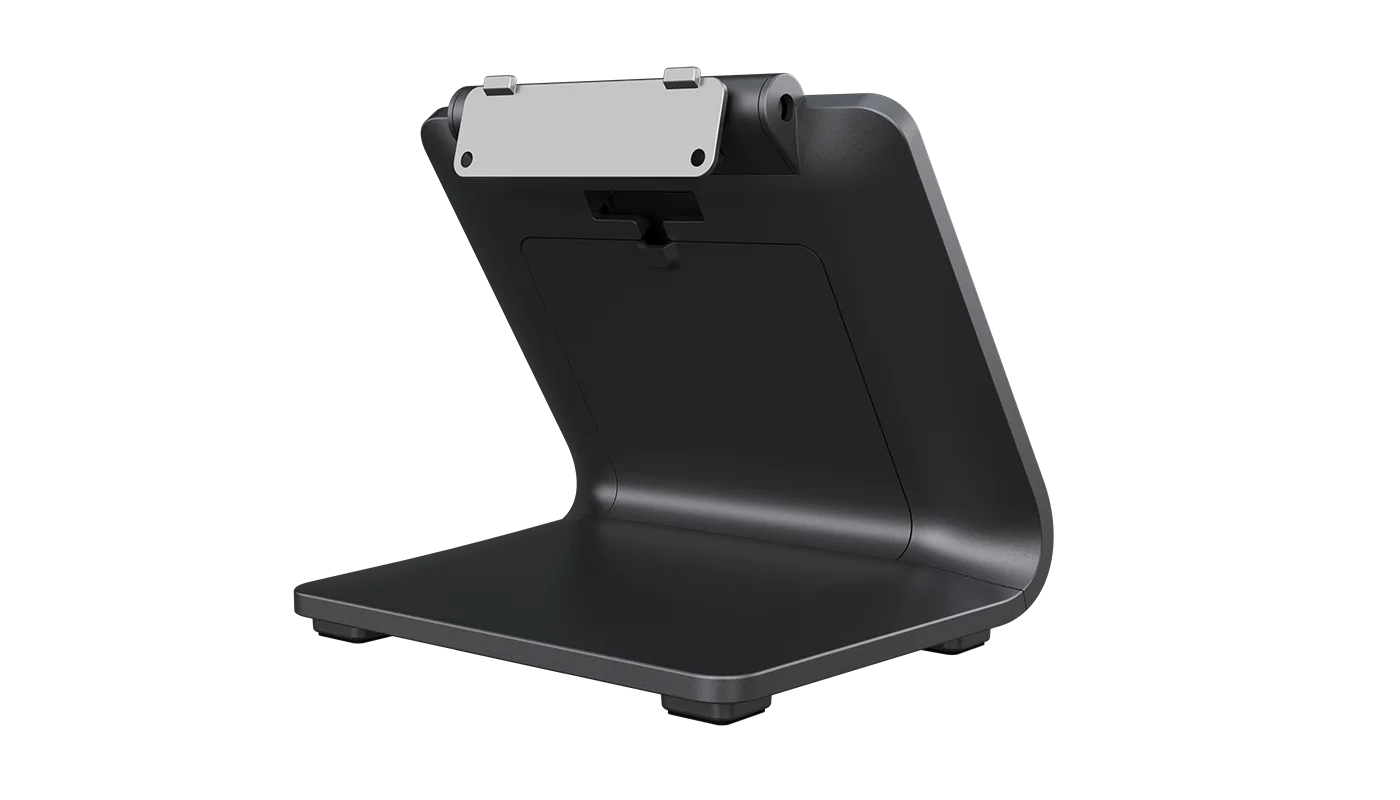

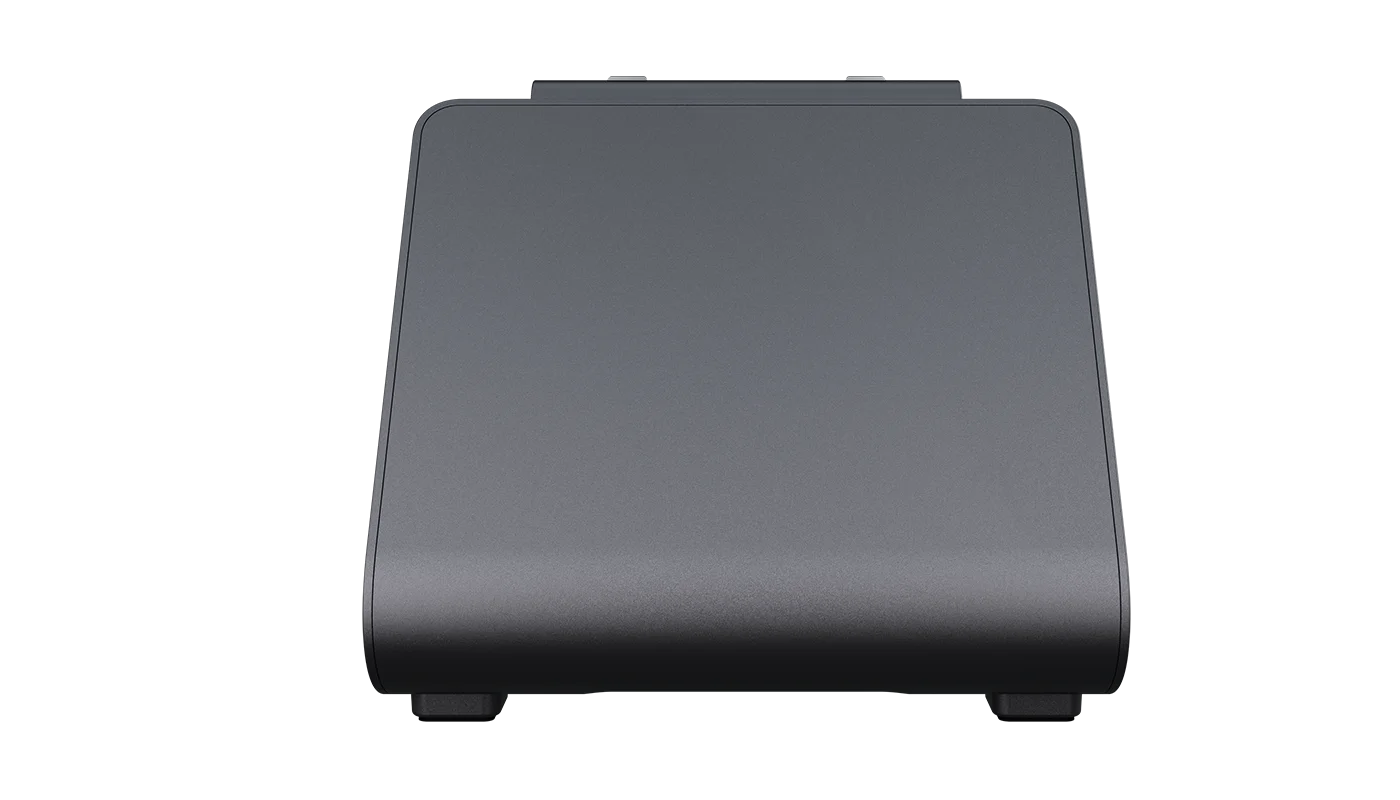

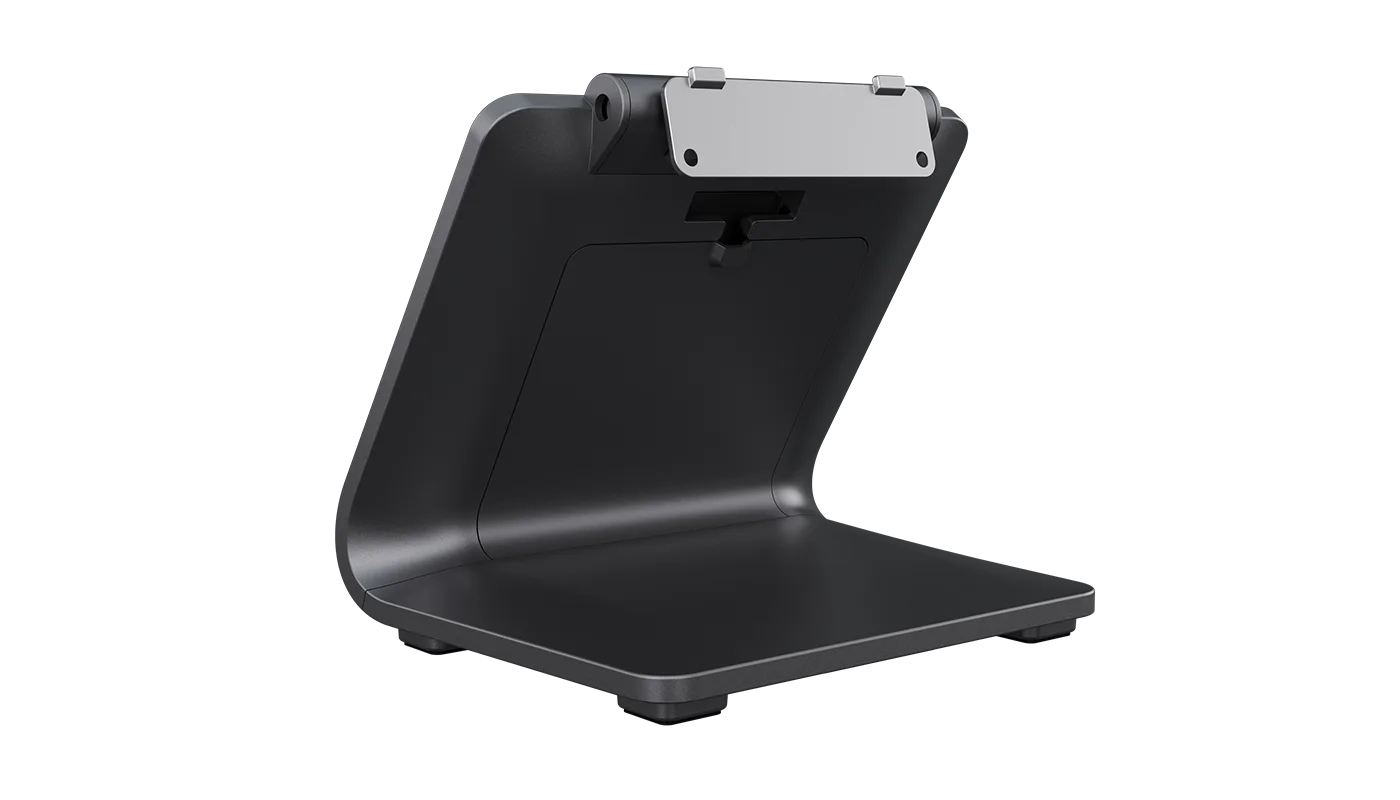

Name: Elo Touch Z10 POS Stand
Brand: Elo Touch

Overview

Complete with concealed cable routing and the flexibility to mount a customer-facing display on the back, the Z10 POS Stand delivers an elegant, minimalistic design to help optimize checkout in compact spaces.

Conceal Your Cables Keep your counter clean with the integrated cable routing system.

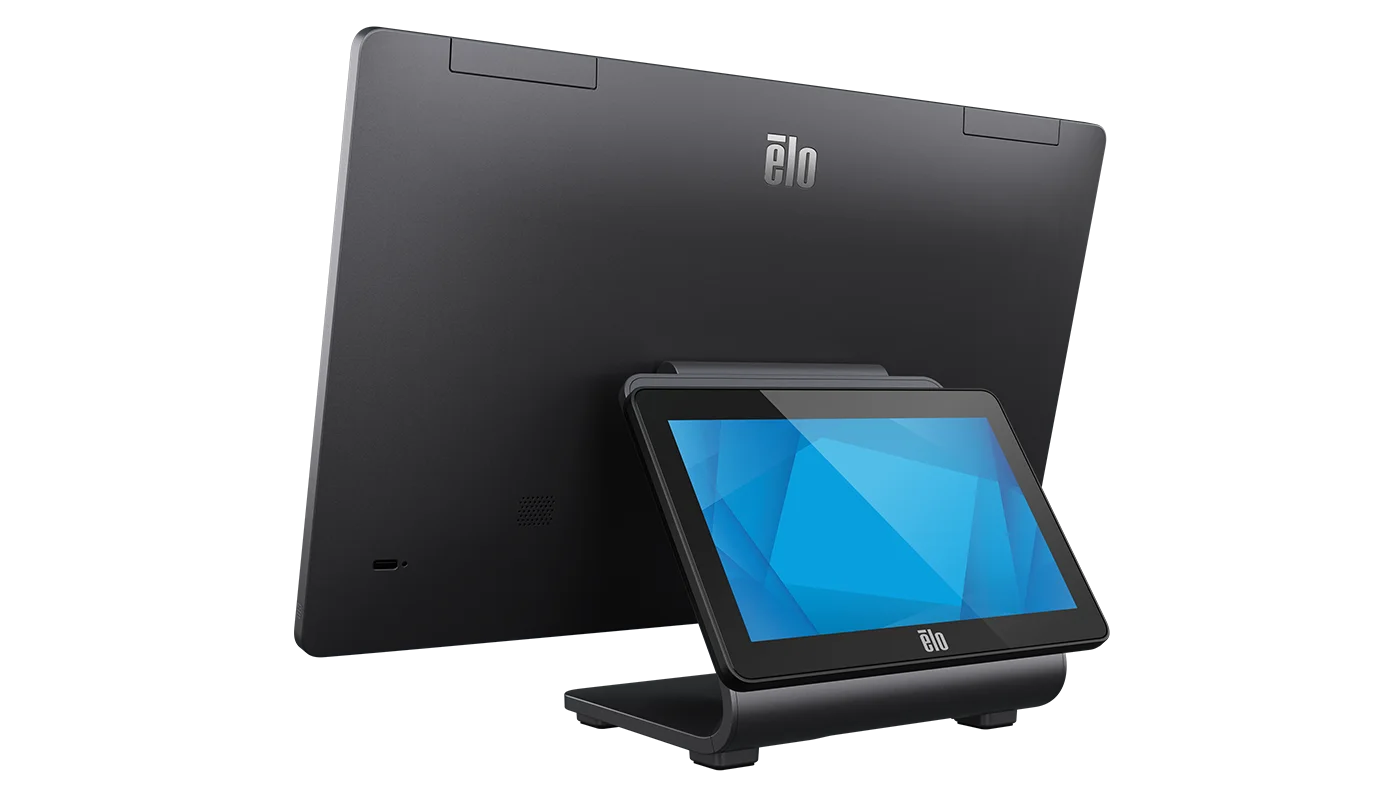

Single Cable Connection Connect a secondary display with a single USB cable that provides touch, video and power.

Specifications

Technical

Part Number(s): E767159
Enclosure Color: Dark Gray Metallic
Compatibility: Main Display:; 15" I-Series 3 Slate with Intel; 15" I-Series 5 Slate with Android; Customer-facing Display:; 0702L – Elo P/N: E796382
Mounting Options: VESA 75mm
Weight (Unpackaged): 2.52 lbs / 1.14 kg
Weight (Packaged): 4.63 lbs / 2.1 kg
Dimensions: 6.3" x 5.1" x 6.2" / 160 mm x 129 mm x 157 mm
Shipping Box Dimensions: 10.1" x 8.8" x 8.7" / 256 mm x 223 mm x 220 mm
Operating Temperature: 0° C to 40° C / 32° F to 104° F
Storage Temperature: -20° C to 50° C / -4° F to 122° F
Humidity: Operating: 20% - 80% / Storage: 5% - 95%
MTBF: 50,000 hours demonstrated
Warranty: 2-year
Extended Service Options: 3 year warranty coverage - Elo P/N: E375367; 4 year warranty coverage - Elo P/N: E375573; 5 year warranty coverage - Elo P/N: E375771; 2 year warranty coverage + AUR - Elo P/N: E375970; 3 year warranty coverage + AUR - Elo P/N: E376169; 4 year warranty coverage + AUR - Elo P/N: E376362; 5 year warranty coverage + AUR - Elo P/N: E376547
What's in the Box: Z10 POS Stand; 2x M4 x 5 screws for attaching the head to the stand; 4x M4 x 18 screws for attaching a 0702L CFD; 1x Hex 4X108 Allen wrench for adjusting hinge torque; 1x Back Cover for CFD; Quick Install Guide

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
