Elo Touch · POS computer

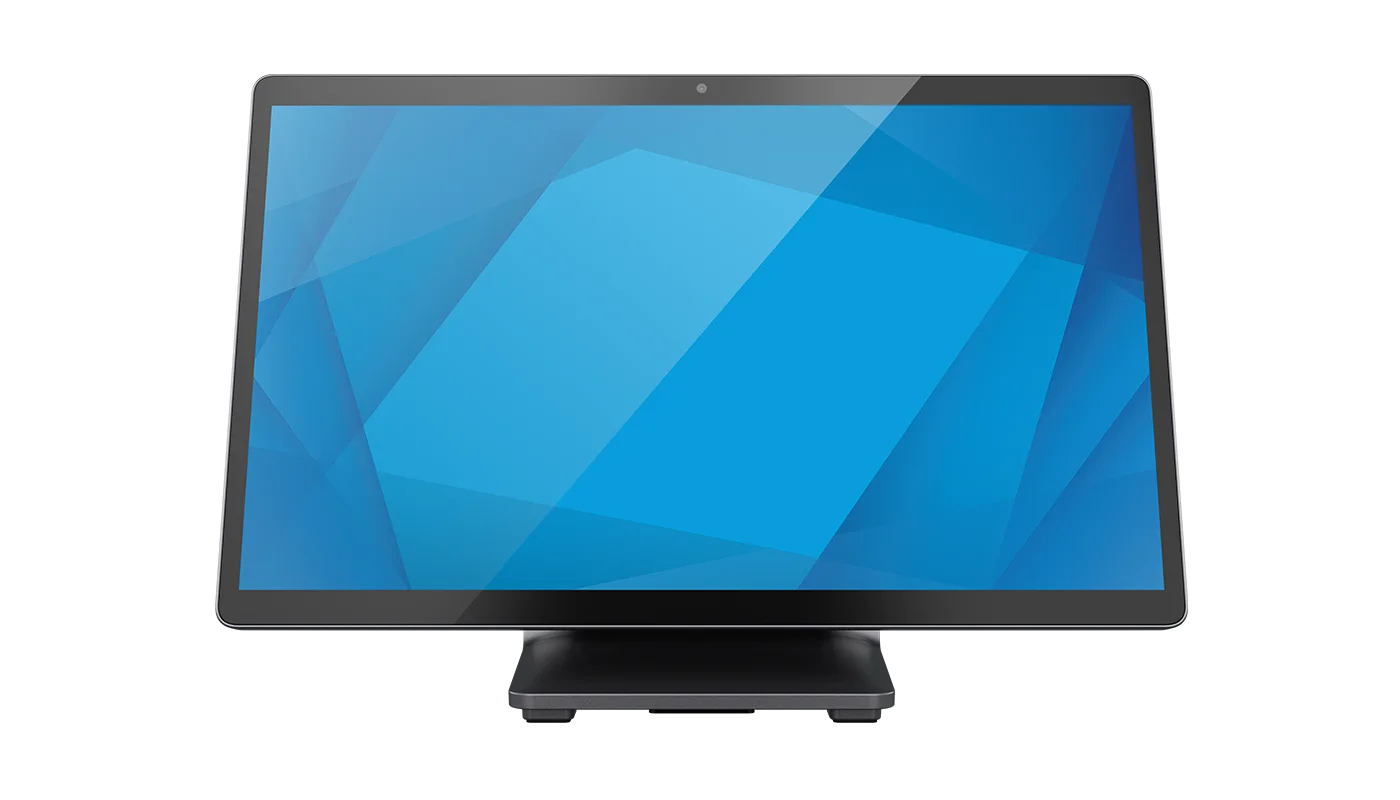

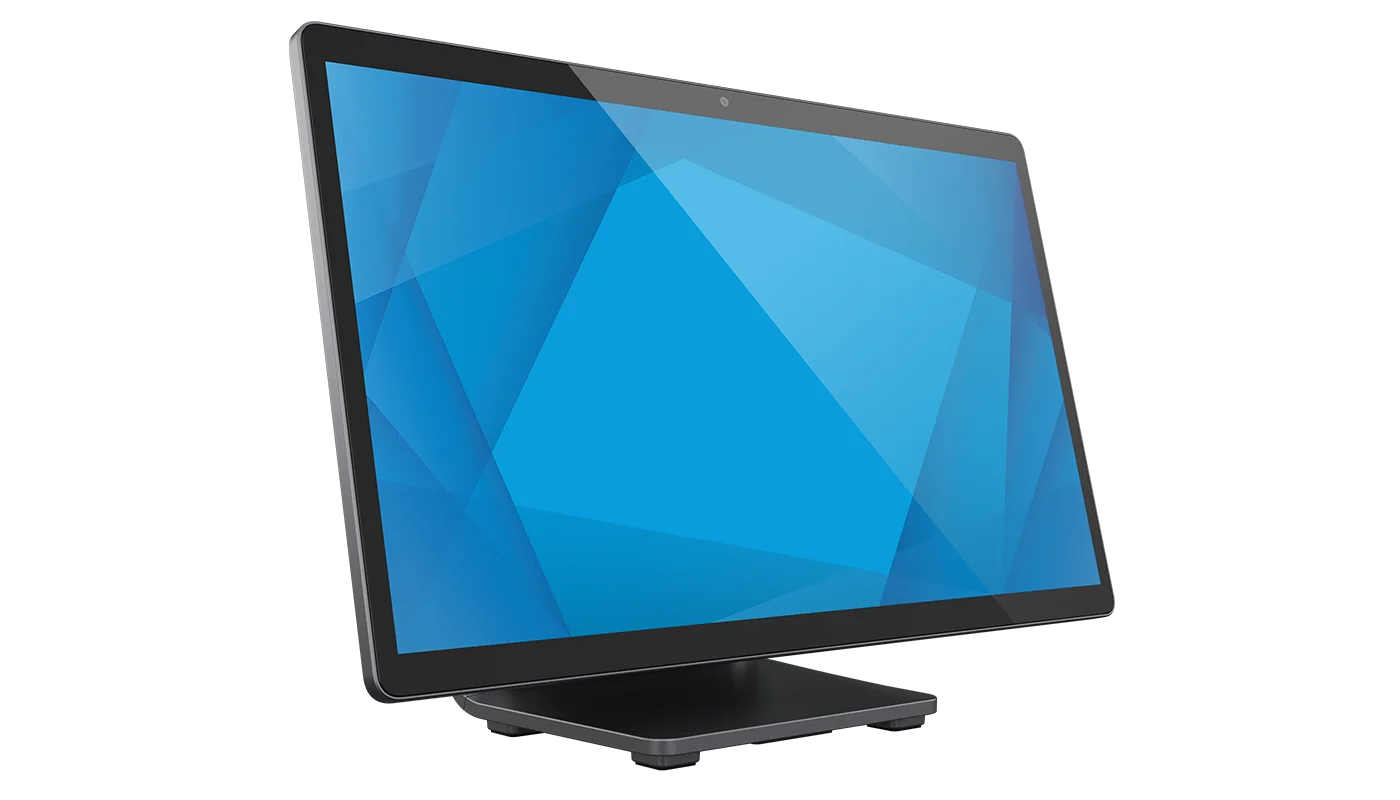

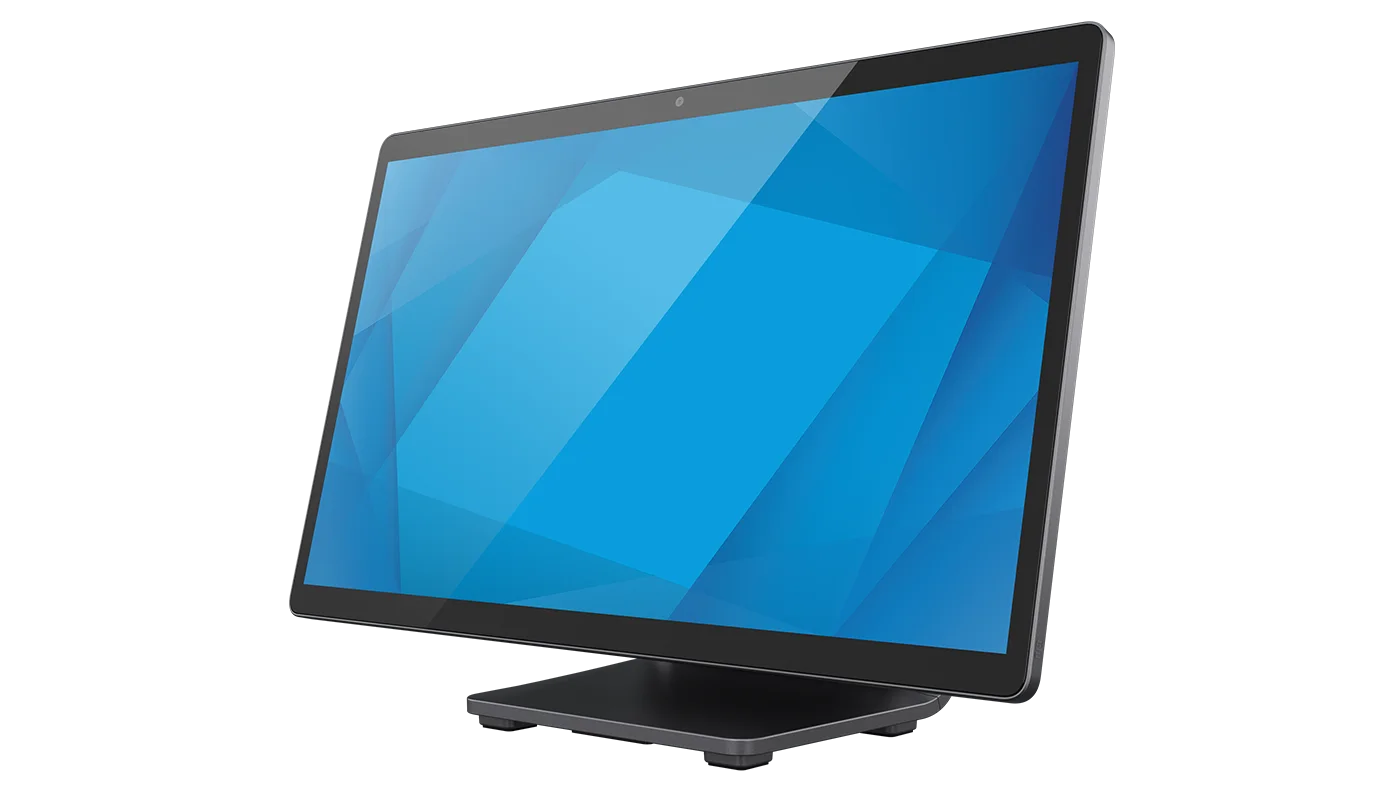

Elo Touch EloPOS Z10 with Intel
Built on Elo’s unified architecture, the EloPOS Z10 delivers a powerful, minimalistic design to help optimize checkout in compact spaces without losing inches on your point‑of‑sale terminal. Complete
- Operating systemNo OS; Windows 10 IoT Enterprise LTSC 64-bit
- Display15.6'' diagonal, Active matrix TFT LCD (LED)
Datasheet at Elo Touch Product page at Elo Touch
Runs Raptool apps in the Raptool Client, with access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Overview
Built on Elo’s unified architecture, the EloPOS Z10 delivers a powerful, minimalistic design to help optimize checkout in compact spaces without losing inches on your point‑of‑sale terminal. Complete with a 15.6‑inch Full HD interactive display, I/O hub, contained cable routing, your choice of Windows 10, ChromeOS Flex and Linux, and optional interactive customer-facing display, the EloPOS Z10 delivers one of the slimmest POS systems to the market.
- Purposefully architected to fit everything you need at the point of sale into a sleek compact design.

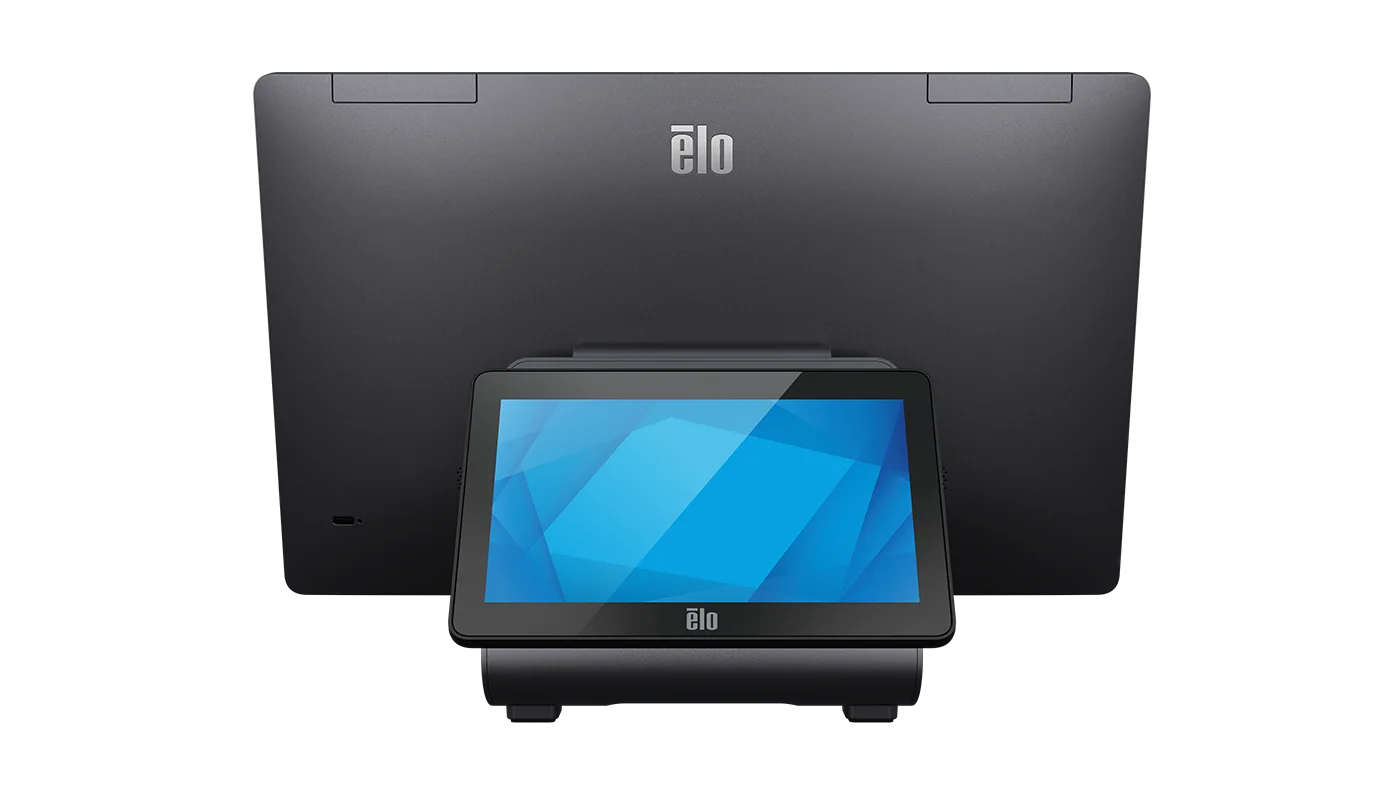

- Offer your customers a point of interaction to review transactions, participate in loyalty programs and see the latest promotions with the customer-facing touchscreen display.
- Connectivity for Accessories The EloPOS Z10 offers an I/O hub that extends connectivity from the display to your accessories.
- Conceal Your Cables Keep your counter clean with the fully-integrated cable routing system.
- Single Cable Connection Connect a secondary display with a single USB cable that provides touch, video and power.
Best for: POS Systems for Restaurants · Retail POS Systems · Windows Retail POS Systems · Linux Retail POS Systems
Specifications
Technical
- Part Number(s)
- EloPOS Z10 with No OS, 8GB RAM, 128GB SSD - E983676 + E767159; EloPOS Z10 with Win 10, 8GB RAM, 128GB SSD - E983895 + E767159; EloPOS Z10 with Win 10, 16GB RAM, 128GB SSD - E128434 + E767159; EloPOS Z10 with Win 11/10, 8GB RAM, 256GB SSD - E424795 + E767159; EloPOS Z10 with Win 11/10, 16GB RAM, 256GB SSD - E424986 + E767159
- Enclosure Color
- Dark Gray
- Touch Technology & Capacity
- PCAP (TouchPro® Projected Capacitive) - 10 Touch
- Processor
- Intel Elkhart Lake J6426
- Graphics
- Intel UHD Graphics
- BIOS
- AMI
- Memory (RAM)
- 8GB 3200MHz DDR4 SO-DIMM on 1 slot (Available up to 32GB in one slot)
- Storage
- 128GB M.2 NVME SSD 72 TBW; GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.
- TPM
- 2.0
- Diagonal Size
- 15.6'' diagonal, Active matrix TFT LCD (LED)
- Aspect Ratio
- 16:9
- Active Area
- 13.55" x 7.62" / 344.2 mm x 193.5 mm
- Resolution
- 1920 x 1080 @ 60Hz
- Number of Colors
- 16.2 million
- Brightness (typical)
- LCD panel: 300 nits; TouchPro PCAP: 255 nits
- Response Time-total (typical)
- 25 msec
- Contrast Ratio
- 1000:1
- Viewing Angle
- Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
- Webcam
- 8MP; Max Resolution: 1920x1080 30fps; Auto Focus
- I/O Ports
- Display Head Interface:; USB-C Connector; Supports USB 2.0/3.0, DP output; (Requires 20V/20W USB-C Power Delivery 2.0 if not using IO Hub for power); I/O Hub:; DC Input; 4 x USB-A 3.0; RJ45 Ethernet LAN (Gigabit) (wo Wake on Lan at S5 support)
- Wireless
- 802.11 a/b/g/n/ac/ax 2.4GHz, 5GHz and 6GHz
- Bluetooth
- Bluetooth 5.2
- Antenna
- 2T2R design
- Microphone
- Digital Microphone
- Speakers
- 2 x 2W internal speakers
- OS
- No OS; Windows 10 IoT Enterprise LTSC 64-bit
- Languages
- Windows 10 - 36 Language groups
- Power Supply
- External 19VDC universal-type power supply brick; AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz; Maximum output power: 65W
- Power Consumption (Typical)
- ON: 30W; SLEEP:
- Dimensions
- 14.3" x 9.9" x 5.5" / 362.8 mm x 252.7 mm x 139.7mm
- Shipping Box Dimensions
- I-Series: 18.11" x 12.64" x 7" / 460 mm x 321 mm x 178 mm; Z10 POS Stand: 10.1" x 8.8" x 8.7" / 256 mm x 223 mm x 220 mm
- Weight (Unpackaged)
- I-Series: 3.53 lbs / 1.6 kg; Z10 POS Stand: 2.52 lbs / 1.14 kg; EloPOS Z10: 6.05 lbs / 2.74 kg
- Weight (Packaged)
- I-Series: 8.81 lbs / 4 kg; Z10 POS Stand: 4.63 lbs / 2.1 kg
- Operating Temperature
- 0°C to 35°C / 32°F to 95°F
- Storage Temperature
- -20°C to 60°C / -4°F to 140°F
- Humidity
- Operating: 10% to 90%; Storage: 0% to 95% (38.7°C max wet bulb temperature)
- Energy Star
- Energy Star 8.0
- Compliance
- TAA Compliant
- Regulatory approvals and declarations
- UL/cUL, FCC, CE, CB, NOM, RCM, VCCI, Argentina S-Mark, CCC, SRRC, ANATEL, UKCA
- Real-Time Clock
- CR2450 lithium metal battery
- MTBF
- 50,000 hours demonstrated
- Mounting Options
- 75mm VESA mount
- Warranty
- I-Series 3 Slate with Intel: 3 years; Z10 POS Stand: 2 years
- Extended Service Options
- I-Series 3 Slate with Intel:; 4 year warranty coverage - Elo P/N: E819598; 5 year warranty coverage - Elo P/N: E819795; 3 year warranty coverage + AUR - Elo P/N: E820186; 4 year warranty coverage + AUR - Elo P/N: E820388; 5 year warranty coverage + AUR - Elo P/N: E820582; Z10 POS Stand:; 3 year warranty coverage - Elo P/N: E375367; 4 year warranty coverage - Elo P/N: E375573; 5 year warranty coverage - Elo P/N: E375771; 2 year warranty coverage + AUR - Elo P/N: E375970; 3 year warranty coverage + AUR - Elo P/N: E376169; 4 year warranty coverage + AUR - Elo P/N: E376362; 5 year warranty coverage + AUR - Elo P/N: E376547
- What's in the Box
- I-Series Slate with Intel:; I-Series Slate; IO Hub; North America Power Cord; European Power Cord; 65W Power Adapter; Quick Installation Guide (QIG); Z10 POS Stand:; Z10 POS Stand; 2x M4 x5 screws for attaching the head to the stand; 4x M4 x 18 screws for attaching an CFD; 4x M4 x 10 screws for attaching the plate adapter to head; 1x Hex 4X108 allen wrench for adjusting hinge torque; 1x Back Cover for CFD; 1x Plate Adapter for I-Series 4/5 and I-Series 4 Slate; Quick Install Guide; Note: EloPOS Z10 with Intel is shipped in two boxes. One for the head and one for the stand
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
