Elo Touch EloPOS Z10 with Android (Gen 1)
Built on Elo’s unified architecture, the EloPOS Z10 delivers a powerful, minimalistic design to help optimize checkout in compact spaces without losing inches on your point‑of‑sale terminal. Complete
- Operating systemAndroid 10 with Google Play Services and EloView content deployment and management
- Display15.6'' diagonal, Active matrix TFT LCD (LED)
- SealingStandard Model: Touchscreen optically bonded to LCD; Value Model: Touchscreen sealed to LCD
Datasheet at Elo Touch Product page at Elo Touch
Runs Raptool apps in the Raptool Client, with access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Overview

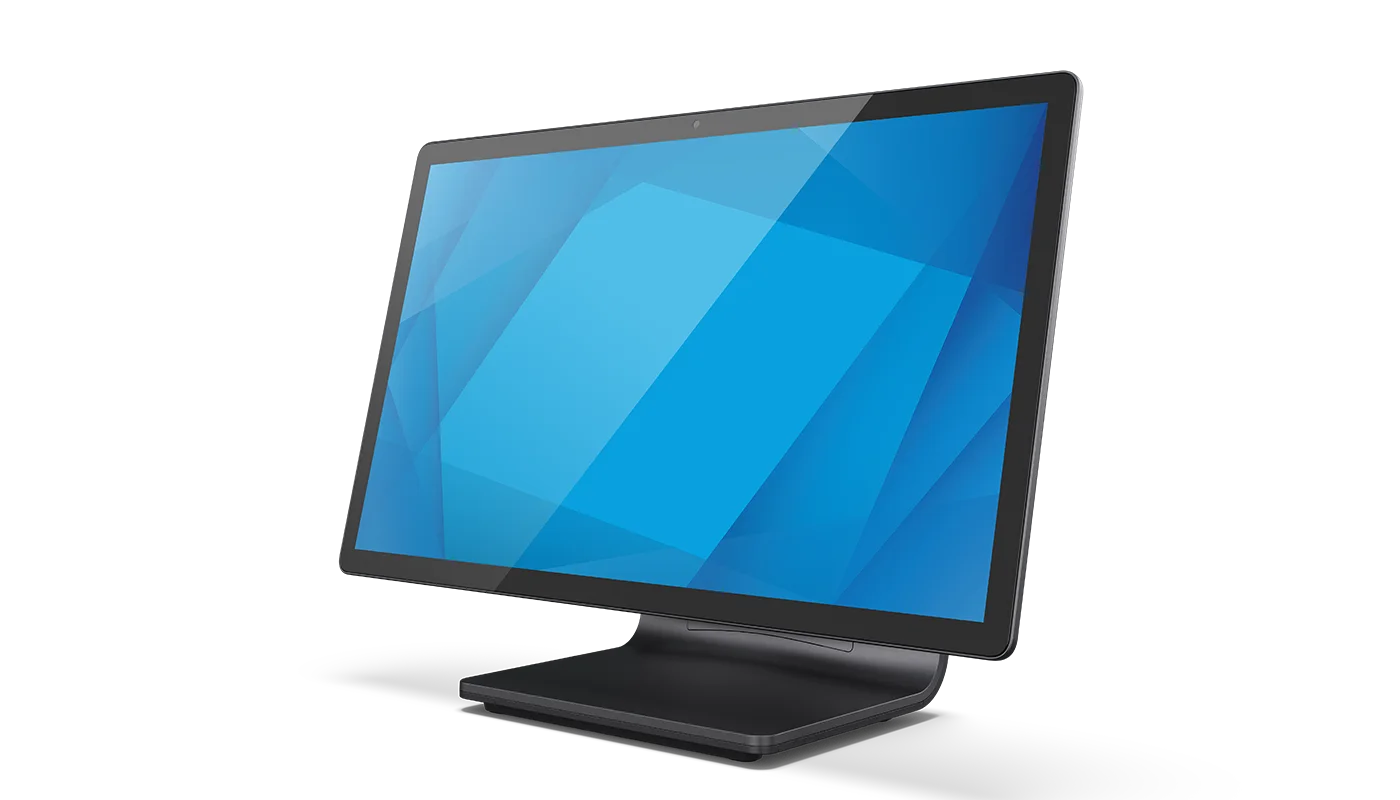

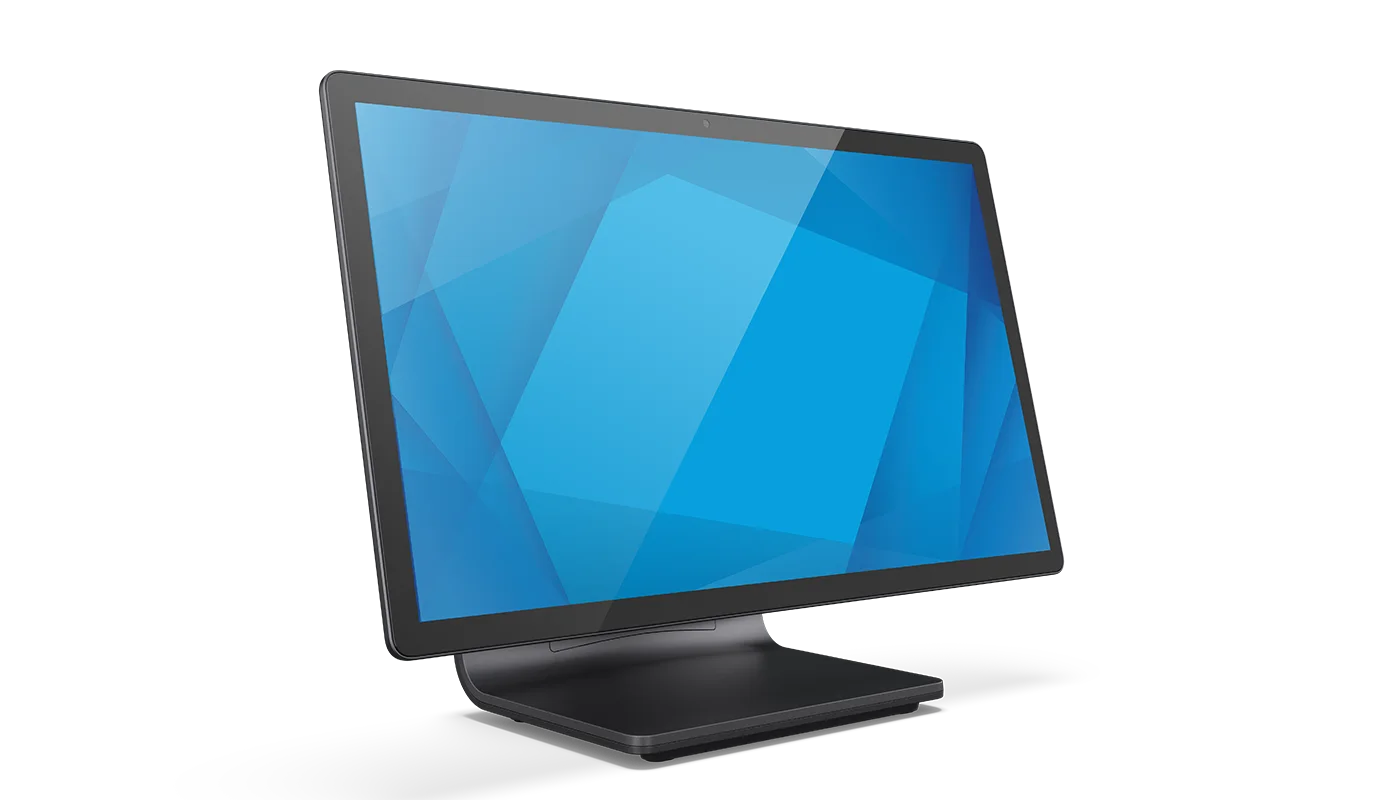

Built on Elo’s unified architecture, the EloPOS Z10 delivers a powerful, minimalistic design to help optimize checkout in compact spaces without losing inches on your point‑of‑sale terminal. Complete with a 15.6‑inch Full HD interactive display, I/O hub, contained cable routing, Android 10 OS and optional interactive customer-facing display, the EloPOS Z10 delivers one of the slimmest POS systems to the market.
- Purposefully architected to fit everything you need at the point of sale into a sleek compact design.

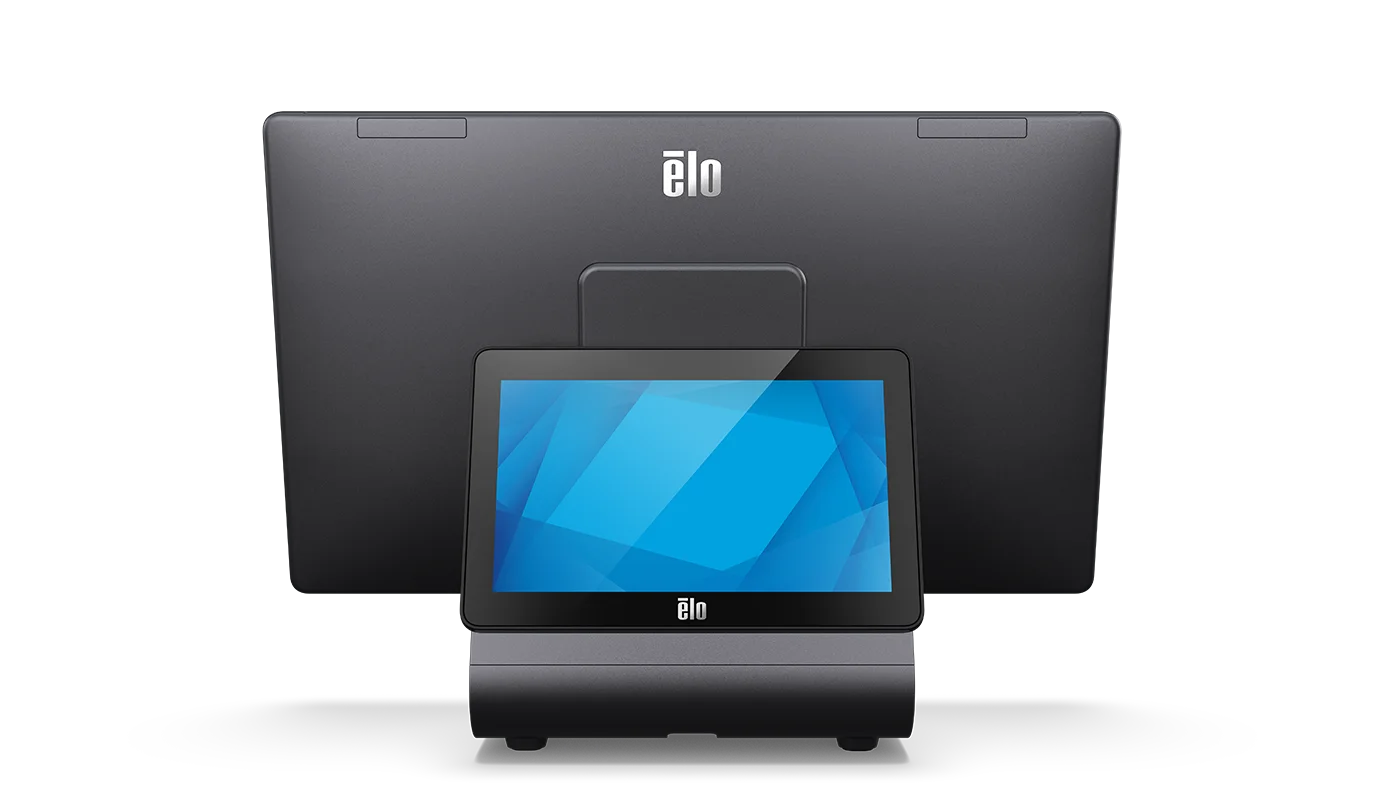

- Offer your customers a point of interaction to review transactions, participate in loyalty programs and see the latest promotions with the customer-facing touchscreen display.
- Connectivity for Accessories The EloPOS Z10 offers an I/O hub that extends connectivity from the display to your accessories.
- Conceal Your Cables Keep your counter clean with the fully-integrated cable routing system.
- Single Cable Connection Connect a secondary display with a single USB cable that provides touch, video and power.
Specifications
Technical
- Part Number(s)
- EloPOS Z10 Standard - E391994 + E398278; EloPOS Z10 Value - E392786 + E398278
- Enclosure Color
- Dark Gray Metallic
- Touch Technology & Capacity
- PCAP (TouchPro® Projected Capacitive) - 10 Touch
- Processor
- Standard Model: Qualcomm Snapdragon SDA660; Value Model: Rockchip RK3399
- Memory (RAM)
- 4GB
- Storage
- Standard Model: 64GB; Value Model: 32GB
- OS
- Android 10 with Google Play Services and EloView content deployment and management
- Diagonal Size
- 15.6'' diagonal, Active matrix TFT LCD (LED)
- Aspect Ratio
- 16:9
- Active Area
- 13.55" x 7.62" / 344 mm x 194 mm
- Resolution
- 1920 x 1080 @ 60Hz
- Number of Colors
- 8-bit (16.7 million)
- Brightness (typical)
- Standard Model:; LCD Panel: 350 nits; TouchPro PCAP: 280 nits; Value Model:; LCD Panel: 350 nits; TouchPro PCAP: 280 nits
- Response Time-total (typical)
- 20 ms
- Contrast Ratio
- 1000:1
- Viewing Angle
- Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
- I/O Ports
- DC Input; 4 x USB-A 3.0 (900mA); RJ45 Ethernet LAN (Gigabit)
- Webcam
- 5MP; Max Resolution: 1920x1080 30fps; Auto Focus
- Wireless
- 802.11a/b/g/n/ac + Bluetooth 5.0
- Audio Ports
- Standard Model: 2x built-in Digital Microphones; Value Model: 1x built-in Analog Microphone
- Speakers
- Standard Model: 2x 0.7W; Value Model: 2x 1W
- Power Supply
- AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz
- Power Consumption (Typical)
- Standard Model:; On: 10W; Off: 0.4W; Sleep: 5W; Value Model:; On: 11.5W; Off: 0.68W; Sleep: 4.4W
- Dimensions
- I-Series 4 Slate; Standard Model: 14.6" x 8.7" x 0.52" / 370.2 mm x 221.2 mm x 13.1 mm; Value Model: 14.6" x 8.74" x 0.55" / 370.8 mm x 221.8 mm x 13.95 mm; Z10 Stand: 6.9" x 4.9" x 5.3" / 175 mm x 200.7 mm x 134.6 mm
- Shipping Box Dimensions
- I-Series 4 Slate: 17.44" x 12.20" x 6.14" / 443 mm x 310 mm x 156 mm; Z10 Stand: 8.19" x 11.8" x 11.2" / 208 mm x 300 mm x 285 mm
- Weight (Unpackaged)
- I-Series 4 Slate: 3.3 lbs / 1.5 kg; Z10 POS Stand: 2.4 lbs / 1.1 kg
- Weight (Packaged)
- I-Series 4 Slate: 7.6 lbs / 3.5 kg; Z10 POS Stand: 4.41 lbs / 2.0 kg
- Operating Temperature
- 0°C to 40°C / 32°F to 104°F
- Storage Temperature
- -20°C to 50°C / -4°F to 122°F
- Humidity
- Operating: 20% to 80%; Storage: 5% to 95%
- Regulatory approvals and declarations
- UL/cUL (US); FCC (US); IC (Canada); CE (Europe); CB (International); VCCI, MIC (Japan); RCM (Australia)
- Supported Countries
- Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey
- Real-Time Clock
- lithium coin cell battery
- MTBF
- 50,000 hours demonstrated
- Mounting Options
- VESA 75mm
- Warranty
- 2-year
- Extended Service Options
- I-Series 4 Slate; 3 year OS 360 - Elo P/N: E873133; 3 year Warranty Coverage – Elo P/N: E819394; 4 year Warranty Coverage – Elo P/N: E819598; 5 year Warranty Coverage – Elo P/N: E819795; 3 year Warranty Coverage + ADP – Elo P/N: E130329; 4 year Warranty Coverage + ADP – Elo P/N: E130530; 5 year Warranty Coverage + ADP – Elo P/N: E130719; 2 year Warranty Coverage + AUR – Elo P/N: E819985; 3 year Warranty Coverage + AUR – Elo P/N: E820186; 4 year Warranty Coverage + AUR – Elo P/N: E820388; 5 year Warranty Coverage + AUR – Elo P/N: E820582; 2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490; 3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674; 4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859; 5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053; Z10 POS Stand; 3 year warranty coverage - Elo P/N: E375367; 4 year warranty coverage - Elo P/N: E375573; 5 year warranty coverage - Elo P/N: E375771; 2 year warranty coverage + AUR - Elo P/N: E375970; 3 year warranty coverage + AUR - Elo P/N: E376169; 4 year warranty coverage + AUR - Elo P/N: E376362; 5 year warranty coverage + AUR - Elo P/N: E376547
- OS Support
- Monthly Android security updates available with Elo OS 360 package.
- Sealability
- Standard Model: Touchscreen optically bonded to LCD; Value Model: Touchscreen sealed to LCD
- What's in the Box
- I-Series 4 Slate; IO Hub; North American Power Cable; European Power Cable; 1x Power Brick 65W (E153026); Quick Install Guide; 4 x M4x6 mm Flathead screws in a plastic bag; 4 x M4x6 mm Panhead screws in a plastic bag; Z10 POS Stand; 4 x M4 screws for attaching the head to the stand; 4 x M4x18 screws for attaching an optional 0702L CFD display; CFD Mounting Cover; Quick Install Guide; Please note, the EloPOS Z10 is shipped in two boxes. One for the head and one for the stand.
- Stands, Mounts & Kits
- I/O Hub with 4x USB 3.0 ports, 1x RJ45 Ethernet LAN (Gigabit), 65W power brick, power cables - Elo P/N: E955492; 0702L - Elo P/N: E796382
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
