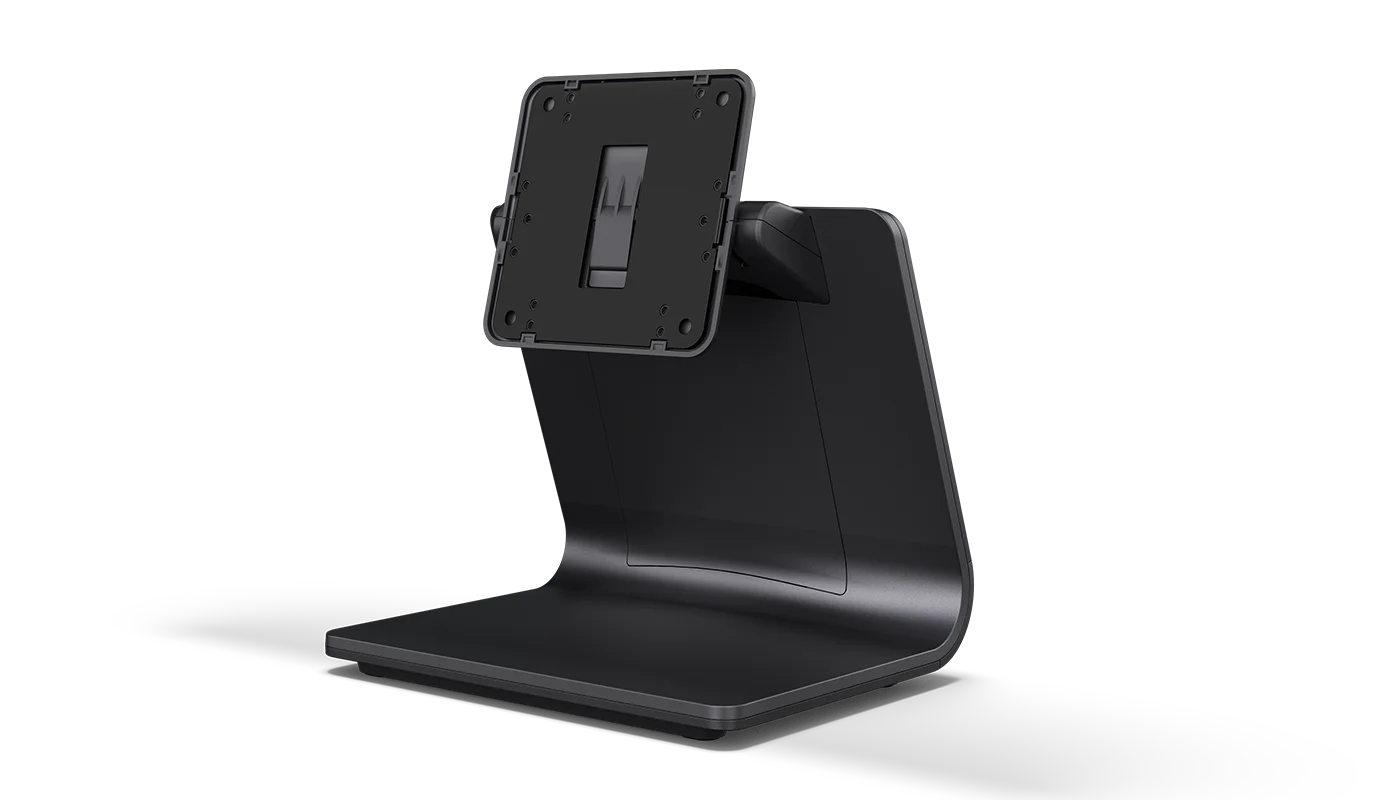

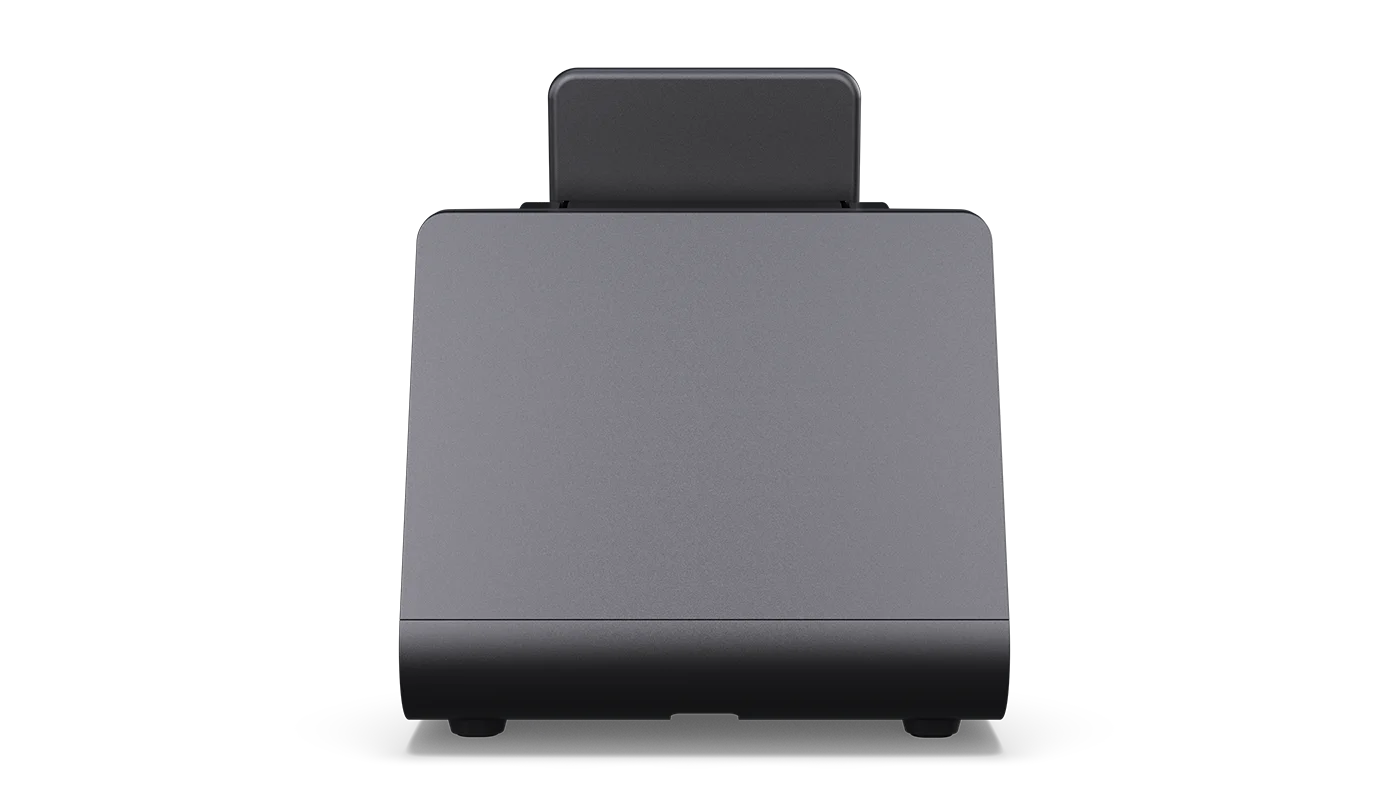

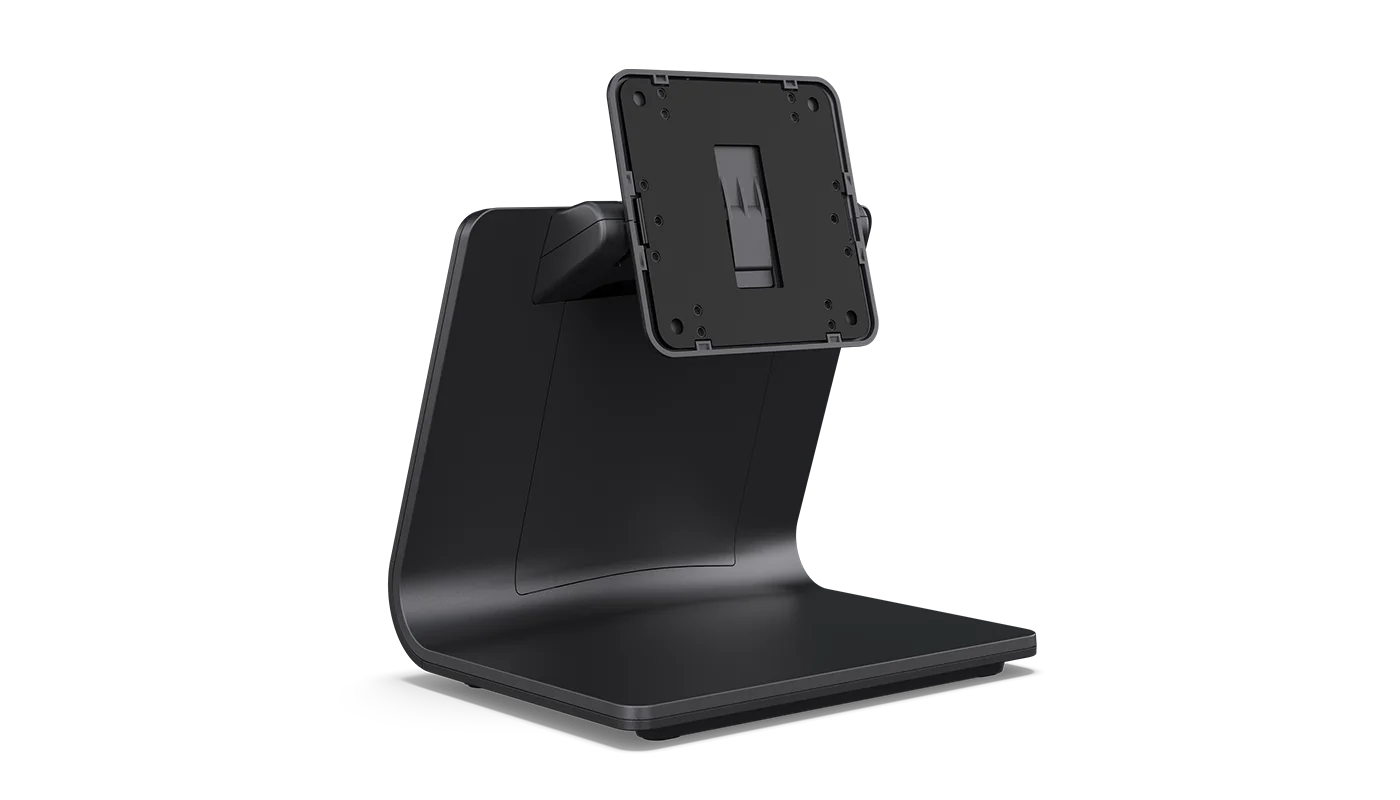

Name: Elo Touch Z10 POS Stand (Gen 1)
Brand: Elo Touch

Overview

Complete with concealed cable routing and the flexibility to mount a customer-facing display on the back, the Z10 POS Stand delivers an elegant, minimalistic design to help optimize checkout in compact spaces.

Conceal Your Cables Keep your counter clean with the integrated cable routing system.
Single Cable Connection Connect a secondary display with a single USB cable that provides touch, video and power.
From integrated I/O and a customer-facing display to concealed cable routing, Elo’s modular point of sale solutions can be tailored to fit any business.
I/O EloPOS Z10 EloPOS Z20 EloPOS Z30 Ethernet 4x USB-A 3.0 Cash Drawer Port 24V powered USB USB-C Edge Connect Ports ** Main Display I-Series 4 I-Series 4 Slate Secondary Display Integrated Mount for CFD *RJ12 (serial/cash drawer) **On I‑Series 4

Specifications

Technical

Part Number(s): E398278
Enclosure Color: Dark Gray Metallic

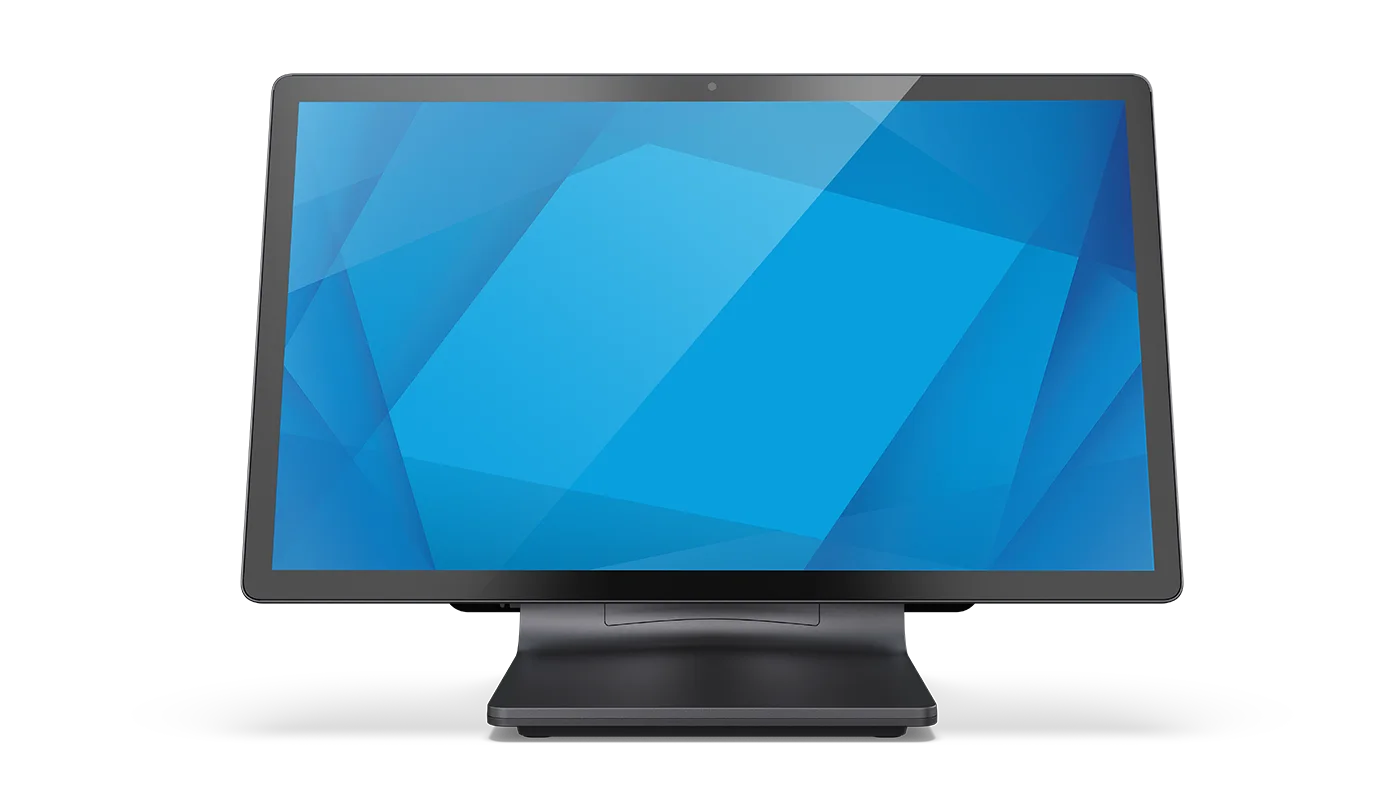

Compatibility: Main Display:; 15" I-Series 4 Slate; Customer-facing Display:; 0702L – Elo P/N: E796382
Mounting Options: VESA 75mm
Weight (Unpackaged): 2.43 lbs / 1.1 kg
Weight (Packaged): 4.41 lbs / 2.0 kg
Dimensions: 6.9" x 4.9" x 5.3" / 175 mm x 200.7 mm x 134.6 mm
Shipping Box Dimensions: 8.19" x 11.8" x 11.2" / 208 mm x 300 mm x 285 mm
Operating Temperature: 0° C to 40° C / 32° F to 104° F
Storage Temperature: -20° C to 50° C / -4° F to 122° F
Humidity: Operating: 20% - 80% / Storage: 5% - 95%
MTBF: 50,000 hours demonstrated
Warranty: 2-year
Extended Service Options: 3 year warranty coverage - Elo P/N: E375367; 4 year warranty coverage - Elo P/N: E375573; 5 year warranty coverage - Elo P/N: E375771; 2 year warranty coverage + AUR - Elo P/N: E375970; 3 year warranty coverage + AUR - Elo P/N: E376169; 4 year warranty coverage + AUR - Elo P/N: E376362; 5 year warranty coverage + AUR - Elo P/N: E376547
What's in the Box: Z10 POS Stand; 4 x M4 screws for attaching the head to the stand; 4 x M4 x 18 screws for attaching an 0702L CFD; CFD Mounting Cover; Quick Install Guide

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
