Elo Touch · POS computer

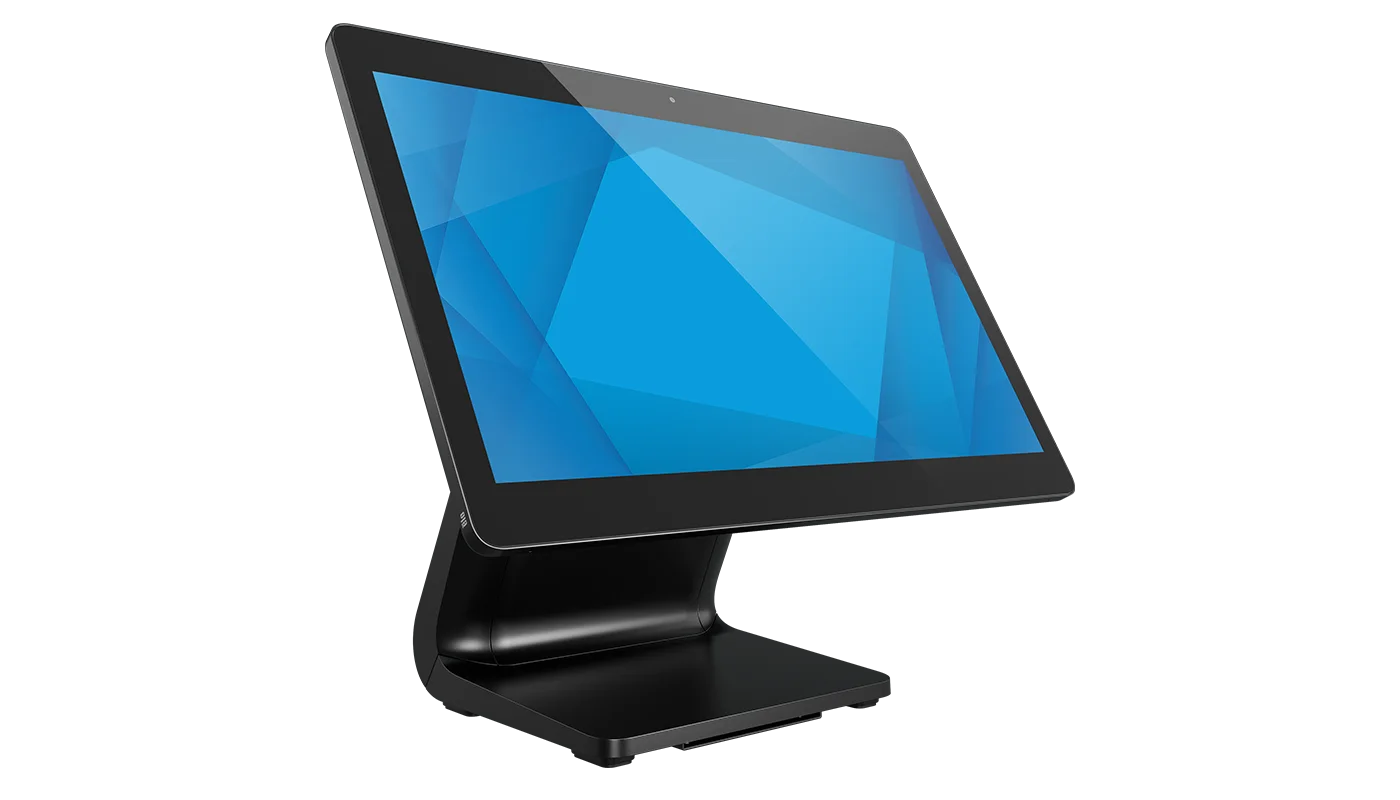

Elo Touch EloPOS Z20 with Android

Operating systemAndroid 14 with Google Play Services and EloView content deployment and management; Planned upgrade to…
Display10.1'' diagonal, Active matrix TFT LCD (LED) or 15.6'' diagonal, Active matrix TFT LCD (LED)
SealingTouchscreen sealed to LCD

Datasheet at Elo Touch Product page at Elo Touch

Runs Raptool apps in the Raptool Client, with access to the scanner, camera, RFID and printers, online and offline. Scanner apps

Overview

Built on Elo’s unified architecture, the EloPOS Z20 delivers a powerful and elegant point‑of‑sale system. Complete with an interactive display, integrated connectivity hub, contained cable routing, Android 14 OS and optional interactive customer-facing display, the EloPOS Z20 brings everything you need to the point of sale.

Easily flip your employee facing display to provide customers with a self-service kiosk.
With the Elo Edge Connect system, you can seamlessly attach any combination of peripherals to the edge of the touchscreen. And you can add or move them later as your needs change.
Offer your customers a point of interaction to review transactions, participate in loyalty programs and see the latest promotions with the customer-facing touchscreen display.
Integrated I/O From payment devices and scanners to a cash drawer and printer, there is room for everything you need at point of sale.
Conceal Your Cables Keep your counter clean with the integrated cable routing system.

Best for: POS Systems for Restaurants · Retail POS Systems · Android Retail POS Systems

Specifications

Technical

Part Number(s): 10" Models:; 10" EloPOS Z20, Black - E554932 + E539154; 10" EloPOS Z20, White - E554932 + E539346 (MTO); 15" Models:; 15" EloPOS Z20, Black - E767356 + E540294; 15" EloPOS Z20, White - E767356 + E540494 (MTO); Customer Facing Display:; 1002L: E155834, E324341; 1302L: E683595, E683787; 1502L: E125496
Enclosure Color: Black
Touch Technology & Capacity: PCAP (TouchPro® Projected Capacitive) - 10 Touch
Processor: Qualcomm Snapdragon QCS6490
Memory (RAM): 8GB
Storage: 64GB
OS: Android 14 with Google Play Services and EloView content deployment and management; Planned upgrade to Android 16 and Android 18 available with OS 360 subscription
Diagonal Size: 10.1'' diagonal, Active matrix TFT LCD (LED) or 15.6'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 10": 16:10, 15": 16:9
Active Area: 10": 8.54" x 5.34" / 217 mm x 136 mm; 15": 13.55" x 7.62" / 344 mm x 194 mm
Resolution: 10": 1920 x 1200 @ 60Hz; 15": 1920 x 1080 @ 60Hz
Number of Colors: 8-bit (16.7 million)
Brightness (Typical): 10": LCD Panel: 450 nits, TouchPro PCAP: 387 nits; 15": LCD Panel: 250 nits, TouchPro PCAP: 213 nits
Response Time-total (typical): 30 msec
Contrast Ratio: 10": 900:1; 15": 700:1
Viewing Angle: 10": Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total; 15": Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total

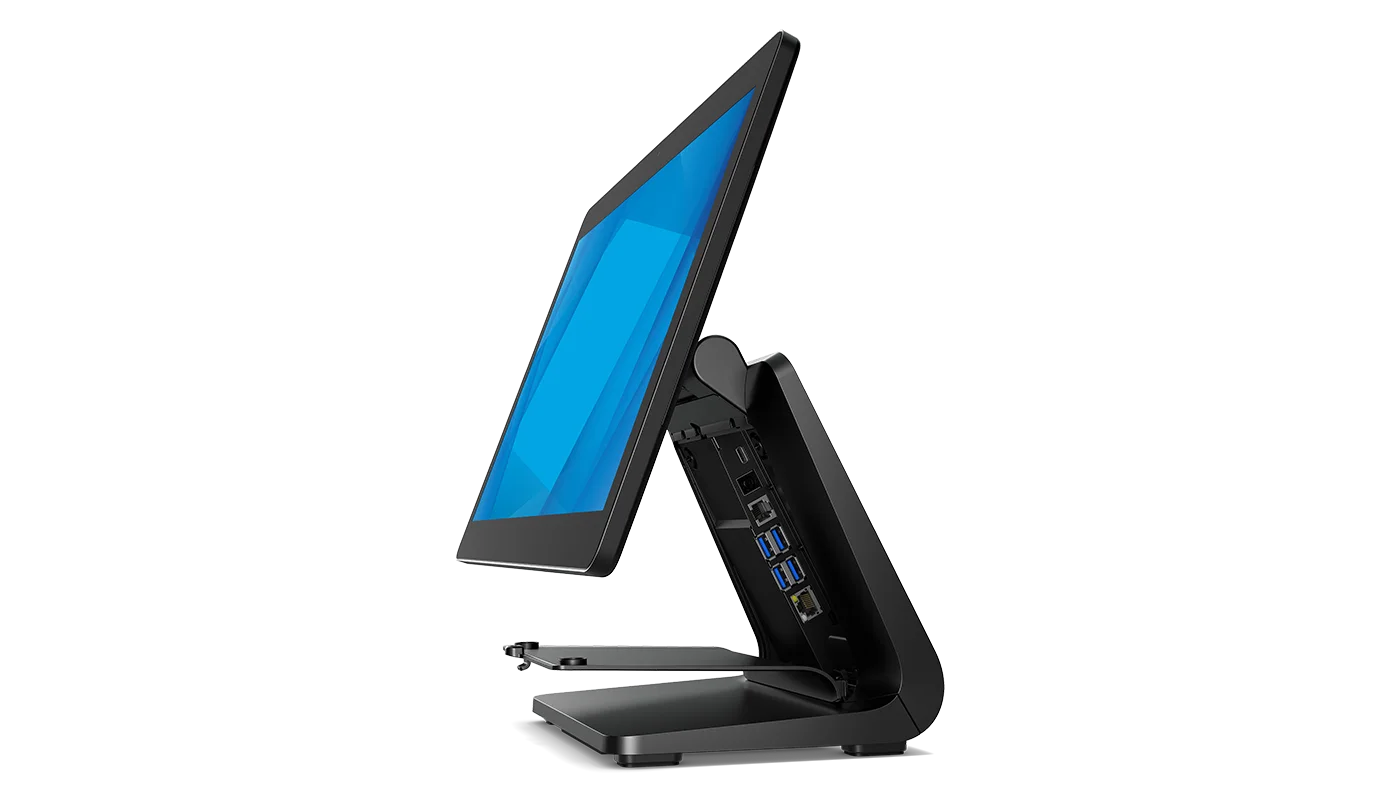

I/O Ports: I-Series:; USB 3.0 support (900mA); USB-C output*; Micro SD slot; GPIO; RJ45 Ethernet LAN (Gigabit); DC input; Z20 POS Stand for 10" I-Series:; 1x DC-Input, 2x USB-A 3.0 (900mA); 1x RJ12 (Cash drawer) 12/24V; 1x RJ45 Ethernet LAN (Gigabit); Z20 POS Stand for 15" I-Series:; 1x DC-Input, 4x USB-A 3.0 (900mA); 1x RJ12 (Cash drawer) 12/24V; 1x RJ45 Ethernet LAN (Gigabit)*; 1x USB-C output - CFD; (DisplayPort, Touch & Power Delivery) **; *When using the standard 65W power brick, USB-C can support up to 15W. When using the optional 90W power brick, USB-C can support up to 27W. See User Manual for details.; User will need to select the mode; *Ethernet upload and download speeds may decrease to ~250Mbps when using the CFD; USB speeds may be reduced to; 2.0 speeds when DisplayPort video is being output.
Display Head Connection: DC Jack for Power; USB-C for Data to the Z20 Stand IO Hub
Peripheral Mounting: 4x micro-USB 2.0 Elo Edge Connect ports; Support for 1.2A on one port and 500mA for the remaining three ports
Webcam: 8MP, Max Resolution: 3264x2448 30fps, Auto Focus, Focus Range: >10cm
Wireless: 802.11a/b/g/n/ac/ax + Bluetooth 5.2
Audio Ports: 2x built-in Digital Microphones
Speakers: 10-inch: 2x 2W; 15-inch: 2x 1.5W
Power Supply: AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz
Power Consumption (Typical): 10":; On: 8.5W; Off: 0.4W; Sleep: 4.5W; 15":; On: 11.0W; Off: 0.4W; Sleep: 4.4W
Dimensions: 10" I-Series: 10" x 6.7" x 0.9" / 252.9 mm x 169.0 mm x 22.1 mm; 10" Z20 POS Stand: 6.53" x 6.8" x 8.0" / 165.9 mm x 173.1 mm x 203.1 mm; 15" I-Series: 15.34" x 9.8" x 0.9" / 389.7 mm x 249.7 mm x 22.3 mm; 15" Z20 POS Stand: 7.6" x 6.6" x 11.1" / 194 mm x 168.5 mm x 282.7 mm
Shipping Box Dimensions: 10" I-Series: 12.6" x 6.0" x 9.8" / 320 mm x 150 mm x 250 mm; 15" I-Series: 17.8" x 6.5" x 13.0" / 452 mm x 165 mm x 330 mm; Z20 Stand: 12.36" x 11.93" x 12.4" / 314 mm x 303 mm x 315 mm
Weight (Unpackaged): 10": 1.54 lbs / 0.7 kg; 10" Z20 POS Stand: 6.6 lbs / 3.0 kg; 15": 3.4 lbs / 1.6 kg; 15" Z20 POS Stand: 8.1 lbs / 3.7 kg
Weight (Packaged): 10": 3.96 lbs / 1.8 kg; 10" Z20 POS Stand: 9.4 lbs / 4.3 kg; 15": 7.27 lbs / 3.3 kg; 15" Z20 POS Stand: 11.4 lbs / 5.2 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
Storage Temperature: -20°C to 50°C / -4°F to 122°F
Humidity: Operating: 20% to 80%; Storage: 10% to 90%
Regulatory approvals and declarations: UL/cUL (US); FCC (US); IC (Canada); CE (Europe); CB (International); VCCI, MIC (Japan); RCM (Australia); BSMI/NCC (Taiwan); KCC (Korea); CCC/SRRC (China); NOM (Mexico); United Kingdom UKCA
Supported Countries: Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey
Real-Time Clock: lithium coin cell battery
Hinge Life Rating: 5000 cycles
MTBF: 50,000 hours demonstrated
Mounting Options: VESA 75mm
Warranty: 2-year
Extended Service Options: I-Series 5:; 3 year OS 360 - Elo P/N: E897877; 4 year OS 360 - Elo P/N: E898079; 5 year OS 360 - Elo P/N: E898282; 3 year Warranty Coverage – Elo P/N: E819394; 4 year Warranty Coverage – Elo P/N: E819598; 5 year Warranty Coverage – Elo P/N: E819795; 3 year Warranty Coverage + ADP – Elo P/N: E130329; 4 year Warranty Coverage + ADP – Elo P/N: E130530; 5 year Warranty Coverage + ADP – Elo P/N: E130719; 2 year Warranty Coverage + AUR – Elo P/N: E819985; 3 year Warranty Coverage + AUR – Elo P/N: E820186; 4 year Warranty Coverage + AUR – Elo P/N: E820388; 5 year Warranty Coverage + AUR – Elo P/N: E820582; 2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490; 3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674; 4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859; 5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053; Z20 POS Stand:; 3 year warranty coverage - Elo P/N: E375367; 4 year warranty coverage - Elo P/N: E375573; 5 year warranty coverage - Elo P/N: E375771; 2 year warranty coverage + AUR - Elo P/N: E375970; 3 year warranty coverage + AUR - Elo P/N: E376169; 4 year warranty coverage + AUR - Elo P/N: E376362; 5 year warranty coverage + AUR - Elo P/N: E376547
OS Support: Bi-monthly Android security updates available with Elo OS 360 package.
Sealability: Touchscreen sealed to LCD
What's in the Box: I-Series 5; I-Series 5; North American Power Cable; European Power Cable; Power Brick; Quick Install Guide; Screws for cable cover door; Tie wrap; 10" Z20 POS Stand; Z20 POS Stand for 10" I-Series; North American Power Cable; European Power Cable; Quick Install Guide; 90W Power Brick; VESA cover, top 10" (for mounting to the hinge); VESA cover, bottom 10" (for mounting to the hinge); Base Plate (for mounting to a countertop); Cable Tie (for securing cables); 1x Screw, M4x6 (in Bag “A” - for mounting VESA covers); 4x Screw, M4X8 (in Bag “B” - for mounting main display); 1x Screw, M3X6 (in Bag “C” - for mounting base plate); 15" Z20 POS Stand; Z20 POS Stand for 15" I-Series; North American Power Cable; European Power Cable; Quick Install Guide; 150W Power Brick; 0.3m USB-C to USB-C Cable (To provide USB and Video signals to the CFD); VESA Cover, Top 15" (for mounting to the hinge); VESA Cover, Bottom 15" (for mounting to the hinge); Base Plate (for mounting to a countertop); CFD Cover (for mounting a customer-facing display); Cable Tie (for securing cables); 1x Screw, M4x6 (in Bag “A” - for mounting; VESA covers); 1x Screw, M4x6 (in Bag “A” - for mounting base plate); 4x Screw, M4X8 (in Bag “B” - for mounting main display); 4x Screw, M4X20 (in Bag “C” - for mounting a customer-facing display)
Optional Peripherals: Magnetic Stripe Reader (MSR) – Elo P/N: E001002; Fingerprint Scanner – Elo P/N: E134286; 2D Barcode Scanner (Black - SE2707) – Elo P/N: E393160; 2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627; 2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047; Status Light (Micro-USB Connectivity) - Elo P/N: E644767; Webcam - Elo P/N: E201494; RFID - Elo P/N: E673037
Stands, Mounts & Kits: 150W Replacement Cable Kit (NA & EU power cables and 150W power brick) – Elo P/N: E792273; 1002L - Elo P/N: E155834; 1002L - Elo P/N: E324341; 1302L - Elo P/N: E683595; 1502L - Elo P/N: E125496

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
