Name: Elo Touch Z20 POS Stand (Gen 1)
Brand: Elo Touch

Overview

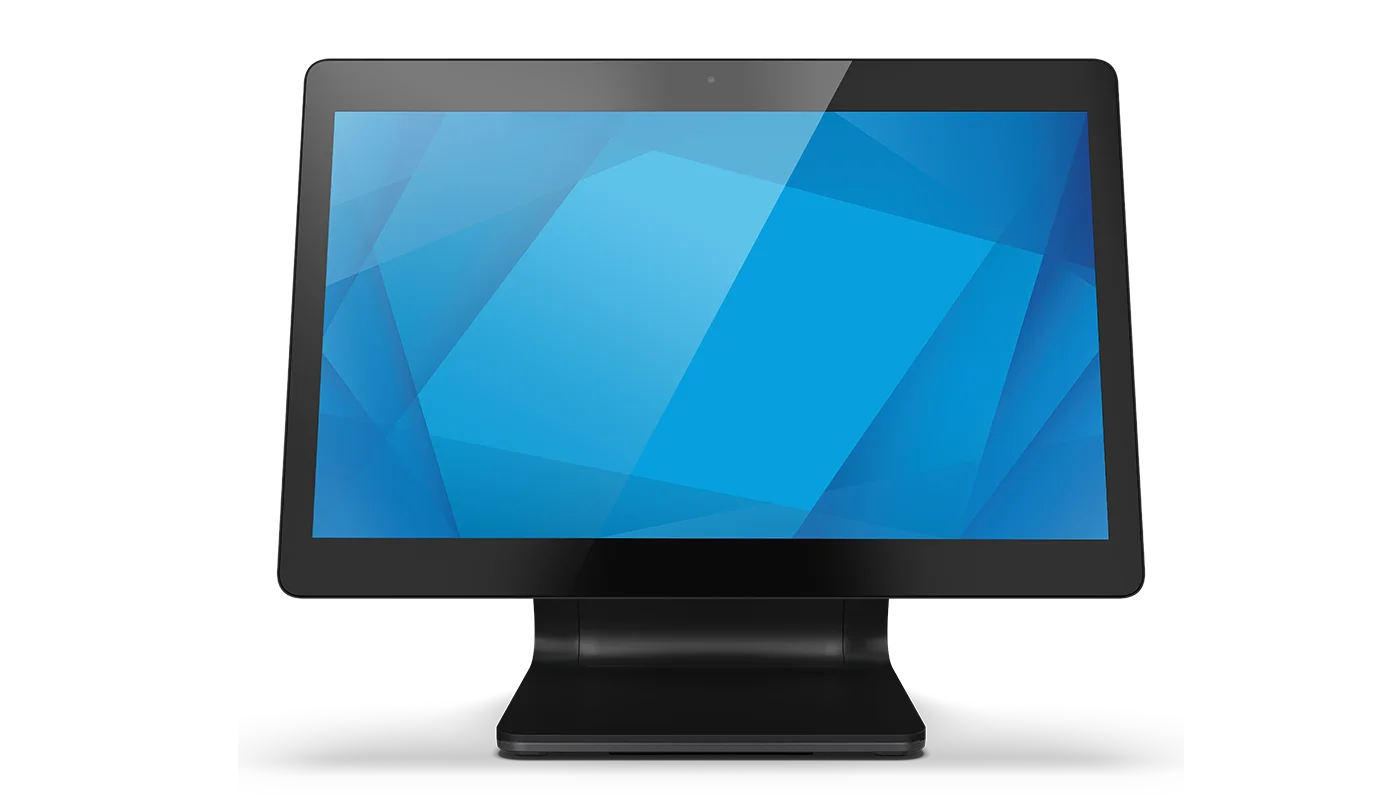

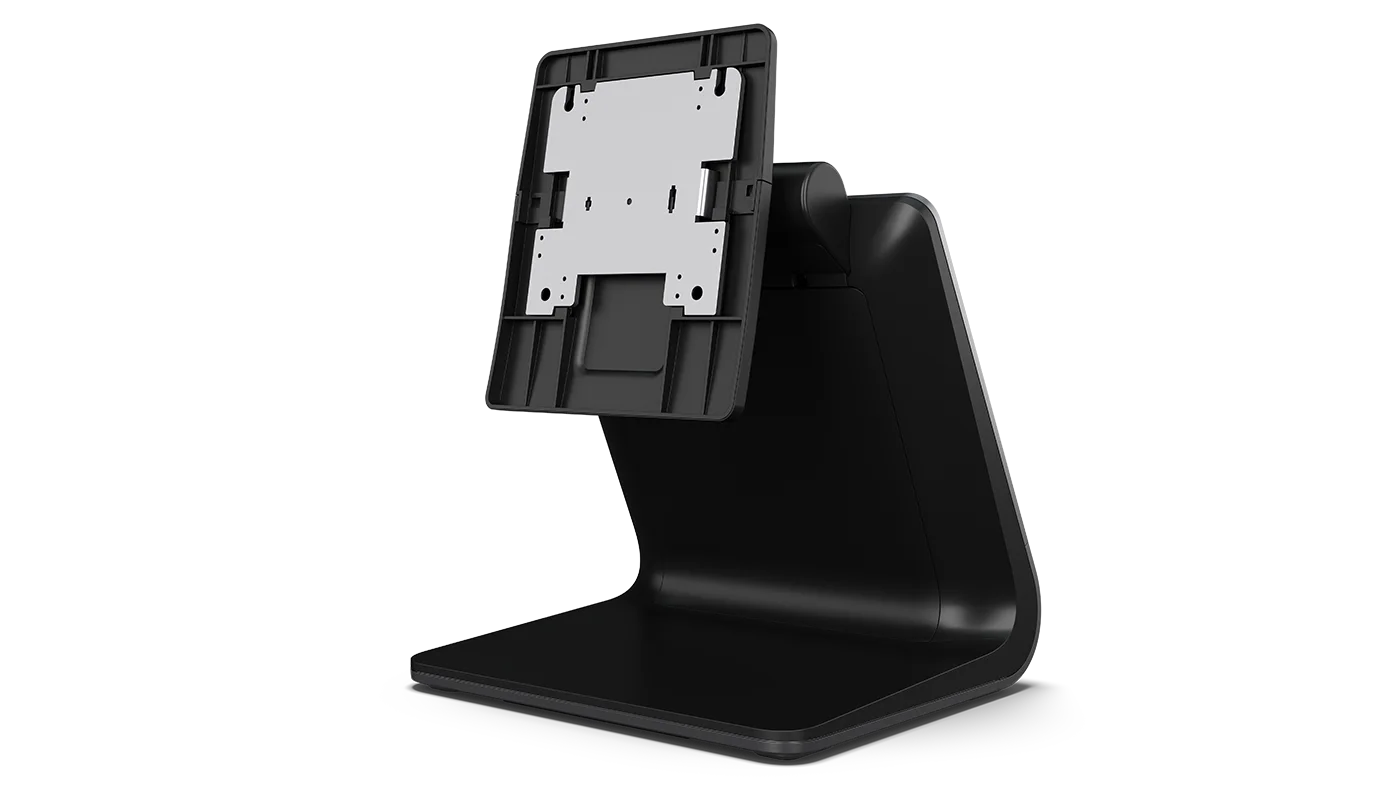

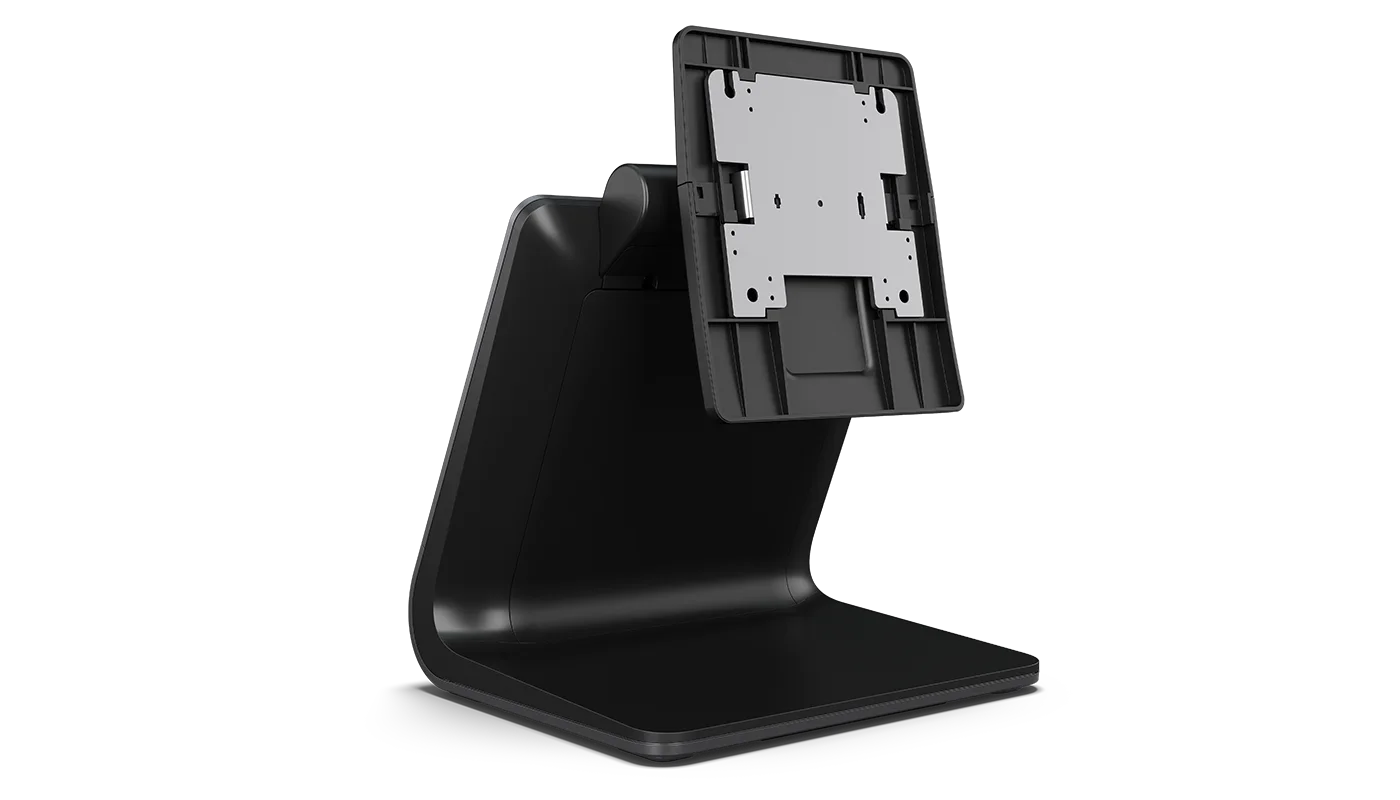

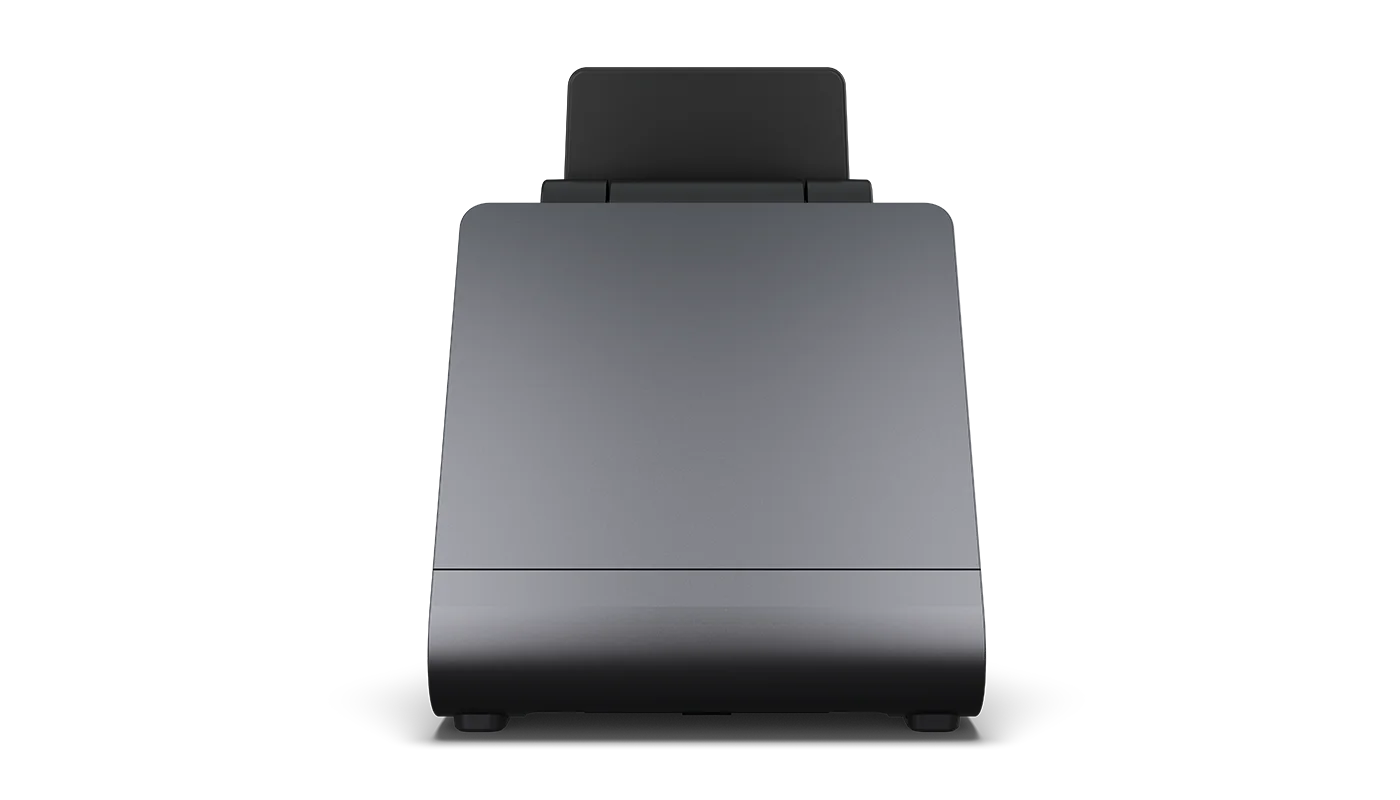

Complete with an integrated connectivity hub, concealed cable routing and the flexibility to either flip the main display from full service to self-service or add a fixed customer facing display on the back, the Z20 POS Stand delivers elegance to the point-of-sale.

Easily flip your employee facing display to provide customers with a self-service kiosk.
Integrated I/O From payment devices and scanners to a cash drawer and printer, there is room for everything you need at point of sale.
Conceal Your Cables Keep your counter clean with the integrated cable routing system.
Single Cable Connection Connect a secondary display with a single USB‑C cable that provides touch, video and power.
From integrated I/O and a customer-facing display to concealed cable routing, Elo’s modular point of sale solutions can be tailored to fit any business.

Specifications

Technical

Part Number(s): E809321
Enclosure Color: Dark Gray Metallic/Black
Compatibility: Main Display; 10" or 15" I-Series 4; Customer-facing Display; USB-C Touchscreen Monitors; 1002L – Elo P/N: E155834 and E324341; 1302L – Elo P/N: E683595 and E683787; 1502L – Elo P/N: E125496
I/O Ports: DC input; 4 x USB-A 3.0 Port (900mA); RJ12 (serial/cash drawer) 12/24V - User will need to select the mode; Ethernet LAN (Gigabit) - Ethernet upload and download speeds will decrease to ~250Mbps when using the CFD; USB-C output - CFD (DisplayPort, Touch and Power Delivery up to 27W) - USB speeds will be reduced to 2.0 speeds when DisplayPort video is being output.
Pre-Wired Cables: 19VDC cable to I-Series; USB-C cable to connect to I-Series
Weight (Unpackaged): 5.9 lbs / 2.7 kg
Weight (Packaged): 12.8 lbs / 5.8 kg
Dimensions: 7.6" x 10.0" x 6.7" / 194 mm x 255 mm x 169 mm
Shipping Box Dimensions: 12.2" x 12.6" x 12.6" / 310 mm x 320 mm x 320 mm
Operating Temperature: 0° C to 40° C / 32° F to 104° F
Storage Temperature: -20° C to 50° C / -4° F to 122° F
Humidity: Operating: 20% - 80% / Storage: 5% - 95%
Hinge Life Rating: 5000 flips
MTBF: 50,000 hours demonstrated
Warranty: 2-year
Extended Service Options: 3 year warranty coverage - Elo P/N: E375367; 4 year warranty coverage - Elo P/N: E375573; 5 year warranty coverage - Elo P/N: E375771; 2 year warranty coverage + AUR - Elo P/N: E375970; 3 year warranty coverage + AUR - Elo P/N: E376169; 4 year warranty coverage + AUR - Elo P/N: E376362; 5 year warranty coverage + AUR - Elo P/N: E376547
Regulatory approvals and declarations: FCC (US); IC (Canada); CE (Europe); VCCI (Japan); RCM (Australia)
What's in the Box: Z20 POS Stand; 8 x M4x10 Flat-head Screw (in bag “A”); 2 x M4x6 Pan-head Screw (in bag “B”); Screw-height tool; Installation Guide; 0.3m USB-C to USB-C cable (to provide USB and Video signals to the CFD); 150W Power Brick; North American Power Cable; European Power Cable; Tie wrap; VESA Cover, Bottom, 15”; VESA Cover, Top, 15”; VESA Cover, Bottom, 10”; VESA Cover, Top, 10”; Base Plate – for mounting to a countertop

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
