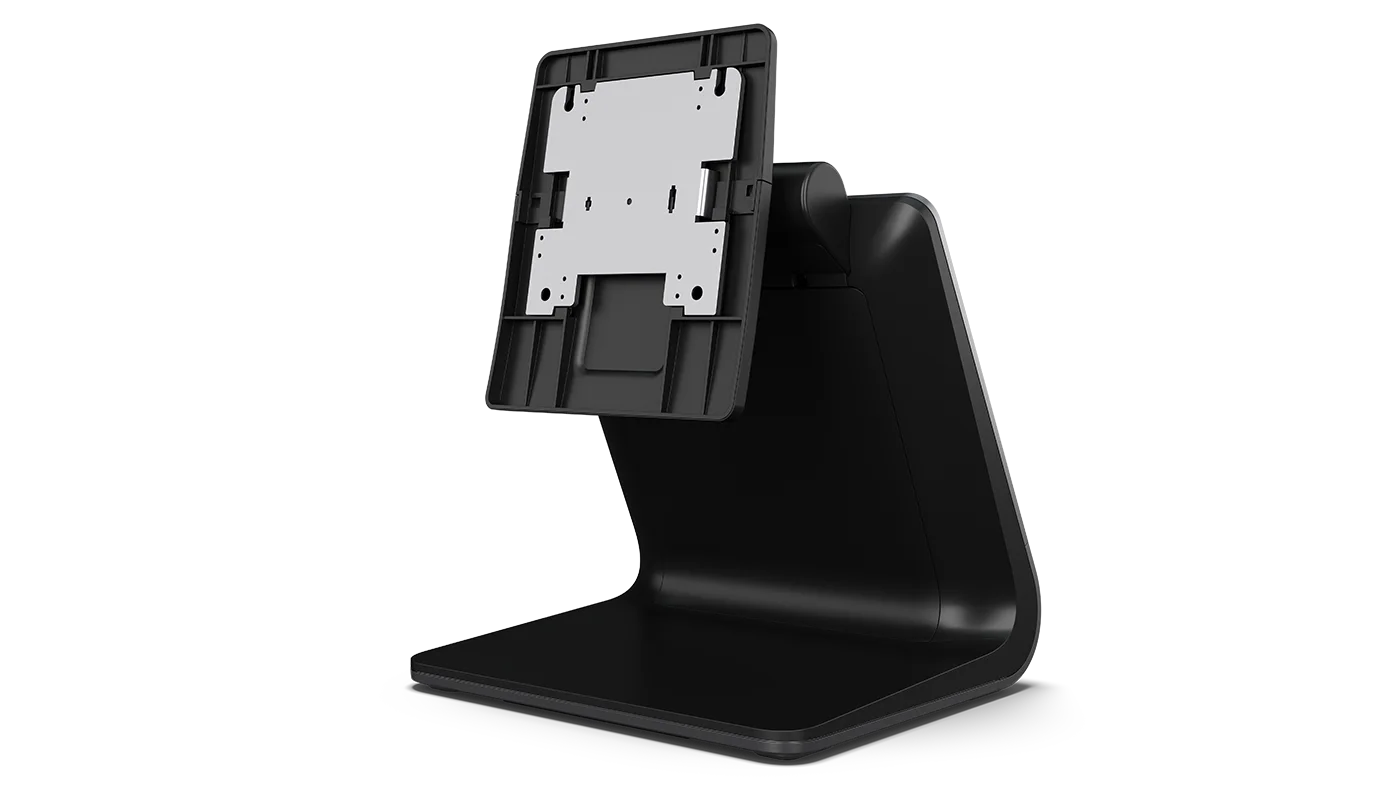

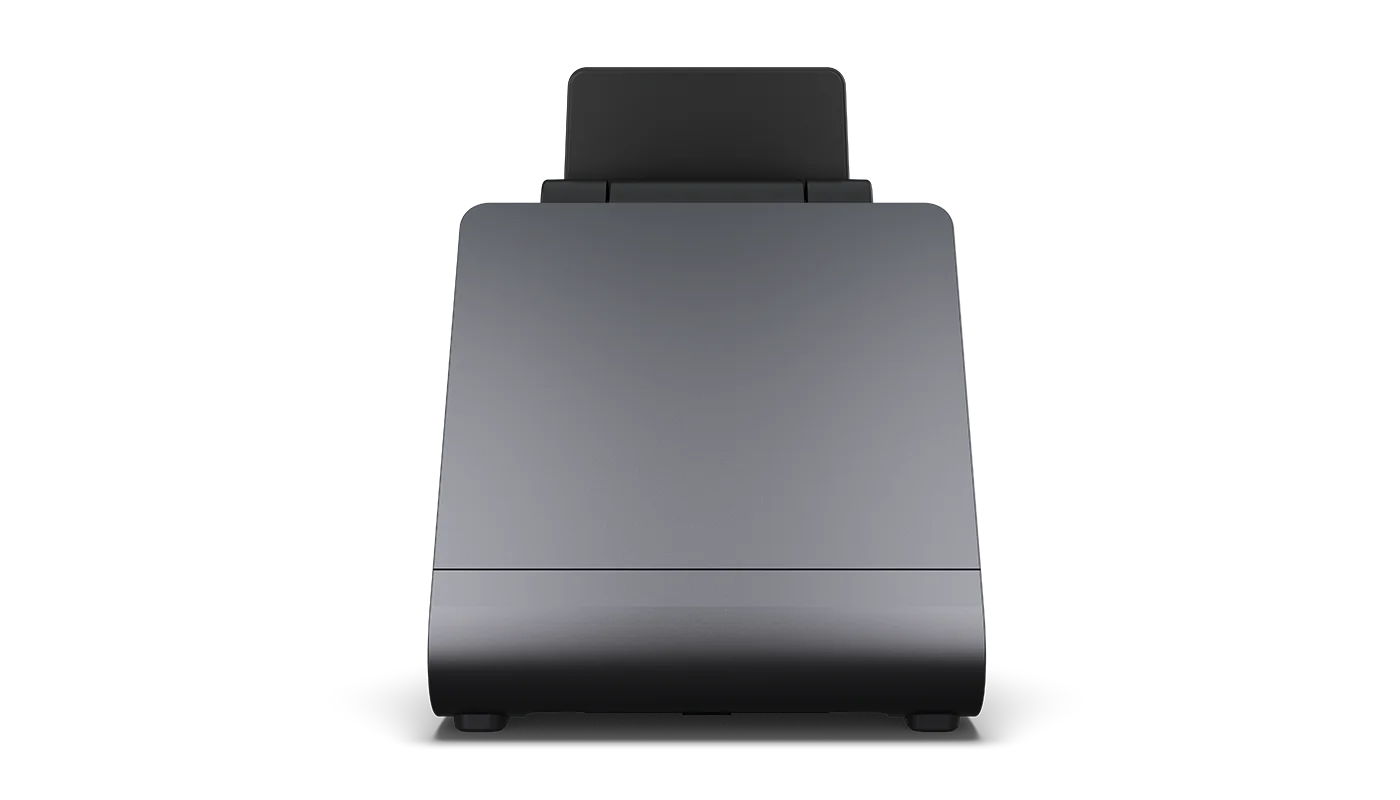

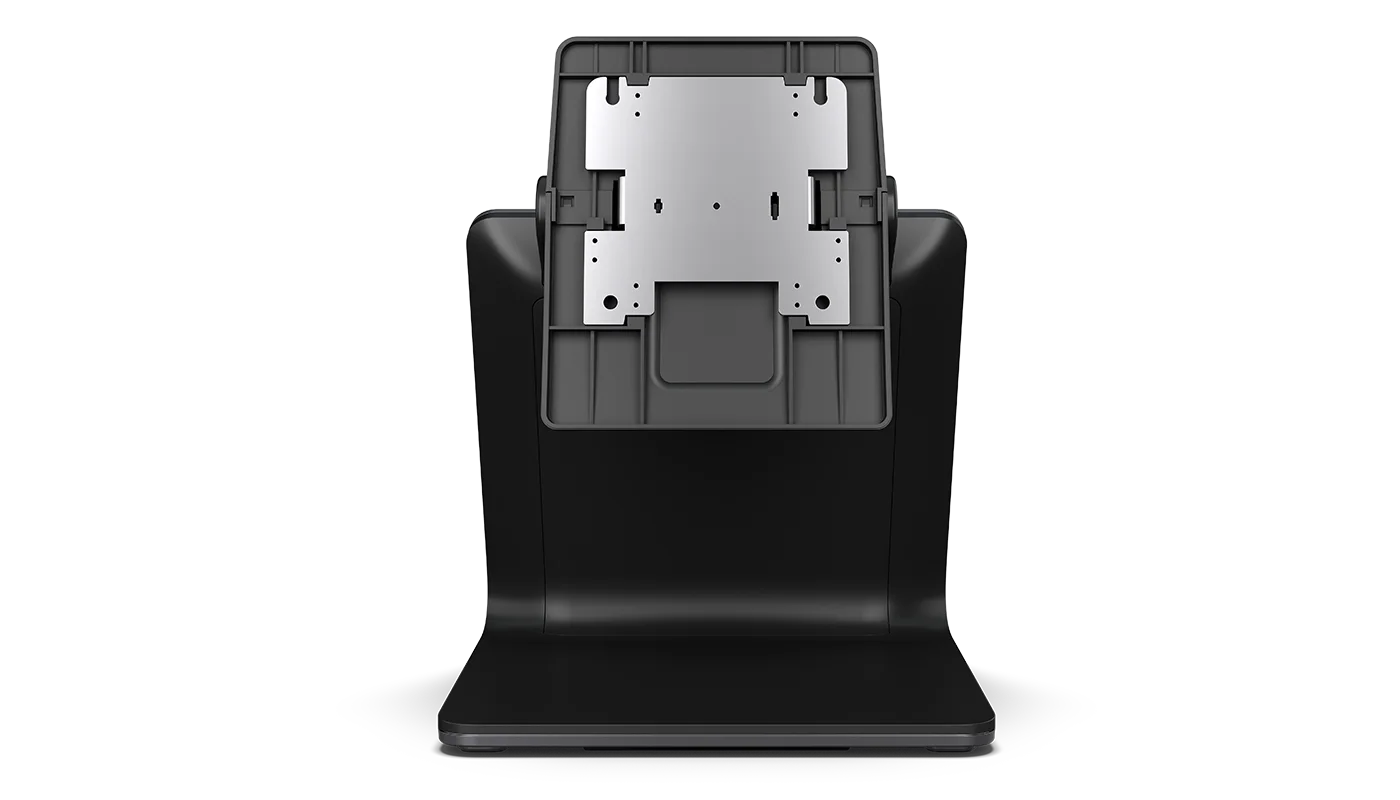

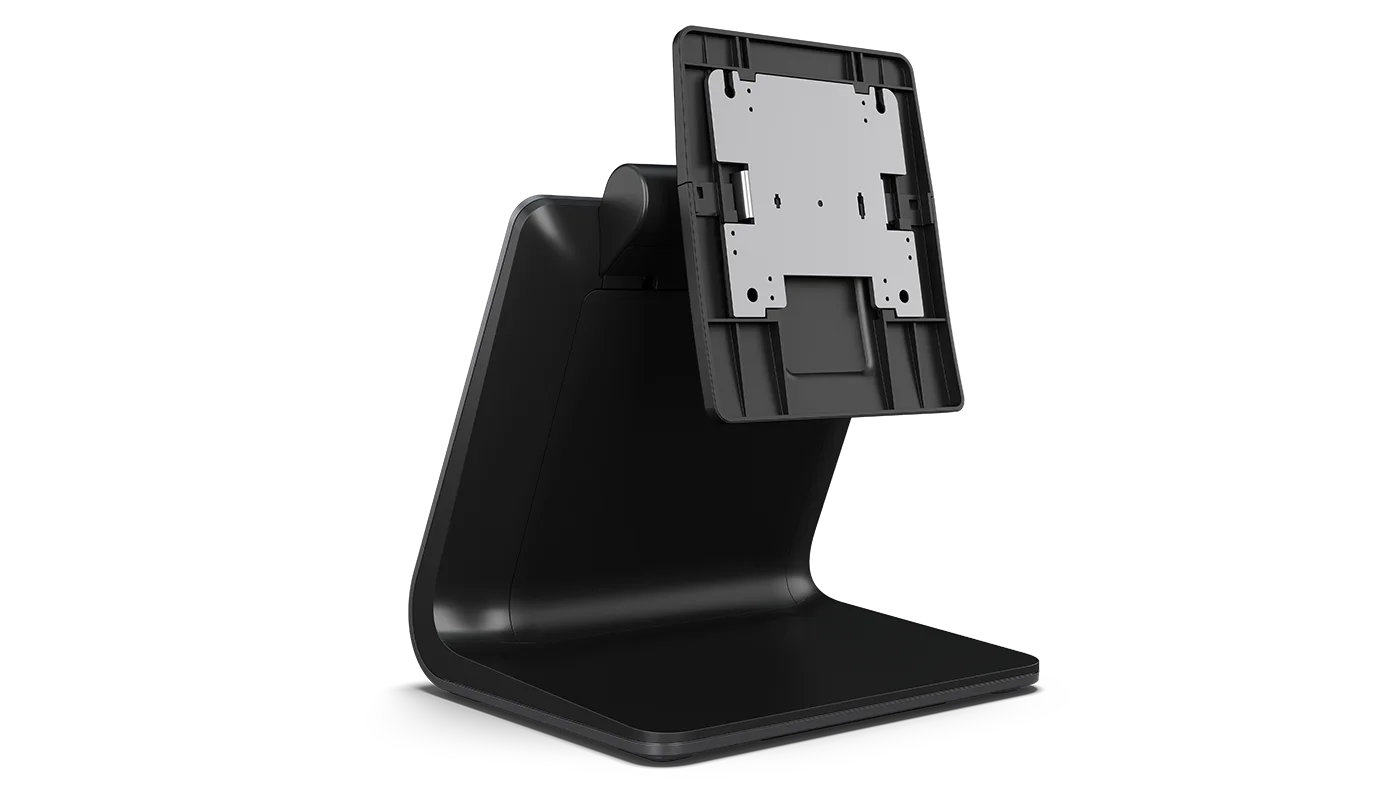

Name: Elo Touch Z20 POS Stand
Brand: Elo Touch

Overview

Complete with an integrated connectivity hub, concealed cable routing and the flexibility to either flip the main display from full service to self-service or add a fixed customer facing display on the back, the Z20 POS Stand delivers elegance to the point-of-sale.

Easily flip your employee facing display to provide customers with a self-service kiosk.
Integrated I/O From payment devices and scanners to a cash drawer and printer, there is room for everything you need at point of sale.
Conceal Your Cables Keep your counter clean with the integrated cable routing system.
Single Cable Connection Connect a secondary display with a single USB‑C cable that provides touch, video and power.
From integrated I/O and a customer-facing display to concealed cable routing, Elo’s modular point of sale solutions can be tailored to fit any business.

Specifications

Technical

Part Number(s): 10" Z20 POS Stand: E554932; 15" Z20 POS Stand: E767356
Enclosure Color: Dark Gray Metallic/Black
Compatibility: Main Display; 10" or 15" I-Series 4 and 5; Customer-facing Display*; 1002L – Elo P/N: E155834 and E324341; 1302L – Elo P/N: E683595 and E683787; 1502L – Elo P/N: E125496; *15" model only
I/O Ports: Z20 POS Stand for 10" I-Series:; 1x DC-Input, 2x USB-A 3.0 (900mA); 1x RJ12 (Cash drawer)* 12/24V; 1x RJ45 Ethernet LAN (Gigabit); Z20 POS Stand for 15" I-Series:; 1x DC-Input, 4x USB-A 3.0 (900mA); 1x RJ12 (Cash drawer)* 12/24V; 1x RJ45 Ethernet LAN (Gigabit); 1x USB-C output - CFD; (DisplayPort, Touch & Power Delivery) *; *User will need to select the mode; Ethernet upload and download speeds may decrease to ~250Mbps when using the CFD; * USB speeds may be reduced to; 2.0 speeds when DisplayPort video is being output.
Pre-Wired Cables: 19VDC cable to I-Series; USB-C cable to connect to I-Series
Power: AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz
Mounting Options: VESA 75 mm
Weight (Unpackaged): Z20 POS Stand for 10" I-Series: 6.6 lbs / 3.0 kg; Z20 POS Stand for 15" I-Series: 8.1 lbs / 3.7 kg
Weight (Packaged): Z20 POS Stand for 10" I-Series: 9.4 lbs / 4.3 kg; Z20 POS Stand for 15" I-Series: 11.4 lbs / 5.2 kg
Dimensions: Z20 POS Stand for 10" I-Series: 6.53" x 7.79" x 6.85" / 166 mm x 198 mm x 174 mm; Z20 POS Stand for 15" I-Series: 7.6" x 10.0" x 6.7" / 194 mm x 255 mm x 169 mm
Shipping Box Dimensions: 12.36" x 11.93" x 12.4" / 314 mm x 303 mm x 315 mm
Operating Temperature: 0° C to 40° C / 32° F to 104° F
Storage Temperature: -20° C to 50° C / -4° F to 122° F
Humidity: Operating: 20% - 80% / Storage: 5% - 95%
Hinge Life Rating: 5000 flips
MTBF: 50,000 hours demonstrated
Warranty: 2-year
Extended Service Options: 3 year warranty coverage - Elo P/N: E375367; 4 year warranty coverage - Elo P/N: E375573; 5 year warranty coverage - Elo P/N: E375771; 2 year warranty coverage + AUR - Elo P/N: E375970; 3 year warranty coverage + AUR - Elo P/N: E376169; 4 year warranty coverage + AUR - Elo P/N: E376362; 5 year warranty coverage + AUR - Elo P/N: E376547
Regulatory approvals and declarations: FCC (US); IC (Canada); CE (Europe); VCCI (Japan); RCM (Australia)
What's in the Box: 10" Z20 POS Stand; Z20 POS Stand for 10" I-Series; North American Power Cable; European Power Cable; Quick Install Guide; 90W Power Brick; VESA cover, top 10" (for mounting to the hinge); VESA cover, bottom 10" (for mounting to the hinge); Base Plate (for mounting to a countertop); Cable Tie (for securing cables); 1x Screw, M4x6 (in Bag “A” - for mounting VESA covers); 4x Screw, M4X8 (in Bag “B” - for mounting main display); 1x Screw, M3X6 (in Bag “C” - for mounting base plate); 15" Z20 POS Stand; Z20 POS Stand for 15" I-Series; North American Power Cable; European Power Cable; Quick Install Guide; 150W Power Brick; 0.3m USB-C to USB-C Cable (To provide USB and Video signals to the CFD); VESA Cover, Top 15" (for mounting to the hinge); VESA Cover, Bottom 15" (for mounting to the hinge); Base Plate (for mounting to a countertop); CFD Cover (for mounting a customer-facing display); Cable Tie (for securing cables); 1x Screw, M4x6 (in Bag “A” - for mounting; VESA covers); 1x Screw, M4x6 (in Bag “A” - for mounting base plate); 4x Screw, M4X8 (in Bag “B” - for mounting main display); 4x Screw, M4X20 (in Bag “C” - for mounting a customer-facing display)

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
