Elo Touch · POS computer

Elo Touch EloPOS Z20 with Android (Gen 1)

Operating systemAndroid 10 with Google Play Services and EloView content deployment and management
Display10.1'' diagonal, Active matrix TFT LCD (LED) or 15.6'' diagonal, Active matrix TFT LCD (LED)
SealingTouchscreen sealed to LCD

Datasheet at Elo Touch Product page at Elo Touch

Runs Raptool apps in the Raptool Client, with access to the scanner, camera, RFID and printers, online and offline. Scanner apps

Overview

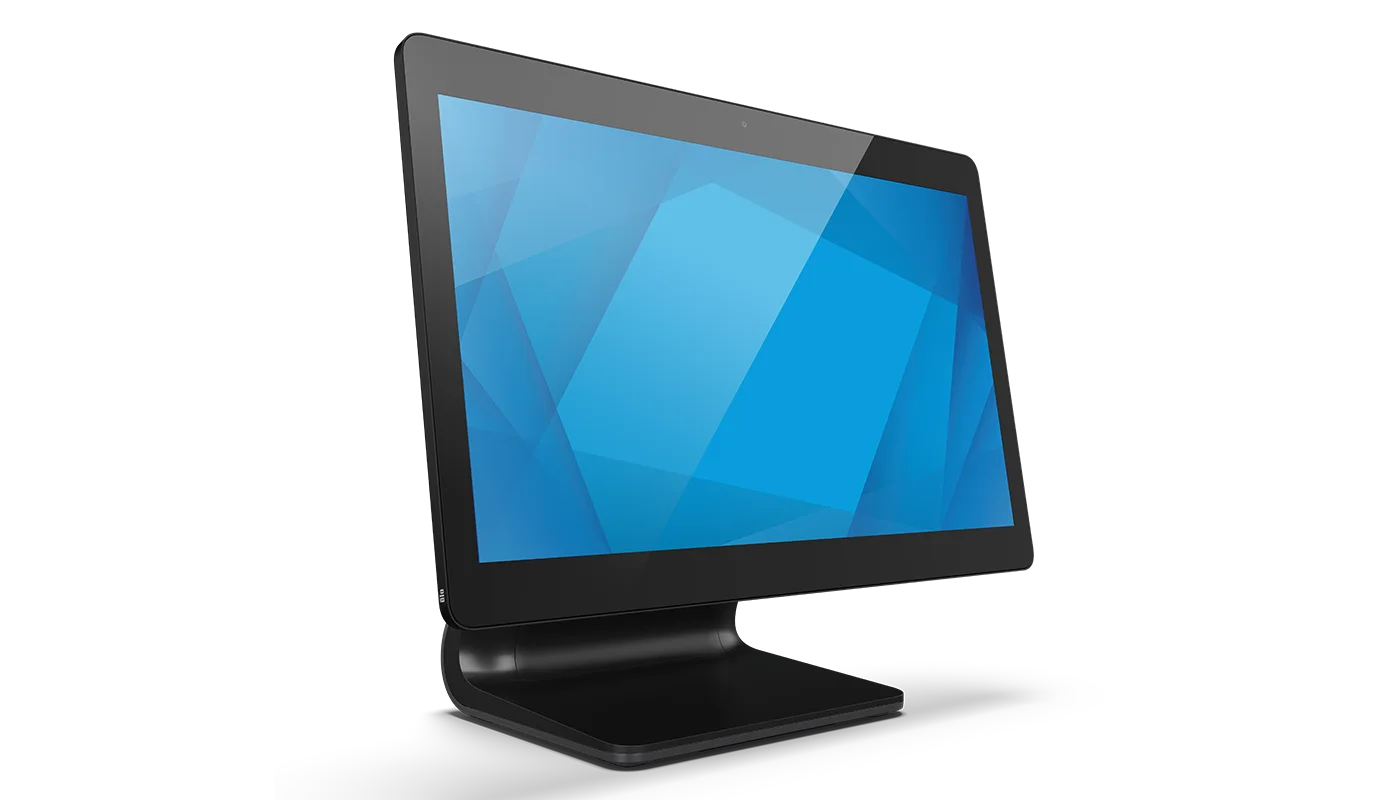

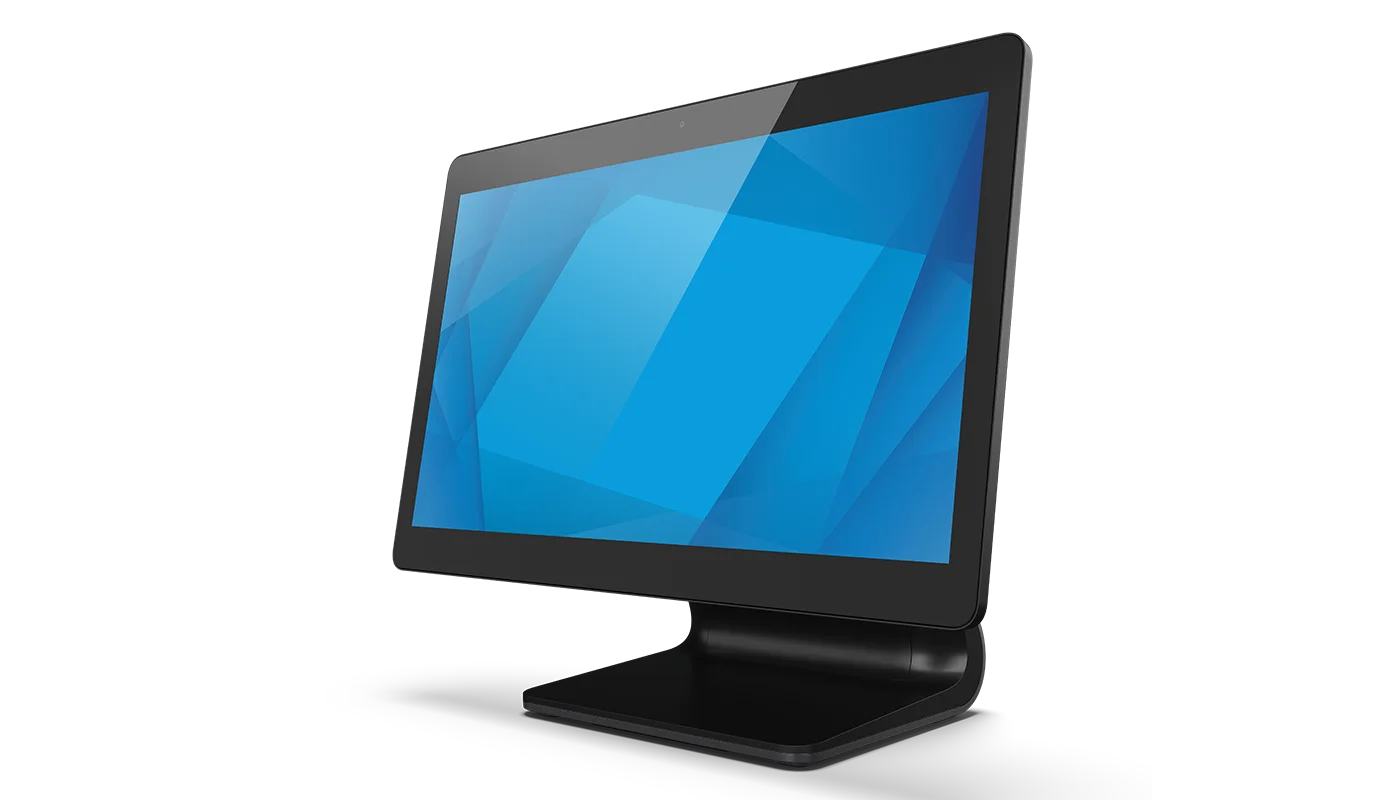

Built on Elo’s unified architecture, the EloPOS Z20 delivers a powerful and elegant point‑of‑sale system. Complete with an interactive display, integrated connectivity hub, contained cable routing, Android 10 OS and optional interactive customer-facing display, the EloPOS Z20 brings everything you need to the point of sale.

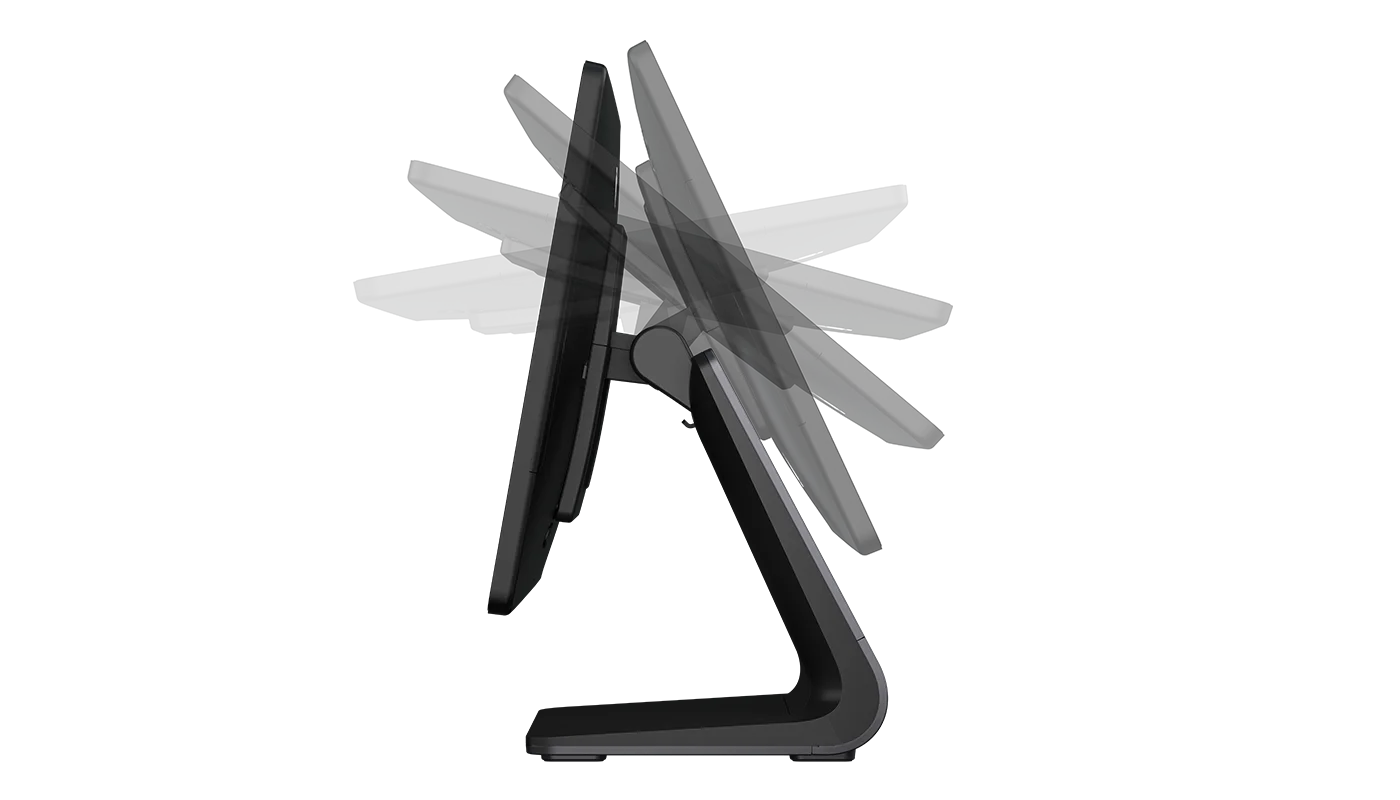

Easily flip your employee facing display to provide customers with a self-service kiosk.
With the Elo Edge Connect system, you can seamlessly attach any combination of peripherals to the edge of the touchscreen. And you can add or move them later as your needs change.
Offer your customers a point of interaction to review transactions, participate in loyalty programs and see the latest promotions with the customer-facing touchscreen display.
Integrated I/O From payment devices and scanners to a cash drawer and printer, there is room for everything you need at point of sale.

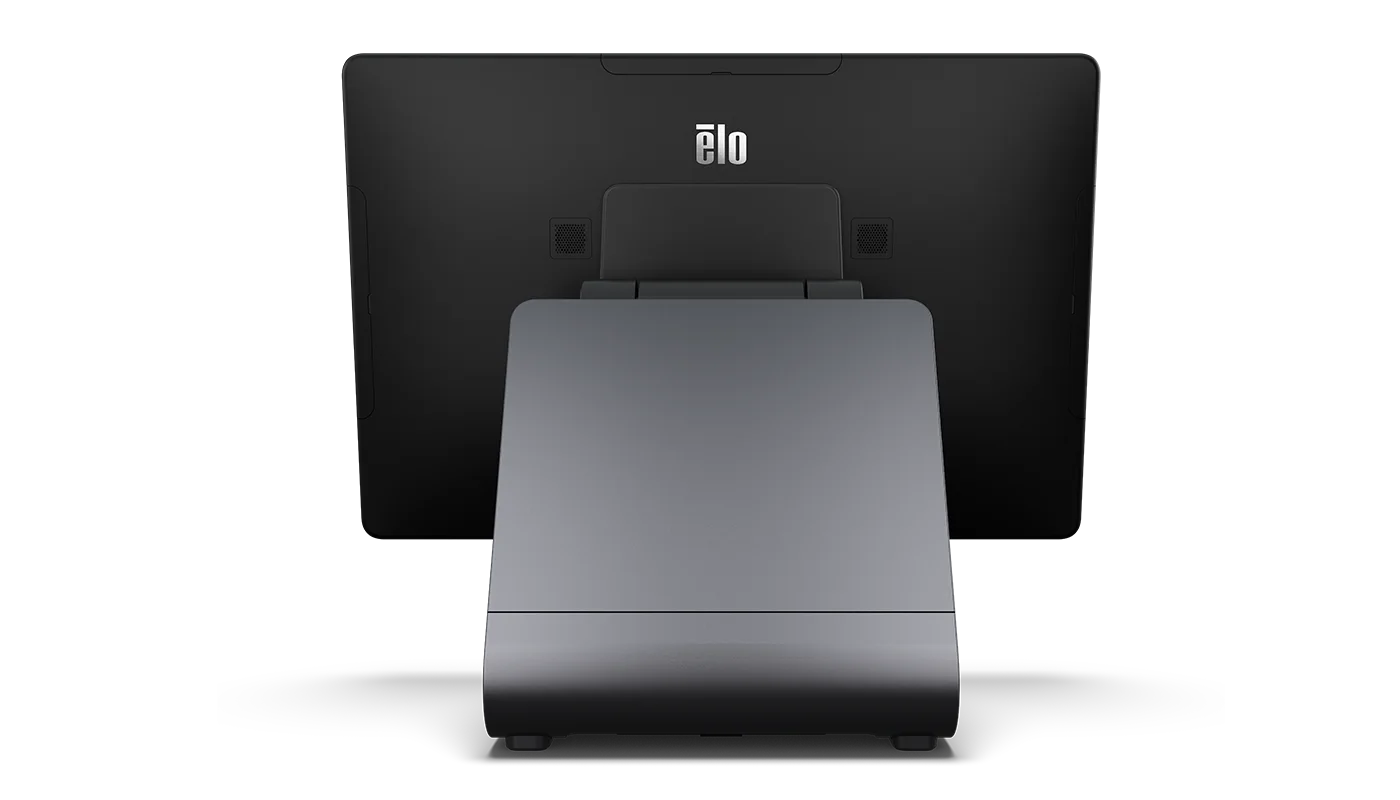

Conceal Your Cables Keep your counter clean with the integrated cable routing system.

Specifications

Technical

Part Number(s): 10-inch EloPOS Z20 Standard Model, Black - E809321 + E389883; 10-inch EloPOS Z20 Standard Model, White - E809321 + E411266 (MTO); 10-inch EloPOS Z20 Value Model, Black - E809321 + E390647; 10-inch EloPOS Z20 Value Model, White - E809321 + E411643 (MTO); 15-inch EloPOS Z20 Standard Model, Black - E809321 + E390075; 15-inch EloPOS Z20 Standard Model, White - E809321 + E412033 (MTO); 15-inch EloPOS Z20 Value Model, Black - E809321 + E391032; 15-inch EloPOS Z20 Value Model, White - E809321 + E412421 (MTO)
Enclosure Color: Black
Touch Technology & Capacity: PCAP (TouchPro® Projected Capacitive) - 10 Touch
Processor: Standard Model: Qualcomm Snapdragon SDA660; Value Model: Rockchip RK3399
Memory (RAM): 4GB
Storage: Standard Model: 64GB; Value Model: 32GB
OS: Android 10 with Google Play Services and EloView content deployment and management
Diagonal Size: 10.1'' diagonal, Active matrix TFT LCD (LED) or 15.6'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 16:9
Active Area: 10": 8.54" x 5.34" / 217 mm x 136 mm; 15": 13.55" x 7.62" / 344 mm x 194 mm
Resolution: 10" Standard Model: 1920 x 1200 @ 60Hz; 10" Value Model: 1280 x 800 @ 60Hz; 15": 1920 x 1080 @ 60Hz
Number of Colors: 8-bit (16.7 million)
Brightness (Typical): 10" Standard Model: LCD Panel: 450 nits, TouchPro PCAP: 387 nits; 10" Value Model: LCD Panel: 300 nits, TouchPro PCAP: 250 nits; 15" Standard Model: LCD Panel: 300 nits, TouchPro PCAP: 258 nits; 15" Value Model: LCD Panel: 250 nits, TouchPro PCAP: 215 nits
Response Time-total (typical): 25 msec
Contrast Ratio: 10" Standard Models: 900:1; 10" Value Models: 800:1; 15": 700:1
Viewing Angle: 10": Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total; 15" Standard Model: Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total; 15" Value Model: Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total
I/O Ports: I-Series 4; USB 3.0 support (900mA); USB-C output - When using the standard 65W power brick, USB-C can support up to 7.5W. When using the optional 90W power brick, USB-C can support up to 27W. See User Manual for details.; Micro SD slot; GPIO; RJ45 Ethernet LAN (Gigabit); DC input; Z20 POS Stand; DC input; 4 x USB-A 3.0 Port (900mA); RJ12 (serial/cash drawer) 12/24V - User will need to select the mode; RJ45 Ethernet LAN (Gigabit) - Ethernet upload and download speeds will decrease to ~250Mbps when using the CFD; USB-C output - CFD (DisplayPort, Touch and Power Deliver up to 27W) - USB speeds will be reduced to 2.0 speeds when DP video is being output.
Display Head Connection: DC Jack for Power; USB-C for Data to the Z20 Stand IO Hub
Peripheral Mounting: 4x micro-USB 2.0 Elo Edge Connect ports; Support for 1.2A on one port and 500mA for the remaining three ports
Webcam: Standard Model: 8MP, Max Resolution: 1920x1080 30fps, Auto Focus, Focus Range: >10cm; Value Model: 5MP, Max Resolution: 1920x1080 30fps, Auto Focus
Wireless: 802.11a/b/g/n/ac + Bluetooth 5.0
Audio Ports: Standard Model: 2x built-in Digital Microphones; Value Model: 1x built-in Analog Microphone
Speakers: Standard Model: 2x 0.8W; Value Model: 2x 2W
Power Supply: AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz; power adapter (included in accessory box)
Power Consumption (Typical): 10" Standard Model:; On: 8.5W; Off: 0.4W; Sleep: 4.5W; 10" Value Model:; On: 7.2W; Off: 0.4W; Sleep: 3.4W; 15" Standard Model:; On: 11.0W; Off: 0.4W; Sleep: 4.4W; 15" Value Model:; On: 10.0W; Off: 0.4W; Sleep: 3.4W
Dimensions: 10": 10.1" x 6.8" x 0.9" / 252.9 mm x 169.0 mm x 22.1 mm; 15" Standard Model: 14.87" x 9.8" x 0.9" / 377.7 mm x 249.7 mm x 22.3 mm; 15" Value Model: 15.3" x 9.8" x 0.9" / 389.7 mm x 249.7 mm x 22.3 mm
Shipping Box Dimensions: 10" Standard Model: 12.4" x 5.9" x 8.8" / 310 mm x 145 mm x 220 mm; 10" Value Model: 12.4" x 5.5" x 9.0" / 315 mm x 140 mm x 228 mm; 15" Standard Model: 17.7" x 6.5" x 12.2" / 450 mm x 165 mm x 310 mm; 15" Value Model: 18.3" x 6.3" x 13.0" / 465 mm x 160 mm x 330 mm
Weight (Unpackaged): 10" Standard Model: 2.0 lbs / 0.9 kg; 10" Value Model: 1.8 lbs / 0.8 kg; 15" Standard Model: 3.9 lbs / 1.8 kg; 15" Value Model: 3.5 lbs / 1.6 kg
Weight (Packaged): 10" Standard Model: 4.5 lbs / 2.1 kg; 10" Value Model: 4.9 lbs / 2.2 kg; 15" Standard Model: 7.8 lbs / 3.5 kg; 15" Value Model: 7.2 lbs / 3.3 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
Storage Temperature: -20°C to 50°C / -4°F to 122°F
Humidity: Operating: 20% to 80%; Storage: 5% to 95%
Regulatory approvals and declarations: UL/cUL (US); FCC (US); IC (Canada); CE (Europe); CB (International); VCCI, MIC (Japan); RCM (Australia)
Supported Countries: Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey
Real-Time Clock: lithium coin cell battery
Hinge Life Rating: 5000 cycles
MTBF: 50,000 hours demonstrated
Mounting Options: VESA 75mm
Warranty: 2-year
Extended Service Options: I-Series 4:; 3 year OS 360 - Elo P/N: E873133; 3 year Warranty Coverage – Elo P/N: E819394; 4 year Warranty Coverage – Elo P/N: E819598; 5 year Warranty Coverage – Elo P/N: E819795; 3 year Warranty Coverage + ADP – Elo P/N: E130329; 4 year Warranty Coverage + ADP – Elo P/N: E130530; 5 year Warranty Coverage + ADP – Elo P/N: E130719; 2 year Warranty Coverage + AUR – Elo P/N: E819985; 3 year Warranty Coverage + AUR – Elo P/N: E820186; 4 year Warranty Coverage + AUR – Elo P/N: E820388; 5 year Warranty Coverage + AUR – Elo P/N: E820582; 2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490; 3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674; 4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859; 5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053; Z20 POS Stand:; 3 year warranty coverage - Elo P/N: E375367; 4 year warranty coverage - Elo P/N: E375573; 5 year warranty coverage - Elo P/N: E375771; 2 year warranty coverage + AUR - Elo P/N: E375970; 3 year warranty coverage + AUR - Elo P/N: E376169; 4 year warranty coverage + AUR - Elo P/N: E376362; 5 year warranty coverage + AUR - Elo P/N: E376547
OS Support: Monthly Android security updates available with Elo OS 360 package.
Sealability: Touchscreen sealed to LCD
What's in the Box: I-Series 4; North American Power Cable; European Power Cable; Power Brick; Quick Install Guide; Screws for cable cover door (located in the power/Ethernet bay); Tie wrap; Z20 POS Stand; 8 x M4x10 Flat-head Screw (in bag “A”); 2 x M4x6 Pan-head Screw (in bag “B”); Screw-height tool; Installation Guide; 0.3m USB-C to USB-C cable (To provide USB and Video signals to the CFD); 150W Power Brick; North American Power Cable; European Power Cable; Tie wrap; VESA Cover, Bottom, 15”; VESA Cover, Top, 15”; VESA Cover, Bottom, 10”; VESA Cover, Top, 10”; Base Plate
Optional Peripherals: Magnetic Stripe Reader (MSR) – Elo P/N: E001002; Fingerprint Scanner – Elo P/N: E134286; 2D Barcode Scanner (Black - SE2707) – Elo P/N: E393160; 2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627; 2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047; Status Light (Micro-USB Connectivity) - Elo P/N: E644767; 3D Camera - Elo P/N: E134699; Webcam - Elo P/N: E201494; RFID - Elo P/N: E673037; Speaker Bar (Black) - Elo P/N: E894719; Speaker Bar (White) - Elo P/N: E133780
Stands, Mounts & Kits: 150W Replacement Cable Kit (NA & EU power cables and 150W power brick) – Elo P/N: E792273; 1002L - Elo P/N: E155834; 1002L - Elo P/N: E324341; 1302L - Elo P/N: E683595; 1502L - Elo P/N: E125496

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
