Elo Touch Elo Pay M100 Mobile POS Tablet

Accept payments from anywhere.

Operating systemAndroid 12 with GMS (AOSP Capable); Planned upgrade to Android 14 available with OS 360 subscription
ScanningSE4100 scan engine (1D/2D imager); *on M100 Scanner models only
BatteryRechargeable Li-Polymer, 3.8V/8000mAh; User Replaceable battery; Qualcomm Quick Charge 3
SealingIP54 per IEC standard 60529

Datasheet at Elo Touch Product page at Elo Touch

Runs Raptool apps in the Raptool Client, with access to the scanner, camera, RFID and printers, online and offline. Scanner apps

Overview

The Elo Pay M100 offers the ultimate rugged, enterprise-grade mobile point of sale tablet in a slim ergonomic form factor. Boasting a 10.1-inch FHD scratch resistant touch display, integrated payment with PCI/PTS 6.2 pin-on-glass, flexible Android 12 OS, and Qualcomm SD660 processor, the M100 Pay brings powerful performance with the security, unified architecture and long life cycle businesses need.

Whether you are accepting payment, taking orders and inventory or supporting curbside order and pickup, the Elo Pay M100 portable pos computer delivers an enterprise-grade, Android mobile point of sale system ready to run your business.
The Elo Pay M100 offers an integrated 8MP auto‑focus rear camera and a 5MP fixed-focus front camera.

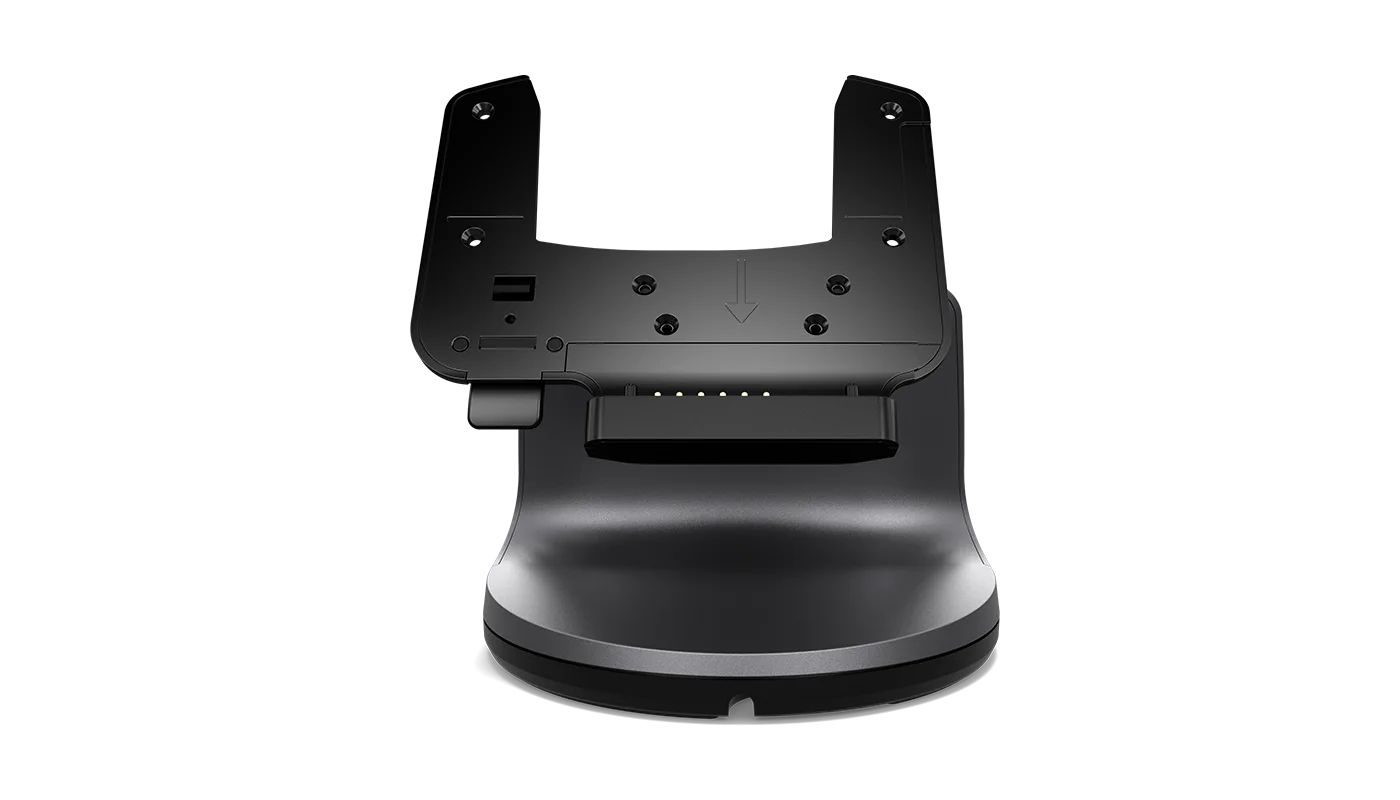

Go from mobile to fixed with the rotating POS Dock that swivels from merchant- to customer‑facing.
With enough battery life to cover your shift*, you don’t have to worry about having backups to support constant rotation. And with the quick charge feature, your handheld pos terminal can be fully powered in just a few hours.
The mobile pos hardware is purpose-built to endure commercial use with features including

Best for: POS Systems for Restaurants · Mobile Computers for Restaurants · Retail POS Systems · Elo Pay Retail POS Systems

Specifications

Technical

Part Number(s): Elo Pay M100, Cellular (AT&T and Verizon), United States, Canada - E121790; Elo Pay M100, Cellular (Open Carrier), Europe - E122179; Elo Pay M100, WiFi, Worldwide - E121405; Elo Pay M100 (with barcode scanner), Cellular (AT&T and Verizon), United States, Canada - E121593; Elo Pay M100 (with barcode scanner), Cellular (Open Carrier), Europe - E121973; Elo Pay M100 (with barcode scanner), WiFi, Worldwide - E121214
Enclosure Color: Black
Processor: Qualcomm Snapdragon 660 2.2GHz Octa-Core Processor
Memory (RAM): 4GB
Storage: 64GB
Expansion Options: MicroSD card supports up to 1TB SDXC
SIM: Available on cellular SKU’s with user accessible nano SIM and eSIM (Cannot be used simultaneously)
OS: Android 12 with GMS (AOSP Capable); Planned upgrade to Android 14 available with OS 360 subscription
Display: 10.1" Optically Bonded FHD
Touchscreen: Projective capacitive with Corning Gorilla Glass; Water rejection; Anti-Fingerprint Coating
Sensor: Light sensor (automatically adjust backlight brightness); Accelerometer
Resolution: 1920 x 1200
Brightness (typical): 500 nits
Contrast Ratio: 900:1
Battery: Rechargeable Li-Polymer, 3.8V/8000mAh; User Replaceable battery; Qualcomm Quick Charge 3
Cellular: LTE US, Canada Carriers: AT&T and Verizon; LTE Europe: Open Carrier; For E121593, E121790; 4G/LTE: B2, B4, B5, B12, B13, B17, B25, B26, B41; 3G/WCDMA: B2, B4, B5; For E121973, E122179; 4G/LTE: B1, B3, B5, B7, B8, B20, B40;; 3G/WCDMA: B1, B5, B8
GPS: GPS, GLONASS, Galileo and BeiDou-concurrent L1/G1/E1/B1 (GPS, GLO, GAL, BeiDou); AGPS support; *On cellular models only
I/O Ports: USB Type-C: Support display, charging, and data; Bottom pogo pad: for charging and USB 2.0 Host; Rear pogo: Support optional Fingerprint reader, Scanner
Camera: Rear Camera: 8MP Auto-Focus with Flash LED and Flashlight (torch); Front Camera: 5MP Fixed-Focus with Face Authentication
Payment: EMV Contactless ISO 14443-A/B, MiFare, ISO-18092; EMV Chip Card Reader (chip and pin-on-glass)
Certifications: PCI-PTS 6.2 (PCI Approval Number: 4-30551); EMV L1 & L2; Visa PayWave; Mastercard PayPass; Amex ExpressPay; Discover D-PAS; EFTPOS; Interac Flash; JCB J/Speedy; China Union Pay International; COMMON.SECC; Mastercard TQM; Apple Pay™; Google Pay™; Samsung Pay™
Barcode Scanner: SE4100 scan engine (1D/2D imager); *on M100 Scanner models only
Wireless: IEEE 802.11 a/b/g/n/ac, 2x2 MU-MIMO
Bluetooth: Bluetooth 5.0
LED: 1x combination Green/Amber LED for charging status; 1x combination Blue/Red LED for scan, error, or user programmable
Keyboard: On screen keyboard
Audio: Dual microphone with noise cancellation; Dual speakers; USB-C PTT headset and USB-C headset support
Buttons: Dual scan buttons; Power button; Volume up/down buttons
Dimensions: 10.06" x 6.38" x 0.54" / 255.48 mm x 161.96 mm x 13.67 mm
Shipping Box Dimensions: 12.64" x 8.54" x 2.91" / 321 mm x 217 mm x 74 mm
Weight (Unpackaged): M100 w/ Scanner : 1.74 lbs / 789 g; M100 w/o Scanner: 1.69 lbs / 767 g; M100C w/ Scanner: 1.75 lbs / 794 g; M100C w/o Scanner: 1.70 lbs / 772 g
Weight (Packaged): M100 w/ Scanner : 3.25 lbs / 1473 g; M100 w/o Scanner: 3.20 lbs / 1451 g; M100C w/ Scanner: 3.26 lbs / 1478 g; M100C w/o Scanner: 3.21 lbs / 1456 g
Operating Temperature: -20°C to 50°C / -4°F to 122°F
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: 5% to 95% non-condensing
Regulatory approvals and declarations: UL, FCC (US) - Class B; cUL, IC (Canada); CB (International safety); CE (Europe) - Class B
ESD: Class B: 8kV contact, 15kV air
Drop Rating: Multiple 1m drops per MIL 810-G; 1.6m drops with the ruggedized case per MIL 810-G
Warranty: 1-year
Extended Service Options: 2 year warranty coverage - Elo P/N: E764955; 3 year warranty coverage - Elo P/N: E765148; 4 year warranty coverage - Elo P/N: E765352; 5 year warranty coverage - Elo P/N: E765553; 2 year warranty coverage + AUR - Elo P/N: E765759; 3 year warranty coverage + AUR - Elo P/N: E765956; 4 year warranty coverage + AUR - Elo P/N: E766156; 5 year warranty coverage + AUR - Elo P/N: E766346; 3 year warranty coverage + ADP - Elo P/N: E672040; 5 year warranty coverage + ADP - Elo P/N: E672239; 1 year warranty coverage + AUR + ADP - Elo P/N: E894512; 3 year warranty coverage + AUR + ADP - Elo P/N: E672440; 5 year warranty coverage + AUR + ADP - Elo P/N: E672646; 3 year OS 360 - Elo P/N: E822682
OS Support: Bi-monthly Android security updates available with Elo OS 360
Sealability: IP54 per IEC standard 60529
What's in the Box: Elo Pay M100; USB Type C Charger with Qualcomm Quick Charge 3 (US. EU and UK plugs); USB C Cable; Quick Install Guide
Optional Accessories: 4 Device Charger - Elo P/N: E118661; Device Charger - Elo P/N: E118851; Rotating POS Dock - Elo P/N: E119034; Rotating POS Dock (USB-C) - Elo P/N: E640102; Mobile VESA Mount - Elo P/N: E193052; Rugged Case - Elo P/N: E119632; Hand Strap - Elo P/N: E119827; Rotating Hand Strap - Elo P/N: E120428; Rotating Neck Strap - Elo P/N: E120022; Carry Strap - Elo P/N: E120228; Stylus - Elo P/N: E120625; Fingerprint Reader - Elo P/N: E121016; Spare Battery – Elo P/N: E326107; Large Hub -Elo P/N: E815235; Small Hub - Elo P/N: E815044; Back Bracket - Elo P/N: E640293

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
