Elo Touch · Accessory

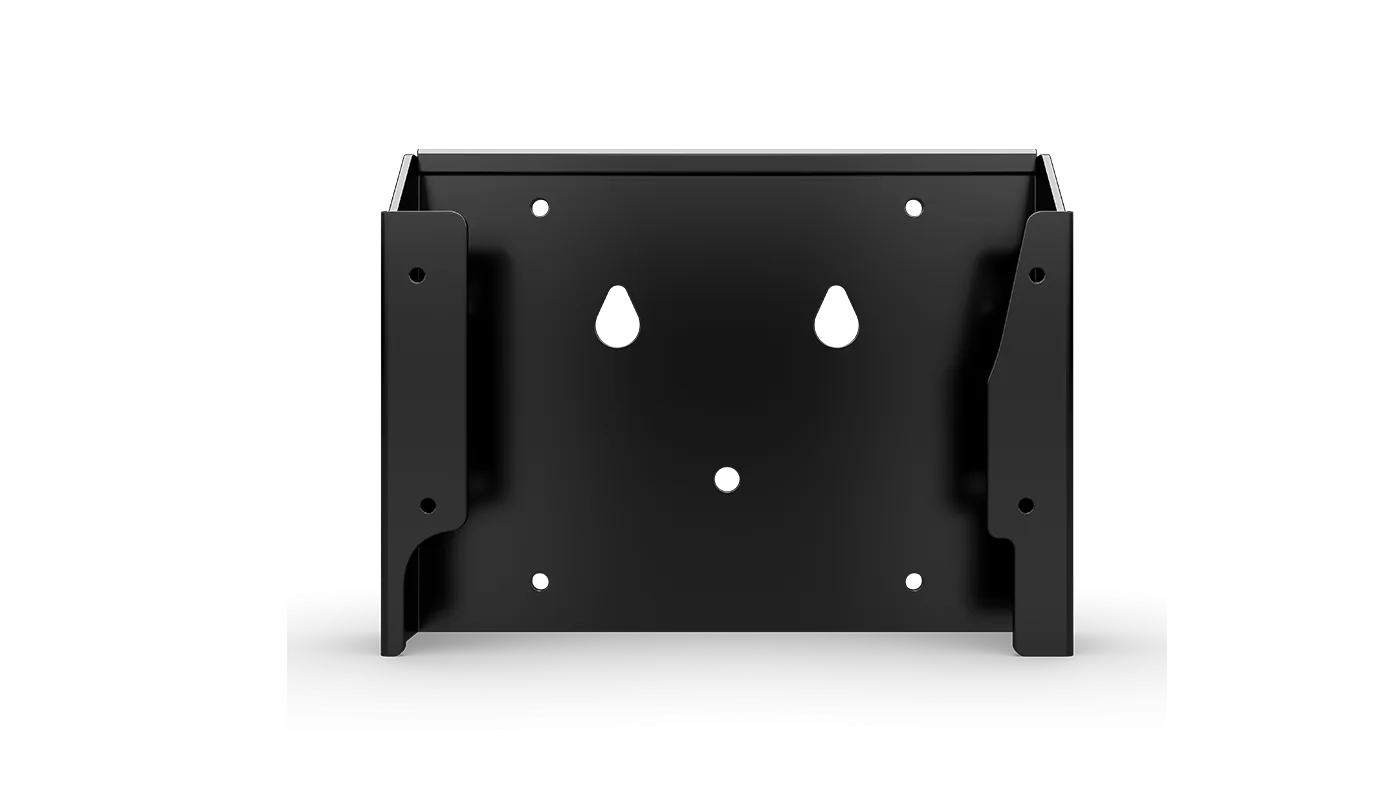

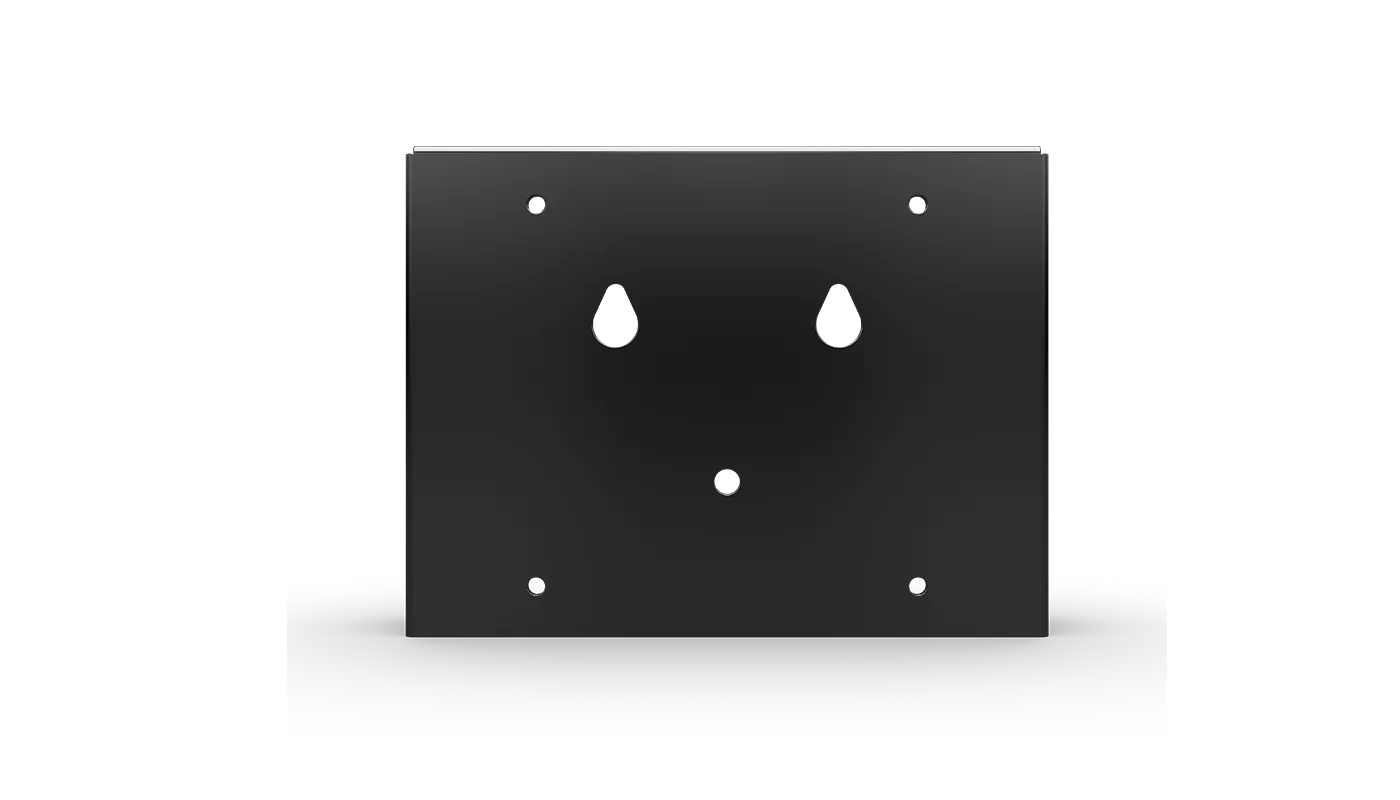

Elo Touch Elo Pay M100 Mobile VESA Mount
Specifications
Technical
- Part Number(s)
- E193052
- Compatibility
- Elo Pay M100
- Mounting Options
- M100 requires one of the following for attachment:; Rotation handstrap - E120428; Rotation Neckstrap - E120022; Back bracket - E640293
- Dimensions
- 5.29" x 5.23" x 1.73" / 134.36 mm x 132.89 mm x 43.96 mm
- Shipping Box Dimensions
- 6.30" x 5.59" x 2.13" / 160 mm x 142 mm x54 mm
- Weight (Unpackaged)
- 0.66 lbs / 300 g
- Weight (Packaged)
- 0.77 lbs / 350 g
- Operating Temperature
- -20°C to 50°C / -4°F to 122°F
- Storage Temperature
- -20°C to 60°C / -4°F to 140°F
- Humidity
- 5% to 95% non-condensing
- Warranty
- 1-year
- What's in the Box
- Mobile VESA Mount; 4x M3x5L Screw; 3x M4x10L Screw for hang up; QIG
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
