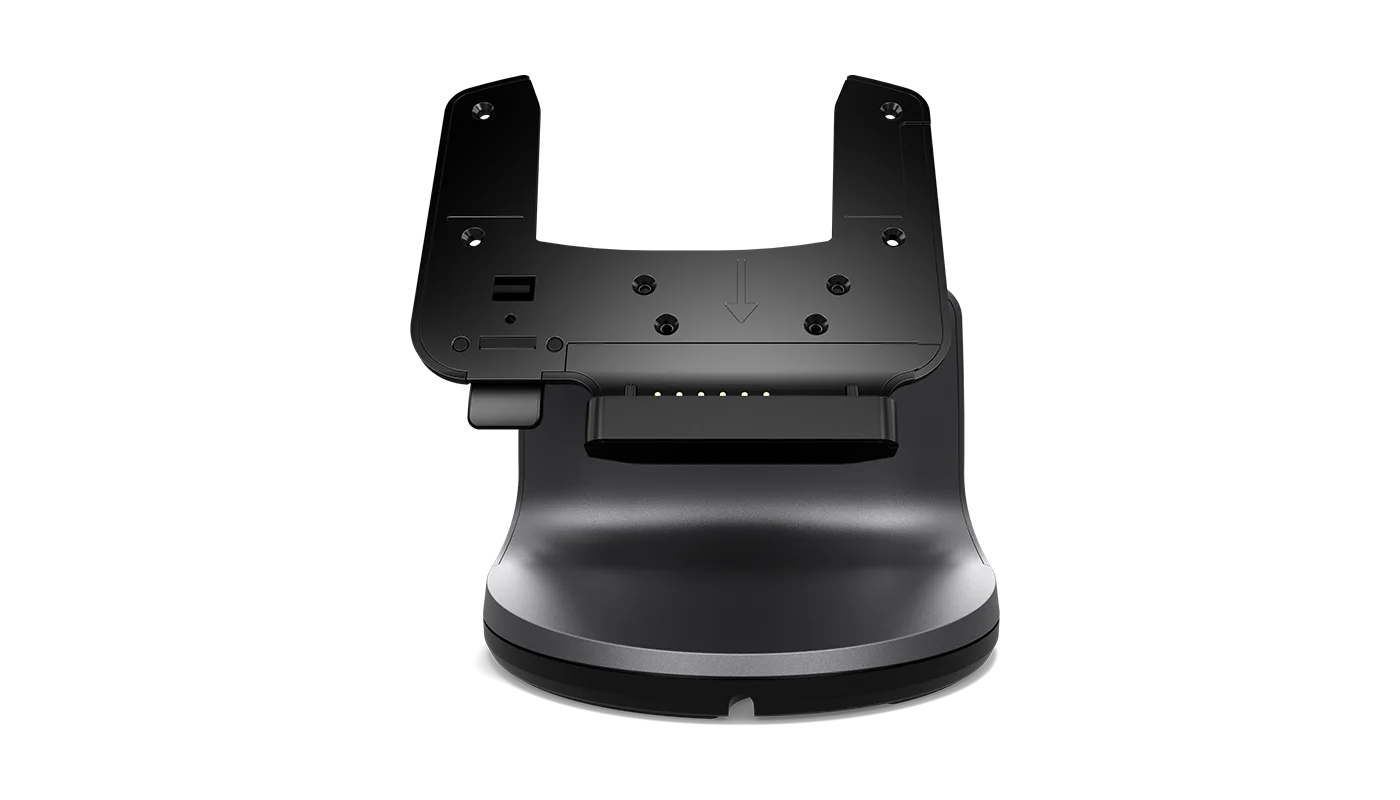

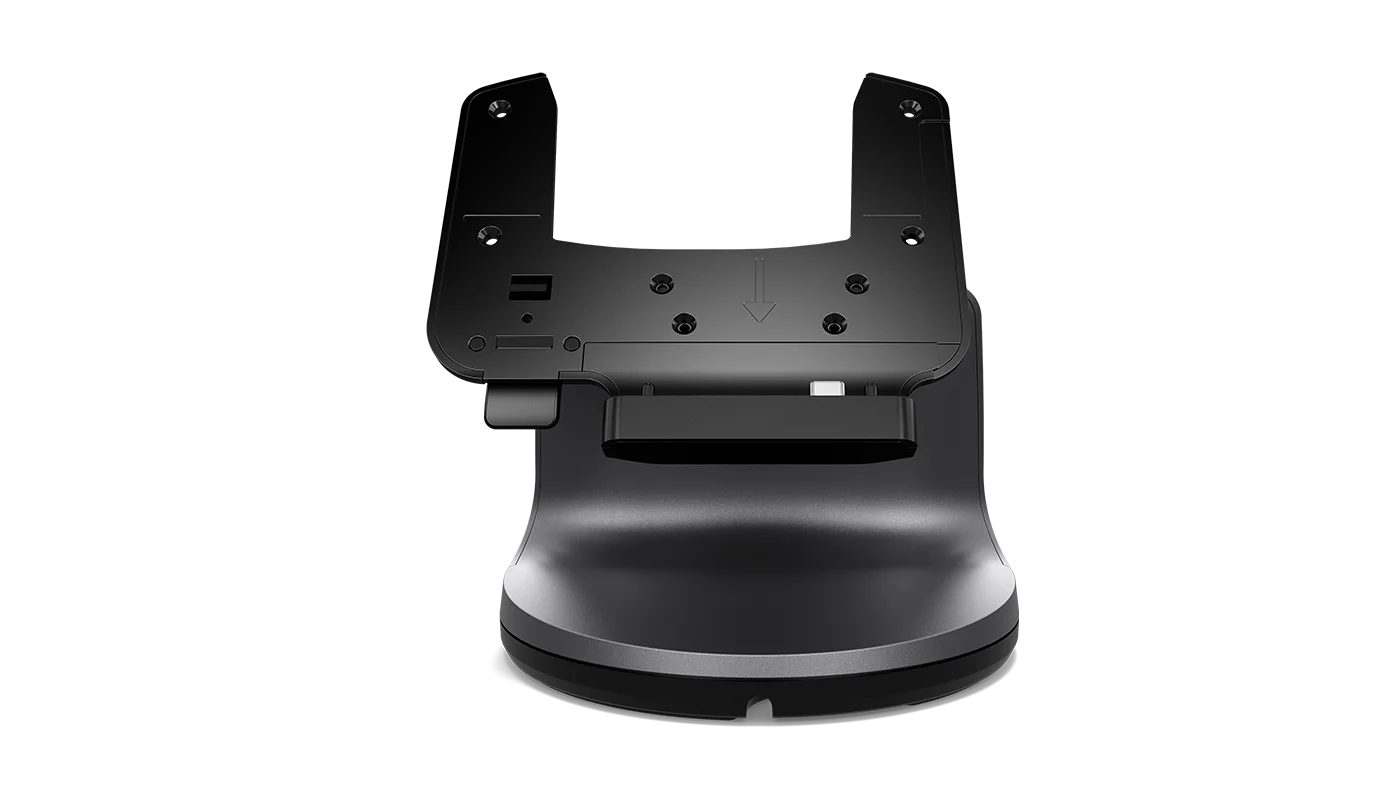

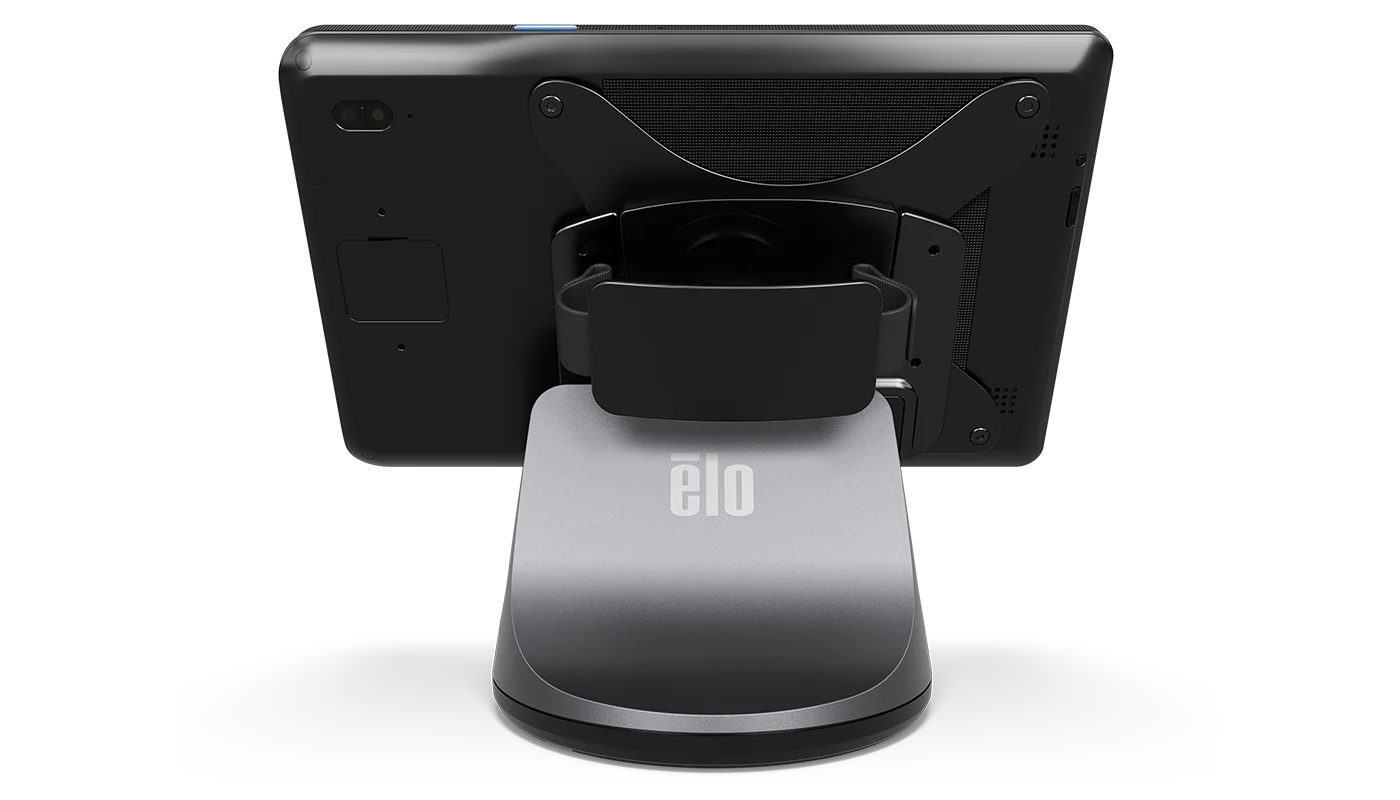

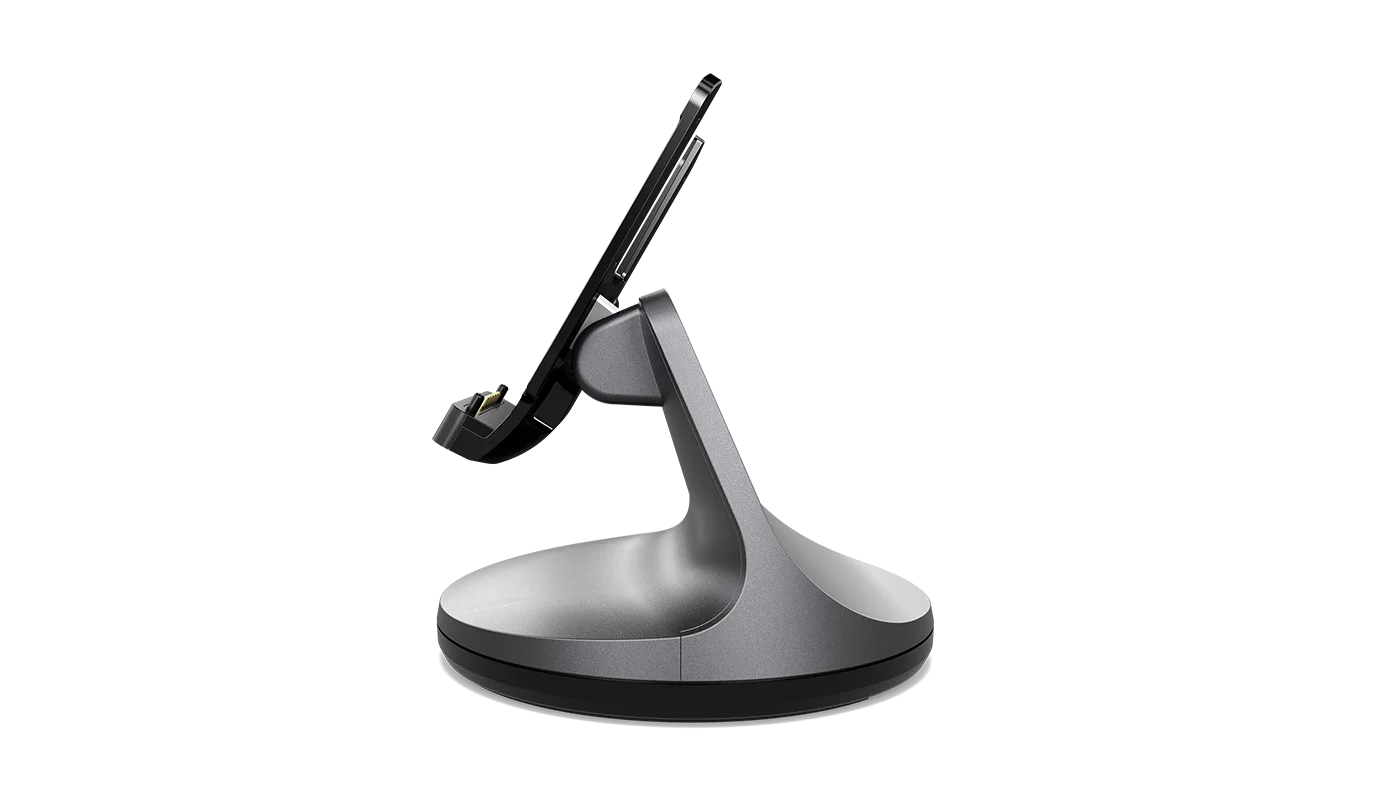

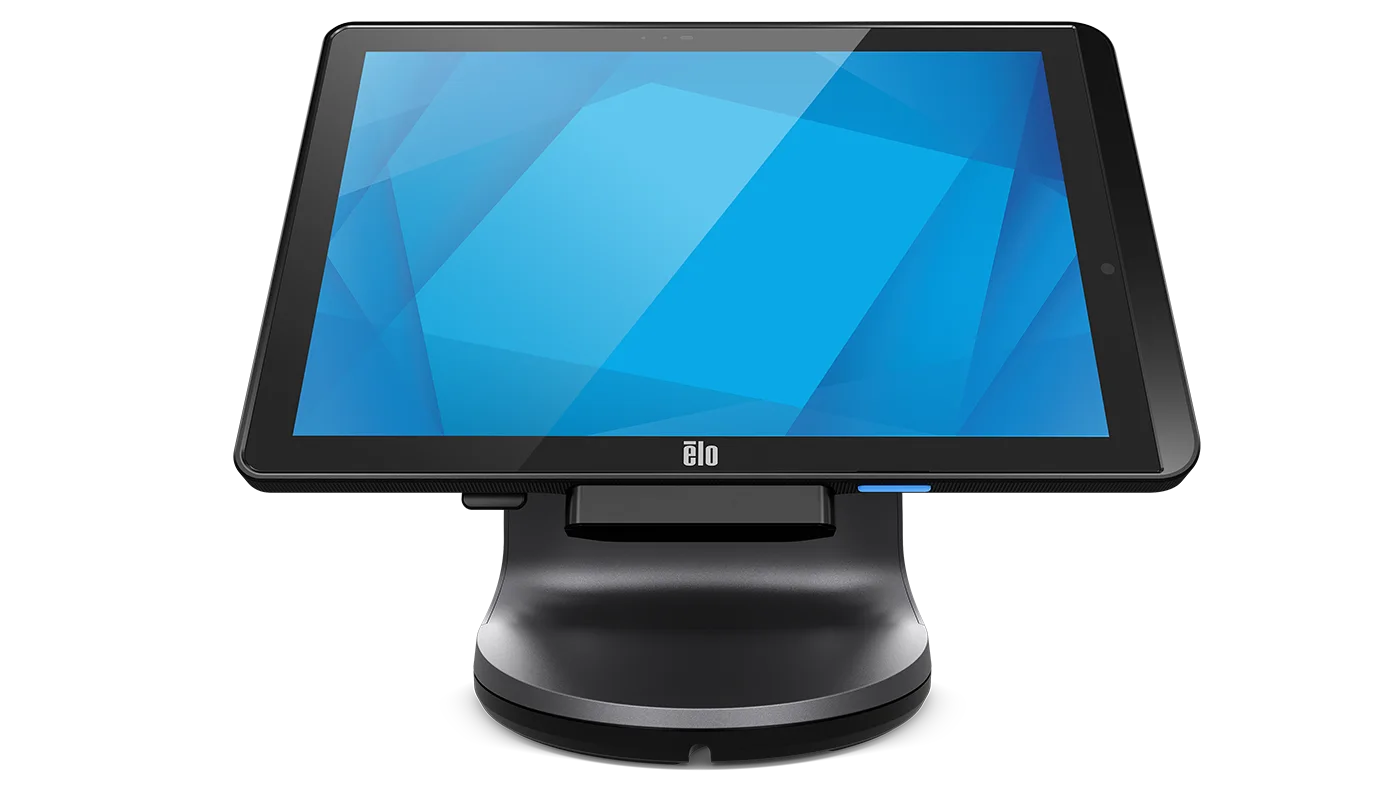

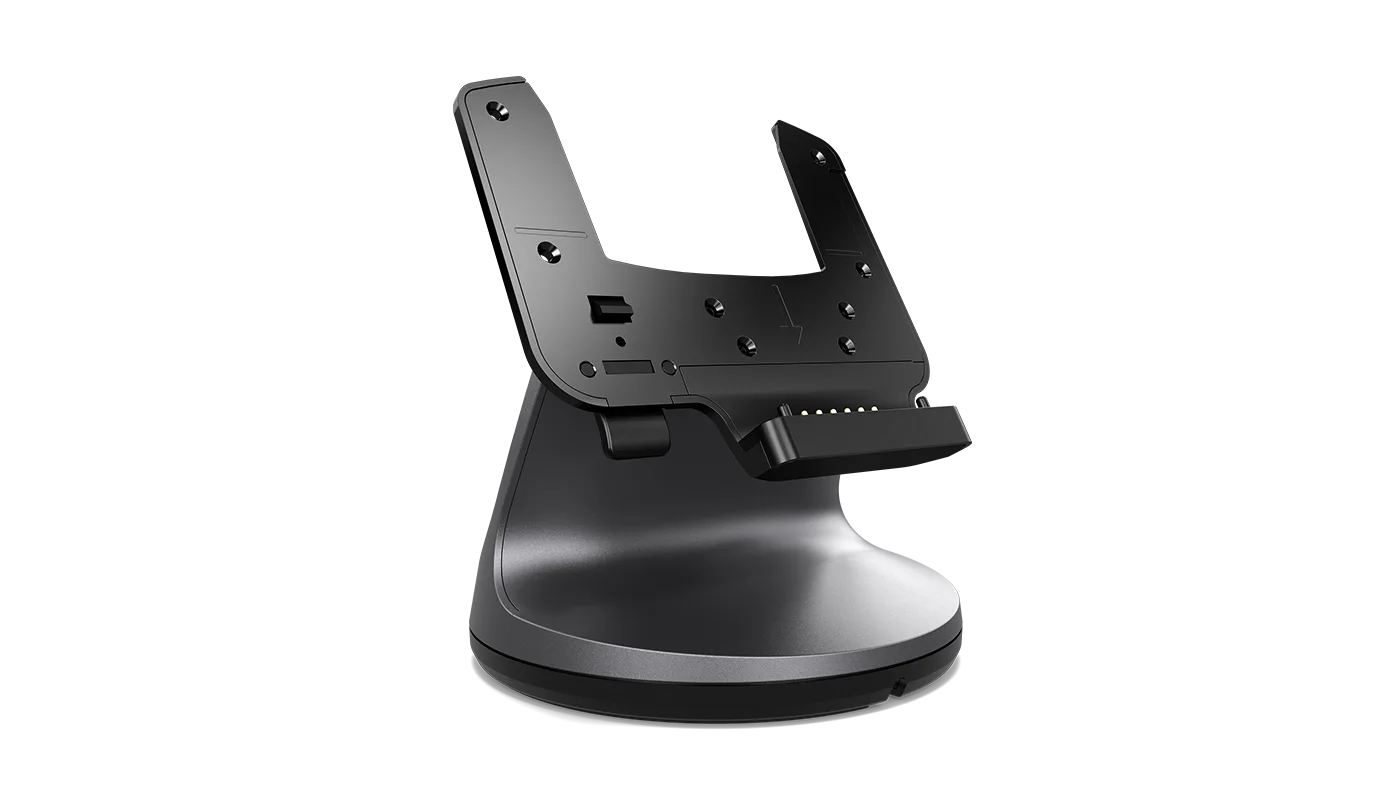

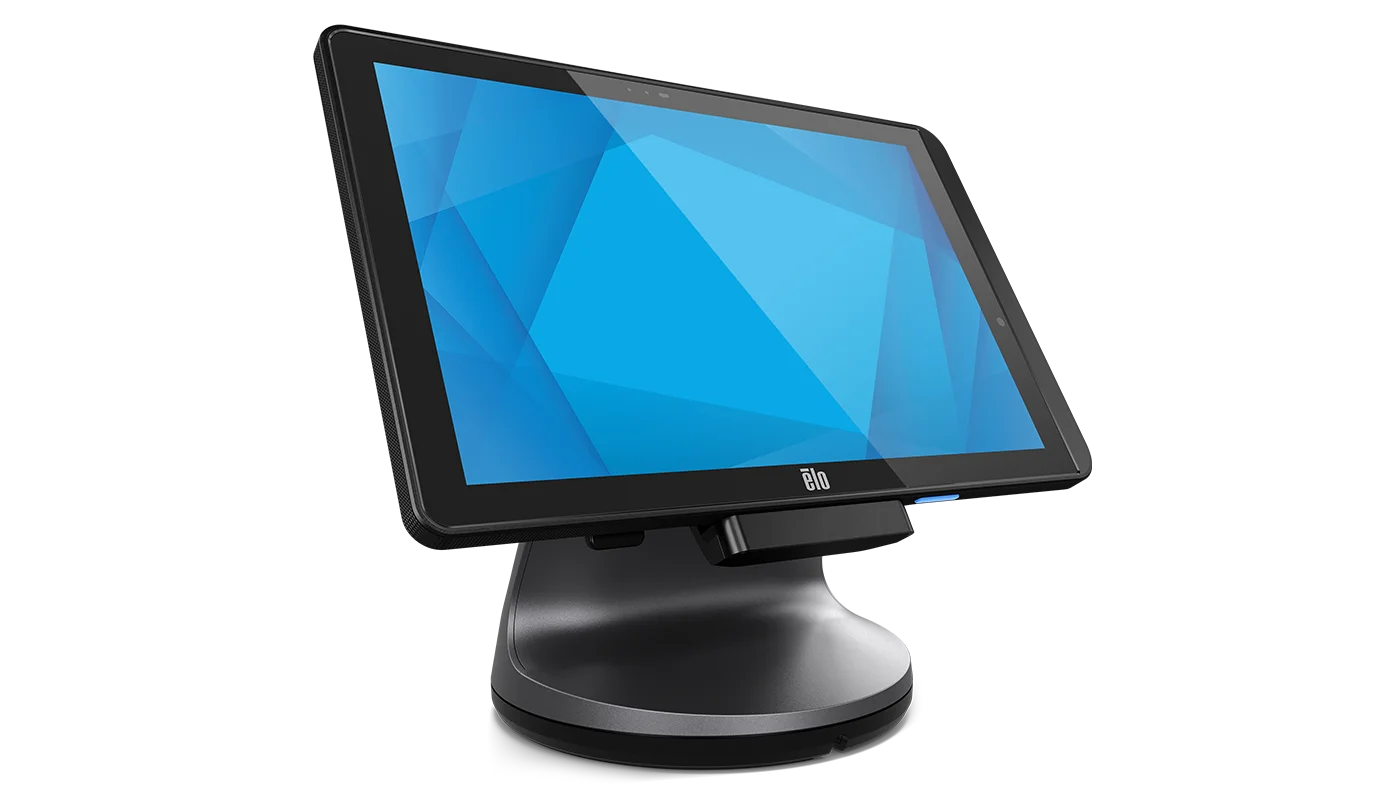

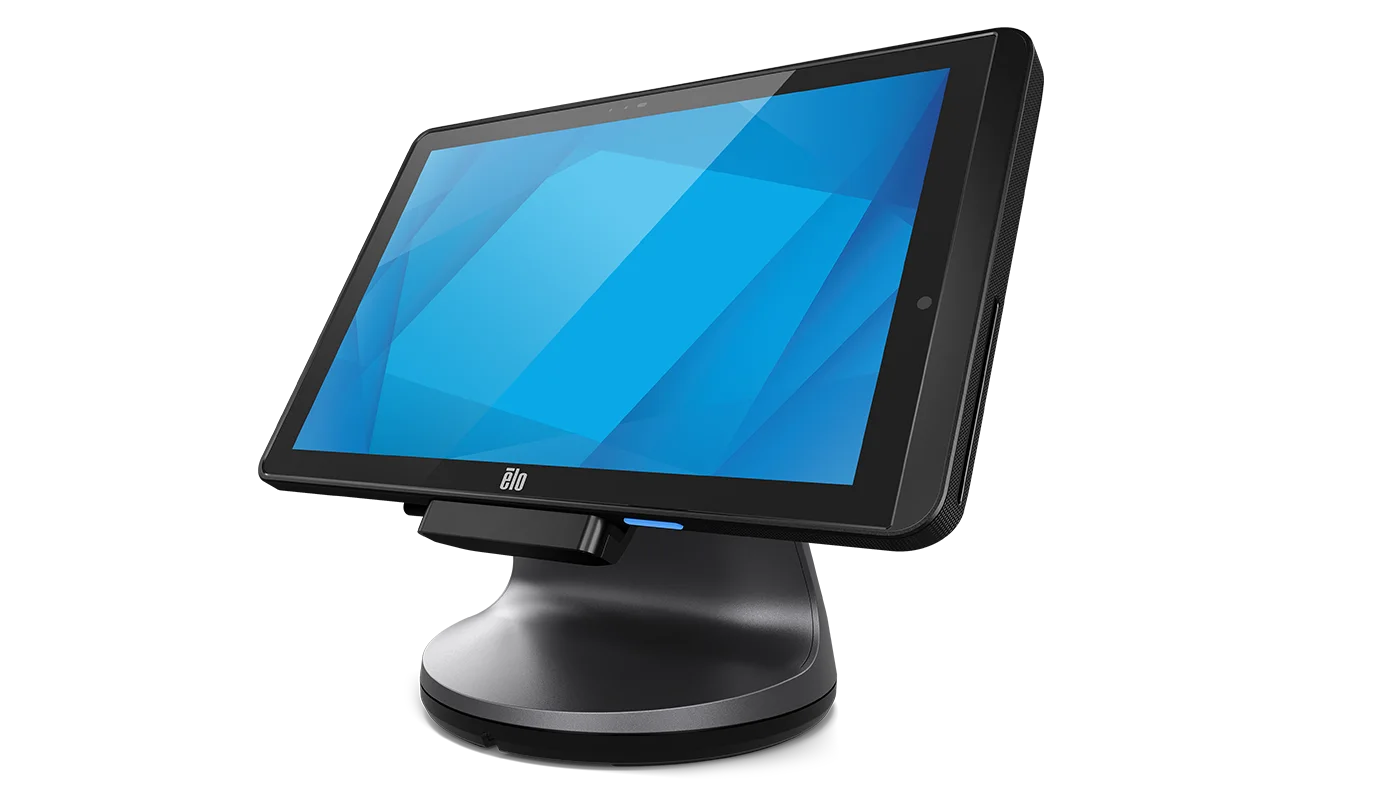

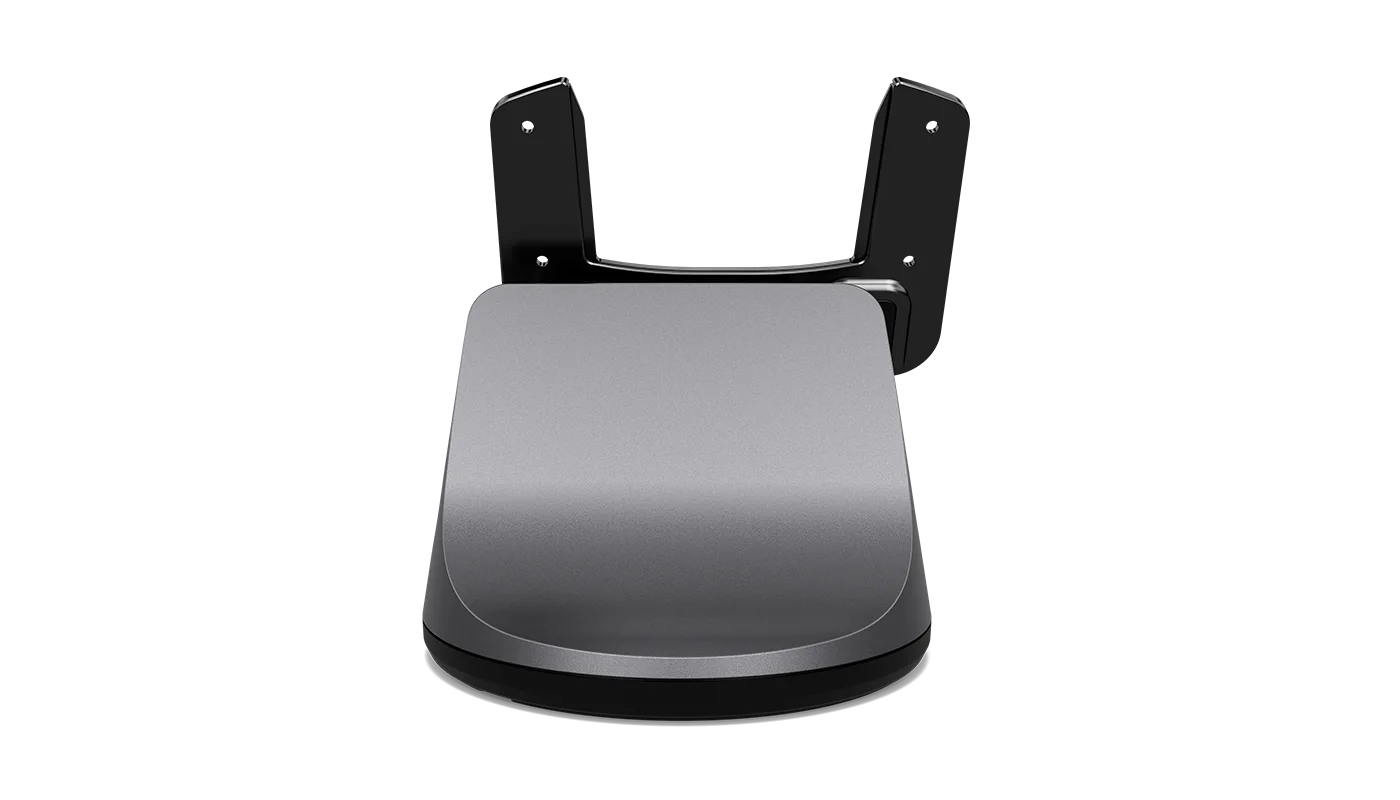

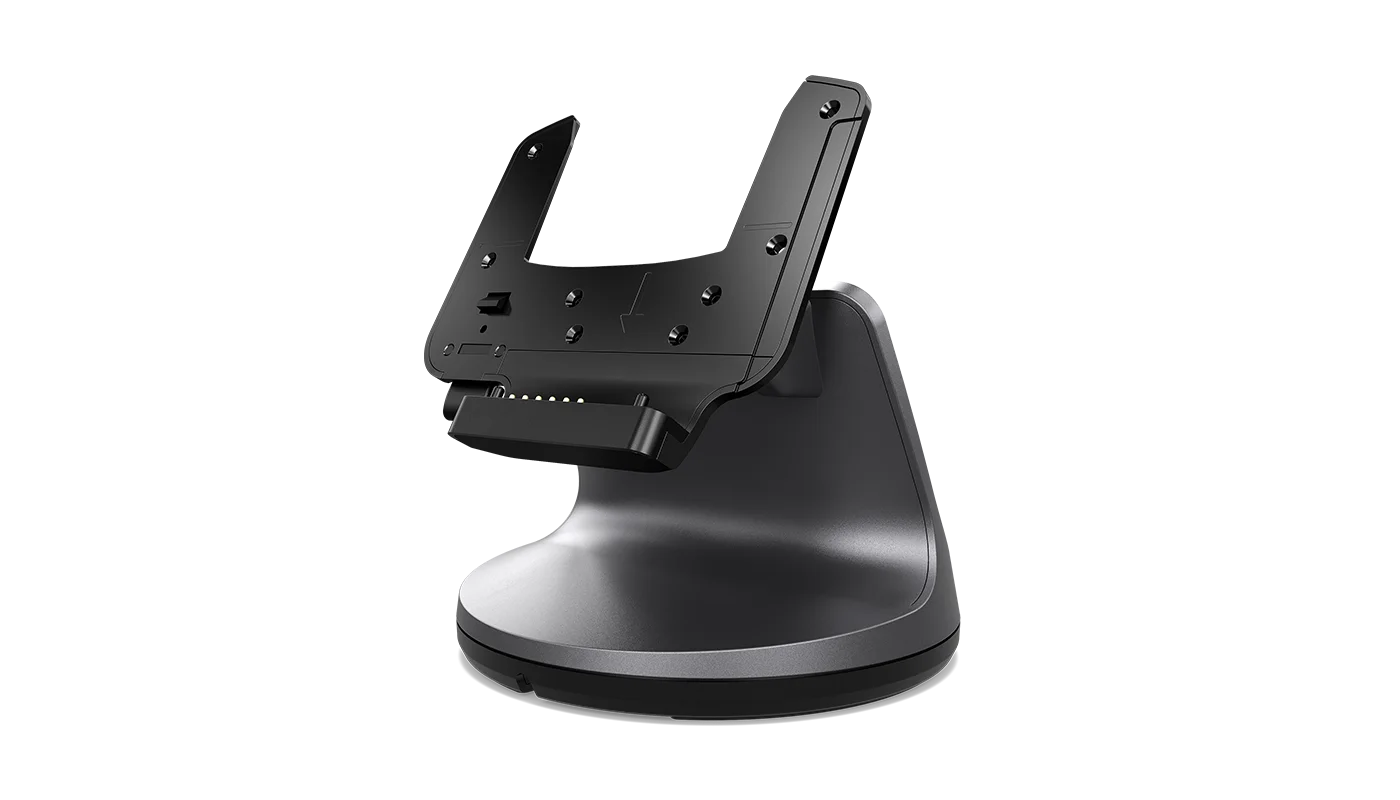

Elo Touch Elo Pay M100 Rotating POS Dock
Specifications
Technical
- Part Number(s)
- Elo Pay M100 Rotating POS Dock with Pogo Pins - E119034; Elo Pay M100 Rotating POS Dock with USB-C - E640102
- Compatibility
- Elo Pay M100
- Mounting Options
- M100 requires one of the following for attachment:; Rotation handstrap - E120428; Rotation Neckstrap - E120022; Back bracket - E640293
- Dimensions
- 5.99" x 5.51" x 6.30" / 152.2 mm x 140 mm x 160 mm
- Shipping Box Dimensions
- 10.51" x 10.51" x 9.84" / 267 mm x 267 mm x 250 mm
- Weight (Unpackaged)
- 3.53 lbs / 1600 g
- Weight (Packaged)
- 8.16 lbs / 3700 g
- Operating Temperature
- -20°C to 50°C / -4°F to 122°F
- Storage Temperature
- -20°C to 60°C / -4°F to 140°F
- Humidity
- 5% to 95% non-condensing
- Regulatory approvals and declarations
- UL, FCC (US) - Class B; cUL, IC (Canada); CB (International safety); CE (Europe) - Class B
- Warranty
- 1-year
- What's in the Box
- POS Dock; 1x Base Plate; 1 x Flat Head screw: M3 x 6mm; 1 x Pan Head screw: M3 x 7mm; 1 x Flat Head screw: M4 x 12mm; QIG
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
