Elo Touch · Accessory

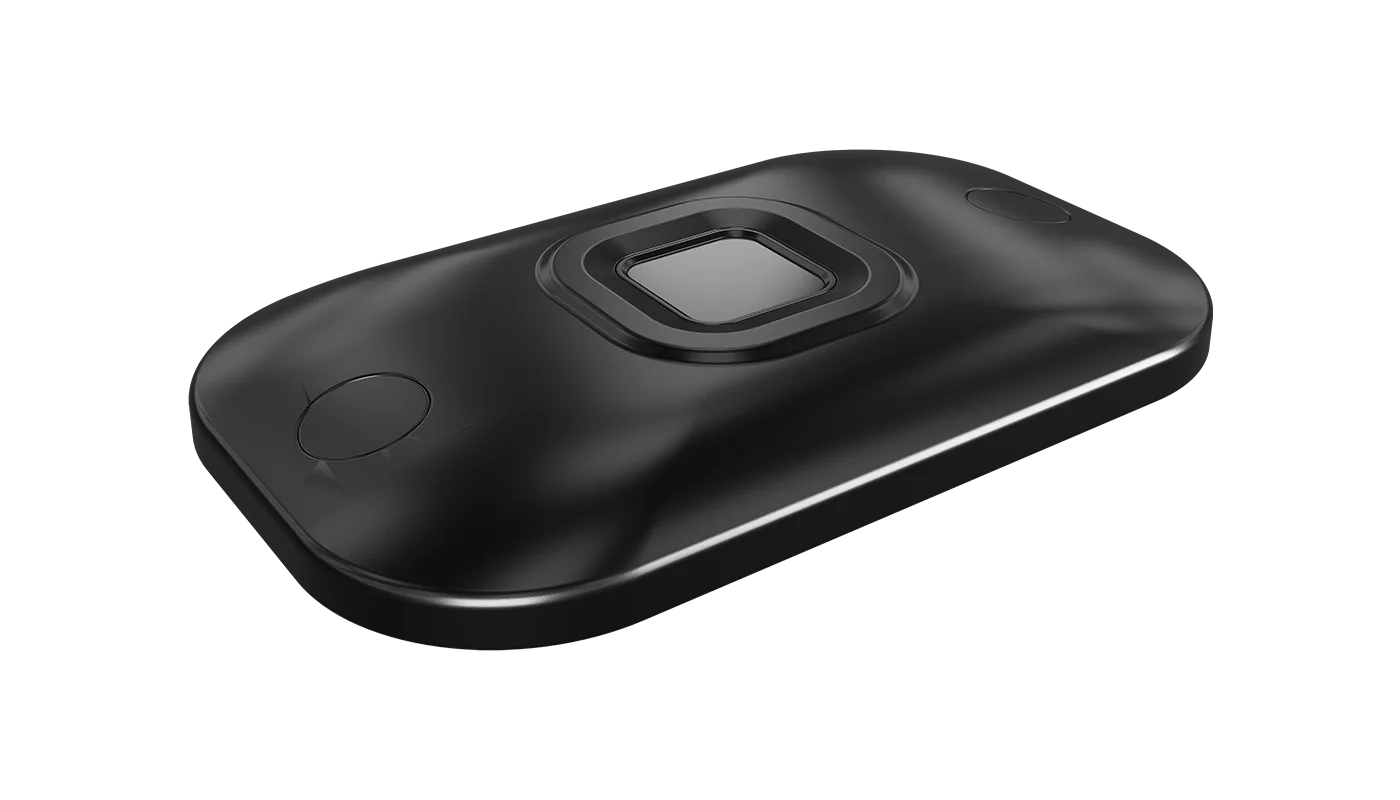

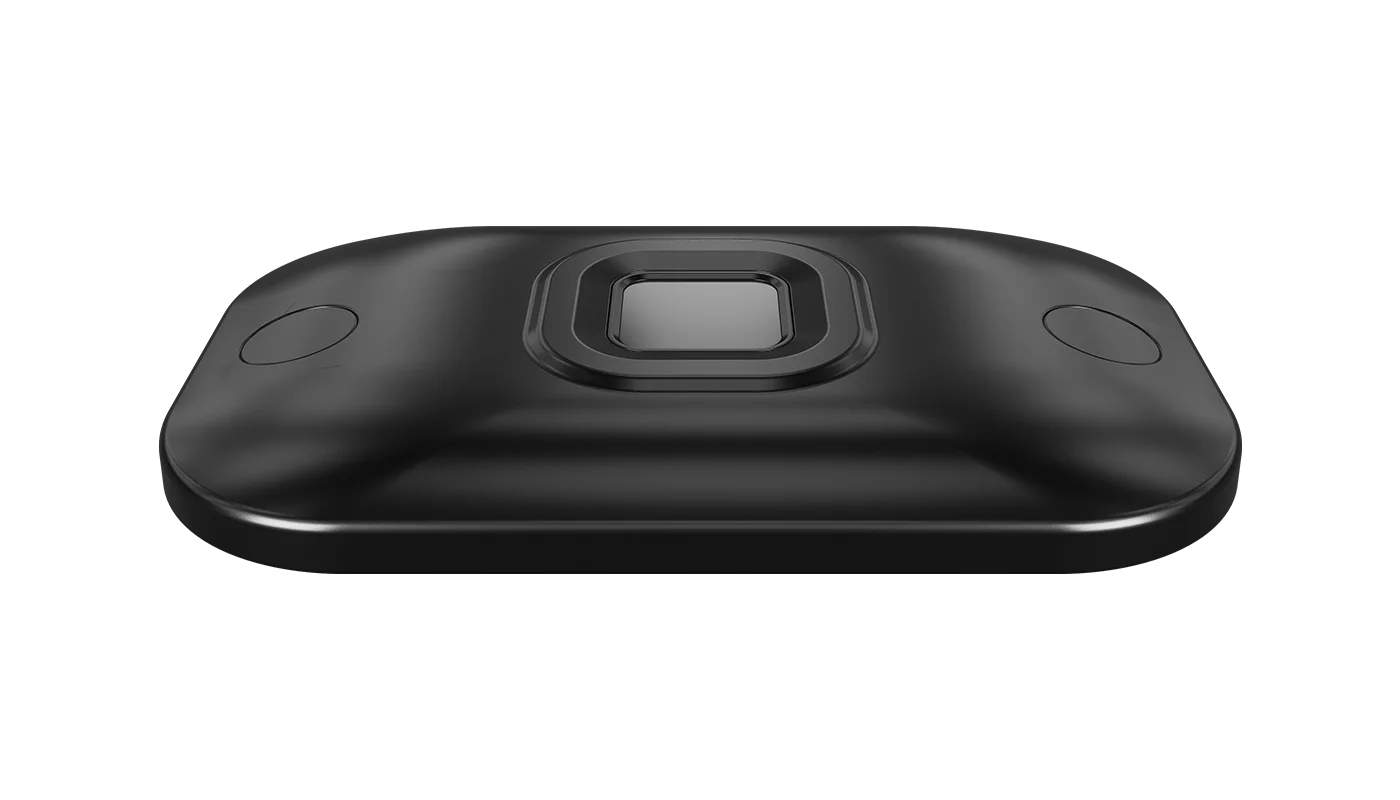

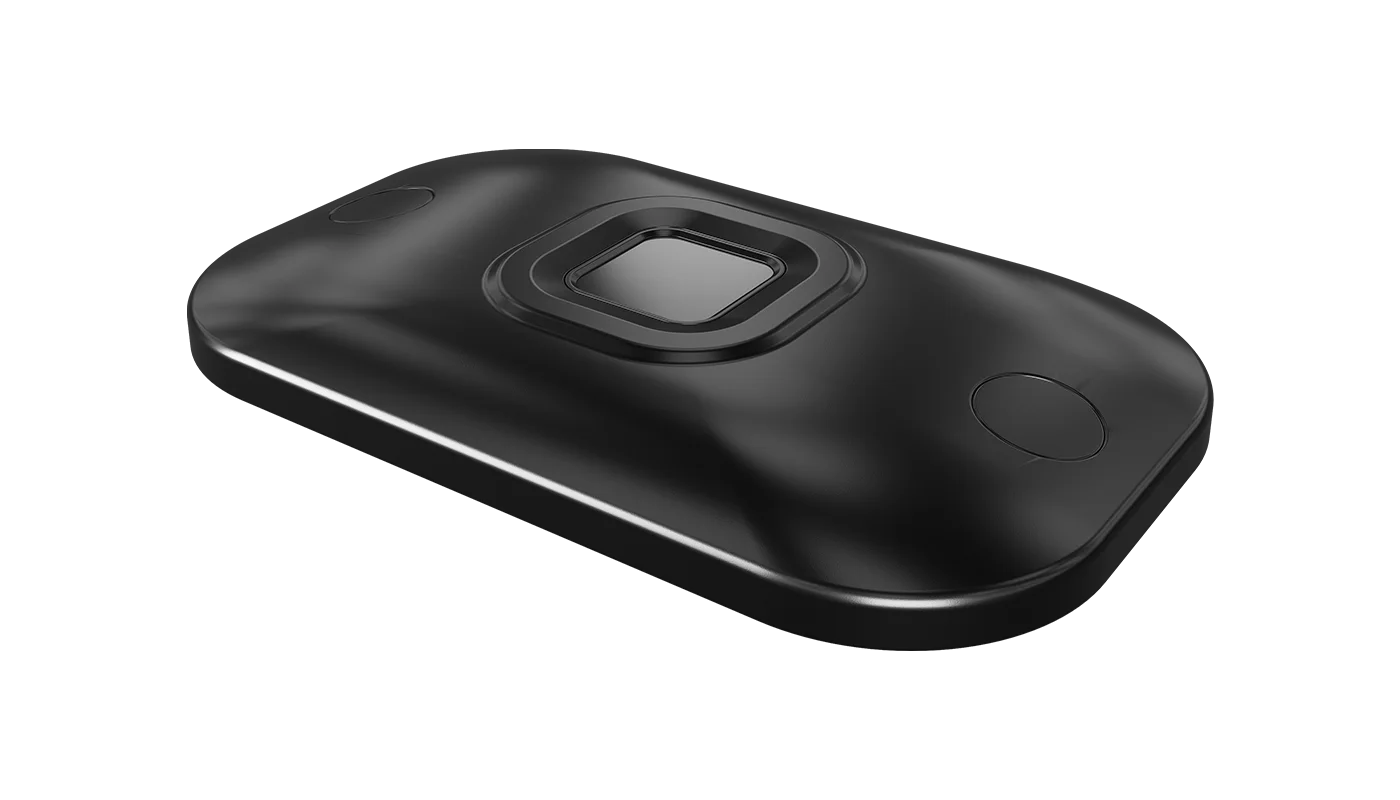

Elo Touch Elo Pay M100 Fingerprint Reader
Specifications
Technical
- Part Number(s)
- E121016
- Compatibility
- Elo Pay M100 non-scanner models
- Resolution
- 508 dpi
- Dimensions
- 2.52" x 1.54" x 0.48" / 64 mm x 39 mm x 12.1 mm
- Shipping Box Dimensions
- 2.80" x 2.40" x 0.87" / 71 mm x 61 mm x 22 mm
- Weight (Unpackaged)
- 0.024 lbs / 11 g
- Weight (Packaged)
- 0.042 lbs / 19 g
- Operating Temperature
- -20°C to 50°C / -4°F to 122°F
- Storage Temperature
- -20°C to 60°C / -4°F to 140°F
- Humidity
- 5% to 95% non-condensing
- Warranty
- 1-year
- What's in the Box
- Fingerprint Reader; 2x Pan Head screws: M2.5 x 4mm; 2x Black plugs; QIG
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
