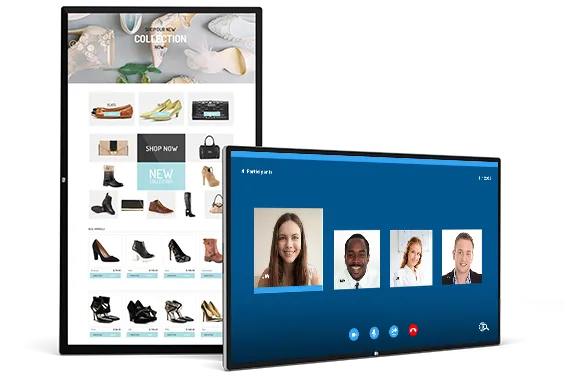

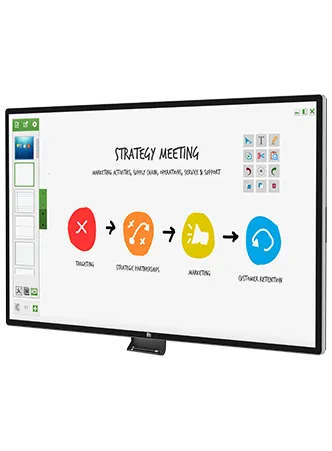

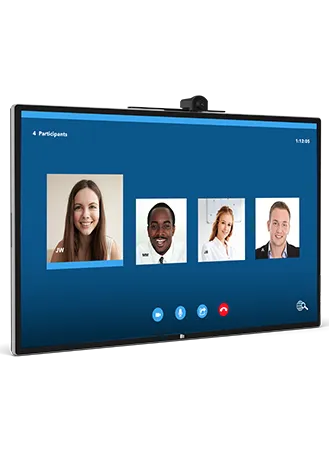

Elo Touch 6553L 65" (4K) Interactive Digital Signage

Specifications

Part Number(s)

Infrared (with anti-glare) - E215638 TouchPro PCAP (with anti-glare) - E215435 TouchPro PCAP (clear with anti-friction) - E914767

Enclosure Color

Black

Touch Technology & Capacity

PCAP (TouchPro® Projected Capacitive) - 40 Touch Infrared - 20 Touch

Diagonal Size

64.5'' diagonal, Active matrix TFT LCD (LED)

Active Area

56.2" x 31.6" / 1428.48 mm x 803.52 mm

Aspect Ratio

16:9

Resolution

3840 x 2160 @ 60hz

Other Supported Resolutions

640x480 60Hz 720x480 60Hz 720x576 50Hz 800x600 56/60Hz 1024x768 60Hz 1280x720 50, 60Hz 1280x960 60Hz 1280x1024 60Hz 1366x768 60Hz, 60Hz RB 1440x900 60Hz, 60Hz RB 1680x1050 60Hz, 60Hz RB 1920x1080 50, 60Hz 3840x2160 60Hz – Native resolution

Viewing Angle

Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

Number of Colors

10-bit (1.07 billion)

Brightness (typical)

LCD Panel: 500 nits IR: 450 TouchPro PCAP: 430 nits

Response Time-total (typical)

8 msec

Contrast Ratio

1100:1

On Screen Display

Let’s Get Started: Language Selection, Time Setting, Time Zone Video Source Select: HDMI-1, HDMI-2, HDMI-Side, DisplayPort, Internal-PC, Conference Video Settings: Video Port Discovery, Brightness, Contrast, Black Level, Sharpness and Aspect Ratio can be selected Color Settings: Color Temperature, Color Sensor, User Preset (for color), Picture Modes and HDMI Full Range are available in this menu Audio Settings: Audio Output, Mute, Volume selection are available here Power: Power Loss Behavior, P

Ports / interfaces

Back: HDMI x2 USB 3.0 Type B RJ45 OSD Remote DISPLAYPORT 1.4 3.5mm TRS jack for Serial RS232 3.5mm Audio Headphones Line-out Side: HDMI x1 USB 3.0 Type A Power Button Video Source Selection On Screen Display Button

Video

3x HDCP-capable HDMI on Type A connector DisplayPort 1.4 connector Input Video Horizontal Sync frequency range: 121.8 - 140 KHz Input Video Vertical Sync (frame rate) frequency range: 47 - 63 Hz

Headphone Output Connector

3.5 mm TRS jack

Speakers

2 x 10 W stereo speakers

Charging / power

Input power connector: IEC 60320-C13 Input power signal specifications: 100-240VAC 50/60Hz

Maximum Operating Time

24 hours/day

Power Consumption (Typical)

IR: ON (monitor + AC/DC adapter): 152W SLEEP (monitor + AC/DC adapter): 2W OFF (monitor + AC/DC adapter): 0.7W TouchPro: ON (monitor + AC/DC adapter): 157W SLEEP (monitor + AC/DC adapter): 2W OFF (monitor + AC/DC adapter): 0.7W

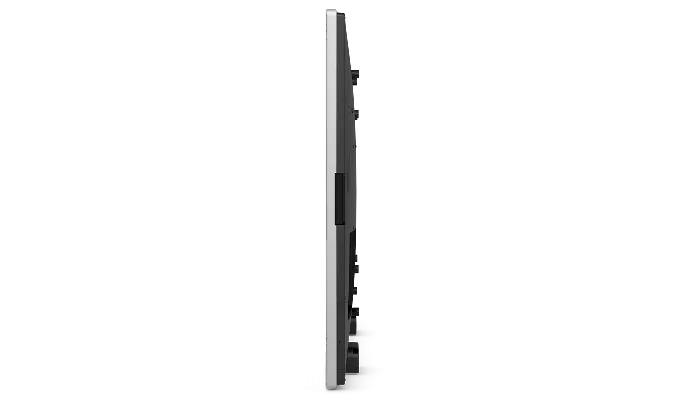

Dimensions

TouchPro: 58.69" x 34.08" x 3.17" / 1490.6 mm x 865.5 mm x 80.4 mm IR: 58.69" x 34.07" x 3.55" / 1490.6 mm x 865.5 mm x 90.2 mm

Shipping Box Dimensions

68.9" x 45.28" x 11.02" / 1750 mm x 1150 mm x 280 mm

Weight (Unpackaged)

TouchPro: With ECM: 115.54 lbs / 52.41 kg Without ECM: 111.14 lbs / 50.41 kg IR: With ECM: 118.54 lbs / 53.77 kg Without ECM: 114.13 lbs / 51.77 kg

Weight (Packaged)

TouchPro: Without ECM: 131.04 lbs / 59.44 kg IR: Without ECM: 136.24 lbs / 61.8 kg

Operating temperature

Portrait/Landscape/Tilt (≤15°) Mode: 0°C to 40°C / 32°F to 104°F Tabletop Mode: 0° C to 35° C / 32° F to 95° F

Storage temperature

Portrait/Landscape/Tilt (≤15°) Mode: -20°C to 60°C / -4°F to 140°F Tabletop Mode: -20° C to 60° C / -4° F to 140° F

Humidity

Operating: 20% to 80% Storage: 10% to 95% (38.7° C max wet bulb temperature)

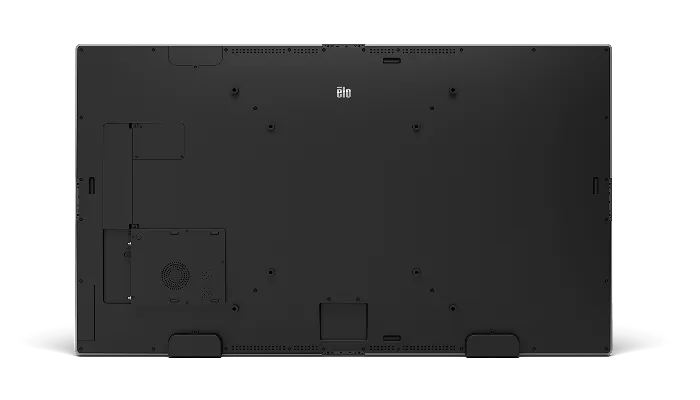

Mounting Options

VESA MOUNT PER MIS-F, 400 x 400mm, M6 VESA MOUNT PER MIS-F, 600 x 600mm, M8 See dimensional drawings for details

MTBF

50,000 hours demonstrated

Warranty

3-year with AUR included

Extended Service Options

4 year warranty coverage + AUR - Elo P/N: E740135 5 year warranty coverage + AUR - Elo P/N: E740330 3 year warranty coverage + OSE - Elo P/N: E740527 4 year warranty coverage + OSE - Elo P/N: E740728 5 year warranty coverage + OSE - Elo P/N: E740918

Regulatory approvals and declarations

UL, FCC (US) - Class A cUL, IC (Canada) CB (International safety) CE (Europe) - Class A RCM (Australia) VCCI (Japan) CCC (China) (for TouchPro version only) IK07 and UL60950 for ball drop test

Energy Star

7.1

Other Features

Ambient Light Sensor - changes panel color to match ambient light, Auto Wake

What's in the Box

Quick Install Guide HDMI 2.0 cable USB 3.0 cable (Type A plug to Type B plug) power cable, IEC 60320-C13 to NA plug power cable, IEC 60320-C13 to EU/KR plug power cable, IEC 60320-C13 to UK plug Serial 3.5mm male to Serial DB9 female cable Energy label according to EU Regulation 1062/2010

IDS Optional Accessories

3D Camera - Elo P/N: E134699 Webcam - Elo P/N: E201494 2D Barcode Scanner (SE4720) – Elo P/N: E384627 2D Barcode Scanner (SE4107) – Elo P/N: E245047 Magnetic Stripe Reader – Elo P/N: E001002 NFC/RFID Reader – Elo P/N: E001004 Fingerprint Scanner – Elo P/N: E134286 Wired OSD Remote - Elo P/N: E483757 Passive Stylus - Elo P/N: E727568 Wallmount - Elo P/N: E282876 Replacement Cable Kit - Elo P/N: E283066 i5-7500 ECMG4 with No OS - Elo P/N: E227895 i5-7500 ECMG4 with Win10 (LTSC) - Elo P/N: E228087
