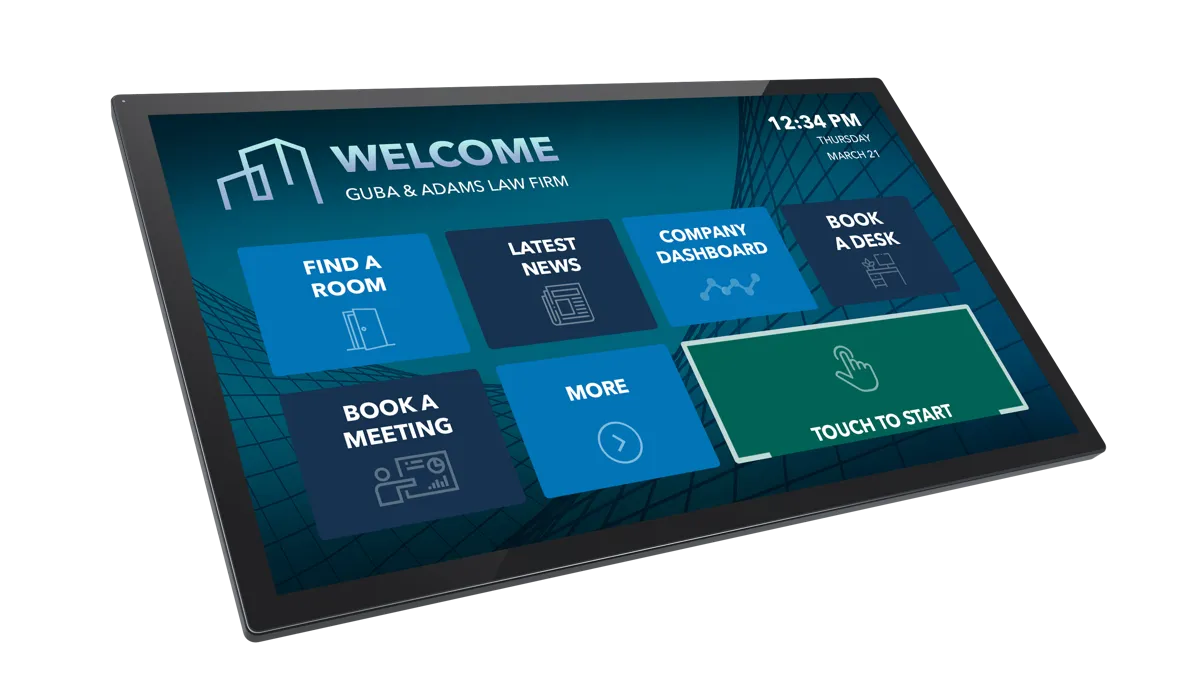

Elo Touch 4304L 43" Interactive Display
Elo's 4304L is a 43-inch, Full HD interactive display perfect for interactive signage, collaboration, self-service, patient room displays, virtual reception and dashboarding. Learn more.
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Power
- Charging / power
- Input connector (power): IEC 60320-C13 Input signal specifications (power): 100-240VAC 50/60Hz Output connector (bypass input power to backside device): IEC 60320-C14 AC outlet short cable (IEC C14 to C5 head) power rating: 100V/2A (200Watt), 220V/2A (440Watt)
Connectivity
- Ports / interfaces
- 2x HDMI 1.4 USB-C (for Touch control and Video input) USB-A (for Wi-Fi Adapter only) RJ45 (for IoT LAN port) RJ45 (for optional OSD remote) DisplayPort 1.2 3.5mm TRS jack (for RS232/MDC) 3.5mm Audio Headphones out 4x Elo Edge Connect Micro USB 2.0
Rugged
- Operating temperature
- Portrait/Landscape/Tilt (≤15°) Mode: 0°C to 40°C / 32°F to 104°F Table top Mode: 0° C to 35° C / 32°F to 95°F
- Storage temperature
- -20°C to 60°C / -4°F to 140°F
- Humidity
- Operating: 20% to 80% Storage: 10% to 95% (38.7°C max wet bulb temperature)
Size
- Dimensions
- 39.66" x 23.45" x 2.19" / 1007.4 mm x 595.7 mm x 55.6 mm
Software & service
- Warranty
- 3-year with AUR included
