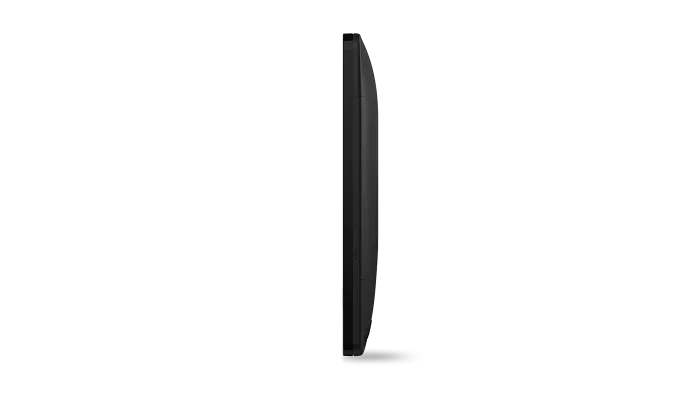

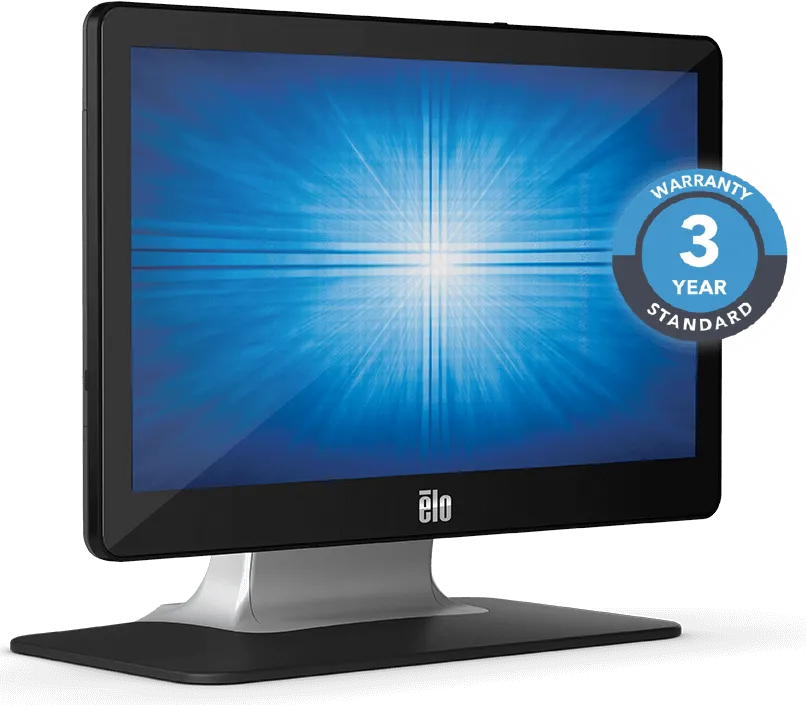

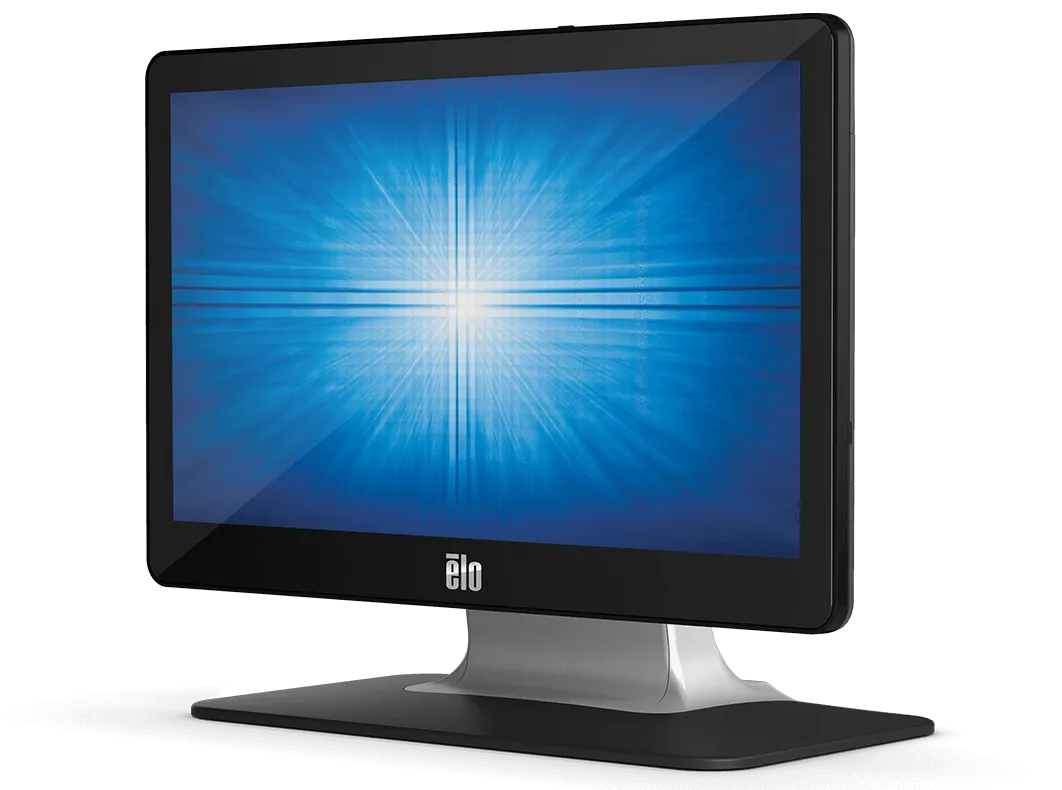

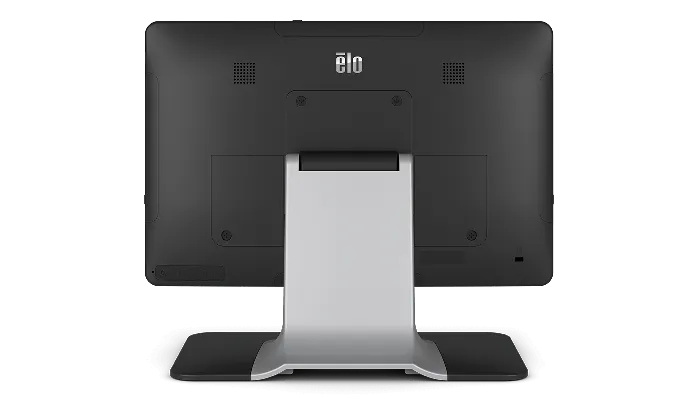

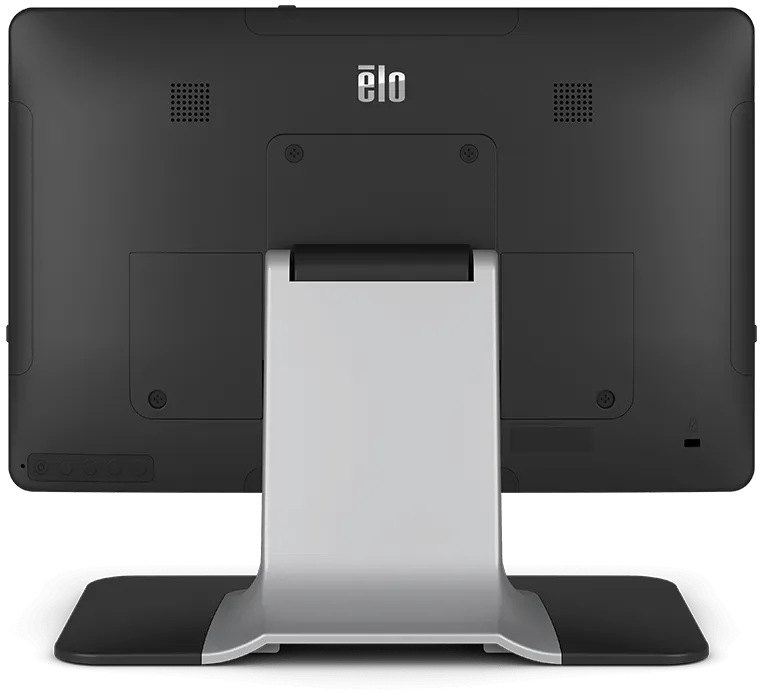

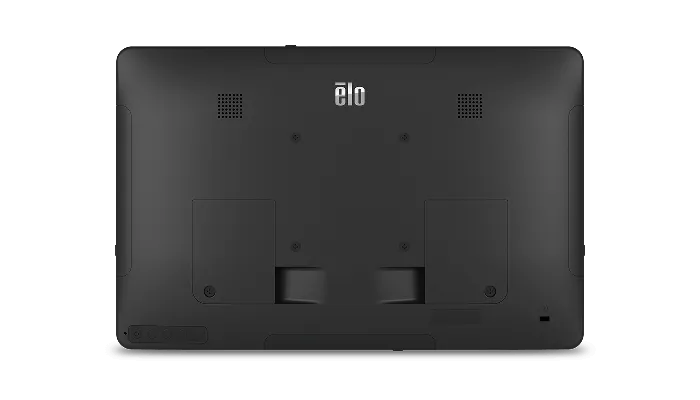

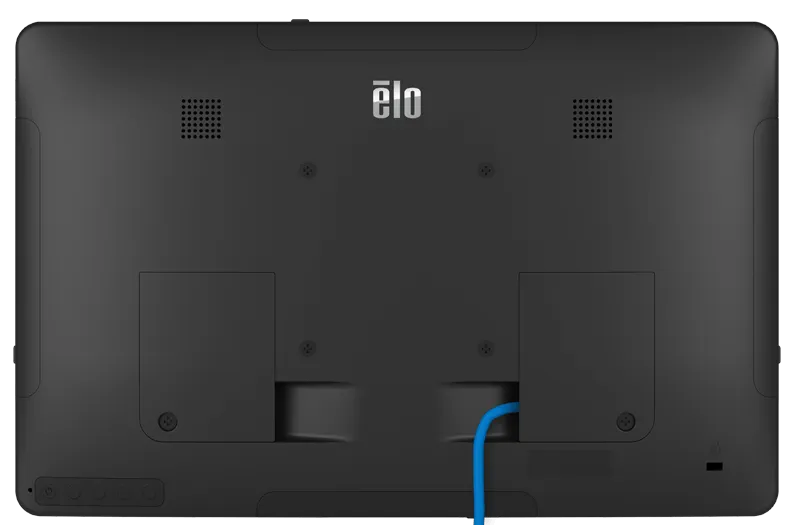

Elo Touch 1302L 13" Touchscreen Monitor
The first of its kind in the commercial market, Elo’s 13-inch touchscreen monitor provides a USB Type C interface for touch, video and power. The compact size and easy integration make it ideal for POS and customer-facing interaction. Learn more.
- SealingIPX1 for front side
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Power
- Charging / power
- Option 1 - USB Type-C Input voltage range: 5V±5% 3A / 9V±5% 3A / 15V±5% 1.8A / 20V±5% 1.35A Option 2 - External DC Adapter 12V/36W in box Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth) Monitor input voltage range: 12VDC +/- 5% Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length) Adapter input voltage range: 100-240 VAC Input frequency: 50-60 Hz
Connectivity
- Ports / interfaces

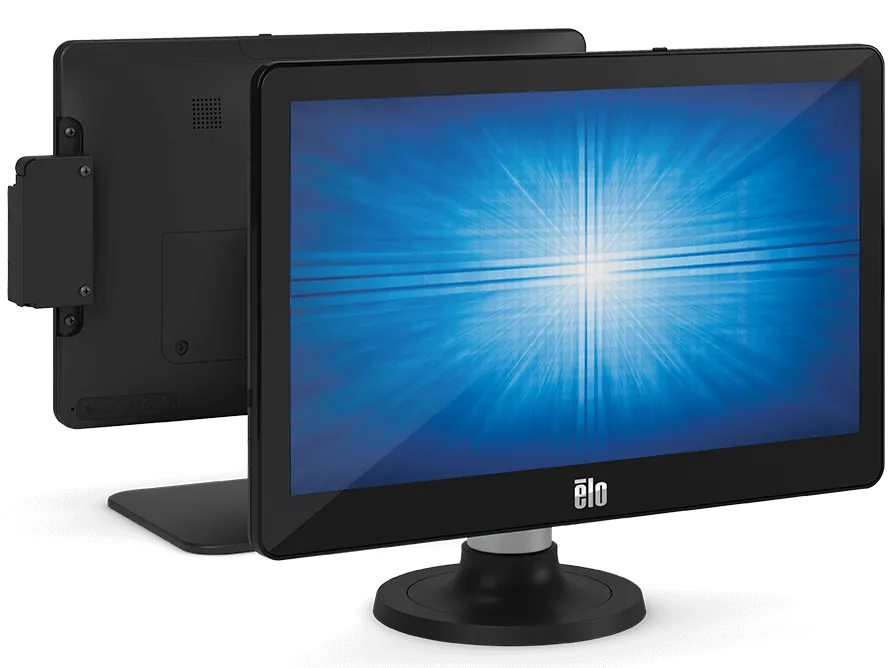

- 1 x Full-function USB-C (Requires PD [Power Delivery], USB 3.0 and Display Port) 1 x Audio jack (Line-in) 1 x VGA 1 x HDMI 1 x 12V D/C input 4x Micro-USB ports (Top, Bottom, Left, Right) for Elo Edge Connect peripherals
Rugged
- IP / sealing
- IPX1 for front side
- Operating temperature
- 0°C to 40°C / 32°F to 104°F
- Storage temperature
- -20°C to 60°C / -4°F to 140°F
- Humidity
- Operating: 20% to 80%; Storage: 10% to 95% (38.7 ℃ max wet bulb temperature)
Software & service
- Warranty
- 3-year
