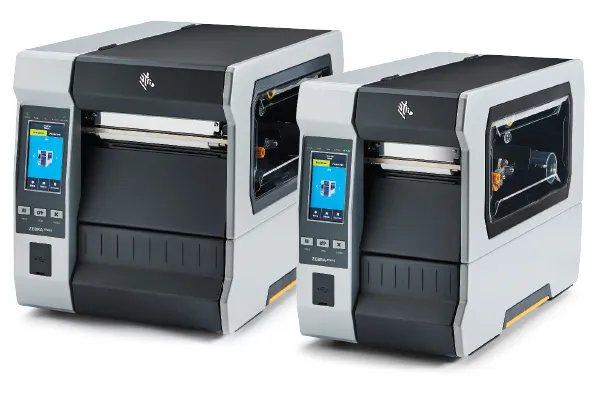

Zebra ZT6 Series Industrial Printers

Specifications

Dimensions

ZT610 : 19.88 in. L x 10.56 in. W x 15.58 in. H 505 mm L x 268.2 mm W x 395.68 mm H ZT620 : 19.88 in. L x 13.44 in. W x 15.58 in. H 505 mm L x 341.45 mm W x 395.68 mm H

Weight

ZT610 : 50 lbs/22.7 kg ZT620 : 57.4 lbs/26 kg

Operating system

Link-OS

Resolution

203 dpi/8 dots per mm 300 dpi/12 dots per mm (optional) 600 dpi/24 dots per mm (optional for ZT610 only) 600 dpi/24 dots per mm for micro label printing (optional for ZT610 only)

RAM / storage options

1 GB RAM memory 2 GB on-board linear Flash memory

Print width

ZT610 : 4.09 in./104 mm ZT620 : 6.6 in./168 mm

Print speed

ZT610 : 14 ips/356 mm per second ZT620 : 12 ips/305 mm per second

Media Sensors

Dual media sensors: transmissive and reflective

Maximum Continuous Print Length

ZT610: 203 dpi: 150 in./3810 mm 300 dpi: 100 in./2540 mm 600 dpi: 30 in./762 mm ZT620: 203 dpi: 80 in./2032 mm 300 dpi: 80 in./2032 mm

Media Width

ZT610 : 0.79 in./20 mm to 4.5 in./114 mm ZT610 Micro Label Printer : 0.47 in./12 mm to 4.5 in./114 mm ZT620 : 2.0 in./51 mm to 7.1 in./180 mm

Maximum Media Roll Size

8.0 in./203 mm O.D. on a 3 in./76 mm I.D. core

Thickness

0.0023 in./0.058 mm to 0.010 in./0.25 mm

Media Types

Continuous, die-cut, notch, black-mark

Standard Length

1476 ft./450 m

Width

ZT610 : 0.79 in./20 mm to 4.33 in./110 mm ZT620 : 2.0 in./51 mm to 6.7 in./170 mm

Core

1.0 in./25.4 mm I.D.

Operating Temperatures

Thermal transfer: 40ºF to 104ºF/5ºC to 40ºC Direct thermal: 32ºF to 104ºF/0ºC to 40ºC

Humidity

20% to 85% non-condensing

Storage/Transportation Temperature

-22°F to 140°F/-30°C to 60°C

Storage Humidity

20% to 85% non-condensing

Electrical

Auto-detectable (PFC Compliant) 90-265 VAC, 47-63Hz, rated at 250 Watts ENERGY STAR certified

Agency Approvals

IEC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3 cTUVus, CE Marking, FCC-B, ICES-003, VCCI, C-Tick, NOM, S-Mark (Arg), CCC, CU, BSMI, KCC, SABS, IN-Metro

Connectivity

Two open communication slots to add internal cards for: • Dual band 802.11ax Wi-Fi and Bluetooth 5.3 • Parallel • Ethernet • Applicator interface IPv6 option is available as external dongle attached to a parallel port.

Media Handling

Rewind: Internally rewinds a full roll of printed labels on 3 in. core, or peels and rewinds liner Cutter: Front-mount guillotine cutter and catch tray Ink-side in ribbon supply spindle

Micro Label Printer

High precision option for ZT610 600 dpi only Supports a wider range of media sizes Two media handling options: • Tear • Rewind: can be operated in rewind mode to internally rewind a full roll of printed labels or peel mode to peel label and rewind liner Note: Cutter and RFID not supported

RFID

Supports tags compatible with: UHF EPC Gen 2 V2.1, ISO/IEC 18000-63 and RAIN RFID protocols Integrated RFID system is user-upgradable in the field and available on both 4 in. and 6 in. models Adaptive Encoding Technology automatically selects optimum encode settings

Keyboard Display Unit

ZKDU™ keyboard display units for stand-alone printing applications

Zebra OneCare Select

Comprehensive Coverage, including printheads, normal wear and accidental breakage Priority access 24x7 live technical support and software updates Advance Replacement and Express Shipping (Next Day Device Replacement) Standard Commissioning Online Return Material Authorization (RMA) support

Zebra OneCare Essential

Comprehensive Coverage, including printheads, normal wear and accidental breakage Priority access 8x5 live technical support and software updates Three-day depot repair turnaround time plus free return ground shipping Online Return Material Authorization (RMA) support

Dimensions (closed)

ZT610: 19.88 in. L x 10.56 in. W x 15.58 in. H; 505 mm L x 268.2 mm W x 395.68 mm H; ZT620: 19.88 in. L x 13.44 in. W x 15.58 in. H; 505 mm L x 341.45 mm W x 395.68 mm H

Memory

1 GB RAM memory; 2 GB on-board linear Flash memory

Maximum Print Width

ZT610: 4.09 in./104 mm; ZT620: 6.6 in./168 mm

Maximum Print Speed

ZT610: 14 ips/356 mm per second; ZT620: 12 ips/305 mm per second

Maximum Media ; Roll Size

8.0 in./203 mm O.D. on a 3 in./76 mm I.D. core

Operating Humidity

20% to 85% non-condensing

Keyboard; Display Unit

ZKDU™ keyboard display units for stand-alone printing applications
