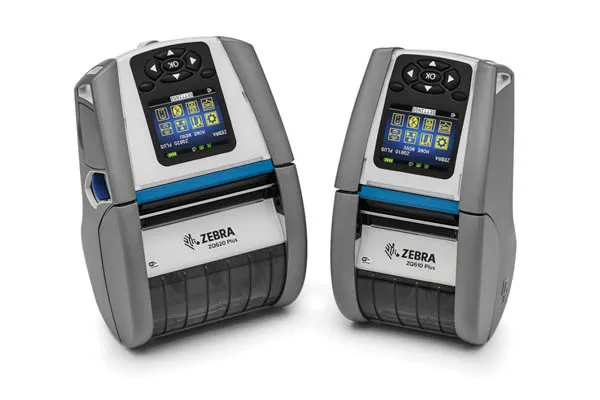

Zebra ZQ6 HC Series Mobile Printers

Specifications

Dimensions

ZQ610 Plus: 6.73 in. L x 3.6 in. W x 2.85 in. H 170.9 mm L x 91.4 mm W x 72.4 mm H ZQ620 Plus: 6.84 in. L x 4.64 in. W x 3.03 in. H 173.7 mm L x 117.9 mm W x 76.9 mm H

Weight With Battery

ZQ610 Plus: 1.33 lbs/0.6 kg ZQ620 Plus: 1.6 lbs/0.73 kg

Operating system

Link-OS™

Resolution

203 dpi/8 dots per mm

RAM / storage options

256 MB RAM; 512 MB Flash (standard)

Print width

ZQ610 Plus: 1.9 in./48 mm ZQ620 Plus: 2.8 in./72 mm

Print speed

Up to 4.5 in./115 mm per second

Media Sensors

Black mark and gap media sensing using fixed center position sensors; label present sensor for issuing batch labels one at a time

Print Length

Minimum: 0.5 in./12.7 mm Maximum: 32 in./813 mm

Charging / power

3250 mAh (nominal) 23.4 Wh removable, rechargeable PowerPrecision+ Li-Ion battery

Label and Liner Length

0.5 in./12.7 mm to 32 in./813 mm or continuous

Media Width

ZQ610 Plus: 1.0 in./25mm to 2.18 in./55.4 mm ZQ620 Plus: 1.0 in./25 mm to 3.125 in./79 mm

Maximum Media Roll Size

ZQ610 Plus: 2.2 in./55.9 mm OD on a 0.75 in./19 mm or 1.375 in./34.9 mm inner core ZQ620 Plus: 2.6 in./66 mm OD on a 0.75 in./19 mm or 1.375 in./34.9 mm inner core

Thickness

2.3 mil to 5.5 mil tag stock or 6.5 mil label stock

Media Types

Die-cut labels and tags, linerless labels, receipt paper, black bar and gap

Environment

Operating Temp.: 32°F to 122°F/0°C to 50°C Operating Humidity: 10% to 90% non-condensing Storage/Transportation Temp.: -13°F to 149°F/-25°C to 65°C1 Storage Humidity: 10% to 90% non-condensing

Agency Approvals

Emissions: FCC Part 15, Subpart B, EN55022 Class-B, EN60950, EN55024 and VCCI class B Susceptibility: EN55024, EN61000-4-2, EN61000-4-3, EN61000-4-4, and EN61000-4-5 Safety: CE, TUV, CSA ENERGY STAR™ certified

Security

FIPS support is available at no cost as a printer OS download. Please contact your Zebra Sales Representative for further information.

Standard Fonts

25 bitmapped, 1 smooth, scalable (CG Triumvirate Bold Condensed 1 )

Optional Fonts

Downloadable bitmapped/scalable fonts International Character Sets (optional): Chinese (traditional/simplified); Japanese; Korean; Thai, Vietnamese

Memory

256 MB RAM; 512 MB Flash (standard)

Maximum Print Width

ZQ610 Plus: 1.9 in./48 mm; ZQ620 Plus: 2.8 in./72 mm

Maximum Print Speed

Up to 4.5 in./115 mm per second

Power

3250 mAh (nominal) 23.4 Wh removable, rechargeable PowerPrecision+ Li-Ion battery
