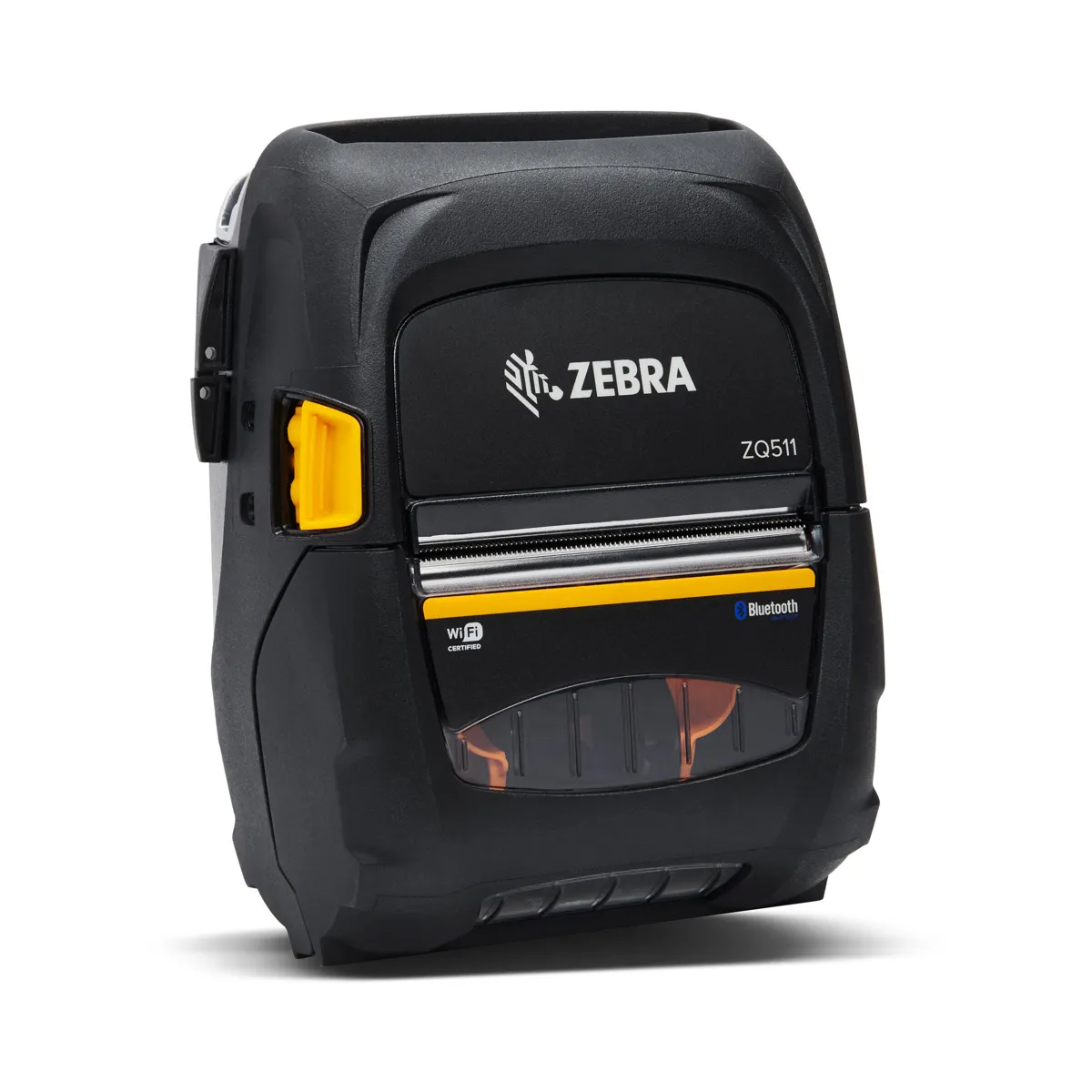

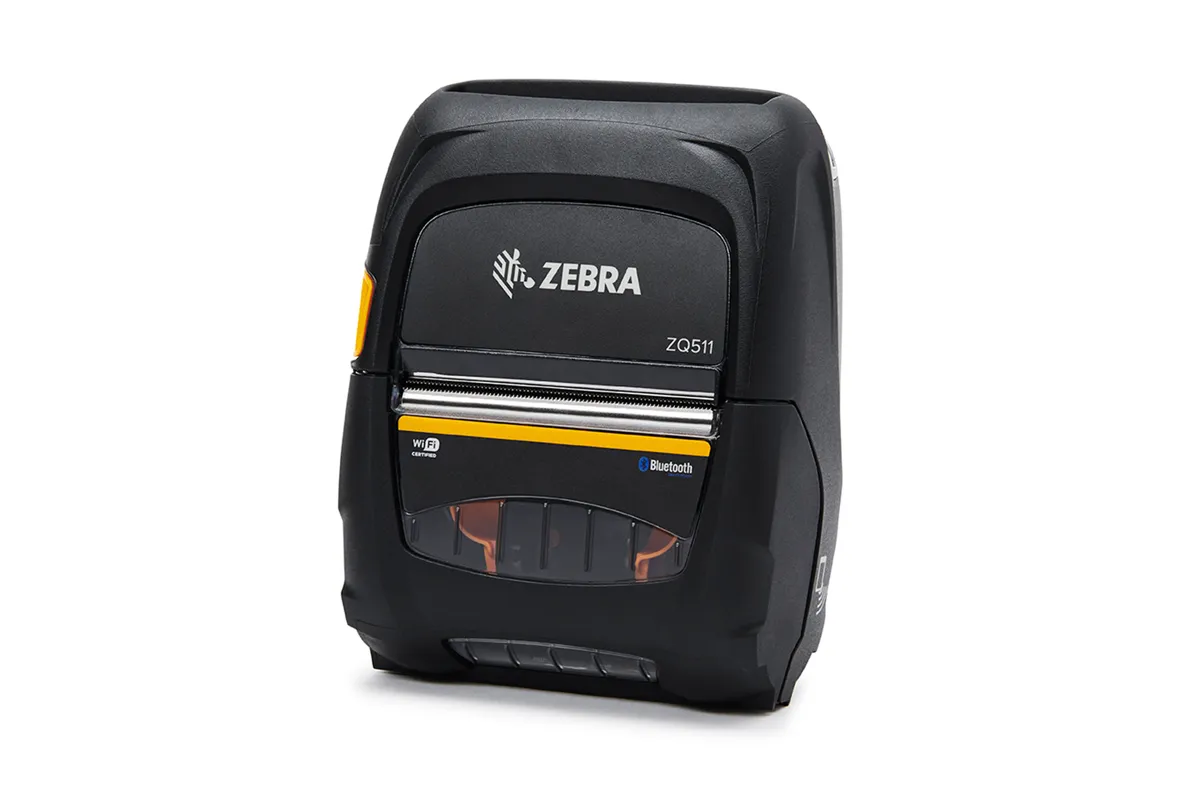

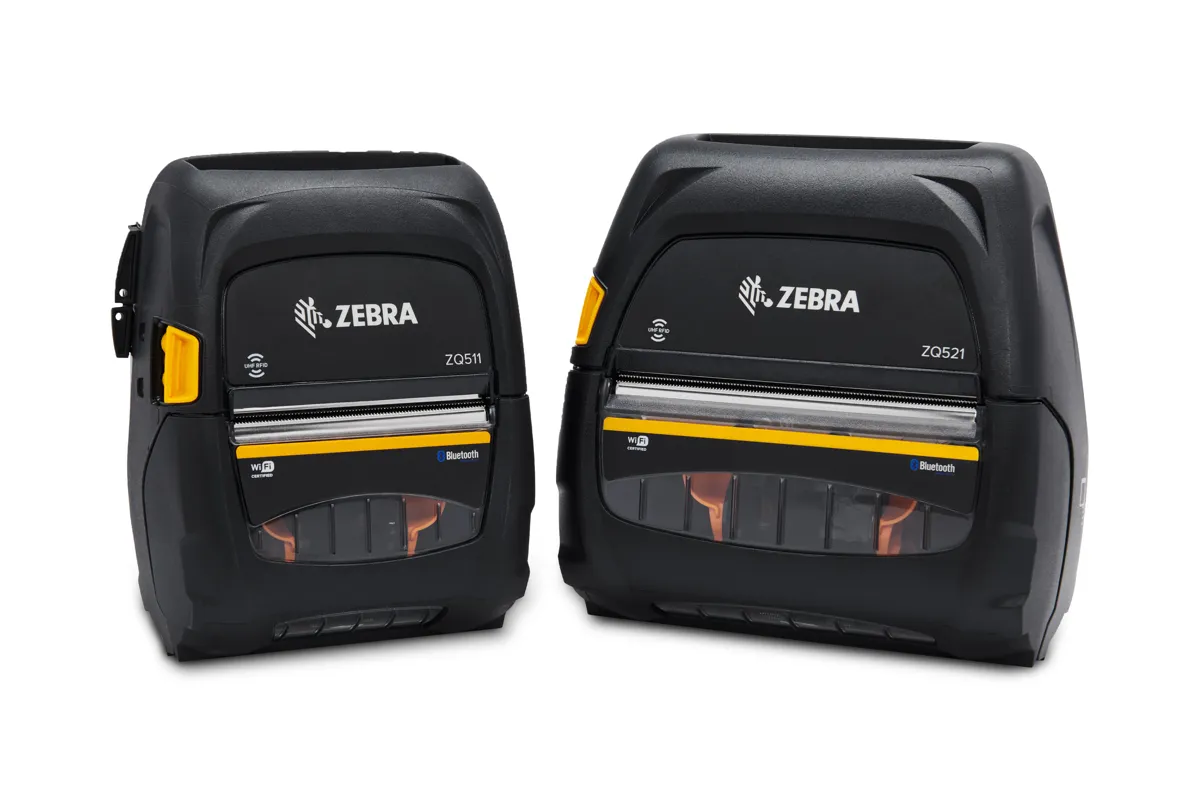

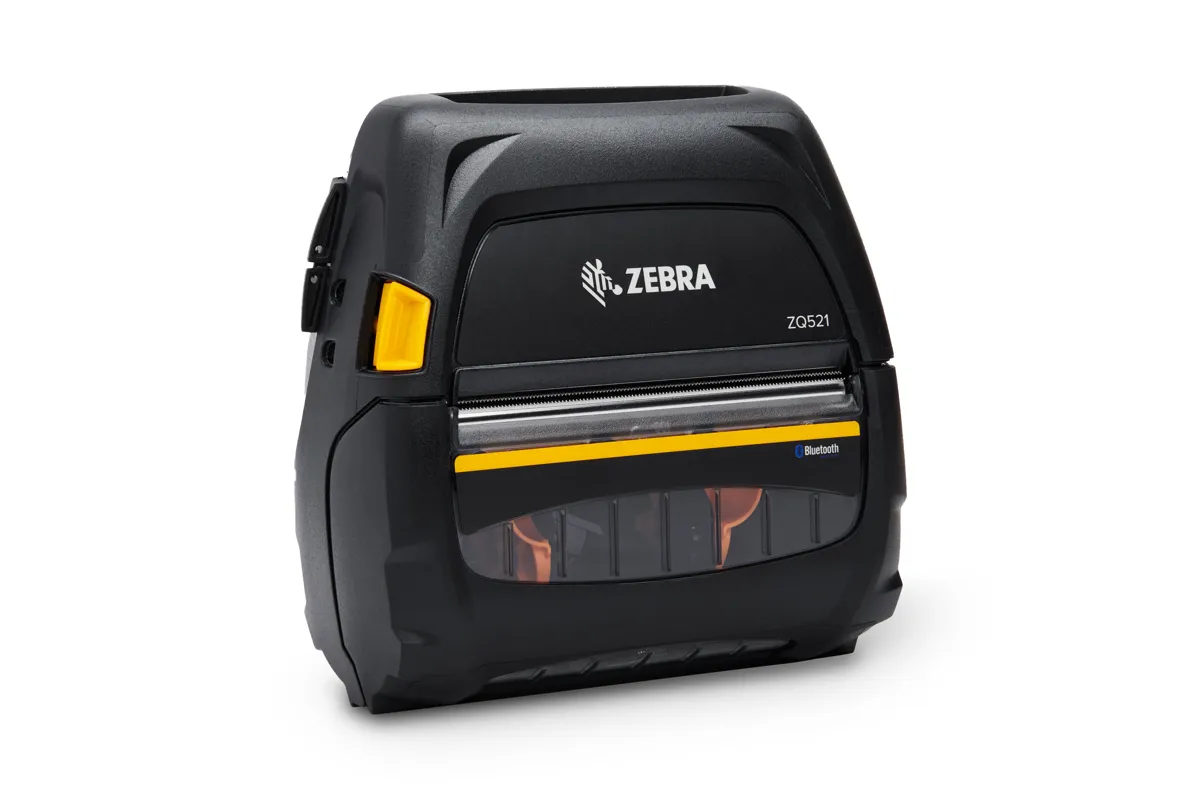

Zebra ZQ500 Series Mobile Printers

Specifications

Dimensions

ZQ511: 5.9 in. L x 4.7 in. W x 2.4 in. H; 150 mm L x 120 mm W x 62 mm H ZQ521: 6.2 in. L x 6.1 in. W x 2.6 in. H; 158 mm L x 155 mm W x 67 mm H

Weight with Standard Battery

ZQ511: 1.39lbs/0.63 kgs; ZQ521: 1.73lbs/0.79 kgs

Weight with Extended Battery

ZQ511: 1.62lbs/0.72 kgs; ZQ521: 1.96lbs/0.89 kgs

Operating System

Link-OS™ printer operating system

Resolution

203 dpi resolution (8 dots per mm)

Memory

256MB RAM, 512MB Flash (standard); 8MB RAM, 64MB Flash (user available)

Maximum Print Width

ZQ511: 2.83 in./72mm; ZQ521: 4.09 in./104mm

Maximum Print Speed

Up to 5 in./127 mm per second (with Draft Mode enabled)

Media Sensors

Black mark and gap media sensing using fixed center position sensors (Note: RFID models do not support gap sensing)

Print Length

Maximum: 39 in.

Power

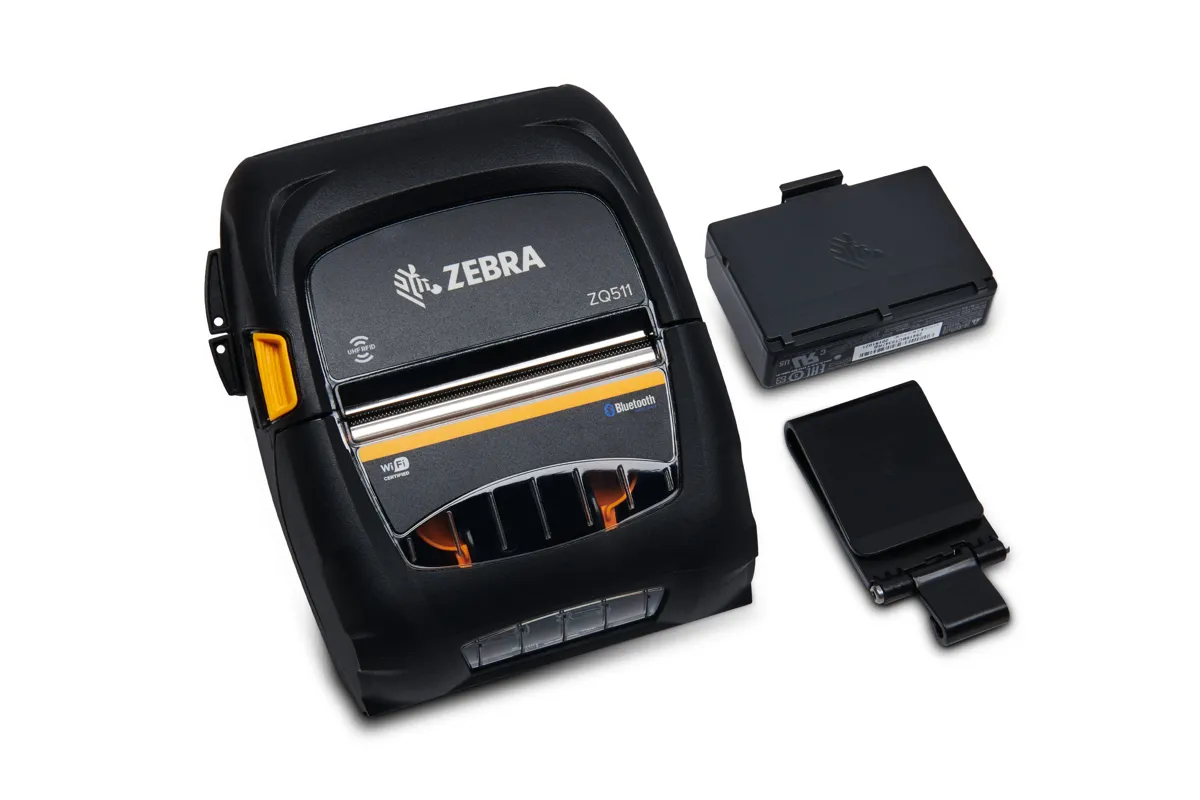

3250 mAh (nominal), removable, rechargeable PowerPrecision+ Li-Ion battery, with optional; 6500 mAh extended battery

Minimum/Maximum Media Width

ZQ511: 1.38 in./35 mm to 3.15 in./80 mm+1 mm; ZQ521: 2.0 in./50.8 mm to 4.45 in./113 mm+1 mm

Maximum Media Roll Size

ZQ511: 2.0 in./51 mm; ZQ521: 2.24 in./57 mm

Maximum Media Thickness

0.0063 in./0.1600 mm for labels and; 0.0055 in./0.1397 mm for tag/receipt

Minimum Media Thickness

0.0023 in./0.05842 mm for all media; (ZQ511 Linerless SKU is 0.0021 in./0.05334 mm)

Media Types

Receipt, Gap/Black-mark Label, Tag, Linerless, RFID (Note: ZQ511R/ZQ521R require black mark RFID media and do not support gap sensing); Note: ZQ511R/ZQ521R require black mark RFID media and do not support gap sensing

Environment

Operating Temperature: -4°F to 131°F/-20°C to 55°C; Operating Humidity: 10% to 90% non-condensing; Charging Temperature: 32°F to 104°F/0°C to 40°C; Cradle Temperature: 32°F to 122°F/0°C to 50°C; Storage Temperature: -22°F to 150°F/-30°C to 66°C; Storage Humidity: 10% to 90% non-condensing

Agency Approvals

Emissions: FCC Part 15, Subpart B, EN55022 Class-B, EN55024, ICES- 003, EN55032, and EN301489; ENERGY STAR™ certified

Security

FIPS support is available at no cost as a printer OS download. Please contact your Zebra Sales Representative for further information

Standard Fonts

25 bitmapped, 1 smooth, scalable (CG Triumvirate Bold Condensed, contains UFST™ from Agfa Monotype Corporation)

Included in All Models and Part Numbers

Scalable Fonts: Swiss721 (supporting Latin, Cyrillic, Hebrew and Arabic characters)

Additional Asian Fonts Supported

Group A: Part Numbers supporting Indonesia, Taiwan, Korea, Malaysia, Australia, New Zealand, Sri Lanka, India include: Scalable Traditional Chinese Characters: NotoMono, Bitmap: 24x24 MKai, 16x16 New Sans MT, Scalable Korean Characters: NotoMono Group B: Part Numbers supporting, Singapore, Thailand, Philippines, HongKong and Vietnam include: Scalable Traditional Chinese characters: NotoMono and Bitmap 16x16 NewSans MT. Scalable Thai Characters: Angsana, Scalable Vietnamese Characters: SourceCode
