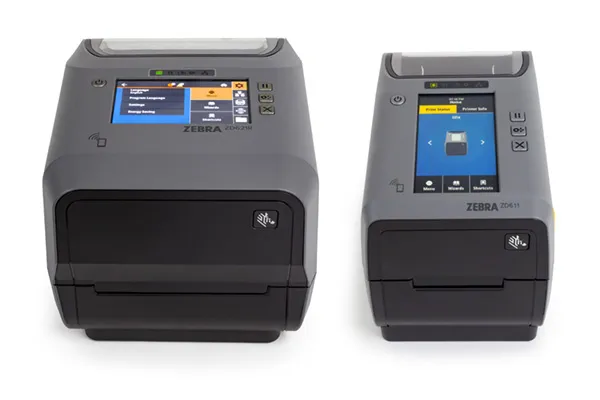

Zebra ZD621R/ZD611R Desktop Printers

Specifications

Dimensions

ZD621R : 10.5 in. L x 8.0 in. W x 7.5 in. H 267 mm L x 202 mm W x 192 mm H ZD611R : 9.56 in. L x 5.46 in. W x 6.66 in. H 242.9 mm L x 138.7 mm W x 169.2 mm H

Weight

ZD621R : 5.5 lb./2.5 kg ZD611R : 3.59 lb./1.629 kg

Operating system

Link-OS

Resolution

203 dpi/8 dots per mm 300 dpi/12 dots per mm (optional)

RAM / storage options

512 MB Flash; 256 MB SDRAM

Print width

ZD621R : 4.09 in./104 mm for 203 dpi; 4.27 in./108 mm for 300 dpi ZD611R : 2.2 in./56 mm for 203 dpi; 2.13 in./54 mm for 300 dpi

Print speed

8 in./203 mm per second (203 dpi) 6 in./152 mm per second (300 dpi)

Media Sensors

Full width, moveable reflective/black mark sensor; multi-position transmissive/gap sensor

Firmware

ZPL II; EPL 2; XML; ZBI; PDF Direct

Label Length

Minimum: 0.25 in./6.35 mm Maximum: 39.0 in./991 mm

Media Width

ZD621R : 0.585 in./15 mm to 4.65 in./118 mm ZD611R : 0.585 in./15 mm to 2.36 in./60 mm

Media Roll Size

Maximum outer diameter: 5.00 in./127 mm Core inner diameter: 0.5 in./12.7 mm and 1.0 in./25.4 mm standard, 1.5 in./38.1, 2.0 in./50.8 mm and 3.0 in./76.2 mm using optional adapters

Media Thickness

0.0024 in./0.06 mm min.; 0.0075 in./0.1905 mm max. (tear-off mode only)

Media Types

Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands

Ribbon Outside Diameter

2.6 in./66 mm (300 m); 1.34 in./34 mm (74 m)

Ribbon Standard Length

984 ft./300 m; 243 ft./74 m

Ribbon Ratio

1:4 ribbon to media (300 m) 1:1 ribbon to media (74 m)

Ribbon Width

ZD621R : 1.3 in./33 mm - 4.3 in./109.2 mm ZD611R : 1.3 in./33 mm - 2.24 in./58 mm

Ribbon Core I.D.

1 in./25.4 mm (300 m) 0.5 in./12.7 mm (74 m)

Operating temperature

40° to 105° F/4.4° to 41° C

Storage temperature

-40° to 140° F/-40° to 60° C

Humidity

10% to 90% non-condensing

Storage Humidity

5% to 95% non-condensing

Electrical

Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR certified; Energy Efficiency Level VI certified; optional 2750 mAh battery; Healthcare models include IEC60601-1 certified power supply

Media Handling

Dispenser/Peeler: label peel and present with label present sensor (factory installed or field installable) Cutter (factory or field installable)

Communications

Factory installed wireless dual radio 802.11ax (Wi-Fi 6) and Bluetooth 5.3 (MIMO). Field installable wireless dual radio 802.11ax (Wi-Fi 6) and Bluetooth 5.3 (SISO)

Battery / runtime

Provides power to the printer to support a full shift of printing at maximum print speed; supports all media handling options

Keyboard Display Unit

ZKDU keyboard display unit for stand-alone printing solution

Barcode Ratios

2:1 and 3:1

1D Barcodes

Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard

2D Barcodes

Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec

Fonts and Graphics

16 resident expandable ZPL II bitmap fonts, two resident scalable ZPL fonts, five resident expandable EPL2 fonts, native open-type font support, Unicode compliant. China units include SimSun simplified Chinese font 64 MB user available non-volatile memory, 8 MB user available SDRAM

Zebra OneCare Select

Comprehensive Coverage, including printheads, normal wear and accidental breakage Priority access 24x7 live technical support and software updates Advance Replacement and Express Shipping (Next Day Device Replacement) Standard Commissioning Online Return Material Authorization (RMA) support

Zebra OneCare Essential

Comprehensive Coverage, including printheads, normal wear and accidental breakage Priority access 8x5 live technical support and software updates Three-day depot repair turnaround time plus free return ground shipping Online Return Material Authorization (RMA) support

Memory

512 MB Flash; 256 MB SDRAM

Maximum Print; Width

ZD621R: 4.09 in./104 mm for 203 dpi; 4.27 in./108 mm for 300 dpi; ZD611R: 2.2 in./56 mm for 203 dpi; 2.13 in./54 mm for 300 dpi

Maximum; Print Speed

8 in./203 mm per second (203 dpi); 6 in./152 mm per second (300 dpi)

Operating Temp.

40° to 105° F/4.4° to 41° C

Storage Temp.

-40° to 140° F/-40° to 60° C

Operating Humidity

10% to 90% non-condensing

Battery

Provides power to the printer to support a full shift of printing at maximum print speed; supports all media handling options

Zebra OneCare; Select

Comprehensive Coverage, including printheads, normal wear and accidental breakage; Priority access 24x7 live technical support and software updates; Advance Replacement and Express Shipping (Next Day Device Replacement); Standard Commissioning; Online Return Material Authorization (RMA) support

Zebra OneCare; Essential

Comprehensive Coverage, including printheads, normal wear and accidental breakage; Priority access 8x5 live technical support and software updates; Three-day depot repair turnaround time plus free return ground shipping; Online Return Material Authorization (RMA) support
