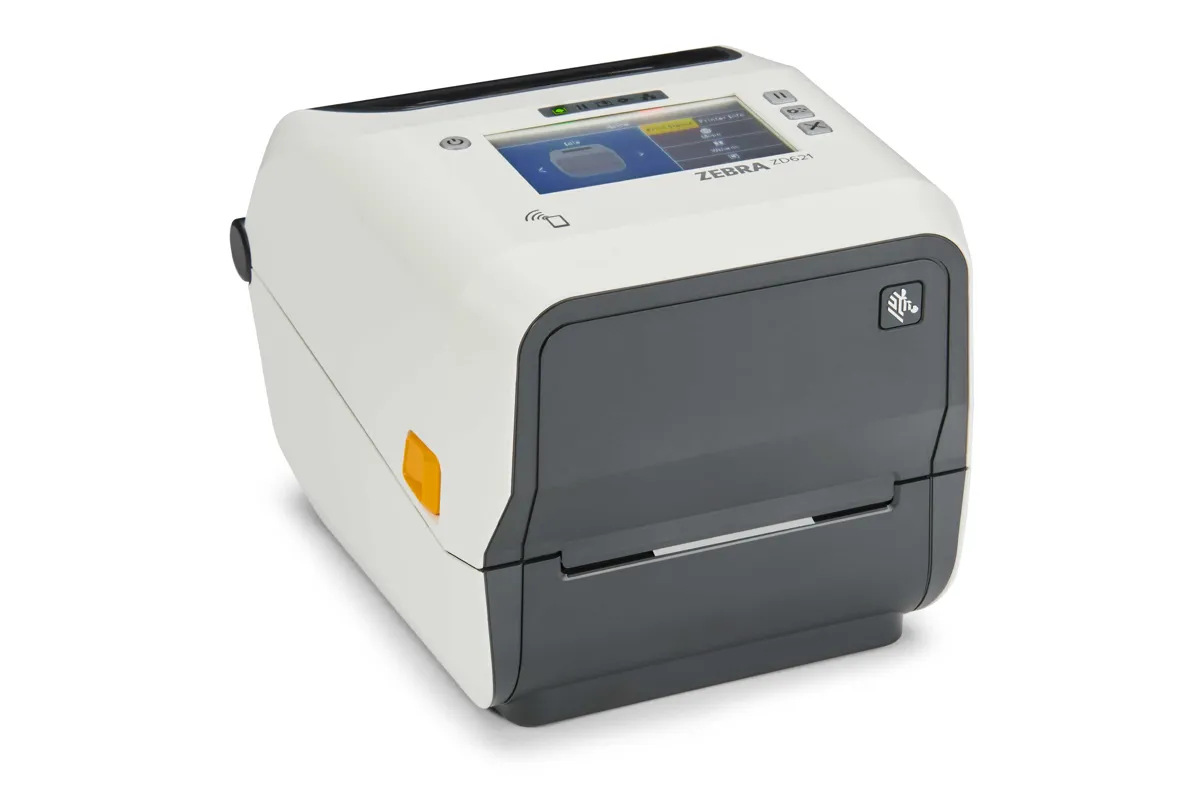

Zebra ZD621 Premium Desktop 4-inch Wide Healthcare

Specifications

Dimensions

Direct Thermal: 8.7 in. L x 7.0 in. W x 5.9 in. H 221 mm L x 177 mm W x 151 mm H Thermal Transfer: 10.5 in. L x 8.0 in. W x 7.5 in. H 267 mm L x 202 mm W x 192 mm H

Weight

Direct Thermal: 3.6 lbs./1.6 kg Thermal Transfer: 5.5 lbs./2.5 kg

Operating system

Link-OS™

Resolution

203 dpi/8 dots per mm 300 dpi/12 dots per mm (optional)

RAM / storage options

512 MB Flash; 256 MB SDRAM 64 MB user available non-volatile memory 8 MB user available SDRAM

Print width

4.09 in./104 mm for 203 dpi 4.27 in./108 mm for 300 dpi

Print speed

8 in./203 mm per second (203 dpi) 6 in./152 mm per second (300 dpi)

Media Sensors

Full width, moveable reflective/black mark sensor; multi-position transmissive/gap sensor

Firmware

ZPL II; EPL 2; XML; ZBI; PDF Direct

Label Length

Minimum: 0.25 in./6.4 mm Maximum: 39.0 in./991 mm

Media Width

Direct Thermal: 0.585 in./15 mm to 4.25 in./ 108 mm Thermal Transfer: 0.585 in./15 mm to 4.65 in./ 118 mm

Media Roll Size

Maximum outer diameter: 5.0 in./127 mm Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1), 2.0 in., (50.8 mm) and 3.0 in. (76.2 mm) using optional adapters

Media Thickness

0.003 in. (0.08 mm) min.; 0.0075 in. (0.19 mm) max. (tear-off mode only)

Media Types

Roll-fed or fan-fold, die cut or continuous with or without black mark, label or tag stock, continuous receipt paper, wristbands

Ribbon Outside Diameter

2.6 in./66 mm (300 m); 1.34 in./34 mm (74 m)

Ribbon Standard Length

984 ft. (300 m); 243 ft. (74 m)

Ribbon Ratio

1:4 ribbon to media (300 m) 1:1 ribbon to media (74 m)

Ribbon Width

1.33 in./33.8 mm — 4.3 in./109.2 mm

Ribbon Core I.D.

300 meter ribbon 1 in./25.4 mm 74 meter ribbon 0.5 in./12.7 mm

Operating temperature

40° to 105° F/4.4° to 41° C

Storage temperature

-40° to 140° F/-40° to 60° C

Humidity

10% to 90% non-condensing

Storage Humidity

5% to 95% non-condensing

Electrical

Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR certified; Energy Efficiency Level VI certified; optional 2750 mAh battery; Healthcare models include IEC60601-1 certified power supply

Media Handling

Dispenser/Peeler: label peel and present with label present sensor (factory installed or field installable) Cutter (factory installed or field installable)

Communications

802.11ac Wi-Fi and Bluetooth 4.1 (dual radio), (factory installed or field installable)

Battery / runtime

Provides power to the printer to support a full shift of printing at maximum print speed; supports all connectivity and media handling options

Carrying Case 2

Carrying case with shoulder strap and handles makes it easy to bring your desktop printer and battery to the point of application

Keyboard Display Unit

Zebra Keyboard Display Unit (ZKDU) for stand- alone printing solutions

Media Locking Cabinet

Mechanical lock with 2 keys; Kensington™ lock slot; available on ZD621 healthcare direct thermal model only

Enclosed Power Supply

Attached power supply accessory for cord-free installation

Bar Code Ratios

2:1 and 3:1

1D Bar Codes

Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of- 5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code

2D Bar Codes

Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec

Fonts and Graphics

16 resident expandable ZPL II bitmap fonts, two resident scalable ZPL fonts, five resident expandable EPL2 fonts, native open-type font support, Unicode compliant. China units include SimSun simplified Chinese font
