Zebra · Label printer

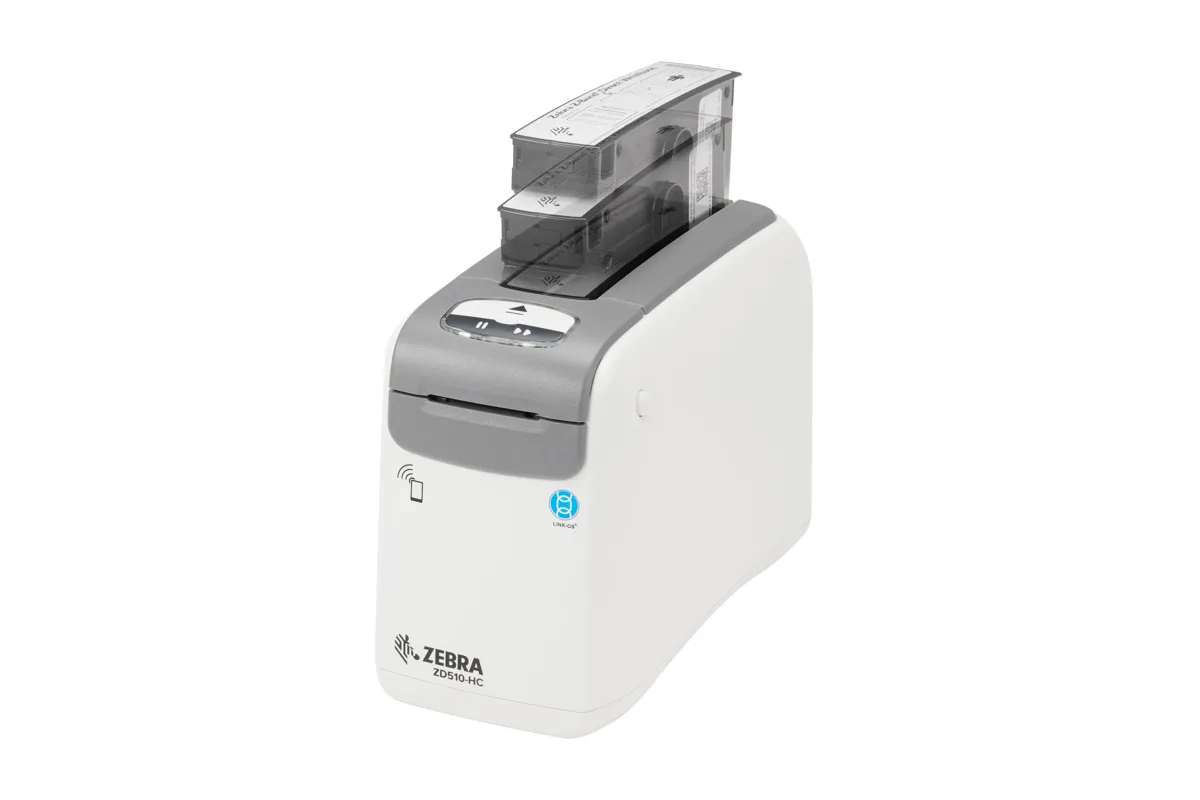

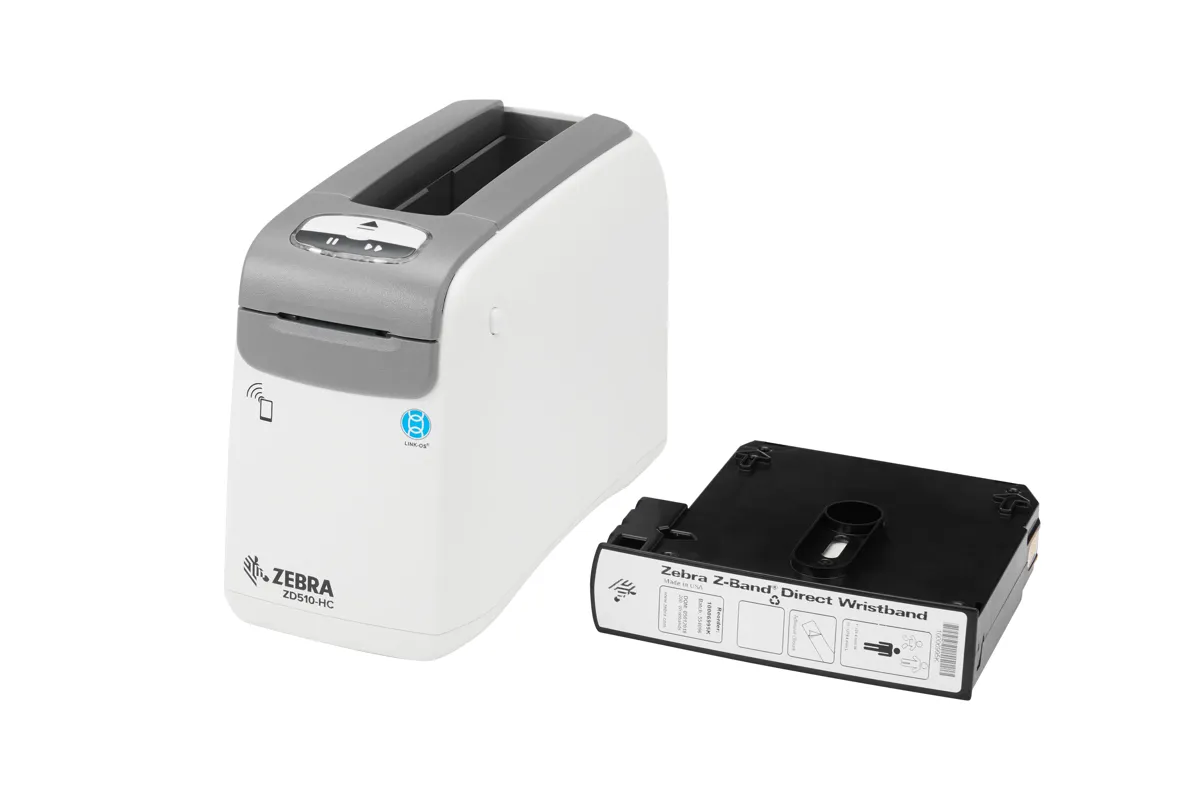

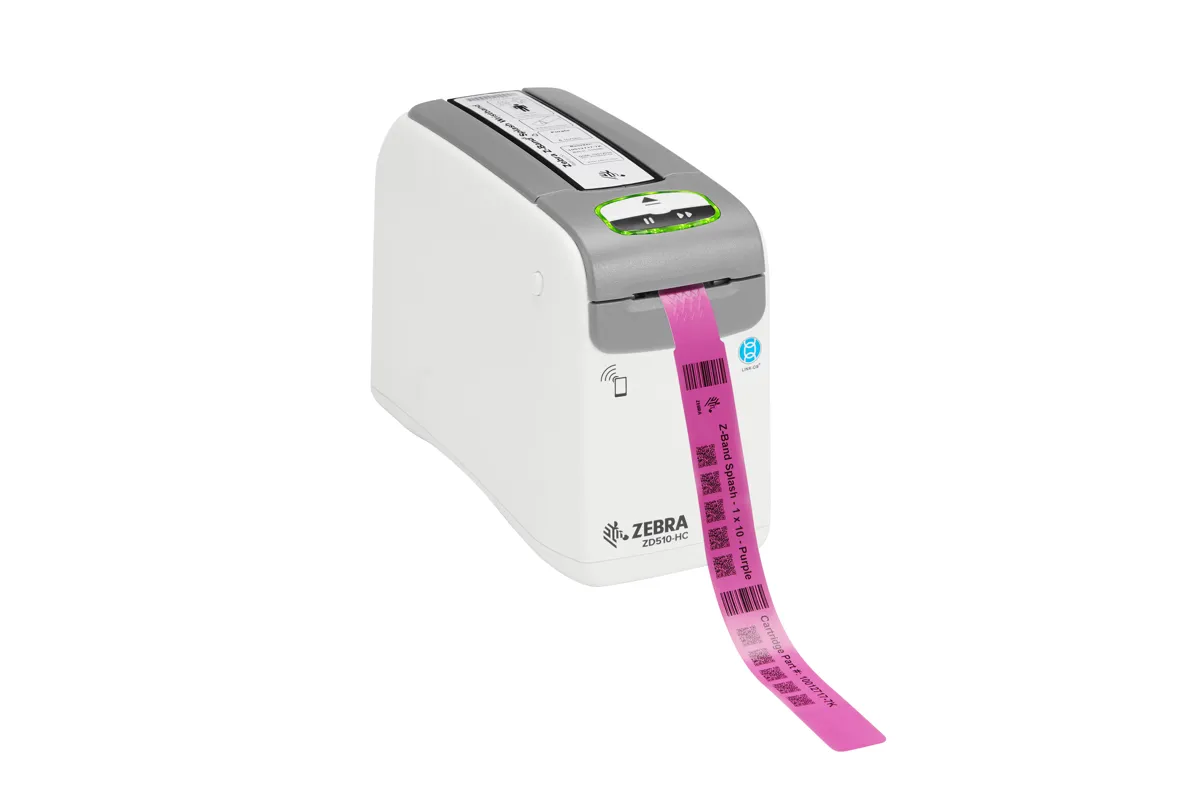

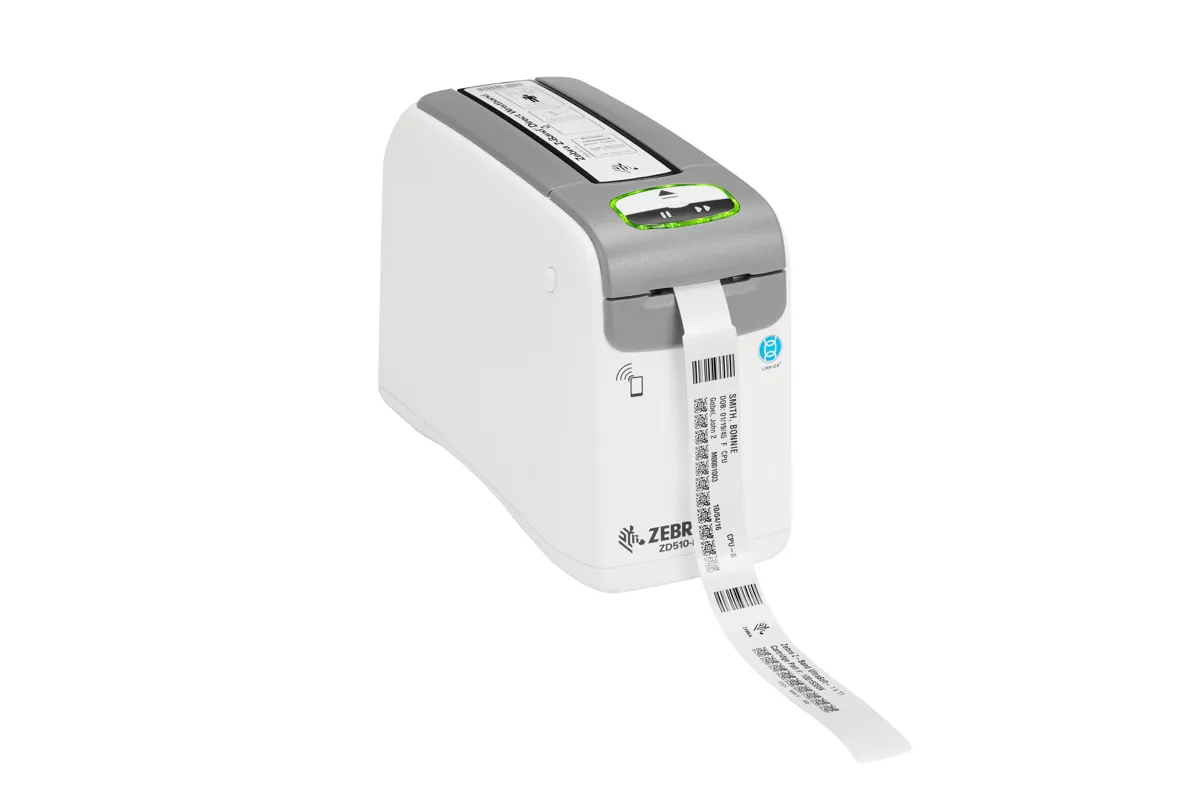

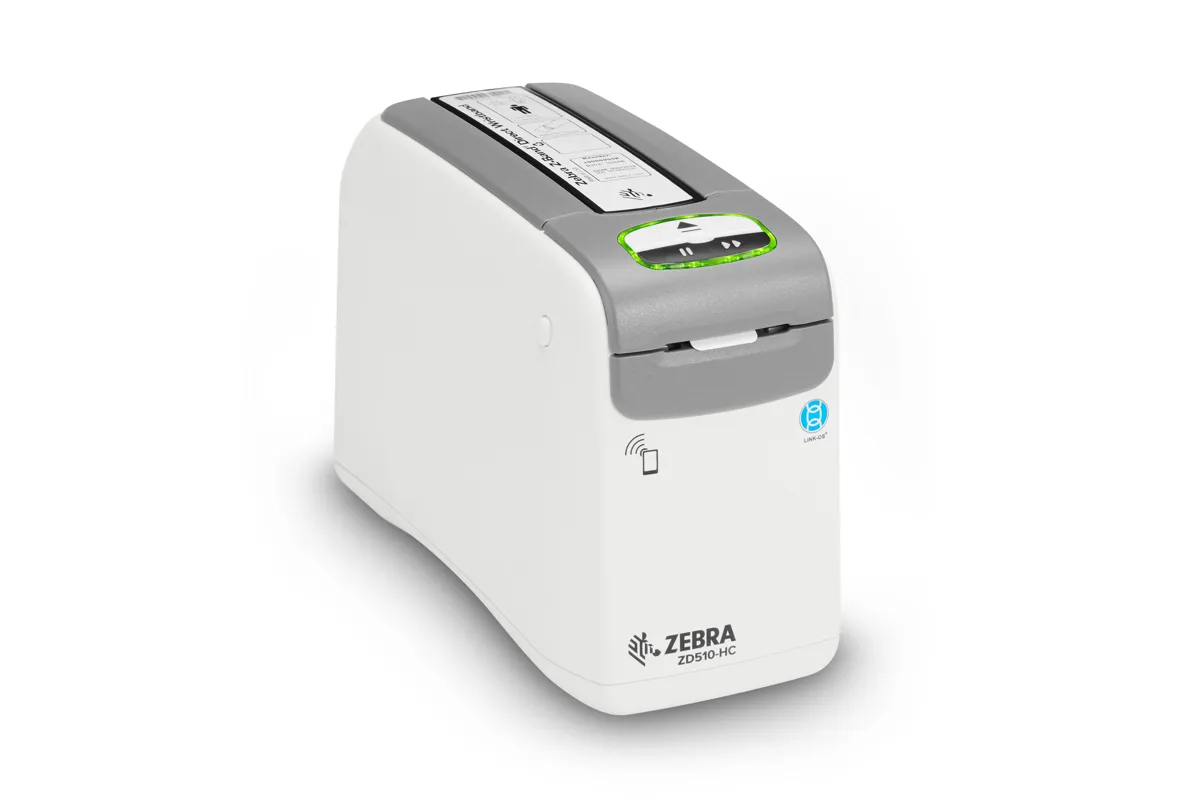

Zebra ZD510-HC Wristband Cartridge Printer
The Zebra ZD510-HC provides reliable wristband printing with easy-load cartridges, boosting safety and efficiency in healthcare and entertainment settings.
- Operating systemLink-OS
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Dimensions
- 5 inches W x 7 inches H* x 9.5 inches D 127 mm W x 178 mm H* x 242 mm D * Requires 6 inches/153 mm clearance above printer to load cartridge
- Operating system
- Link-OS
- Maximum Print Length
- 22 inches/558 mm
- Minimum Print Length
- 3 inches/76 mm
- Print Widths
- 0.75 inches/19.05 mm, 1 inch/25.4 mm, 1.1875 inches/30.16 mm
- Resolution
- 300 dpi/12 dots per mm
- Print speed
- Healthcare: 2 inches/51 mm per second Z-Band Fun and Z-Band Splash: 4 inches/102 mm per second
- Programming Languages
- ZPL; ZPL II; XML
- RAM / storage options
- 256 MB SDRAM memory 512 MB Flash memory
- Healthcare Wristbands
- Adhesive or clip closure Adult, child and infant sizes Barcodes on Z-Band wristbands are proven to withstand water, soaps, foams, alcohol and other common solvents found in a healthcare environment, and remain scannable for longer than the average patient stay
- Hospitality Wristbands
- One-day and multi-day wristband options Seven bright colors Designed for amusement parks, water parks, carnivals, zoos, sporting events and resorts Variable print-on-demand barcoded wristbands means the wristband does not have value until printed, reducing ticket fraud
- Communications
- Factory installed wireless dual radio 802.11ac Wi-Fi and Bluetooth 4.1 with Print Touch tag (NFC) USB, USB Host, 10/100 Ethernet only (available in EMEA only)
- Programming Languages
- ZBI 2.0™—Factory-or field-installed, this powerful programming language lets printers run standalone applications, connect to peripherals, and much more Factory installed wireless dual radio: 802.11ac Wi-Fi™ and Bluetooth 4.1
- Other
- Font packs—Asian and other international font kits
- Operating temperature
- 40° F to 104° F /4.4° C to 40° C
- Storage temperature
- -40° F to 140° F /-40° C to 60° C
- Humidity
- 20%-85% non-condensing R.H.
- Storage Humidity
- 5%-85% non-condensing R.H.
- Service Temperature
- -40° F to 140° F/-40° C to 60° C
- Storage temperature
- 32° F to 70°F/0° C to 21° C at 35% to 50% non-condensing R.H.
- Emissions
- FCC Part 15, Subpart B, VCCI, RCM
- Emissions and Susceptibility
- (CE): EN 55032:2012 class B and EN 55024:2010, EN 61000-3-2, EN 61000-3-3, CISPR 32:2015
- Safety
- CB Scheme IEC 60950-1 and IEC 62368-1, TÜV, NRTL
- Charging / power
- IEC 60601-1:2012
- Linear Barcodes
- Codabar, Code 11, Code 39, Code 93, Code 128, EAN-8, EAN-13, EAN-14, GS1 DataBar™ (formerly RSS), Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, Standard 2-of-5, UPC-A, UPC-E, UPC-A and UPC-E with EAN 2 or 5 digit extensions
- Two Dimensional Barcodes
- Aztec Code, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code
- Zebra OneCare Select
- Comprehensive Coverage, including printhead, normal wear and accidental breakage Priority access 24x7 live technical support and software updates Advanced Replacement and Express Shipping (Next Day Device Replacement) Standard Commisioning Online Return Material Authorization (RMA) support
- Zebra OneCare Essentials
- Comprehensive Coverage, including printheads, normal wear and accidental breakage Priority access 8x5 live technical support and software updates Three-day depot repair turnaround time plus free return ground shipping Online Return Material Authorization (RMA) support
