Zebra · Wearable computer

Zebra WT6400

Increase workflow efficiency and workforce productivity in demanding environments with the next generation in hands-free wearable computing

Operating systemAndroid
Display4.7 inches (11.938 cm)
ScanningCompatible with Zebra wearable Bluetooth scanners (RS2100, RS5100, RS6100) via NFC tap-to-pair and Zebra…
BatteryStandard battery : typical capacity — 3500mAh -4F to +122F (-20C to +50C) Extended battery (freezer rated 4…
SealingIP65; IP67 with battery per applicable IEC sealing specifications
DropPer MIL-STD 810H: 6 ft (1.8m) to concrete at (+73F to +122F/+23C to +50C) 4 ft (1.2m) to concrete across…

Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps

Overview

The WT6400 is the latest breakthrough in Zebra’s wearable computer portfolio, packed with innovations that enable unmatched productivity increases in hands-free computing workflows. Next generation ergonomics bring a new level of comfort, flexibility and ease of use to workers picking orders, sorting goods and managing inventory in demanding environments, including the warehouse, distribution center and manufacturing plant. The touchscreen display area is twice the size of the WT63001, with only a minimal increase in device size. The powerful platform will support your business today and tomorrow, with a next generation Qualcomm processor, double the memory and support through Android™ 17. And data capture features include an integrated high-resolution 13 MP angled camera, support for Zebra Bluetooth® and corded scanners and a model with an innovative integrated keypad.

More display real estate — yet compact and balancedThe WT6400 display has more than double the available area1 than its predecessor, the WT6300 — with minimal increases in overall device size and weight. The profile is nearly one third lower than the WT63002, substantially reducing bulkiness and making it easier to reach into tighter areas.
Anywhere, anytime battery changesThe WT6400 battery is specially designed for easy changing on the fly. The angle of battery removal enables workers to remove and replace the battery with the most natural movement — no need to contort the hand or remove the WT6400 from the arm.
Effortlessly capture detailed photosTaking a photo with the WT6400 is as easy as taking a photo on your cell phone. The high resolution 13 MP side camera is angled at 22°, keeping the display in the natural line of sight to ensure accurate aiming — no turning or twisting required, unlike other wearable computers.
Easy access to NFCOther wearable computers embed the NFC radio in the battery, making it difficult for users to know where to tap. But NFC is integrated right into the WT6400 and clearly marked, so users can easily tap-to-pair a Bluetooth scanner or headset the first time — no guessing involved.

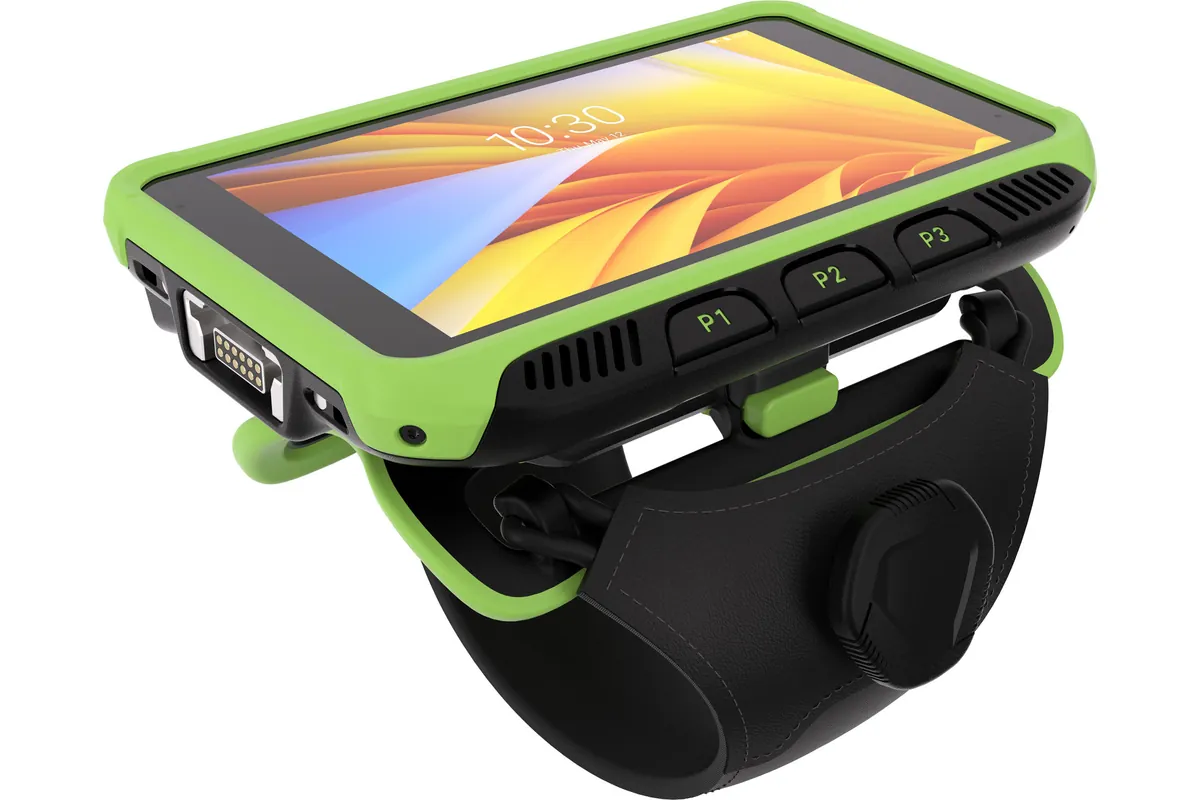

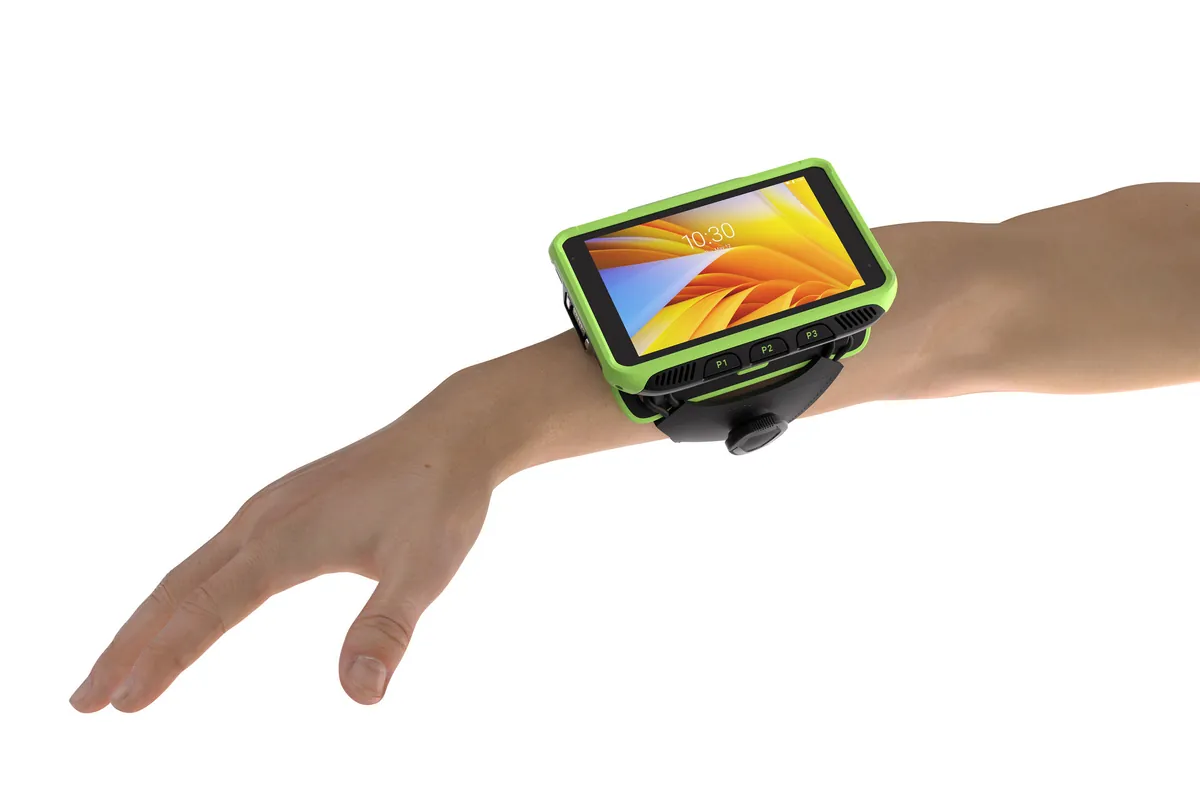

Choose the wearing style that suits your workers and your budgetSince the universal wrist mount supports all wrist straps, you can mix and match wrist straps to accommodate user preference and use case requirements. A single button releases the device from the wrist mount with snap-on and snap-off simplicity — so you can give each worker their own wrist mount and wrist strap to prevent the spread of germs.

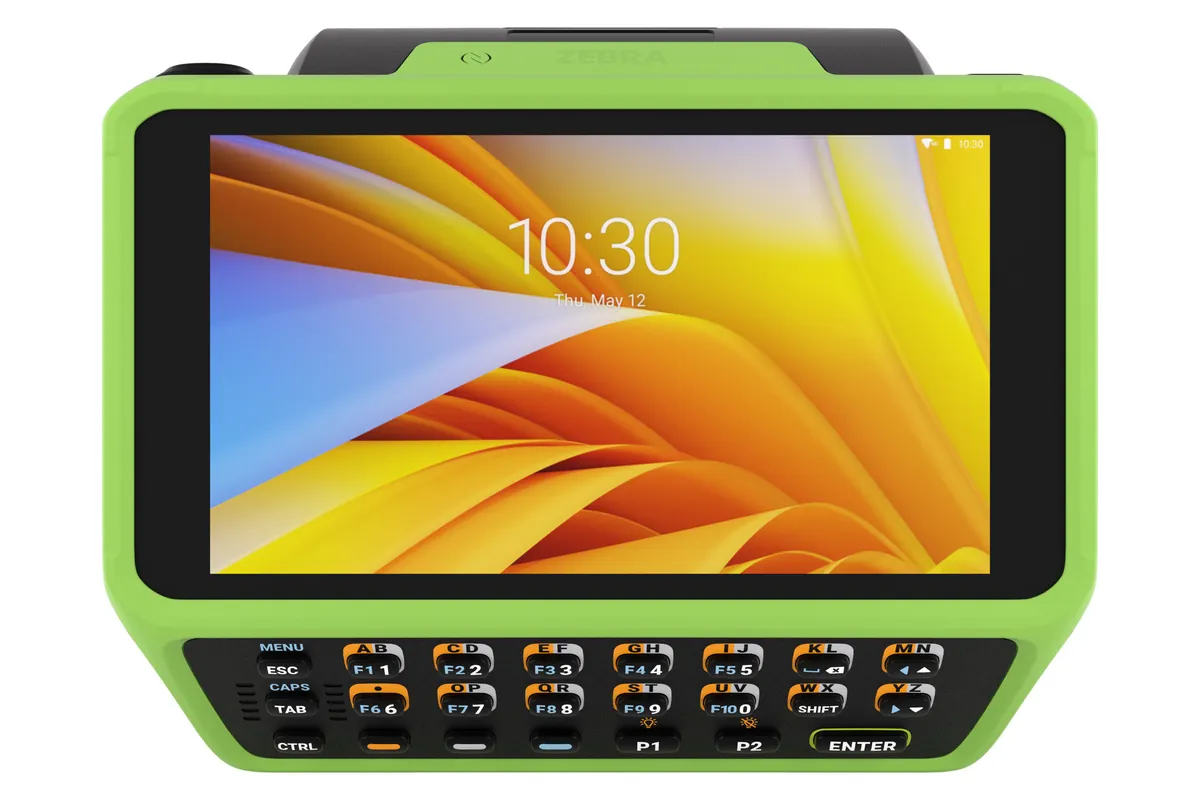

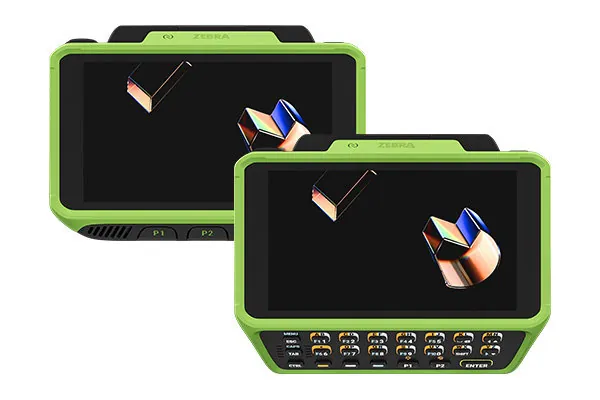

Easy data entry with either hand — even with glovesThe WT6400 keypad model offers both a touch display and a physical keypad that is strategically placed below the display, where it is always in front of the user, equally accessible to right- and left-handed workers. Key size and spacing are optimized for any size fingers and heavy gloves.
Add the wearable scanner of your choiceChoose the wearable scanner option that’s right for your business and your workers — wireless Bluetooth or corded. There are three Bluetooth wearable scanner options.
View all the information you need, at a glanceSee more and scroll less with the large, bright 4.7 in. display that is easy to view in any lighting.
Rugged and ready for your toughest environmentsThe WT6400 is ready for your most challenging environments — including the freezer4. It’s drop-proof, tumble-proof, waterproof and dustproof, so you can use it just about anywhere.
Wi-Fi™ you can count onWhen it comes to Wi-Fi dependability, reliability and speed, the WT6400 stands out in its class. Ultra-fast Wi-Fi 6E provides more bandwidth, more capacity and the fastest available connections.

Best for: Warehousing · Picking · Sorting · Receiving/put-away · Replenishment · Packing · Reverse logistics (returns) · Manufacturing · Inventory · Put-away · Line-side replenishment · Work-in-Process (WIP) material · Tracking and tracing · Quality control · Safety testing

Specifications

Physical Characteristics

Dimensions: Touch Only: 5.22 in L x 3.66 in W x 0.55 in D (132.5mm L x 93mm W x 13.97mm D) Touch + Keypad: 5.22 in L x 4.21 in W x 0.55 in D (132.5mm L x 107mm W x 13.97mm D)
Weight: Without battery: Touch Only: 7.2 oz (205g) Touch + Keypad: 7.9 oz (223g) With standard battery: Touch Only: 9.8 oz (277g) Touch + Keypad: 10.4 oz (296g) With extended battery: Touch Only: 11.7 oz (331g) Touch + Keypad: 12.3 oz (350g)
Display: 4.7 in.; 720x1280; color display
Touch Panel: Capacitive touch panel; finger, gloved finger or conductive stylus support; Corning™ Gorilla™ Glass Victus™ 2
Power: Standard battery: typical capacity — 3500mAh -4F to +122F (-20C to +50C) Extended battery (freezer rated4): typical capacity — 5000mAh -22F to +122F (-30C to +50C)
Network Connections: WLAN (Wi-Fi); WPAN (Bluetooth); USB 2.0 (high-speed client and host)
Notifications: Audible tone; multi-color LED; haptic feedback
Keypad: 23 key alphanumeric/function (keypad model only)
Voice and Audio: Speaker; microphone; PTT voice
Buttons: Power button; touch-only model — three (3) programmable function buttons
Interface Ports: Two (2) rugged connectors (USB 2.0); two (2) charge pogo pads on each side

Performance Characteristics

CPU: Qualcomm™ QCS4490 octa-core; 2.4 GHz
Operating System: Android; for supported Android versions, visit: www.zebra.com/android-versions
Memory: 6 GB RAM; 64 GB Flash
Security: FIPS 140-3⁶ and FIPS 140-2 Validated; Common Criteria certified; Supports Secure Boot and Verified Boot

User Environment

Operating Temperature: With standard battery: -4F to +122F (-20C to +50C) With extended battery (freezer-rated4): -22F to +122F (-30C to +50C)
Storage Temperature: -40F to +158F (-40C to +70C)
Drop Specification: Per MIL-STD 810H: 6 ft (1.8m) to concrete at (+73F to +122F/+23C to +50C) 4 ft (1.2m) to concrete across temperature (-22F to +122F/-30C to +50C) exceeding MIL-STD-810H
Tumble Specification: 1,000 Tumbles at 1.6 ft (0.5m) at room temperature
Sealing: IP65; IP67 with battery per applicable IEC sealing specifications
Humidity: 5% to 95%, non-condensing
Vibration: 4g PK Sine (5Hz to 2kHz); 0.04g 2/Hz Random (20Hz to 2kHz); 60 minutes duration per axis, 3 axis
Electrostatic Discharge (ESD): +/- 15kV air discharge; +/- 8kV direct/indirect discharge

Interactive Sensor Technology (IST)

Light Sensor: Automatically adjusts display backlight brightness
Motion Sensor: 3-axis accelerometer with MEMS Gyro
Magnetometer: eCompass automatically detects direction and orientation

General Certifications

Android Enterprise Recommended (AER): Yes

Data Capture

Scanning: Compatible with Zebra wearable Bluetooth scanners (RS2100, RS5100, RS6100) via NFC tap-to-pair and Zebra wearable corded scanners (RS4000, RS5000) via rugged side connectors. The RS5100 and RS6100 can be powered by the WT6400 using the corded adapter, with communication over Bluetooth.
Camera: 13 MP side camera
NFC: ISO 14443 Type A and B; FeliCa and ISO 15693 cards; NFC Forum cards 1 to 5

Wireless LAN

Radio: IEEE 802.11 a/b/g/n/ac/ax/d/h/i/r/k/v/w/mc;2x2 MU-MIMO; Tri-band (2.4 GHz, 5 GHz, 6 GHz); Wi-Fi CERTIFIED 6™ (Wi-Fi 6E); Dual Band Simultaneous; IPv4, IPv6
Data Rates: 2.4 GHz: 802.11b/g/n/ax — 20 MHz - up to 286.8 Mbps; 5 GHz: 802.11a/n/ac/ax — 20 MHz, 40 MHz, 80 MHz, 160 MHz — up to 2402 Mbps; 6 GHz: 802.11ax — 20 MHz, 40 MHz, 80 MHz, 160 MHz — up to 2402 Mbps
Operating Channels: Channel 1-13 (2401-2483 MHz): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13; Channel 36-165 (5150-5850 MHz): 36, 40, 44, 48, 50, 52, 56, 60, 64, 100, 104, 108, 112, 114, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165; Channel 1-233 (5925-7125 MHz); Channel Bandwidth: 20, 40, 80, 160 MHz. Actual operating channels/frequencies and bandwidths depend on regulatory rules and certification agency.
Security and Encryption: WEP (40 or 104 bit); Enhanced Open (OWE); WPA/WPA2 Personal (TKIP and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES); EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP, EAP-PWD; WPA3 Enterprise 192-bit mode (GCMP256) - EAP-TLS
Certifications: Wi-Fi Alliance Certifications: Wi-Fi CERTIFIED; Wi-Fi CERTIFIED ac; Wi-Fi CERTIFIED 6 (Wi-Fi 6E); WPA2-Personal; WPA2-Enterprise; WPA3-Personal WPA3-Enterprise (includes 192-bit mode); Protected Management Frames: Wi-Fi Enhanced Open; WMM (Wi-Fi Multimedia); WMM-Power Save WMM-Admission Control; Voice-Enterprise: Wi-Fi Direct; Wi-Fi Agile Multiband; Wi-Fi QoS Management; Wi-Fi Optimized Connectivity; Passpoint

Wireless PAN

Bluetooth: Class 1; Bluetooth v5.3

Warranty

Warranty: Subject to the terms of Zebra’s hardware warranty statement, the WT6400 is warranted against defects in workmanship and materials for a period of one (1) year from the date of shipment. For complete warranty statement, please visit www.zebra.com/warranty

Recommended Services

Recommended Services: Zebra OneCare™ Essential and Select support services; Zebra Visibility Services — VisibilityIQ™ Foresight. For information on Zebra services, please visit www.zebra.com/services

Footnotes

Footnotes: 1. Device display area is calculated by multiplying the length by the width of the display. 2. The WT6300 depth is .7 in (17.78mm) and the WT6400 depth is .55 in (13.97mm), making the WT6300 27.27 % deeper than the WT6400. 3. The WT6300 length is 6.25 in (158.7mm) vs. the WT6400 length of 5.22 in (132.5mm), making the WT6400 19.5%+ less wide on the arm. 4. Freezer is defined as -30C (-22F) with WT6400 extended battery. 5. LifeGuard for Android is available with any Zebra OneCare support contract. 6. Applies to A14 release and subsequent OS release Specifications are subject to change without notice.

Detailed values may cover multiple family members or optional SKUs. Model catalogue values take precedence; confirm part number.

Lifecycle

Sales status: Current catalogue
Announced: 2024-03-11
Status basis: Listed in official model catalogue; regional orderability requires confirmation.
