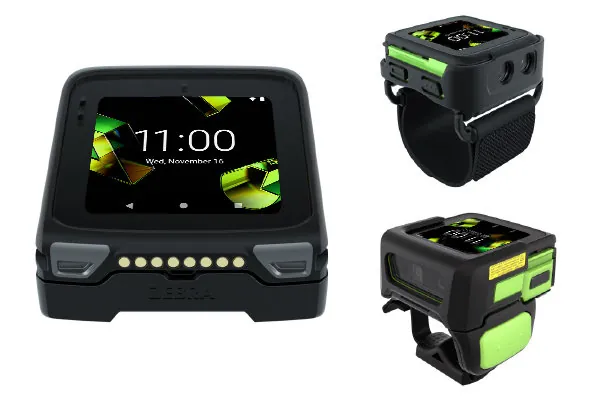

Zebra WS50

Unparalleled functionality and flexibility in the world’s smallest all-in-one Android enterprise-class wearable mobile computer

Operating systemAndroid
Display2 inches (5 cm)
ScanningConverged : SE4770 1D/2D standard range omni-directional imager Wrist : 13 MP camera with flash, or no data…
BatteryStandard (Wrist): 3.08 Watt Hours; 800 mAh High Capacity (Converged): 5 Watt Hours; 1300 mAh PowerPrecision…
SealingIP65
DropWrist : 4 ft./1.2 m drop to concrete per MIL-STD 810G across operating temperature Converged : 6 ft./1.8 m…

Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps

Overview

Every task worker without mobile access to relevant information and the rest of your workforce is forced to take more steps and more time to complete tasks, eroding operational efficiency. Now, connecting your disconnected workers is easy with Zebra’s WS50 — the world’s smallest Android enterprise-class wearable mobile computer. It’s rugged, modular and at home everywhere — from manufacturing and warehousing to retail and hospitality. It’s versatile — this flexible computing core is modular, allowing you to choose the mount that’s right for the job: wrist, back of hand or two-finger. It’s small but mighty, packed with powerful business class voice and data features that drive productivity and accuracy into every task. It’s lightweight and ergonomic, comfortable and never in the way. And with no host device required, it’s the first of its kind, offering powerful data capture with single device simplicity.

True ‘no-host’ one-piece wearableWith the all-in-one WS50, workers only need to wear one device to capture and access data instead of a host mobile computer and ring scanner, providing a true converged wearable solution. And push-to-talk (PTT) support eliminates the need for separate voice devices.
Wear it your way with modular mounting optionsWith three different wearing styles, the adaptable WS50 is ideal for virtually any task worker in practically any industry. The WS50 can be worn on a wrist, two fingers or the back of the hand.
Better connect your workforce with push-to-talk (PTT) and task management applicationsAll models are PTT ready, enabling managers and workers to instantly collaborate for faster issue resolution and increased staff productivity. All models also support task-management applications, enabling better staff utilization and management.
High-resolution camera for light barcode scanning and photo captureA 13 MP camera in the wrist-mounted model supports occasional barcode scanning and can capture detailed photos to document proof of condition and more.
Advanced enterprise-class scanner for intense barcode scanningThe converged two-finger-and back-of-hand mount WS50 models include Zebra’s SE4770 imager, delivering superior data capture performance. Scan virtually any barcode in practically any condition, as fast as you can press the trigger — even if they are damaged or poorly printed.
Simplify backroom device and battery management — and purchasing — with modular accessories: Choose the charging solution that matches your deployment and device management needs — 2- or 10-slot charge-only cradles; 4- or 20-slot battery chargers, or an Ethernet cradle that supports five devices and five batteries. In mixed model deployments, color-coding allows you to instantly see whether a cradle or charger is for the two-finger and back-of-hand mount converged models — or the wrist-mount models.
The power of AndroidThis industry-standard mobile operating system provides a future proof platform designed to easily accommodate new features.
Integrated audio featuresGive users the power of instant voice communications with the embedded speaker and microphone. Wirelessly connect a Bluetooth headset, eliminating cords and enabling more private communications.
Powerful, centralized management for all modelsThe WS50 supports major Enterprise Mobility Management (EMM) systems, providing a single pane of glass to manage all of your mobile devices.
All the wireless connections you needWi-Fi, Bluetooth and NFC are all standard in the WS50, enabling robust Wi-Fi ‘won’t fail’ connections and easy one-tap connections to Bluetooth peripherals.

Best for: Retail · Pricing/markdowns · Back of store operations · Task management · Warehousing/Manufacturing · Sorting · Put away · Picking · Loading/unloading · Task management · Transportation and Logistics · Sorting · Loading/unloading · Hospitality · Food service: restaurant servers; room service · Housekeeping · Janitorial service

Specifications

Physical Characteristics

Dimensions: Wrist (device): 2.44 in. L x 2.32 in. W x 0.71 in. D 62 mm L x 59 mm W x 18 mm D Wrist (with mount): 2.91 in. L x 2.51 in. W x 0.751 in. D 74 mm L x 64 mm W x 19 mm D Converged: 2.52 in. L x 2.44 in. W x 1.10 in. D 64 mm L x 62 mm W x 28 mm D
Weight: Wrist (device): 2.47 oz./70 g; Wrist (with mount): 3.95 oz./112 g Converged: 4.73 oz./134 g
Display: 2 in. AMOLED 460 x 460 color display; optically bonded to touch panel
Imager Window: Corning™ Gorilla™ Glass
Touch Panel: Capacitive touch panel; fingertip and glove support; Corning™ Gorilla™ Glass
Power: Standard (Wrist): 3.08 Watt Hours; 800 mAh High Capacity (Converged): 5 Watt Hours; 1300 mAh PowerPrecision; Hot Swap (2 minutes, memory persistent)
Network Connections: USB 2.0 High Speed (host and client), WLAN and Bluetooth
Notifications: Audible tone; charge LED; OS notification LED; multi-color Application LEDs (2); haptic feedback
Voice and Audio: Speaker (90dBA); internal mic; PTT ready; Bluetooth headset support
Buttons: Wrist: 4 buttons (programmable) Converged: trigger; 2 buttons (programmable)
Interfaces: Docking contacts; Via interface cables: USB-C (USB 2.0) host/client and charging

Scanner Performance

Optical Resolution: 1280 x 800 pixels
Roll: 360°
Pitch: ±60°
Skew: ±60°
Aiming Element: 655 nm Laser
Illumination Element: 1 Hyper Red 660 nm LED or 1 Warm-White LED
Field of View: Horizontal: 48°, Vertical: 30°
Ambient Light Immunity (from total darkness): Maximum 107,639 lux (direct sunlight)
Supported 1D Symbologies: Code 39, Code 128, Code 93, Codebar/NW7, Code 11, MSI, UPC/EAN, I 2 of 5, Korean 3 of 5, GSI DataBar, Base 32 (Italian Pharma)
Supported 2D Symbologies: PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes
Supported OCR Symbologies: OCR-A, OCR-B
Scan Triggering: Manual ambidextrous trigger or automatic via Proximity Sensor technology

Performance Characteristics

CPU: Snapdragon Wear™ 4100 Platform/SDW429w, quad-core, 2.0 GHZ
Operating System: Android; for supported Android versions, visit: www.zebra.com/android-versions
Memory: 1 GB RAM/8 GB Flash

User Environment

Operating Temperature: 14° F to 122° F/-10° C to +50° C
Storage Temperature: -40° F to 158° F/-40° C to +70° C
Humidity: 5% - 95% non condensing
Drop Specification: Wrist: 4 ft./1.2 m drop to concrete per MIL-STD 810G across operating temperature Converged: 6 ft./1.8 m drop to tile over concrete per MIL-STD 810G across operating temperature
Tumble Specification: Wrist: 1,000 tumbles @ 1.6 ft./0.5 m Converged: 2,000 tumbles @ 1.6 ft./0.5 m Meets and exceeds IEC tumble specifications
Sealing: IP65
Vibration: 4 g’s PK Sine, 5hz to 2khz, 1 hour duration per axis; 0.04 g2/Hz Random (20 Hz to 2 kHz), 1 hour duration per axis.
Electrostatic Discharge (ESD): +/-15 kV air discharge, +/-8 kV direct/indirect discharge

Interactive Sensor Technology (IST)

Light Sensor: Automatically adjusts display backlight brightness
Motion Sensor: 6-axis accelerometer with MEMS Gyro

Data Capture

Scanning: Converged: SE4770 1D/2D standard range omni-directional imager Wrist: 13 MP camera with flash, or no data capture option
Camera: 13 MP with Flash (Wrist only)
NFC: Tap to Pair, ISO 14443 Type A and B, Felica and ISO 15693 cards, and Card Emulation via Host (HCE) support
Scan Triggering: Manual or automatic via proximity sensor technology

Wireless LAN

Radio: IEEE 802.11 a/b/g/n/ac/d/h/i/r; Wi-Fi™ certified; IPv4, IPv6, 1x1 SISO
Data Rates: 2.4 GHz: 802.11b/g/n/ac — 20 MHz, 40 MHz — up to 200 Mbps 5 GHz: 802.11a/g/n/ac — 20 MHz, 40 MHz, 80 MHz — up to 433 Mbps
Operating Channels: Channel 1-13 (2412-2472 MHz); Channel 36-165 (5180-5825 MHz) Channel Bandwidth: 20, 40, 80 MHz Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency
Security and Encryption: WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); — EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, EAP-PWD
Certifications: WFA (802.11n, 80211ac, WPA2-Personal, WPA3-Personal, WPA2-Enterprise, PMF)
Fast Roam: PMKID caching; 802.11r (Over-The-Air); OKC

Wireless PAN

Bluetooth: Bluetooth 4.2; Bluetooth Low Energy (BLE) support; Class 1

Warranty

Warranty: Subject to the terms of Zebra’s hardware warranty statement, the WS50 is warranted against defects in workmanship and materials for a period of one (1) year from the date of shipment. For complete warranty statement, please visit www.zebra.com/warranty

Recommended Services

Recommended Services: Support Services: Maximize device availability, operational efficiency, and security updates with Zebra OneCare™ Essential or Select services. Protect your investment with depot repair or advanced device replacement, technical support, software and support, LifeGuard updates, Device Diagnostics and included cloud-based VisibilityIQ™ OneCare™ for insight into repair, case, contract, LifeGuard reports and more. Zebra VisibilityIQ™ Foresight: A powerful cloud-based analytics platform that transforms your Zebra mobile device data into operational intelligence. From battery health to device utilization, it delivers the insights you need to reduce downtime, boost productivity, and make smarter, faster decisions that keep your business moving.

Zebra DNA for Mobile Computers

Zebra DNA for Mobile Computers: The Zebra DNA software suite makes your devices powerful and easier to manage, with tools enabling top performance, simple setup, and robust security. DNA for mobile computers is available for Android only; features may vary by model and a Support Contract may be required. For details, visit www.zebra.com/zebradna

Detailed values may cover multiple family members or optional SKUs. Model catalogue values take precedence; confirm part number.

Lifecycle

Sales status: End of sale
Announced: 2022-03-28
End of sale / last shipment: 2026-06-30
Status basis: Manufacturer lifecycle label or selected older-generation reference.
