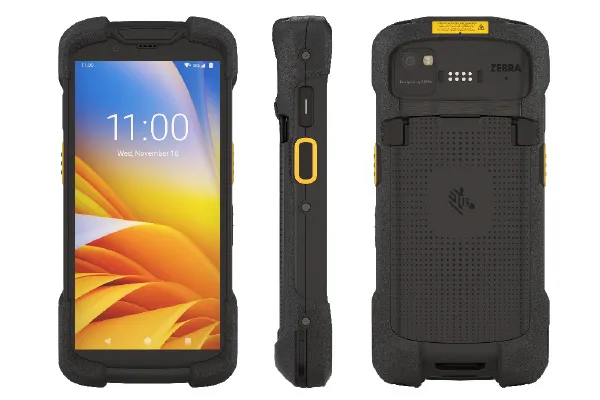

Zebra TC73/TC78 Mobile Computers
View and download the technical specification sheet for the TC73/TC78 Mobile Computers.
- Operating systemAndroid; for supported Android versions, visit: www.zebra.com/android-versions
- Display6.0 inch Full High Definition+ (1080 X 2160); LED backlight; optically bonded to touch panel
- ScanningSE55 1D/2D Advanced Range Scan Engine with IntelliFocus™ technology; SE4770 1D/2D Scan Engine
- SealingIP65 and IP68 with battery per applicable IEC sealing specifications
- DropMultiple 10 ft./3.05 m drops to concrete at room temp per MIL-STD 810H Multiple 8 ft./2.4 m drops to…
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- Android; for supported Android versions, visit: www.zebra.com/android-versions
- Processor
- Qualcomm 6490 octa-core, 2.7 GHz
- RAM / storage options
- 4 GB RAM/64 GB UFS Flash; 8 GB RAM/128 GB UFS Flash
Display
- Display size
- 6.0 inch Full High Definition+ (1080 X 2160); LED backlight; optically bonded to touch panel
- Touch panel
- Multi mode capacitive touch with bare or gloved fingertip input or conductive stylus (sold separately); Corning™ Gorilla™ Glass; Water droplet rejection; fingerprint resistant anti-smudge coating
- Keyboard / keys
- On-screen keypad and Zebra enterprise keyboard Programmable buttons for maximum flexibility: dual dedicated scan buttons; dedicated push-to-talk button; volume up/down buttons and Trigger button of Trigger Handle via Back I/O
Data capture
- Scan engines / capture options
- SE55 1D/2D Advanced Range Scan Engine with IntelliFocus™ technology; SE4770 1D/2D Scan Engine
- NFC
- NFC ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards, NFC Forum tags 2,3,4,5; Host Card Emulation, Contactless Payment Support, VAS (Value Added Services) and Wallet support, Apple ECP1.0 and ECP2.0, Apple VAS and Google Smart Tap certified, VAS Library/SDK
- Cameras
- Front — 8 MP; Rear — 16 MP autofocus; flash LED generates balanced white light; supports Torch mode + HDR (standard); Optical Image Stabilization (OIS) (premium SKUs only); Time of Flight (ToF) Sensor (premium SKUs only)
Power
- Charging / power
- Rechargeable Li-Ion, PowerPrecision+ for real-time battery metrics; Standard Capacity: 4680 mAh (18.01 Watt hours); Extended Capacity: 7000 mAh (26.95 Watt hours); BLE battery: 4680 mAh; Qi compatible Wireless charge battery: 4680 mAh; fast charging, Warm Swap battery mode (standard SKUs); Hot Swap battery mode (premium SKUs)
Connectivity
- Bluetooth
- Class 2, Bluetooth v5.2 and Secondary BLE for beaconing within BLE battery
- Location / GPS
- GPS, GLONASS, Galileo, Beidou, QZSS Dual-Band GNSS — concurrent L1/G1/E1/B1 (GPS/QZSS, GLO, GAL, BeiDou) + L5/E5a/BDSB2a (GPS/QZSS, GAL, BeiDou); a-GPS; supports XTRA
- Ports / interfaces
- USB 2.0 (Back I/O — Host Only), USB 3.0 (Bottom Type C) — Super Speed (Host and Client)
Rugged
- IP / sealing
- IP65 and IP68 with battery per applicable IEC sealing specifications
- Drop specification
- Multiple 10 ft./3.05 m drops to concrete at room temp per MIL-STD 810H Multiple 8 ft./2.4 m drops to concrete over operating temp -20° C to 50° C per MIL-STD 810H
- Tumble specification
- 2000 3.3 ft./1.0 m tumbles, meets or exceeds IEC tumble specification
- Operating temperature
- -4° F to 122° F/-20° C to 50° C
- Storage temperature
- -40° F to 158° F/-40° C to 70° C
- Humidity
- 5% to 95% non-condensing
Size
- Weight
- 12.3 oz./349 g with standard battery
- Dimensions
- 6.96 in. L x 3.38 in. W x 1.12 in. H/176.8 mm L x 85.8 mm W x 28.4 mm H; Grip area: 3.179 in. W x 0.80 in. H/80.75 mm W x 20.3 mm H
