Zebra · Handheld computer

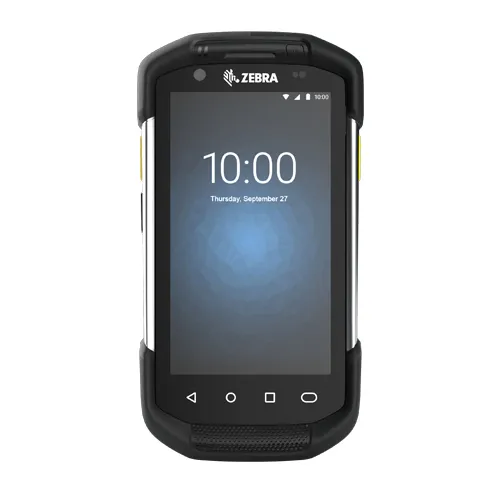

Zebra TC72/TC77 Series Touch Computer
View and download the technical specification sheet for the TC72/TC77 Series Touch Computer.
- Operating systemTC72 : Upgradeable to Android 14 TC77 : Upgradeable to Android 14
- Display4.7 in. High Definition (1280 x 720); exceptionally bright, outdoor viewable; optically bonded to touch panel
- ScanningSE4770: 1D/2D omnidirectional imager SE4750: 1D/2D omnidirectional imager Digimarc Symbology support
- SealingIP65 and IP68 per applicable IEC sealing specifications
- DropMultiple 6 ft./1.8 m drop to concrete across full operating temperature range, multiple 8 ft./2.4 m drop to…
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- TC72 : Upgradeable to Android 14 TC77 : Upgradeable to Android 14
- Processor
- Qualcomm Snapdragon™ 660 octa-core, 2.2 GHz
- RAM / storage options
- 4 GB RAM/32 GB Flash pSLC
Display
- Display size
- 4.7 in. High Definition (1280 x 720); exceptionally bright, outdoor viewable; optically bonded to touch panel
- Keyboard / keys
- On-screen keypad and Enterprise Keyboard
Data capture
- Scan engines / capture options
- SE4770: 1D/2D omnidirectional imager SE4750: 1D/2D omnidirectional imager Digimarc Symbology support
- NFC
- ISO 14443 Type A and B; F; FeliCa and ISO 15693 cards; P2P mode and Card Emulation via Host SAM support for Calypso, Felica and Mifare technology TC77 only: Dual SAM support on TC77 SAM SKU
- Cameras
- Front — 5MP fixed focus Rear — 13 MP autofocus; f/2.4 aperture; flash LED generates balanced white light; supports Torch mode; 4K video with image stabilization Camera supports barcode scanning
Power
- Charging / power
- Li-Ion 3.7 V, 4620 mAh. PowerPrecision/ PowerPrecision+: Improved battery technology for longer cycle times and real-time visibility into battery metrics for better battery management
Connectivity
- Bluetooth
- Class 2, Bluetooth v5.0, Bluetooth Low Energy (BLE)
- Location / GPS
- TC77 only: Autonomous, Assisted GPS (A-GPS); Navstar; GLONASS; Gallileo; BeiDou
Rugged
- IP / sealing
- IP65 and IP68 per applicable IEC sealing specifications
- Drop specification
- Multiple 6 ft./1.8 m drop to concrete across full operating temperature range, multiple 8 ft./2.4 m drop to concrete at room temperature per MIL-STD 810G
- Tumble specification
- 2,000 3.3 ft./1.0 m tumbles; meets and exceeds IEC tumble specifications
- Operating temperature
- -4° F to 122° F/-20° C to 50° C
- Storage temperature
- -40°F to 158°F/-40°C to 70°C
- Humidity
- 5% to 90% non-condensing
Size
- Weight
- 13.3 oz / 376 g
- Dimensions
- 6.3 in. L x 3.3 in. W x 1.1 in. D 161 mm L x 84 mm W x 28 mm D
