Zebra · Handheld computer

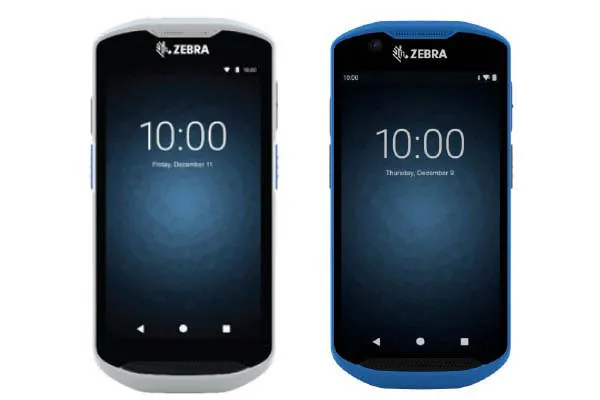

Zebra TC52X-HC Series Mobile Computers
View and download the technical specification sheet for the TC52X-HC Series Mobile Computers.
- Operating systemTC52x-HC: Upgradeable to Android 14 TC52ax-HC: Upgradeable to Android 14
- Display5.0 in. Full High Definition (1920x1080); LED Backlight; exceptionally bright, outdoor viewable; optically…
- ScanningAll models: SE4720 1D/2D Imager
- SealingIP65 with battery per applicable IEC sealing specifications
- DropMultiple 4 ft./1.2 m drops to tile over concrete over 14° F to 122° F/-10° C to 50° C
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- TC52x-HC: Upgradeable to Android 14 TC52ax-HC: Upgradeable to Android 14
- Processor
- Qualcomm Snapdragon™ 660 octa-core, 2.45 GHz
- RAM / storage options
- TC52x-HC : 4 GB RAM/32 GB UFS Flash TC52ax-HC : 4 GB RAM/64 GB UFS Flash
Display
- Display size
- 5.0 in. Full High Definition (1920x1080); LED Backlight; exceptionally bright, outdoor viewable; optically bonded to touch panel
- Keyboard / keys
- On-screen keypad and enterprise keyboard Six programmable buttons for maximum flexibility: Alert button, dual dedicated scan buttons, dedicated push-to-talk button and volume up/down buttons
Data capture
- Scan engines / capture options
- All models: SE4720 1D/2D Imager
- NFC
- ISO 14443 Type A and B; FeliCa and ISO 15693 cards; P2P mode (up to A10 only) and Card Emulation via Host
- Cameras
- Front — 5 MP Rear — 13 MP autofocus with Phase Detection Autofocus (PDAF); flash LED generates balanced white light; supports Torch mode
Power
- Charging / power
- Rechargeable Li-Ion, PowerPrecision+, ≥ 15.48 Watt hours, ≥ 4150 mAh, improved battery metrics for better battery management, fast charging (up to 2.4 A); hot swap supported; BLE battery option
Connectivity
- Bluetooth
- Class 2, Bluetooth v5.0 (TC52x-HC ) and Bluetooth v5.1 (TC52ax-HC), Bluetooth Low Energy (BLE)
Rugged
- IP / sealing
- IP65 with battery per applicable IEC sealing specifications
- Drop specification
- Multiple 4 ft./1.2 m drops to tile over concrete over 14° F to 122° F/-10° C to 50° C
- Tumble specification
- 500 1.6 ft./0.5 m tumbles, meets or exceeds IEC tumble specification
- Operating temperature
- -4° F to 122° F/-20° C to 50° C
- Storage temperature
- -40° F to 158° F/-40° C to 70° C
- Humidity
- 5% to 95% non-condensing
Size
- Weight
- Terminal with standard battery TC52x-HC : 9.3 oz./263 g TC52ax-HC : 9.1 oz./259 g
- Dimensions
- TC52ax-HC : 6.1 in. L x 2.9 in. W x 0.73 in. H 154.4 mm L x 75.5 mm W x 18.6 mm H TC52x-HC : 6.1 in. L x 2.9 in. W x 0.73 in. H 154.4 mm L x 75.5 mm W x 18.6 mm H
