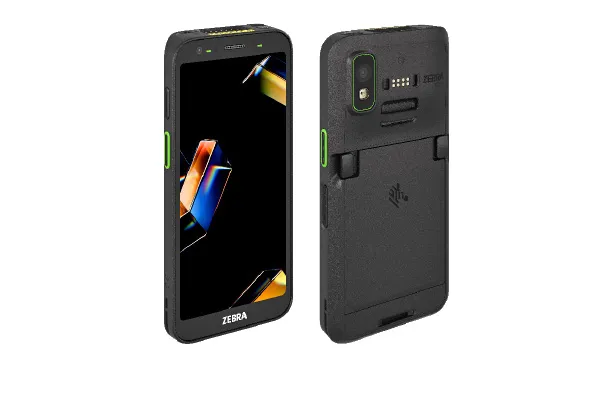

Zebra TC501 Mobile Computer
View and download the technical specification sheet for the TC501 Mobile Computer.
- Operating systemAndroid; for supported Android versions, visit: www.zebra.com/android-versions
- Display6.0 inch color Full High Definition+; 2160x1080; AMOLED; 600 NITS typical, 1000 NITS High Brightness Mode…
- ScanningSR500 1D/2D Scan Engine; SR560 1D/2D Scan Engine; AC670 Advanced Range Color 1D/2D Scan Engine
- SealingIP68 and IP65 per IEC 60529 standard
- DropExceeds MIL-STD-810H : 6 ft. (1.83 m) to concrete at -4°F to +122°F (-20°C to +50°C) 8 ft. (2.44 m) to…
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- Android; for supported Android versions, visit: www.zebra.com/android-versions
- Processor
- Qualcomm® Dragonwing™ Q-6690 processor; up to 2.9 GHz (SKU specific)
- RAM / storage options
- 8 GB LPDDR5 RAM/128 GB UFS 3.1 Flash; 12 GB LPDDR5 RAM/256 GB UFS 3.1 Flash
Display
- Display size
- 6.0 inch color Full High Definition+; 2160x1080; AMOLED; 600 NITS typical, 1000 NITS High Brightness Mode (HBM), 1500 NITS peak; adaptive refresh rate; optically bonded to touch panel; Gorilla Glass Victus
- Touch panel
- Multi-mode capacitive touch with bare or gloved fingertip input or passive stylus (sold separately); water droplet rejection; fingerprint resistant anti-smudge coating
- Keyboard / keys
- On-screen keypad Programmable buttons: dual dedicated scan buttons, dedicated push-to-talk button, volume up/down buttons
Data capture
- Scan engines / capture options
- SR500 1D/2D Scan Engine; SR560 1D/2D Scan Engine; AC670 Advanced Range Color 1D/2D Scan Engine
- NFC
- NFC ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards, Mifare Desfire EV1, EV2, EV3, NFC Forum tags 2,3,4,5; EMVCo RR2 Contactless Payment Support; Host Card Emulation, VAS (Value Added Services) and Wallet support, Apple ECP1.0 and ECP2.0, Apple VAS and Google Smart Tap certified, VAS Library/SDK
- Cameras
- 50 MP auto focus with 0.6 µm pixel: Phase Detection Auto Focus (PDAF); flash LED generates balanced white light; supports Torch mode + HDR Optional 50 MP with 1 µm pixel: Quad Phase Detection Auto-focus (QPD AF) 8 MP; fixed focus
Power
- Charging / power
- Rechargeable Li-Ion, PowerPrecision+ for real-time battery metrics; Standard capacity: 5000 mAh (19.45 Watt hours); Extended capacity: 7240 mAh (28.16 Watt hours); Wireless charge battery: 5000 mAh (19.45 Watt hours); fast charging; Hot Swap capable
Connectivity
- Bluetooth
- Configurable Class 1 and 2; Bluetooth V6.0 with 2X2 Tx Chipset-enabled secondary BLE beaconing support
- Ports / interfaces
- USB Type C (USB 3.1); bottom and back IO (USB 2.0)
Rugged
- IP / sealing
- IP68 and IP65 per IEC 60529 standard
- Drop specification
- Exceeds MIL-STD-810H : 6 ft. (1.83 m) to concrete at -4°F to +122°F (-20°C to +50°C) 8 ft. (2.44 m) to concrete @ room temperature With rugged boot : 7 ft. (2.13 m) to concrete at -4°F to +122°F (-20°C to +50°C) 9 ft. (2.74 m) to concrete @ room temperature
- Tumble specification
- 2000 1.6 ft. (0.5 m) tumbles 2000 3.3 ft. (1.0 m) tumbles with rugged boot
- Operating temperature
- -4°F to +122°F (-20°C to +50°C)
- Storage temperature
- -40°F to +158°F (-40°C to +70°C)
- Humidity
- 5%-95% non-condensing
Size
- Weight
- 9.63 oz. (273 g) with 5000 mAh battery 10.69 oz. (303g) with 7240 mAh battery
- Dimensions
- L x H x D: 6.42 x 3.07 x 0.61 inches (163.15 x 77.9 x 15.5 mm)
