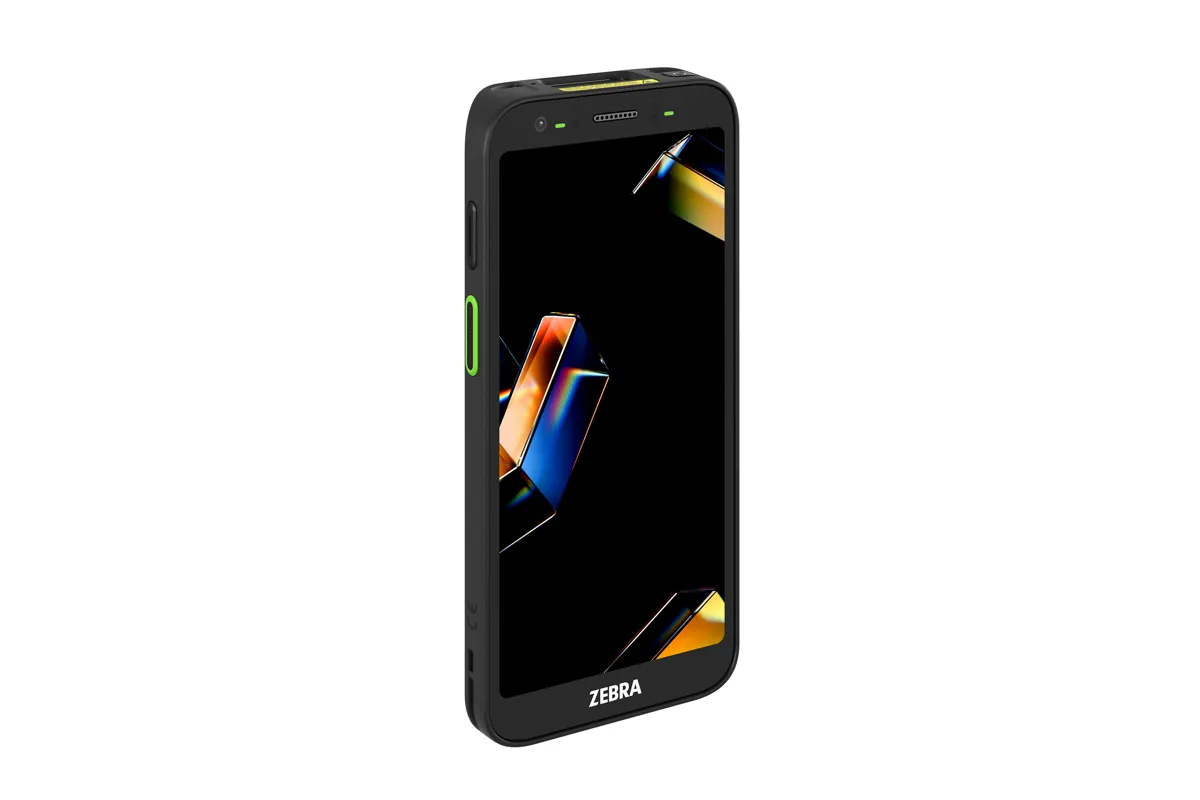

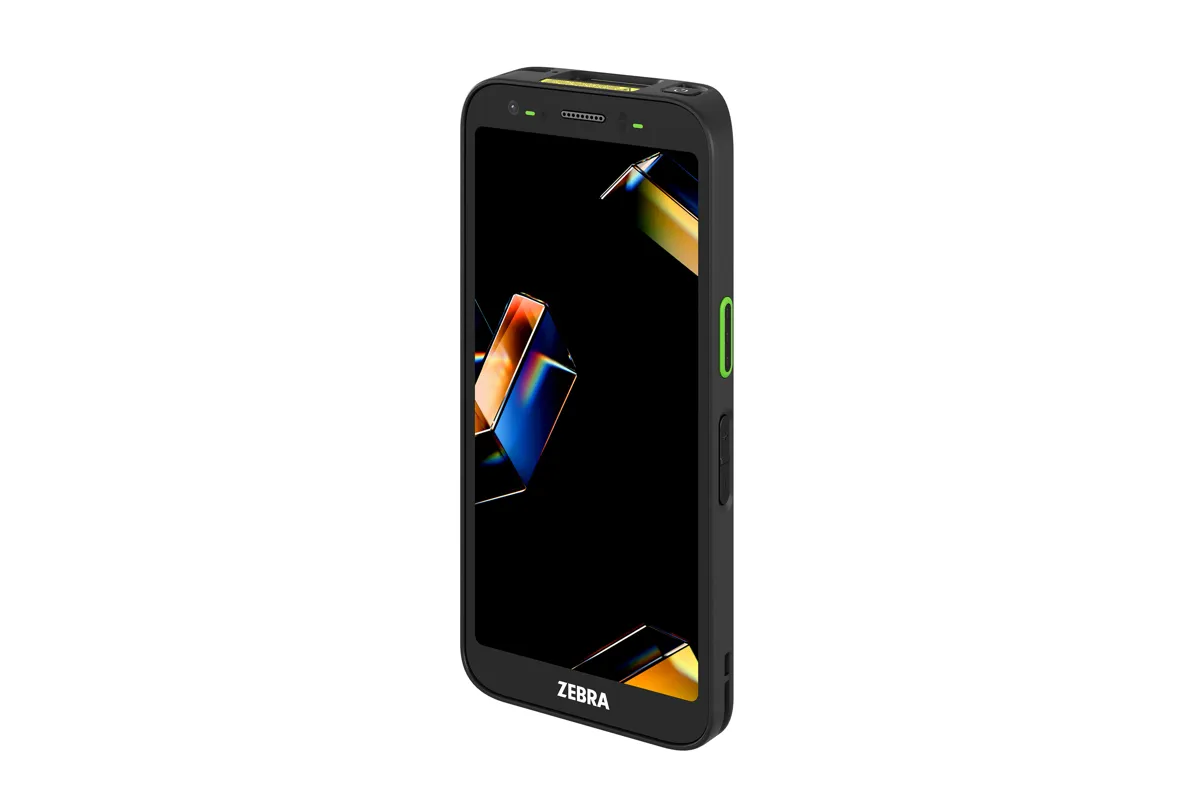

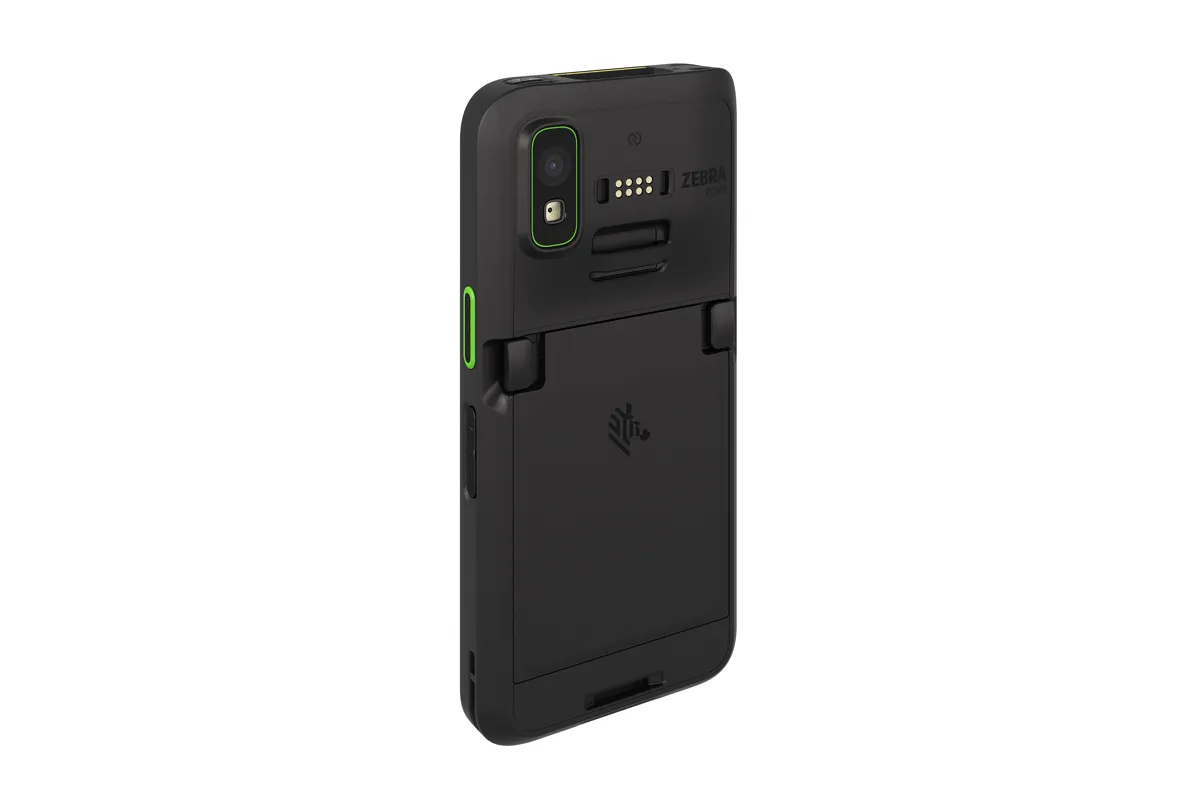

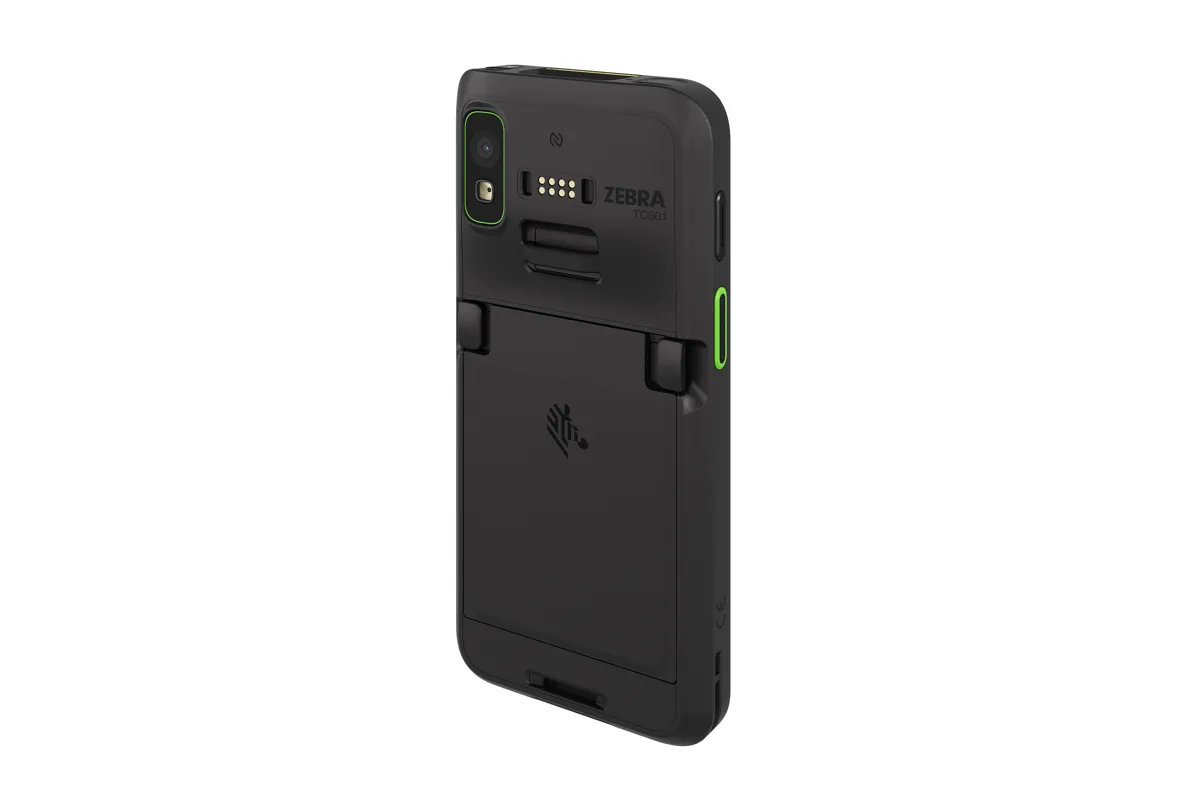

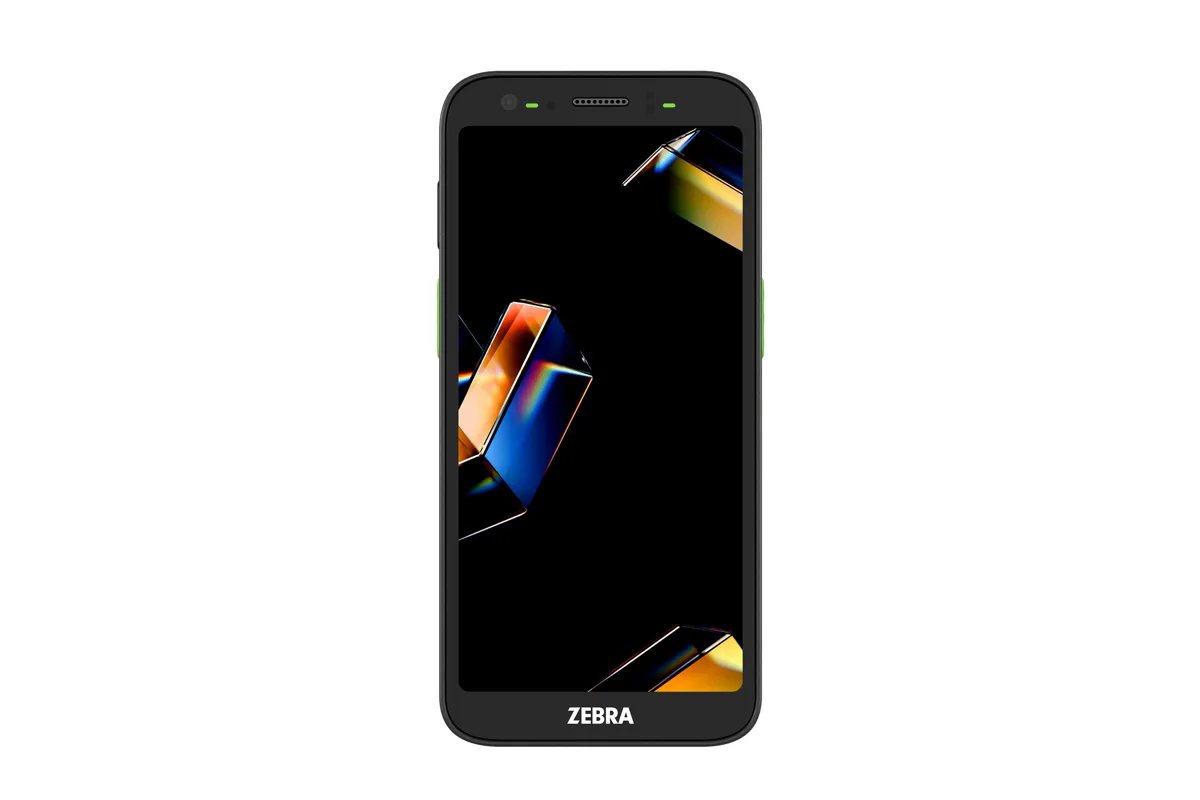

Zebra TC5 Series Mobile Computers

Specifications

Dimensions

L x H x D: 6.42 x 3.07 x 0.61 inches; (163.15 x 77.9 x 15.5 mm)

Weight

9.63 oz. (273 g) with 5000 mAh battery; 10.69 oz. (303g) with 7240 mAh battery

Display

6.0 inch color Full High Definition+; 2160x1080; AMOLED; 600 NITS typical, 1000 NITS High Brightness Mode (HBM), 1500 NITS peak; adaptive refresh rate; optically bonded to touch panel; Gorilla Glass Victus

Imager Windows

Corning® Gorilla® Glass

Touch Panel

Multi-mode capacitive touch with bare or gloved fingertip input or passive stylus (sold separately); water droplet rejection; fingerprint resistant anti-smudge coating

Power

Rechargeable Li-Ion, PowerPrecision+ for real-time battery metrics; Standard capacity: 5000 mAh (19.45 Watt hours); Extended capacity: 7240 mAh (28.16 Watt hours); Wireless charge battery: 5000 mAh (19.45 Watt hours); fast charging; Hot Swap capable

Expansion Slot

User accessible MicroSD card supports up to 2 TB

SIM

One physical SIM and Dual eSIM

Network Connections

WLAN Wi-Fi 7, WPAN (Bluetooth 6.0), USB 2.0 (Back I/O—Host Only), USB 3.1 superspeed (Bottom Type C)—Super Speed (Host and Client); WWAN 5G

Notifications

Audible tone; multi-color LEDs; vibration

Keypad

On-screen keypad

Voice and Audio

Stereo speakers; two microphones; audio headset support via USB-C port or Bluetooth wireless headset, BLE Audio 5.3 compatible; VoNR; VoLTE; Cellular Circuit Switch voice; HD voice; VoIP including Fullband (FB) and SWB Audio and PTT support

Buttons

Programmable buttons: dual dedicated scan buttons, dedicated push-to-talk button, volume up/down buttons

Interface Ports

USB Type C (USB 3.1); bottom and back IO (USB 2.0)

CPU

Qualcomm® Dragonwing™ Q-6690 processor; up to 2.9 GHz (SKU specific)

Operating System

Android; for supported Android versions, visit:; www.zebra.com/android-versions

Memory

8 GB LPDDR5 RAM/128 GB UFS 3.1 Flash; 12 GB LPDDR5 RAM/256 GB UFS 3.1 Flash

Security

Android Strongbox with Secure Element IC; FIPS 140-3 Validated (ISO 19790) and Common Criteria certified (ISO 15408); Supports Secure Boot and Verified Boot

Operating Temp.

-4°F to +122°F (-20°C to +50°C)

Storage Temp.

-40°F to +158°F (-40°C to +70°C)

Humidity

5%-95% non-condensing

Sealing

IP68 and IP65 per IEC 60529 standard

Tumble Specification

2000 1.6 ft. (0.5 m) tumbles; 2000 3.3 ft. (1.0 m) tumbles with rugged boot

Drop Specifications

Exceeds MIL-STD-810H:; 6 ft. (1.83 m) to concrete at -4°F to +122°F (-20°C to +50°C); 8 ft. (2.44 m) to concrete @ room temperature; With rugged boot:; 7 ft. (2.13 m) to concrete at -4°F to +122°F (-20°C to +50°C); 9 ft. (2.74 m) to concrete @ room temperature

Electrostatic; Discharge (ESD)

+/- 15 kV air discharge; +/- 8 kV direct discharge; +/- 8 kV indirect discharge

Scanning

SR500 1D/2D Scan Engine; SR560 1D/2D Scan Engine; AC670 Advanced Range Color 1D/2D Scan Engine

Rear Camera

50 MP auto focus with 0.6 µm pixel: Phase Detection Auto Focus (PDAF); flash LED generates balanced white light; supports Torch mode + HDR; Optional 50 MP with 1 µm pixel: Quad Phase Detection Auto-focus (QPD AF)

Front Camera

8 MP; fixed focus

Ultra-wide Angle Rear Camera

13 MP auto focus; Phase Detection Auto-focus (PDAF); 5cm-infinity

Time of Flight (iToF)

Available on select SKUs

NFC

NFC ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards, Mifare Desfire EV1, EV2, EV3, NFC Forum tags 2,3,4,5; EMVCo RR2 Contactless Payment Support; Host Card Emulation, VAS (Value Added Services) and Wallet support, Apple ECP1.0 and ECP2.0, Apple VAS and Google Smart Tap certified, VAS Library/SDK

Integrated RFID

Short range integrated UHF RFID; up to 6.5 ft. (2 m); reads > 200 tags per second; EPC Class 1 Gen2; EPC Gen 2 V2; EU 865-868 MHz and US 902-928 MHz

Bluetooth

Configurable Class 1 and 2; Bluetooth V6.0 with 2X2 Tx; Chipset-enabled secondary BLE beaconing support

Radio

IEEE 802.11 be/ax/ac/n/a/g/b/mc/az/d/h/i/r/k/u/v/w; Tri-band (2.4 GHz, 5 GHz, 6 GHz), 2x2 MU-MIMO; Wi-Fi CERTIFIED 7™; MLO (Simultaneous Transmit and Receive MLMR) in Tri-band and Dual-band modes: 2.4+5+6, 5+5+6, 5+6, 5+5, 2.4+5, 2.4+6; ; Dual Band Simultaneous; High Band Simultaneous; IPv4, IPv6; Wi-Fi Aware

Data Rates

2.4 GHz: 802.11b/g/n/ax/be—20 MHz —up to 344 Mbps; 5 GHz: 802.11a/n/ac/ax/be—20 MHz, 40 MHz, 80 MHz, 160 MHz—up to 2882 Mbps; 6 GHz: 802.11ax/be—20 MHz, 40 MHz, 80 MHz, 160 MHz, 320 MHz—up to 5764 Mbps

Fast Roam

802.11r Fast BSS Transition; PMK; Caching; Cisco CCKM; OKC

Operating Channels

Channel 1-13 (2401-2483 MHz): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13;; Channel 36-165 (5150-5850 MHz): 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165;; Channel 1-233 (5925-7125 MHz);; Channel Bandwidth: 20, 40, 80, 160, 320 MHz; Actual operating channels/frequencies and bandwidths depend on regulatory rules and certification agency.

Security and; Encryption

WPA3 Enterprise 192-bit mode, GCMP-256—EAP-TLS; WPA3 Enterprise, AES-CCMP-128, GCMP-256—EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, EAP-PWD; WPA3 Personal (SAE, SAE-EXT), AES CCMP-128, GCMP-256; WPA/WPA2 Enterprise, TKIP and AES-CCMP-128; WPA/WPA2 Personal (PSK), TKIP and AES-CCMP-128; Enhanced Open (OWE), AES-CCMP-128, GCMP-256; WEP 40 bit and 104 bit; WAN only: EAP-SIM, EAP-AKA, EAP-AKA Prime

Certifications

Wi-Fi Alliance Certifications: Wi-Fi CERTIFIED 7; Wi-Fi CERTIFIED 6 (Wi-Fi 6E); Wi-Fi CERTIFIED ac; Wi-Fi CERTIFIED n; WPA2-Personal; WPA2-Enterprise; WPA3-Personal; WPA3-Enterprise (includes 192-bit mode); Protected Management Frames; Wi-Fi Enhanced Open; WMM (Wi-Fi Multimedia); WMM-Power Save; WMM-Admission Control; Voice-Enterprise; Wi-Fi Direct; Wi-Fi Agile Multiband; Wi-Fi QoS Management ; Wi-Fi Optimized Connectivity; Passpoint

Multimedia

Wi-Fi Multimedia™ (WMM) and WMM-PS; TSPEC

GPS (WWAN SKU only)

GPS, GLONASS, a-GLONASS, Galileo, Beidou, QZSS, Triple-Band GNSS—concurrent L1/G1/E1/B1; (GPS/QZSS, GLO, GAL, BeiDou) + L5/E5a/BDSB2a (GPS/QZSS, GAL, Beidou)+ l2(GPS+ QZSS L2C), a-GPS; supports XTRA

Radio Frequency Band

Rel-17, Dual SIM/Dual Standby, Gigabit LTE-A, 5G NR Sub-6 (NSA, SA), LTE/ NR Carrier Aggregation (CA), LTE CA-up to 3DLCA, 2ULCA, NR CA: Up to 3DL, 2UL;; Bands: 5G FR1: n1/2/3/5/7/8/12/13/ 14/20/25/26/28/29/30/38/40/41/48/ 53/66/70/71/75/76/77/78/79 4G: B1/2/3/4/5/7/8/12/13/14/17/18/ 19/20/25/26/28/29 /30/32/34/38/39/ 40/41/42/43/48/53/66/68/70/71/ 106; 3G: B1/2/4/5/6/8/19; 2G (ROW SKU only): 850/900/1800/1900;; 4x4 DL MIMO6: 5G FR1: n1/2/3/7/25/30/38/40/41/48/66/ 70/77/78/79;4G LTE: 1/2/3/4/7/2
