Zebra · Handheld computer

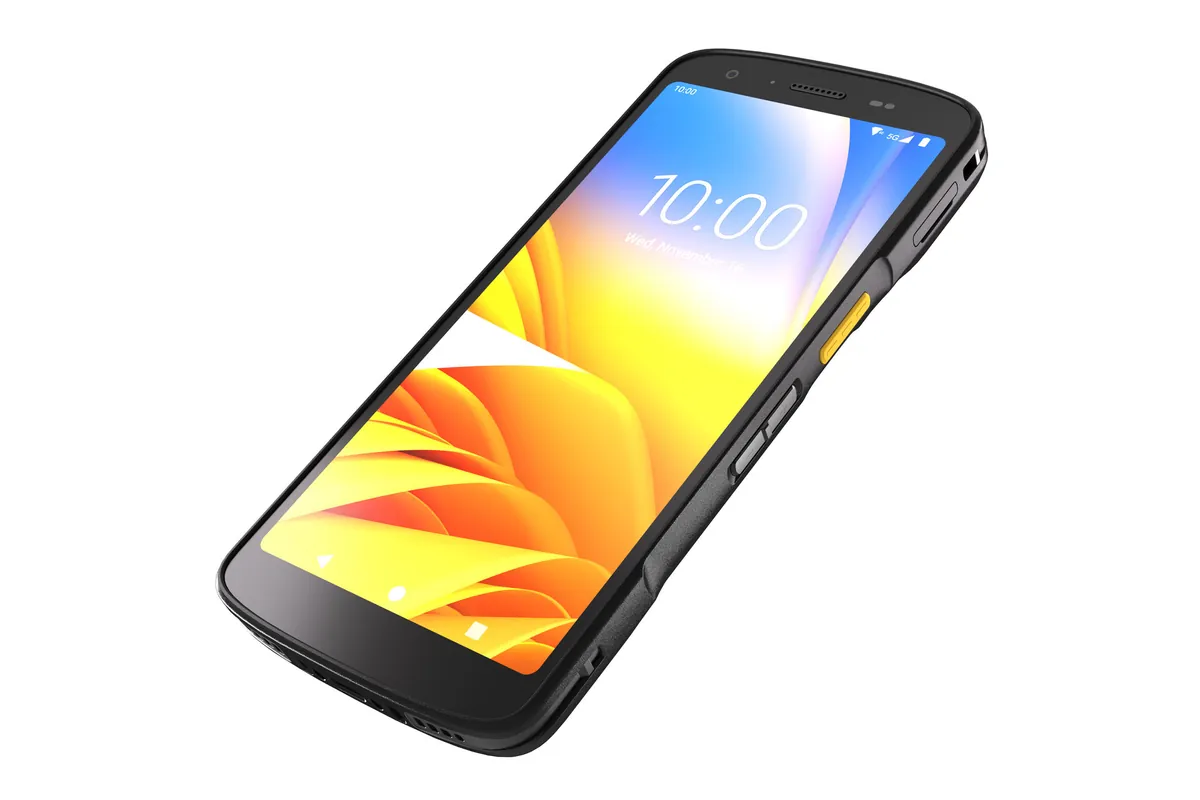

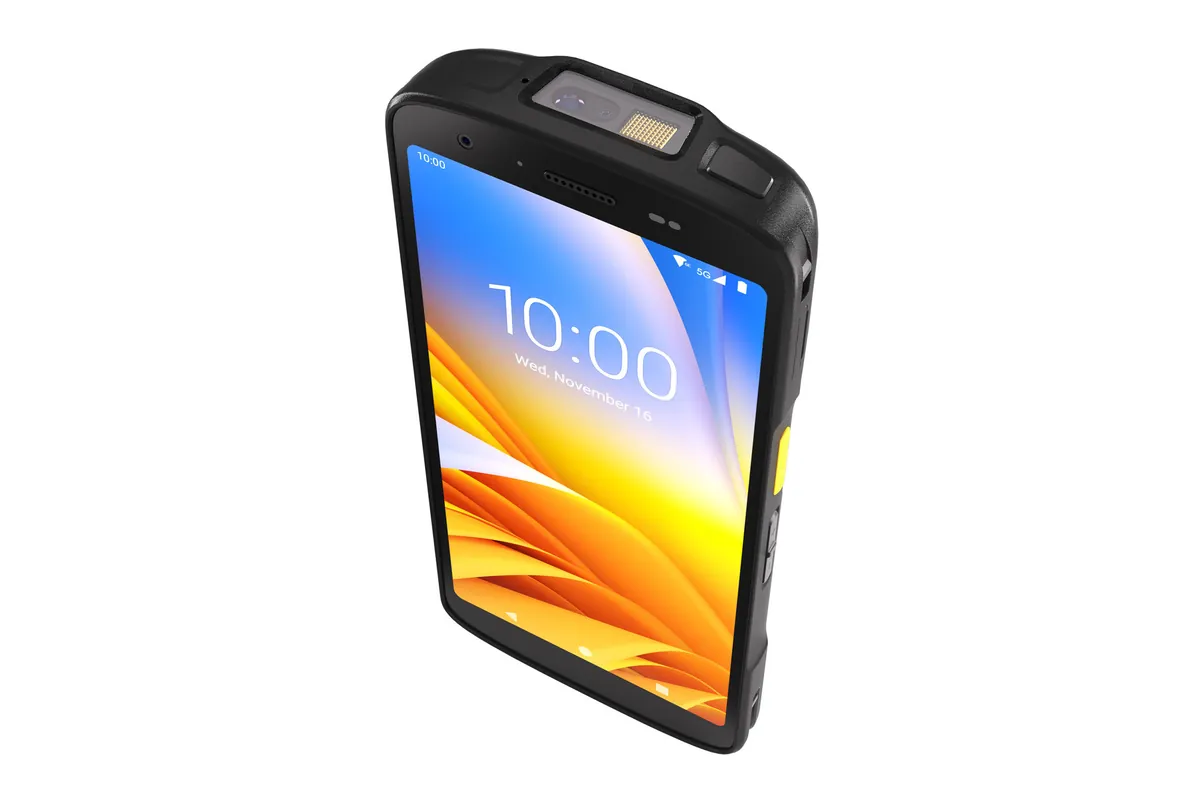

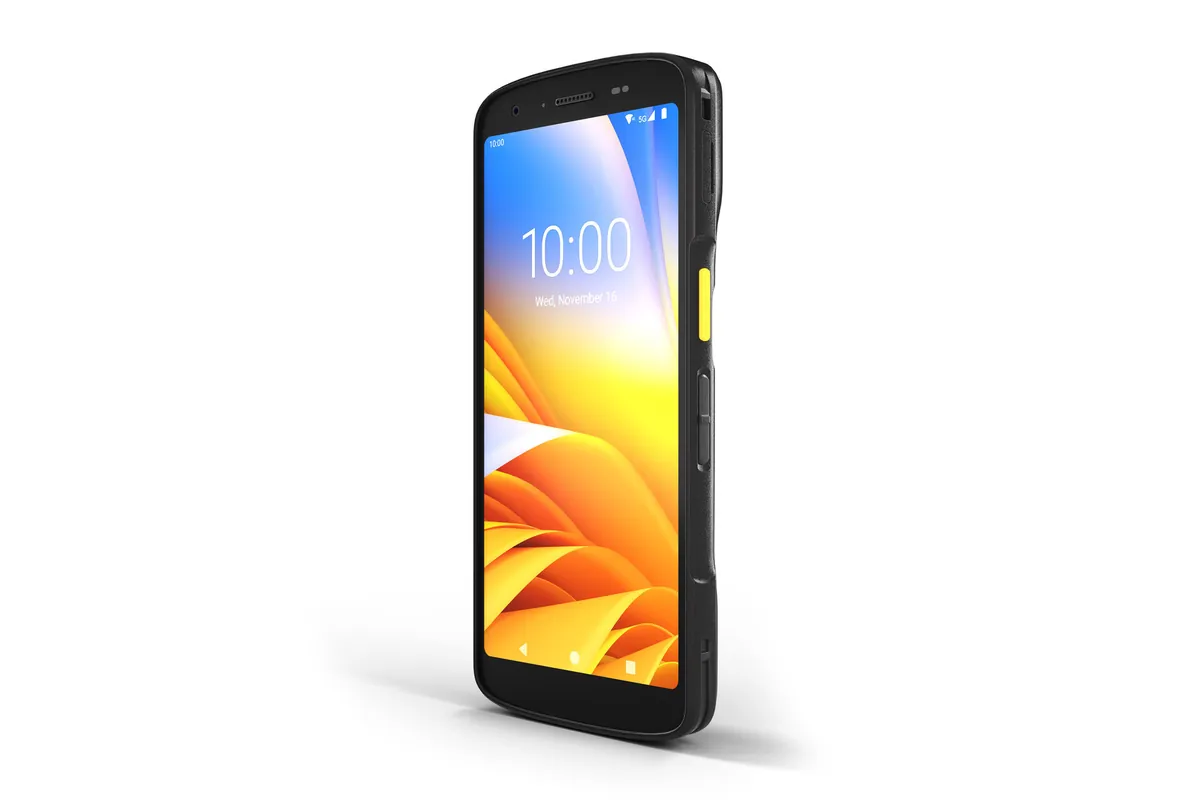

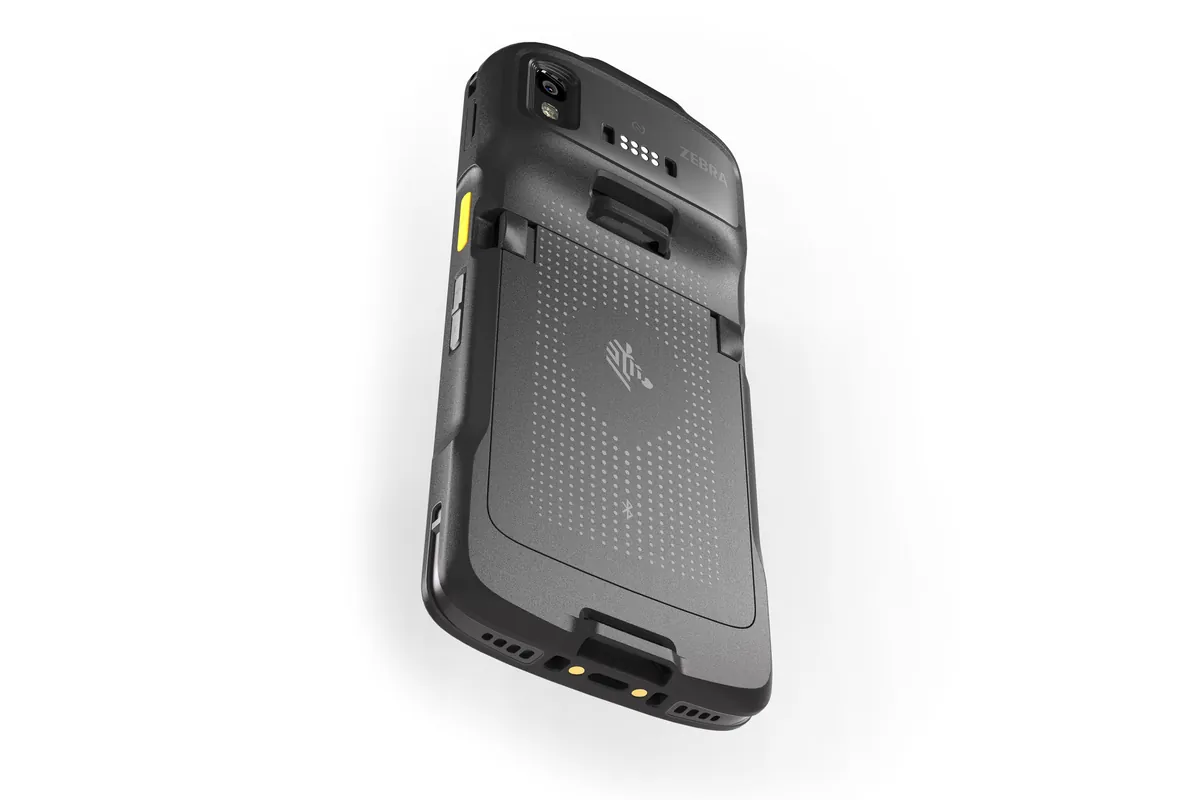

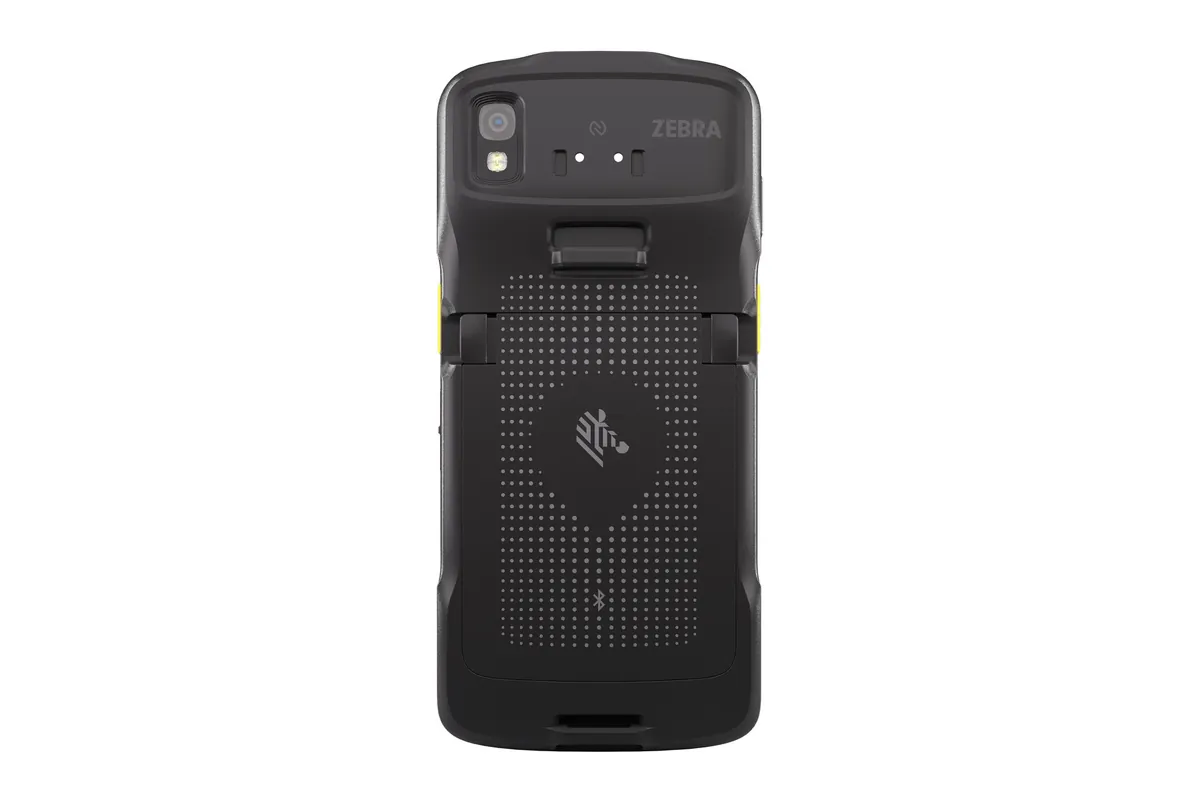

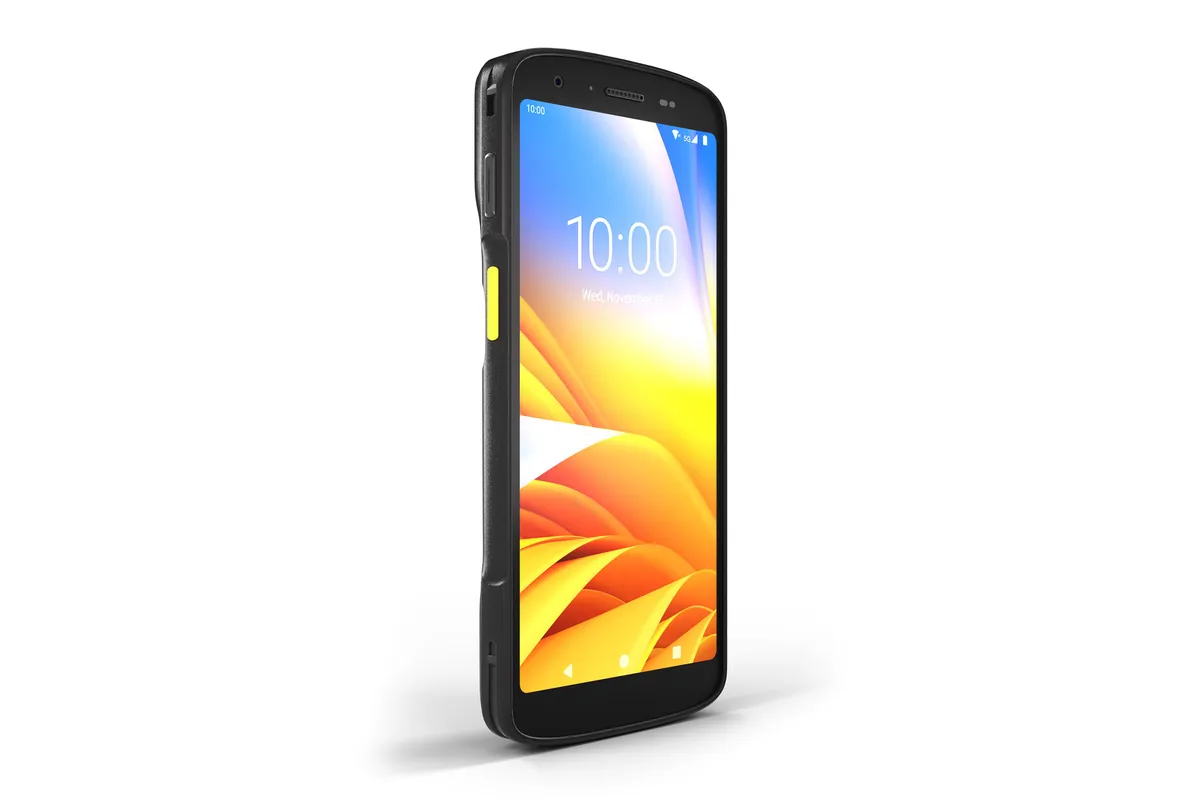

Zebra TC27

The ultimate cost-effective tool for small businesses — with big business features

Operating systemAndroid
Display6 inches (15.2 cm)
ScanningSE55 1D/2D Advanced Range Scan Engine with IntelliFocus™ technology; SE4710 1D/2D Scan Engine
BatteryStandard: 14.63 Wh (3,800 mAh), Extended: 20.02 Wh (5,200 mAh), BLE: 14.63 Wh (3,800 mAh); User removable…
SealingIP68 and IP65, with battery per applicable IEC sealing specifications
DropMultiple 5 ft./1.5 m drops to concrete over operating temp (-10° C to 50° C/14° F to 122° F) with protective…

Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps

Overview

The TC27 is a durable, 5G-enabled device designed for fieldwork. Couriers can capture high-resolution photos for delivery proof and handle on-site payments. Repair technicians can scan parts, make 5G video calls for remote support, and process payments upon service completion. With digital wallet compatibility, the TC27 is versatile for various settings like stadiums, parks, and transit, making it ideal for access control and mobile payments.

Power All Your Apps—Simultaneously - Get superior performance on all your apps with a next generation processor that delivers twice the performance of the prior generation,1 plus class-leading memory and data storage options.
The Best Wireless Has To Offer - When it comes to wireless, the TC22/TC27 offers it all. 5G and Wi-Fi 6/6E2 deliver wired speeds, providing workers with better voice and data performance inside and outside of your facility.
The Best of Android™—Today and Tomorrow - Support for future versions of Android ensures you won’t outgrow the operating system—you’ll have access to the latest features every day your device is in service.
See More and Scroll Less With an Advanced 6 in. FHD+ Display - The larger screen delivers more display space and the bright 450 nits screen is easy to read anywhere—indoors and outside.
Capture Barcodes In Less Time—With Less Effort - Compared to scanning with a mobile phone camera, Zebra’s enterprise-class scanning options enable workers to capture barcodes in nearly half the time, with half the muscle work.4 Choose from the SE4710 1D/2D standard scan engine or the SE55 1D/2D Advanced Range scan engine with Intellifocus™ technology, able to scan items in hand or on the highest warehouse shelf. Both options deliver split second first time capture of virtually every barcode, regardless of condition.
Ready for the World of Contactless Transactions - Easily integrate the TC22/TC27 with your existing POS contactless payment solution, allowing customers to simply tap to pay. In addition, the built-in support for Apple VAS and Google SmartTap enables the TC22/TC27 to read tickets, loyalty and gift cards, boarding passes and more stored in Apple or Google wallets.
Ergonomically Designed for All Day Comfort - The TC22/TC27 is nearly 10% thinner than its predecessor, with a contoured surface that reduces pressure points and provides a more secure and comfortable grip for any size hand.
A Durable Design Built To Last for Years - The TC22/TC27 is waterproof, dustproof, drop-proof and tumble-proof, thanks to an improved design, IP68 sealing, plus drop and tumble tests that are even more aggressive than the industry standard MIL-STD 810H and IEC. And shatter-and-scratch-resistant Corning™ Gorilla™ Glass protects two of the most vulnerable features—the display and scanner exit window.
Power Every Minute of Every Workday - Choose the battery that will keep pace with your workers—the standard 3800 mAh battery for full shift power; the extended 5200 mAh battery for multi-shift power. With removable batteries, you never need to take the device out of service for charging.
Purpose-Built Accessories Make Every Job Easier - Single- and multi-slot cradles meet every charging challenge—from desktop to backroom. Make scan-intensive tasks easy with a snap-on trigger handle. Give workers instant hands-free freedom with a wearable arm mount. Boost ruggedness with a protective boot—ideal for workers in the field. Make carrying easier with a holster or a handstrap—from the retail store to delivery drivers on the road.

Best for: Courier and Delivery · Staff Communications · Access Control · Proof of Pickup and Delivery · Ticketing · Retail · Hospitality · Warehouse/wearable · Field Mobility

Specifications

Physical Characteristics

Dimensions: 6.5 in. L x 3.0 in. W x 0.49 in. D 165 mm L x 76.3 mm W x 12.5 mm D
Weight: 8.32 oz/236 g (TC22 3800mAh battery) 9.24 oz/262 g with 5200mAh battery
Display: 6.0 in. color Full High Definition+ (1080 x 2160); LED backlight; 450 Nits; Corning™ Gorilla™ Glass
Imager Window: Corning™ Gorilla™ Glass
Touch Panel: Multi mode capacitive touch with bare or light gloved fingertip input
Power: User removable, rechargeable Li-Ion, PowerPrecision for real-time battery metrics; Standard Capacity: 3800 mAh/14.63Wh; Extended Capacity: 5200 mAh/20.02Wh; BLE battery: 3800 mAh/14.63Wh
Expansion Slot: User accessible MicroSD card supports up to 2 TB
SIM: TC27 only: 1 Nano SIM and 1 eSIM (except China)
Network Connections: TC22: WLAN, WPAN; TC27: WWAN, WLAN, WPAN
Notifications: Audible tone; multi-color LEDs; vibration
Keypad: On-screen keypad
Audio: Two microphones with noise cancellation; dual speakers for loudness; Bluetooth wireless headset support; high quality speaker phone; PTT headset (Zebra USB-C) support; HD Voice, including Super-wideband (SWB), Wideband (WB) and Fullband (FB)
Buttons: Dual dedicated scan buttons; programmable button for PTT or other use; volume up/down; power
Interface Ports: USB 3.1 (Bottom Type C)—Super Speed (host and client); 2-pin or 8-pin rear connector

Performance Characteristics

CPU: Qualcomm™ 5430 hex-core, 2.1 GHz
Operating System: Android; for supported Android versions, visit: www.zebra.com/android-versions
Memory: 6 GB RAM/64 GB UFS Flash; 8 GB RAM/128 GB UFS Flash

User Environment

Operating Temp.: 14°F to 122°F/-10°C to 50°C
Storage Temp.: -40°F to 158°F/-40°C to 70°C
Humidity: 5% - 95% non-condensing
Drop Spec.: Multiple 5 ft./1.5 m drops to concrete over operating temp (-10° C to 50° C/14° F to 122° F) with protective boot per MIL-STD-810H Multiple 4.5 ft/1.3 m drops to tile over concrete over operating temp (-10° C to 50° C/14° F to 122° F) per MIL-STD 810H
Tumble Spec.: 500 tumbles, 1.6 ft./0.5 m; 500 tumbles, 3.3 ft./1.0 m with optional protective boot
Sealing: IP68 and IP65, with battery per applicable IEC sealing specifications
Electrostatic Discharge (ESD): +/-15 kV air discharge, +/-8 kV direct discharge; +/-8 kV indirect discharge

Interactive Sensor Technology (IST)

Light Sensor: Automatically adjusts display backlight brightness
Motion Sensor: 3-axis accelerometer with MEMS Gyro
Proximity Sensor: Automatically detects when the user places the handset against head during a phone call to disable display output and touch input.
Magnetometer: eCompass to detect direction
Pressure Sensor: Altitude for locating (TC27 North America only)

Data Capture

Scanning: SE55 1D/2D Advanced Range Scan Engine with IntelliFocus™ technology; SE4710 1D/2D Scan Engine
Camera: Rear camera 16 MP; front camera 5 MP
NFC: NFC ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards, NFC Forum tags 2,3,4,5; Host Card Emulation, Contactless Payment Support, VAS (Value Added Services) and Wallet support, Apple ECP1.0 and ECP2.0, Apple VAS and Google Smart Tap certified, VAS Library/SDK
UHF RFID: RFD40 UHF RFID Sled; RFD90 Ultra-Rugged UHF RFID Sled

Wireless WAN Data and Voice Communications (TC27)

Radio Frequency Band: North America: 5G FR1: n2/5/7/12/13/14/25/26/29/38/41/48/66/71/77/78; 4G: B2/4/5/7/12/13/14/17/25/26/29/38/41/ 48/66/71; 3G: B2/4/5; Rest of World: 5G FR111: n1/2/3/5/7/8/20/28/38/40/41/66/71/77/78; 4G: B1/2/3/4/5/7/8/13/17/20/28/38/39/40/41/42/ 43/66/71; 3G: 1/2/4/5/8; 2G: 850/900/1800/ 1900; China/Japan: 5G FR1: n1/3/5/7/8/28/38/ 40/41/77/78/79; 4G: B1/3/5/7/8/19/18/26/28/ 34/38/39/40/41/42; 3G: B1/5/6/8/19; 2G: 850/ 900/1800; Dual SIM/Dual Standby, VoLTE, Gigabit LTE-A, 5G NR Sub-6 (NSA, SA), LTE/NR Carrier Aggregation, supports private networking (LTE/5G) Note: Actual band support may vary by country or carrier, contact Zebra Tech Support for more details.
GPS: GPS, GLONASS, Galileo, Beidou, QZSS, Dual-Band GNSS — concurrent L1/G1/E1/B1 (GPS/QZSS, GLO, GAL, BeiDou) + L5/E5a/BDSB2a (GPS/QZSS, GAL, BeiDou); a-GPS; supports XTRA

Wireless LAN

WLAN Radio: IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax; 2x2 MU-MIMO, Wi-Fi 6E (802.11ax), Wi-Fi™ certified; Wi-Fi™ 6 Certified, Dual Band Simultaneous; IPv4, IPv6
Data Rates: 6 GHz: 802.11ax—20 MHz, 40 MHz, 80 MHz, 160 MHz—up to 2402 Mbps 5 GHz: 802.11a/n/ac/ax—20 MHz, 40 MHz, 80 MHz, 160 MHz—up to 2402 Mbps; 2.4 GHz: 802.11b/g/n/ax—20 MHz up to 286.8 Mbps
Operating Channels: Channel 1-13 (2401-2483 MHz): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13; Channel 36-165 (5150-5850 MHz): 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165; Channel 1-233 (5925-7125 MHz); Channel Bandwidth: 20/40/80/160 MHz; Actual operating channels/frequencies and bandwidths depend on regulatory rules and certification agency.
Fast Roam: PMKID caching; Cisco CCKM; 802.11r; OKC
Security and Encryption: WEP (40 or 104 bit); Enhanced Open (OWE); WPA/WPA2 Personal (TKIP, and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES) - EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP, EAP-PWD; WPA3 Enterprise 192-bit mode (GCMP256) - EAP-TLS; TC27 WWAN models only: WPA3 Enterprise EAP-SIM, EAP-AKA, EAP-AKA Prime
Certifications: Wi-Fi Alliance Certifications: Wi-Fi CERTIFIED n; Wi-Fi CERTIFIED ac; Wi-Fi CERTIFIED 6; Wi-Fi Enhanced Open; WPA2-Personal; WPA2-Enterprise; WPA3-Personal; WPA3-Enterprise (includes 192-bit mode); Protected Management Frames; Wi-Fi Agile Multiband; WMM; WMM-Power Save; WMM Admission Control; Voice-Enterprise; Wi-Fi Direct; QoS Management; OCE

Wireless PAN

Bluetooth: Class 2, Bluetooth v5.2 and Secondary BLE for beaconing within BLE battery

Environmental Compliance

Environmental Compliance: RoHS Directive 2011/65/EU; Amendment 2015/863; REACH SVHC 1907/2006 For a complete list of product and materials compliance, please visit: www.zebra.com/environment

General Certifications

General Certifications: ARCore Google certified

Warranty

Warranty: Subject to the terms of Zebra’s hardware warranty statement, the TC22 and TC27 are warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For the complete warranty statement, please visit: www.zebra.com/warranty

Recommended Services

Recommended Services: Zebra OneCare™ Special Value (SV); Zebra VisibilityIQ Foresight™; Professional Services Video on Device

Detailed values may cover multiple family members or optional SKUs. Model catalogue values take precedence; confirm part number.

Lifecycle

Sales status: Current catalogue
Announced: 2023-06-27
Replaces: TC26
Status basis: Listed in official model catalogue; regional orderability requires confirmation.
