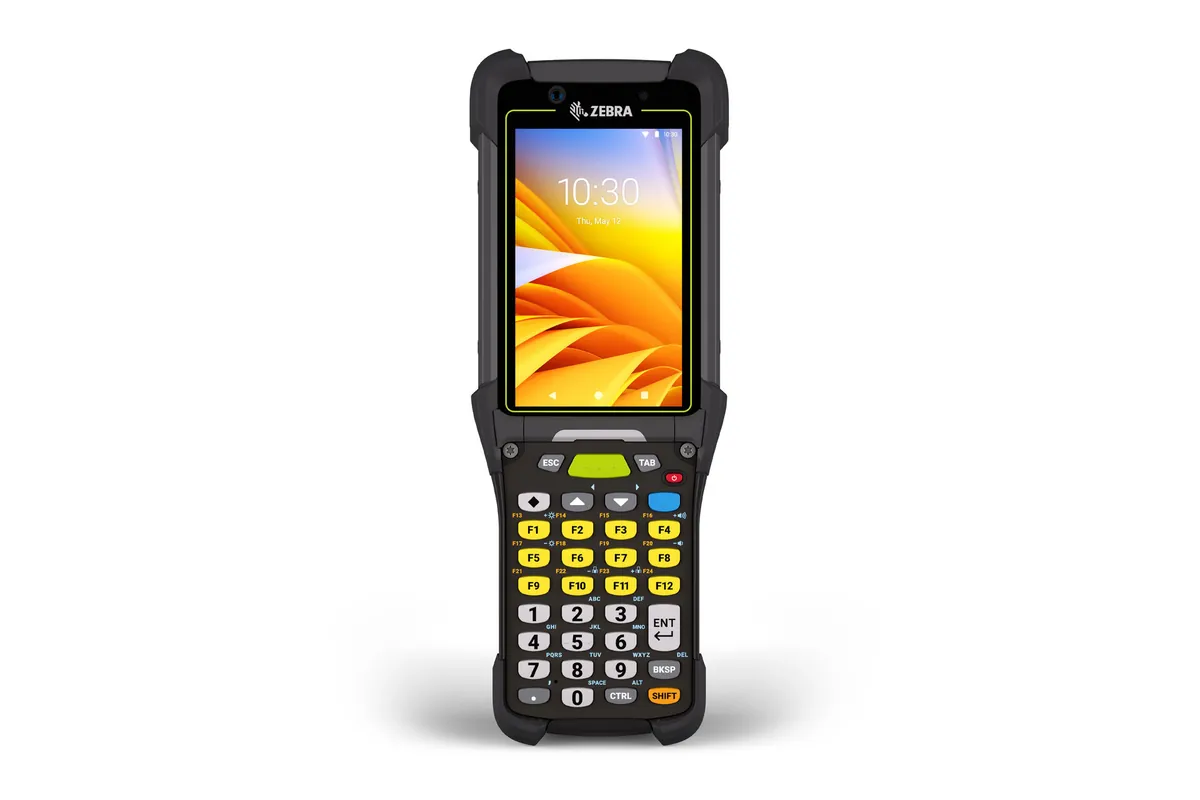

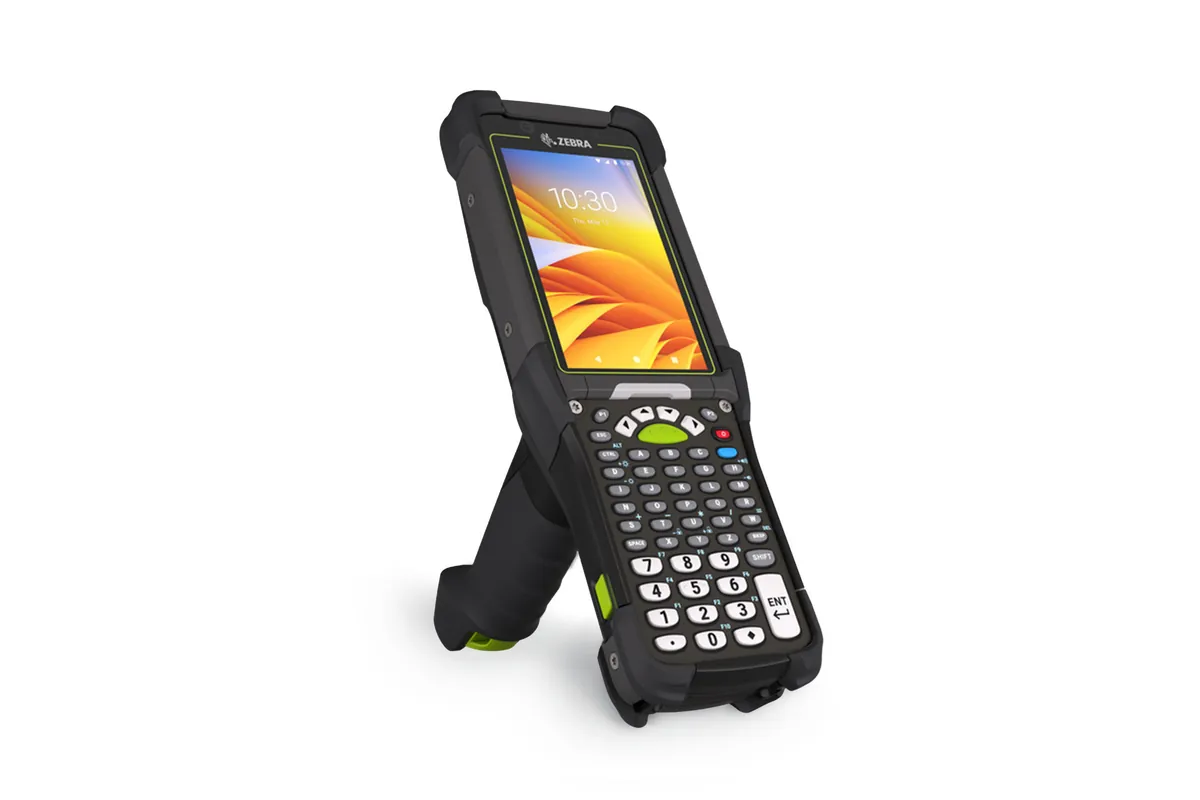

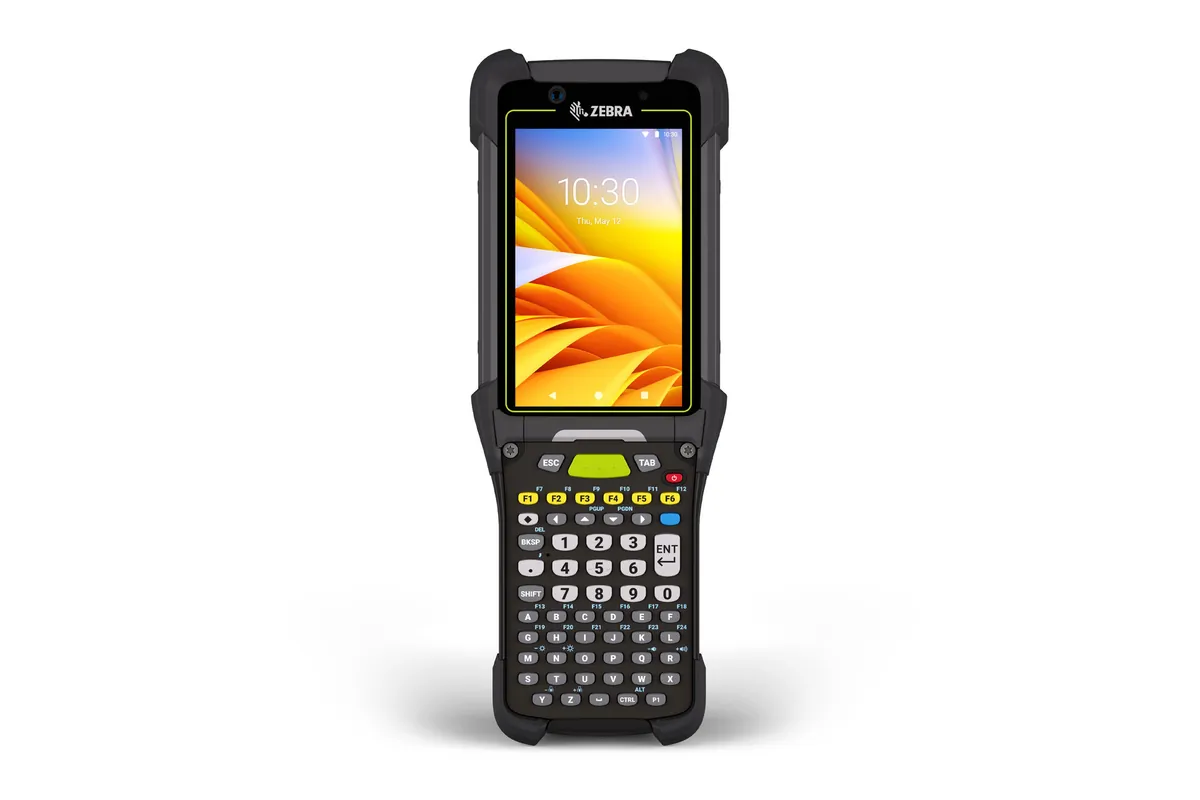

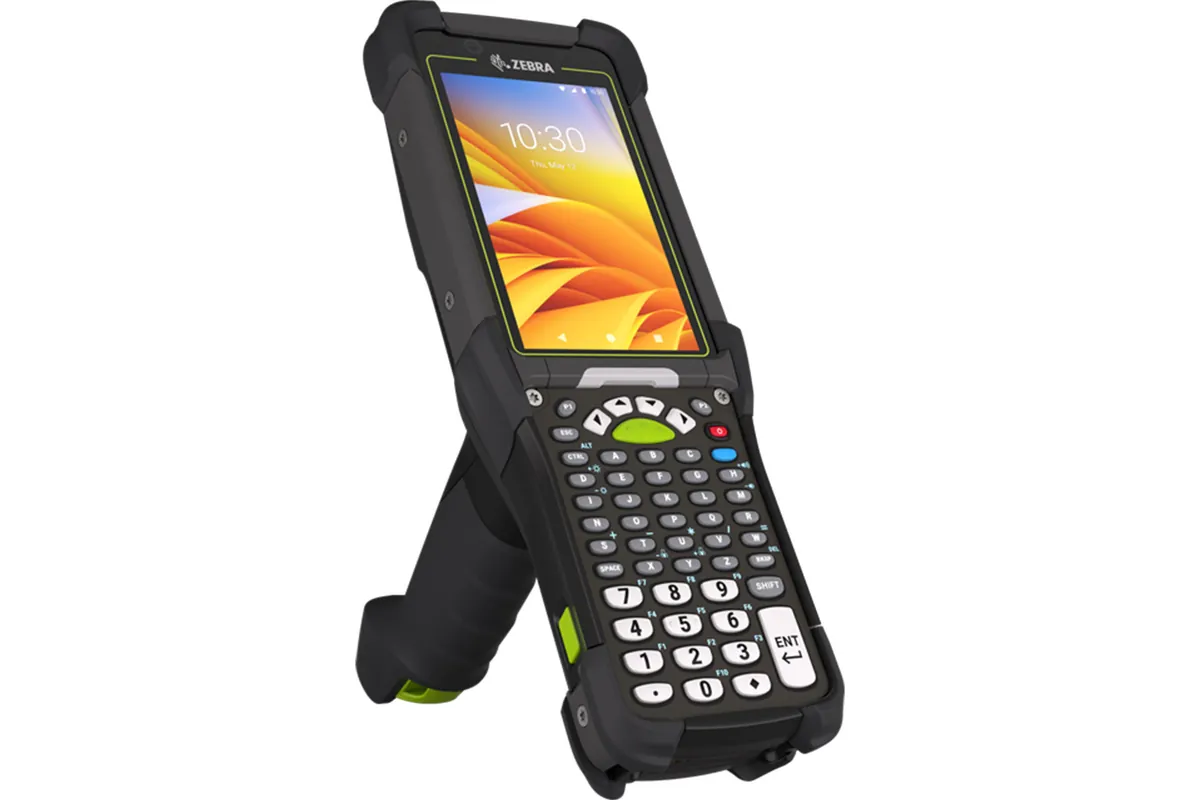

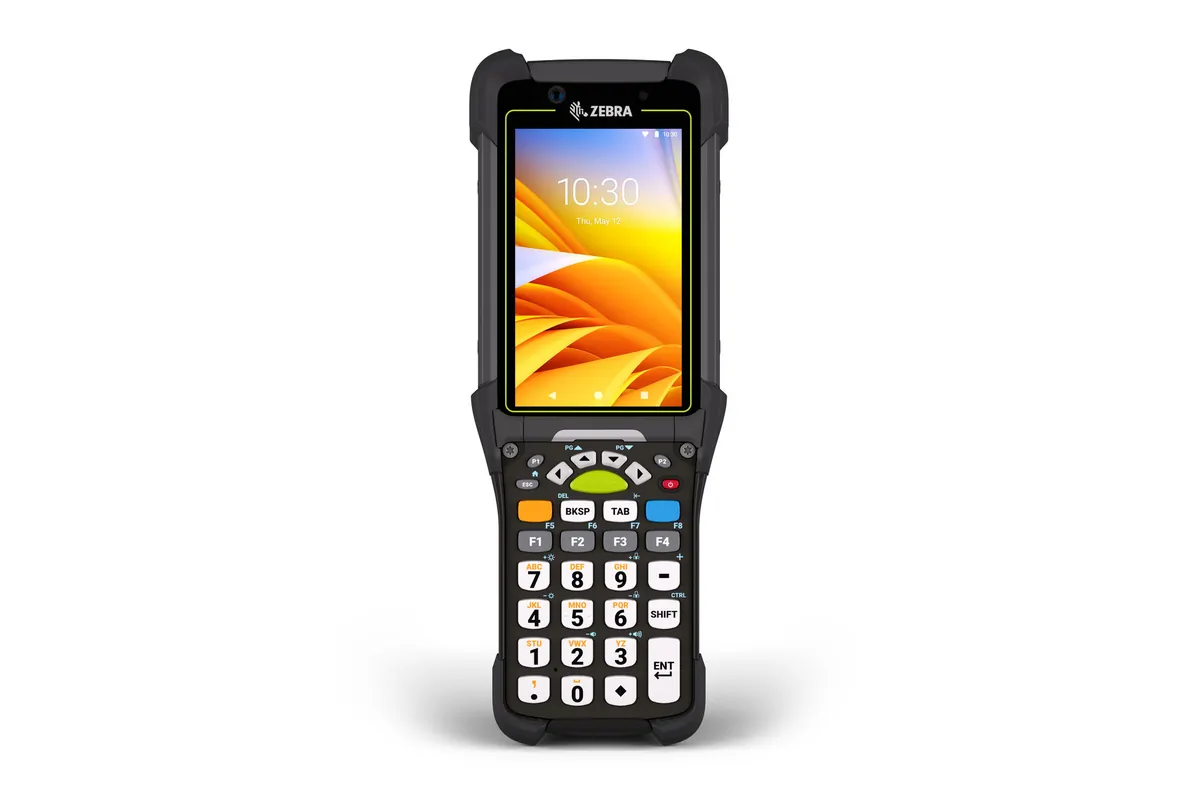

Zebra MC9400

The next evolution in the ultra-rugged MC9000 Series — now with more power, advanced scanning and the fastest cellular and Wi-Fi connections — Wi-Fi 6E and 5G

Operating systemAndroid
Display4.3 inches (10.9 cm)
ScanningSE58 1D/2D Extended Range Scan Engine with IntelliFocus™ technology with green laser aimer SE4770 1D/2D Scan…
BatteryStandard: 3.6 V, 25.2 Wh (7,000 mAh), BLE: 3.6 V, 25.2 Wh (7,000 mAh), Non-Incendive: 25.2 Wh (7,000 mAh)…
SealingIP65 and IP68 with battery per applicable IEC sealing specifications
DropExceeds per MIL-STD-810H: 12 ft./3.65 m to concrete; Enterprise drop standard 8 ft. (2.4 m) to concrete…

Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps

Overview

Configurations

Nearly five million MC9000 Series ultra-rugged mobile computers have helped streamline and error-proof processes in the toughest environments — from manufacturing and warehousing to ports, yards and retail stores. Introducing the next evolution in this highly successful handheld mobile computer family, the MC9400/MC9450. The standard, freezer and non-incendive models are loaded with all the latest mobile technologies. These devices are faster, ready to power the new generation of industrial applications. Scanning is easier with the world’s greatest scanning range — from in-hand to over 100 ft./30.5 m away. And with Wi-Fi 6E and private and public 5G, you get the fastest wireless connections available today — plus the ability to easily and cost-effectively extend your wireless networks to the most expansive indoor and outdoor facilities.

Private and public 5G — new cost-effective wireless optionsThese are the first gun-style devices to offer private and public 5G wireless data connectivity, bringing new affordable wireless networking options to expansive outdoor and indoor environments.
Wi-Fi 6E – maximum speed and performance, indoors and outsideGet the fastest Wi-Fi connections available, Wi-Fi 6E.
The latest in advanced scanning technologyGive your workers an unmatched scanning range with the new SE58 Extended Range Scan Engine with IntelliFocusTM technology. Scan barcodes in hand to over 100 ft./30.5 m away2 — substantially farther than any scanner on the market.
Biometric facial recognitionWorkers get easy device access, while you get the peace of mind that device access is restricted to pre-authorized users only, eliminating the risk of shared or compromised passwords.
Choose from seven keypads to best match your data typesSelect the keypad that will make data entry as easy as possible for your workers. And swap keypads on site to accommodate new data types or re-purpose devices in different areas of the business — without a trip to the service depot.
Three models for the most challenging environmentsThere’s a model for every environment — standard, freezer and non-incendive. The freezer model includes a heated touch panel and scanner exit window, plus a freezer-rated battery.
Rugged and ready for just about anythingThe MC9400 and MC9450 are designed for your toughest environments. Muddy? Just hose it off. Submerged in water? No worries, it’s waterproof.
Advanced display technology for industrial environmentsThe large 4.3 in. display is easy to see indoors and outside, works when wet and is easy to use — even with thick gloves.
PowerPrecision+ advanced battery technologyPowerPrecision+ batteries are designed and manufactured to deliver superior performance, reliability and safety.
Full backwards accessory compatibility for cost-effective upgradesUpgrade to MC9400/MC9450 to put the advantages of the latest mobile features to work in your enterprise, while preserving your entire investment in MC9300 accessories. And you can also utilize MC9200 and older charging accessories with an adapter.

Best for: Warehousing/Distribution (picking, put-away, cross-docking, shipping, receiving, inventory control, reverse logistics, cold storage, non-incendive) · Manufacturing (inventory management, put-away, line-side replenishment, work-in-process, material track and trace, quality control, safety testing) · Retail (reverse logistics, price verification/updates, store receiving, online order fulfillment, backroom inventory management) · Ports and Yards (asset management of rail cars, containers and cargo; shipment tracking; yard management) · Cross Docking · Shipping and Receiving · Order and Returns Processing · Inventory Management

Specifications

Physical Characteristics

Dimensions: 9.4 in. L x 3.5 in. W x 7.4 in. H 240 mm L x 88 mm W x 189 mm H
Weight: 26.2 oz./743 g with battery
Display: 4.3 in. WVGA (800 x 480), color display, 600 NITS (typical)
Imager Window: Corning™ Gorilla™ Glass
Touch Panel: Dual mode capacitive touch with finger, gloved finger or stylus input (conductive stylus sold separately); screen protector (sold separately); Corning Gorilla Glass with air gap (standard model) or optically bonded (freezer model)
Power: Rechargeable Li-Ion: 3.6V, 7000mAh (25.20 Wh); Optional BLE Battery Li-Ion 3.6V, 7000mAh (25.20 Wh); Optional Freezer Capacity battery — 5000mAh (18.80 Wh); Optional 7000mAh (25.20 Wh) Non-Incendive battery; Hot swap battery backup with temporary session persistence
Expansion Slot: MicroSD supports up to 2 TB
SIM: MC9450 only: 1 nano SIM; 1 eSIM
Network Connections: MC9400/MC9450: WLAN, WPAN (Bluetooth), USB 2.0, High Speed (host and client); MC9450 only: WWAN 5G; data only
Notifications: Audible tone; multi-color LED; haptic feedback
Keypad: Backlit, field replaceable keypads; 58 Key AlphaNumeric, 53 Key AlphaNumeric STD, 53 Key Terminal Emulation (5250 and VT), 43 Key/34 Key Numeric/Function, 29 Key Numeric/Calculation
Voice and Audio: Speaker, microphone, PTT voice (internal speaker and Bluetooth wireless headset support)
Buttons: Trigger scan button; keypad scan button
Interface Ports: USB 2.0 (bottom pogo connector) — high speed (host and client)

Performance Characteristics

CPU: Qualcomm 4490 octa-core; 2.4 GHz
Operating System: Android; for supported Android versions, visit: www.zebra.com/android-versions
Memory: 6 GB RAM/128 GB Flash
Security: FIPS 140-2 Validated; supports Secure Boot and Verified Boot

User Environment

Operating Temperature: Standard: -4°F to 122°F/-20°C to +50°C, Freezer: -22°F to 122°F/-30°C to +50°C
Storage Temperature: -40°F to 158°F/-40°C to 70°C
Humidity: Standard: 5%-95% non-condensing; Freezer: 5%-95% condensing (condensation resistant model with heaters for scanner exit window and touch panel glass)
Drop Specification: Exceeds per MIL-STD-810H: 12 ft./3.65 m to concrete; Enterprise drop standard 8 ft. (2.4 m) to concrete across temperature (-20°C to 50°C) exceeding MIL-STD-810H Freezer version: 7 ft. (2.1 m) to concrete (-30°C to 50°C) exceeding MIL-STD810H
Tumble Specification: 6,000 3.3 ft. (1m) tumbles; meets or exceeds IEC tumble specification
Sealing: IP65 and IP68 with battery per applicable IEC sealing specifications
Vibration: 4 g’s PK Sine (5 Hz to 2 kHz); 0.04 g 2/Hz Random (20 Hz to 2 kHz); 60 minute duration per axis, 3 axis
Electrostatic Discharge (ESD): +/- 15 kV air discharge; +/- 8 kV direct discharge; +/- 8 kV indirect discharge

Interactive Sensor Technology (IST)

Light Sensor: Automatically adjusts display backlight brightness
Magnetometer: eCompass automatically detects direction and orientation
Motion Sensor: 3-axis accelerometer with MEMS Gyro

Device Approvals, Certifications and Compliance

Device Approvals, Certifications and Compliance: TAA compliant; ARCore Google; Android Enterprise Recommended (AER)
TAA (optional on select configurations): Trade Agreement Act compliance optional on select configurations
Non-Incendive (NI); optional on select configurations: Class I,II, III Div 2; Gases: Class I, Groups A/B/C/D; Dusts: Class II, Groups F/G; Fibers/ Flyings: Class III; -20° C ≤ Ta ≥ 50° C T6

Data Capture

Scanning: SE58 1D/2D Extended Range Scan Engine with IntelliFocus™ technology with green laser aimer SE4770 1D/2D Scan Engine with red laser aimer
Camera: Front: 8 MP; Rear: 16 MP autofocus; flash LED generates balanced white light; supports Torch mode + HDR (standard)
NFC: ISO 14443 Type A and B; FeliCa and ISO 15693 cards

Wireless WAN Data Communications (MC9450 only)

Radio Frequency Band: 3G NA: B2/4/5; RoW: 1/2/4/5/8 4G NA: B2/4/5/7/8/12/13/14/17/25/26/29/30/38/41/ 48/66/71; RoW: B1/2/3/4/5/6/7/9/10/14/17/18/20/26/28/38/39/40/41/42/43/66/71 5G FR1 NA: n2/5/7/8/12/13/14/25/26/30/38/41/48/66/71/77/78; RoW: n1/2/3/5/7/8/12/18/20/26/28/38/40/41/66/71/77/78; Gigabit LTE-A; 5G NR Sub-6 (NSA, SA); LTE/NR Carrier Aggregation; supports private networking (LTE/5G) Note: Actual band support may vary by country or carrier, contact Zebra Tech Support for more details.
GPS: MC9450 only: GPS, GLONASS, Galileo, QZSS Dual-Band GNSS — Concurrent L1/G1/E1 (GPS/QZSS, GLO, GAL) + L5/E5a/BDSB2a (GPS/QZSS, GAL) a-GPS Supports XTRA
Multimedia: Wi-Fi Multimedia™ (WMM) and WMM-PS; Including TSPEC
VOIP Communications: Supports Workcloud CommunicationTM PTT Express and Workcloud Communication PTT Pro

Wireless LAN

Radio: IEEE 802.11 a/b/g/n/ac/ax/d/h/i/r/k/v/w/mc; 2x2 MU-MIMO; Tri-band (2.4 GHz, 5 GHz, 6 GHz)2; Wi-Fi CERTIFIED 6™ (Wi-Fi 6E); Dual Band Simultaneous; IPv4, IPv6
Data Rates: 2.4 GHz: 802.11b/g/n/ax — 20 MHz - up to 286.8 Mbps; 5 GHz: 802.11a/n/ac/ax — 20 MHz, 40 MHz, 80 MHz, 160 MHz — up to 2402 Mbps; 6 GHz: 802.11ax — 20 MHz, 40 MHz, 80 MHz, 160MHz - up to 2402 Mbps
Fast Roam: 802.11r Fast BSS Transition; PMK Caching; Cisco CCKM; OKC
Operating Channels: Channel 1-13 (2401-2483 MHz): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13; Channel 36-165 (5150-5850 MHz): 36, 40, 44, 48, 50, 52, 56, 60, 64, 100, 104, 108, 112, 114, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165; Channel 1-233 (5925-7125 MHz); Channel Bandwidth: 20, 40, 80, 160 MHz. Actual operating channels/frequencies and bandwidths depend on regulatory rules and certification agency.
Security and Encryption: WEP (40 or 104 bit); Enhanced Open (OWE); WPA/WPA2 Personal (TKIP and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES); EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP, EAP-PWD; WPA3 Enterprise 192-bit mode (GCMP256) - EAP-TLS; MC9450 only: EAP-SIM, EAP-AKA, EAP-AKA Prime
Certifications: Wi-Fi Alliance Certifications: Wi-Fi CERTIFIED n; Wi-Fi CERTIFIED ac; Wi-Fi CERTIFIED 6 (Wi-Fi 6E); WPA2-Personal; WPA2-Enterprise; WPA3-Personal WPA3-Enterprise (includes 192-bit mode); Protected Management Frames: Wi-Fi Enhanced Open; WMM (Wi-Fi Multimedia); WMM-Power Save WMM-Admission Control; Voice-Enterprise: Wi-Fi Direct; Wi-Fi Agile Multiband; Wi-Fi QoS Management; Wi-Fi Optimized Connectivity; Passpoint

Wireless PAN

Bluetooth: Class 2, Bluetooth v5.3 and Secondary BLE for beaconing within BLE battery

Warranty

Warranty: Subject to terms of Zebra’s hardware warranty statement, the MC9400/MC9450 is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, please visit: www.zebra.com/warranty

Environmental Compliance

Environmental Compliance: RoHS Directive 2011/65/EU RoHS Amendment (EU) 2015/863 (EN IEC 63000:2018 Standard); For a complete list of product and materials compliance, please visit www.zebra.com/environment

Recommended Services

Recommended Services: Zebra OneCareTM Essential and Select support services; Zebra Visibility Services — VisibilityIQ™ Foresight; for information, www.zebra.com/services

Footnotes

Footnotes: 1. 5G vs. Wi-Fi 6: a Powerful Combination for Wireless; Intel; https://www.intel.com/content/www/us/en/wireless-network/5g-technology/5g-vs-wifi.html 2. Printing resolution, contrast and ambient light dependent 3. Requires the one-time purchase of a license for each OCR Wedge data type 4. Requires a Workcloud Communication license 5. Requires the purchase of the optional BLE battery and Device Tracker licenses 6. Available in North America 7. Requires one-time purchase of device licenses 8. GMS (Google Mobile Services) are not available on all models in all regions

Mobility DNA

Mobility DNA: Mobility DNA solutions add functionality and simplify deployment and management of our mobile devices. Features may vary by model and a support contract may be required. More information: www.zebra.com/mobilitydna

Detailed values may cover multiple family members or optional SKUs. Model catalogue values take precedence; confirm part number.

Lifecycle

Sales status: Current catalogue
Announced: 2024-01-09
Replaces: MC9300
Status basis: Listed in official model catalogue; regional orderability requires confirmation.
