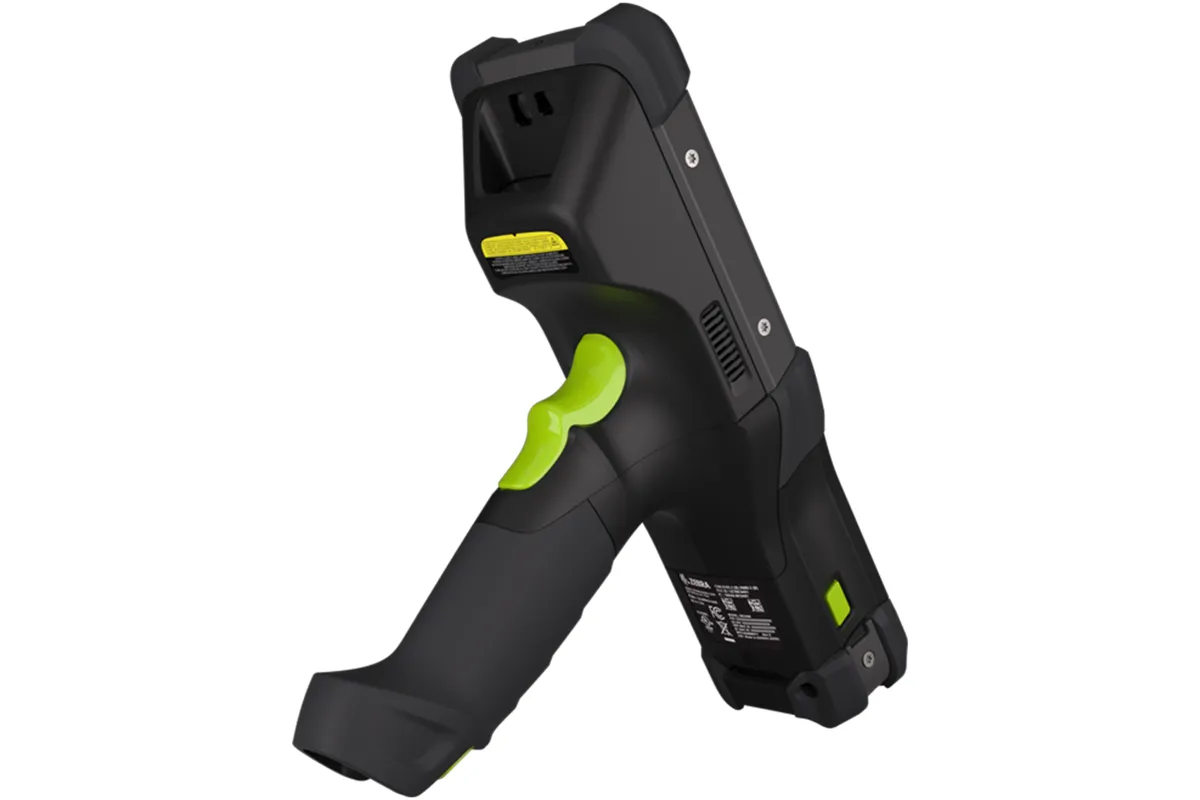

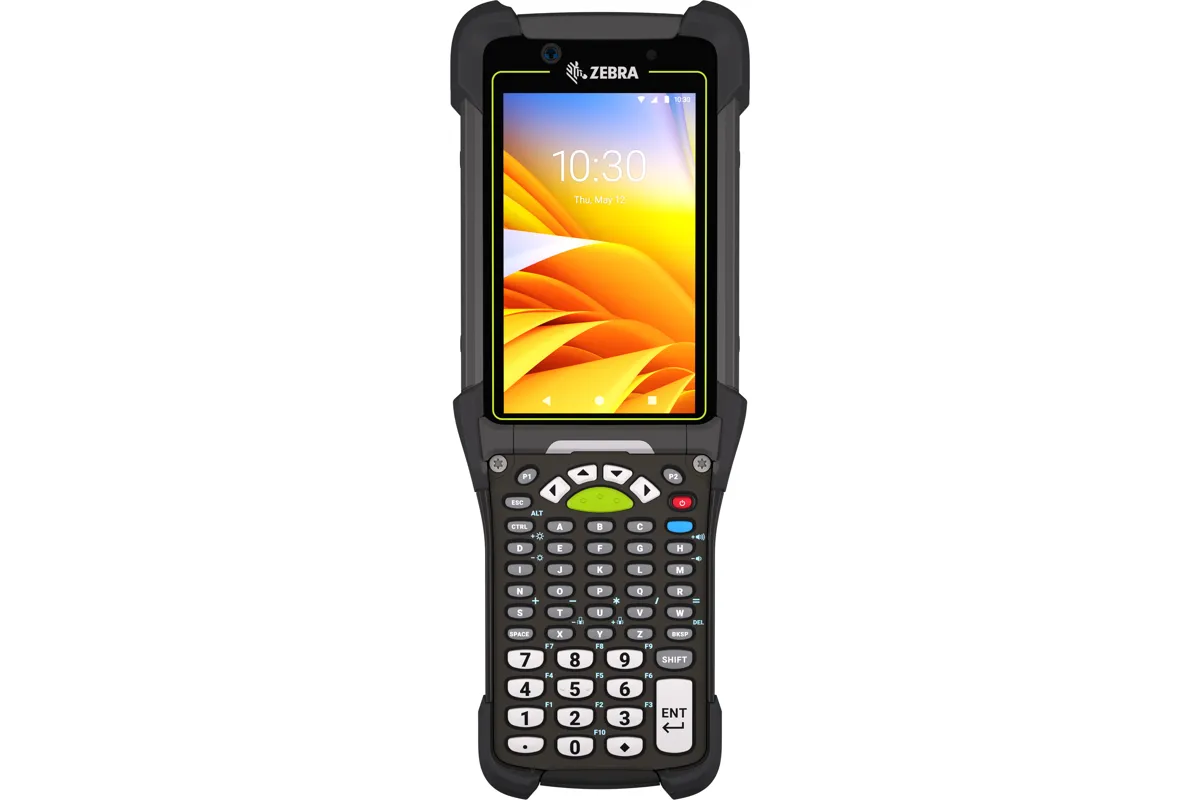

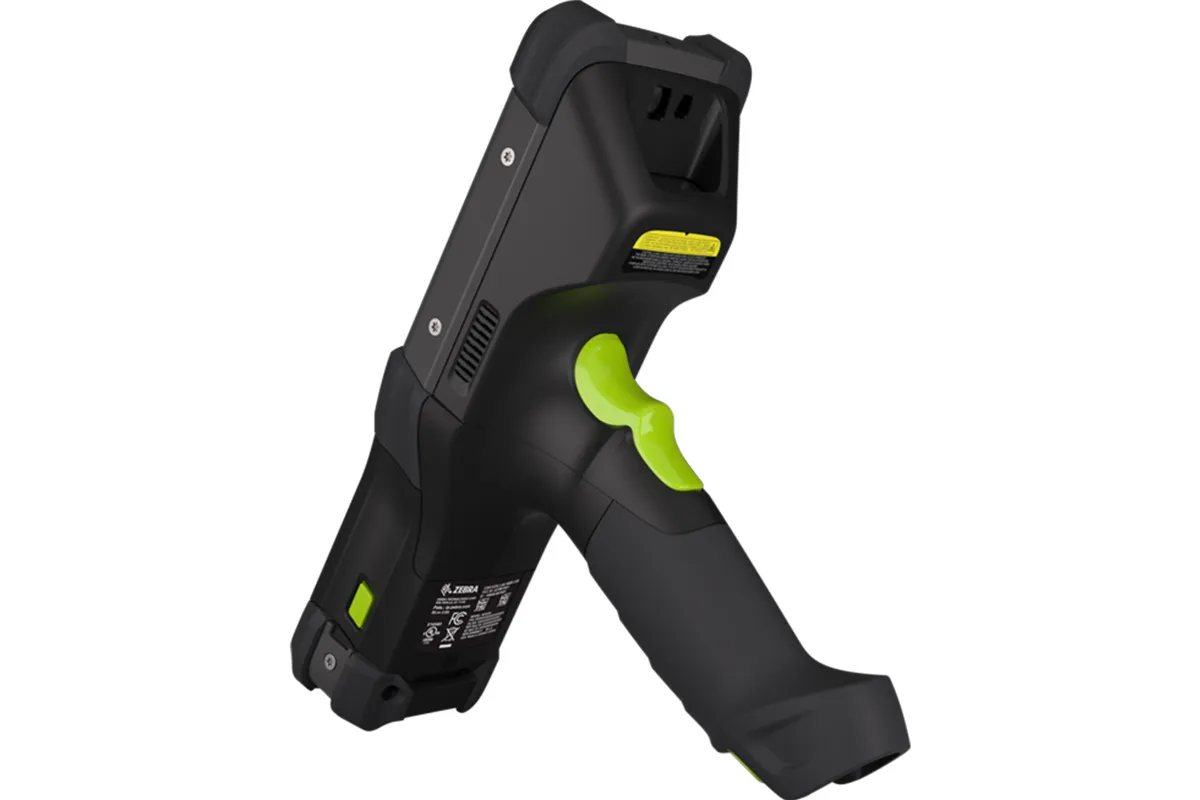

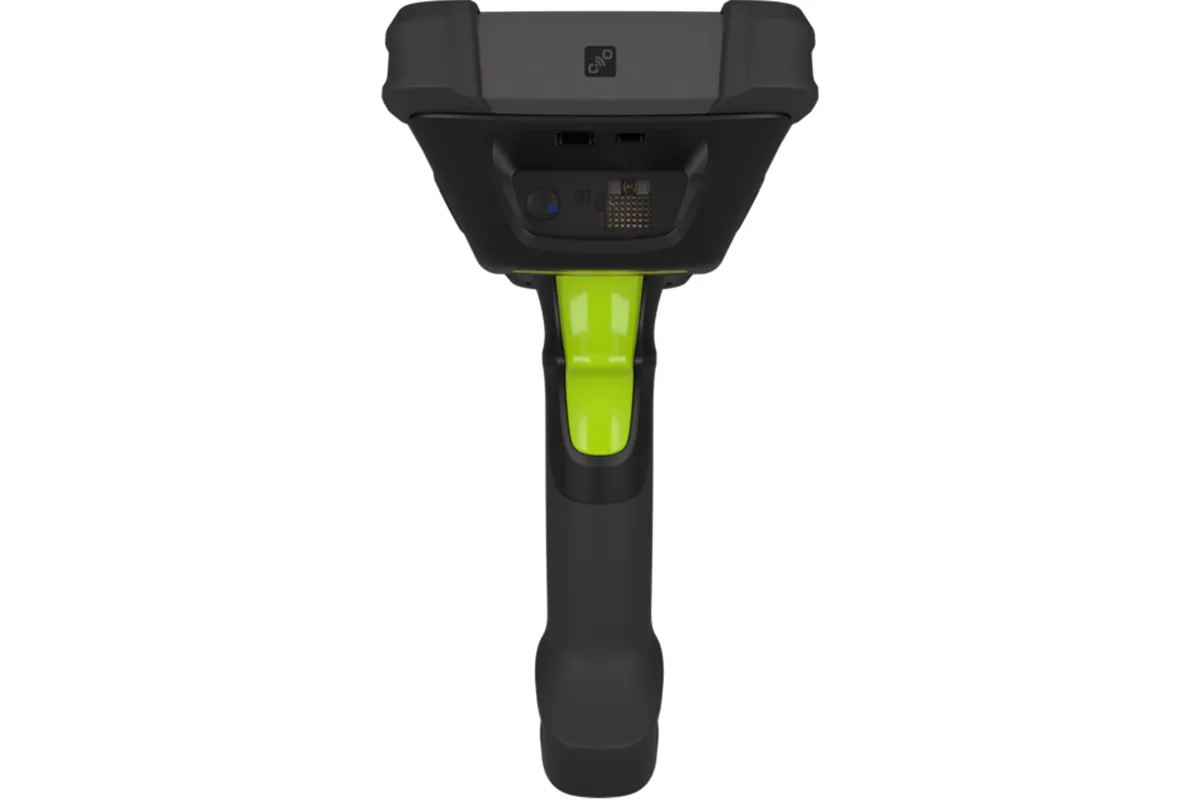

Zebra MC9400/MC9450 Ultra-Rugged Mobile Computer

Specifications

Dimensions

9.4 in. L x 3.5 in. W x 7.4 in. H 240 mm L x 88 mm W x 189 mm H

Weight

26.2 oz./743 g with battery

Display

4.3 in. WVGA (800 x 480), color display, 600 NITS (typical)

Imager Window

Corning™ Gorilla™ Glass

Touch panel

Dual mode capacitive touch with finger, gloved finger or stylus input (conductive stylus sold separately); screen protector (sold separately); Corning Gorilla Glass with air gap (standard model) or optically bonded (freezer model)

Charging / power

Rechargeable Li-Ion: 3.6V, 7000mAh (25.20 Wh); Optional BLE Battery Li-Ion 3.6V, 7000mAh (25.20 Wh); Optional Freezer Capacity battery — 5000mAh (18.80 Wh); Optional 7000mAh (25.20 Wh) Non-Incendive battery; Hot swap battery backup with temporary session persistence

Expansion Slot

MicroSD supports up to 2 TB

SIM

MC9450 only: 1 nano SIM; 1 eSIM

Network Connections

MC9400/MC9450: WLAN, WPAN (Bluetooth), USB 2.0, High Speed (host and client); MC9450 only: WWAN 5G; data only

Notifications

Audible tone; multi-color LED; haptic feedback

Keyboard / keys

Backlit, field replaceable keypads; 58 Key AlphaNumeric, 53 Key AlphaNumeric STD, 53 Key Terminal Emulation (5250 and VT), 43 Key/34 Key Numeric/Function, 29 Key Numeric/Calculation

Voice and Audio

Speaker, microphone, PTT voice (internal speaker and Bluetooth wireless headset support)

Keyboard / keys

Trigger scan button; keypad scan button

Ports / interfaces

USB 2.0 (bottom pogo connector) — high speed (host and client)

Processor

Qualcomm 4490 octa-core; 2.4 GHz

Operating system

Android; for supported Android versions, visit: www.zebra.com/android-versions

RAM / storage options

6 GB RAM/128 GB Flash

Security

FIPS 140-2 Validated; supports Secure Boot and Verified Boot

Operating temperature

Standard : -4°F to 122°F/-20°C to +50°C, Freezer : -22°F to 122°F/-30°C to +50°C

Storage temperature

-40°F to 158°F/-40°C to 70°C

Humidity

Standard : 5%-95% non-condensing; Freezer : 5%-95% condensing (condensation resistant model with heaters for scanner exit window and touch panel glass)

Drop specification

Exceeds per MIL-STD-810H: 12 ft./3.65 m to concrete; Enterprise drop standard 8 ft. (2.4 m) to concrete across temperature (-20°C to 50°C) exceeding MIL-STD-810H Freezer version : 7 ft. (2.1 m) to concrete (-30°C to 50°C) exceeding MIL-STD810H

Tumble specification

6,000 3.3 ft. (1m) tumbles; meets or exceeds IEC tumble specification

IP / sealing

IP65 and IP68 with battery per applicable IEC sealing specifications

Vibration

4 g’s PK Sine (5 Hz to 2 kHz); 0.04 g 2/Hz Random (20 Hz to 2 kHz); 60 minute duration per axis, 3 axis

Electrostatic Discharge (ESD)

+/- 15 kV air discharge; +/- 8 kV direct discharge; +/- 8 kV indirect discharge

Light Sensor

Automatically adjusts display backlight brightness

Magnetometer

eCompass automatically detects direction and orientation

Motion Sensor

3-axis accelerometer with MEMS Gyro

TAA (optional on select configurations)

Trade Agreement Act compliance optional on select configurations

Non-Incendive (NI); optional on select configurations

Class I,II, III Div 2; Gases: Class I, Groups A/B/C/D; Dusts: Class II, Groups F/G; Fibers/ Flyings: Class III; -20° C ≤ Ta ≥ 50° C T6

Scan engines / capture options

SE58 1D/2D Extended Range Scan Engine with IntelliFocus™ technology with green laser aimer SE4770 1D/2D Scan Engine with red laser aimer

Cameras

Front : 8 MP; Rear: 16 MP autofocus; flash LED generates balanced white light; supports Torch mode + HDR (standard)

NFC

ISO 14443 Type A and B; FeliCa and ISO 15693 cards

Radio Frequency Band

3G NA : B2/4/5; RoW : 1/2/4/5/8 4G NA : B2/4/5/7/8/12/13/14/17/25/26/29/30/38/41/ 48/66/71; RoW : B1/2/3/4/5/6/7/9/10/14/17/18/20/26/28/38/39/40/41/42/43/66/71 5G FR1 NA : n2/5/7/8/12/13/14/25/26/30/38/41/48/66/71/77/78; RoW : n1/2/3/5/7/8/12/18/20/26/28/38/40/41/66/71/77/78; Gigabit LTE-A ; 5G NR Sub-6 (NSA, SA); LTE/NR Carrier Aggregation; supports private networking (LTE/5G) Note: Actual band support may vary by country or carrier, contact Zebra Tech Support for more details.

Location / GPS

MC9450 only : GPS, GLONASS, Galileo, QZSS Dual-Band GNSS — Concurrent L1/G1/E1 (GPS/QZSS, GLO, GAL) + L5/E5a/BDSB2a (GPS/QZSS, GAL) a-GPS Supports XTRA

Multimedia

Wi-Fi Multimedia™ (WMM) and WMM-PS; Including TSPEC

VOIP Communications

Supports Workcloud Communication TM PTT Express and Workcloud Communication PTT Pro

Radio

IEEE 802.11 a/b/g/n/ac/ax/d/h/i/r/k/v/w/mc; 2x2 MU-MIMO; Tri-band (2.4 GHz, 5 GHz, 6 GHz)2; Wi-Fi CERTIFIED 6™ (Wi-Fi 6E); Dual Band Simultaneous; IPv4, IPv6

Data Rates

2.4 GHz: 802.11b/g/n/ax — 20 MHz - up to 286.8 Mbps; 5 GHz : 802.11a/n/ac/ax — 20 MHz, 40 MHz, 80 MHz, 160 MHz — up to 2402 Mbps; 6 GHz : 802.11ax — 20 MHz, 40 MHz, 80 MHz, 160MHz - up to 2402 Mbps

Fast Roam

802.11r Fast BSS Transition; PMK Caching; Cisco CCKM; OKC

Operating Channels

Channel 1-13 (2401-2483 MHz): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13; Channel 36-165 (5150-5850 MHz): 36, 40, 44, 48, 50, 52, 56, 60, 64, 100, 104, 108, 112, 114, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165; Channel 1-233 (5925-7125 MHz); Channel Bandwidth : 20, 40, 80, 160 MHz. Actual operating channels/frequencies and bandwidths depend on regulatory rules and certification agency.

Security and Encryption

WEP (40 or 104 bit); Enhanced Open (OWE); WPA/WPA2 Personal (TKIP and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES); EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP, EAP-PWD; WPA3 Enterprise 192-bit mode (GCMP256) - EAP-TLS; MC9450 only: EAP-SIM, EAP-AKA, EAP-AKA Prime

Certifications

Wi-Fi Alliance Certifications : Wi-Fi CERTIFIED n; Wi-Fi CERTIFIED ac; Wi-Fi CERTIFIED 6 (Wi-Fi 6E); WPA2-Personal; WPA2-Enterprise; WPA3-Personal WPA3-Enterprise (includes 192-bit mode); Protected Management Frames : Wi-Fi Enhanced Open; WMM (Wi-Fi Multimedia); WMM-Power Save WMM-Admission Control; Voice-Enterprise : Wi-Fi Direct; Wi-Fi Agile Multiband; Wi-Fi QoS Management; Wi-Fi Optimized Connectivity; Passpoint

Bluetooth

Class 2, Bluetooth v5.3 and Secondary BLE for beaconing within BLE battery
