Zebra · Handheld computer

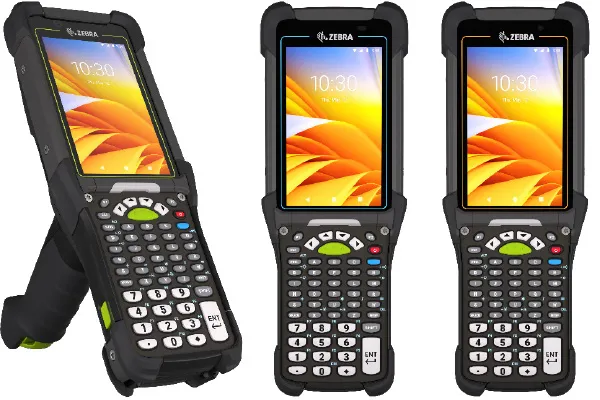

Zebra MC9400/MC9450 Mobile Computer
The next evolution in the ultra-rugged MC9000 Series — now with more power, advanced scanning and the fastest cellular and Wi-Fi connections — Wi-Fi 6E and 5G
- Operating systemAndroid; for supported Android versions, visit: www.zebra.com/android-versions
- Display4.3 in. WVGA (800 x 480), color display, 600 NITS (typical)
- ScanningSE58 1D/2D Extended Range Scan Engine with IntelliFocus™ technology with green laser aimer SE4770 1D/2D Scan…
- SealingIP65 and IP68 with battery per applicable IEC sealing specifications
- DropExceeds per MIL-STD-810H: 12 ft./3.65 m to concrete; Enterprise drop standard 8 ft. (2.4 m) to concrete…
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Operating system
- Android; for supported Android versions, visit: www.zebra.com/android-versions
- Processor
- Qualcomm 4490 octa-core; 2.4 GHz
- RAM / storage options
- 6 GB RAM/128 GB Flash
Display
- Display size
- 4.3 in. WVGA (800 x 480), color display, 600 NITS (typical)
- Touch panel
- Dual mode capacitive touch with finger, gloved finger or stylus input (conductive stylus sold separately); screen protector (sold separately); Corning Gorilla Glass with air gap (standard model) or optically bonded (freezer model)
- Keyboard / keys
- Backlit, field replaceable keypads; 58 Key AlphaNumeric, 53 Key AlphaNumeric STD, 53 Key Terminal Emulation (5250 and VT), 43 Key/34 Key Numeric/Function, 29 Key Numeric/Calculation Trigger scan button; keypad scan button
Data capture
- Scan engines / capture options
- SE58 1D/2D Extended Range Scan Engine with IntelliFocus™ technology with green laser aimer SE4770 1D/2D Scan Engine with red laser aimer
- NFC
- ISO 14443 Type A and B; FeliCa and ISO 15693 cards
- Cameras
- Front : 8 MP; Rear: 16 MP autofocus; flash LED generates balanced white light; supports Torch mode + HDR (standard)
Power
- Charging / power
- Rechargeable Li-Ion: 3.6V, 7000mAh (25.20 Wh); Optional BLE Battery Li-Ion 3.6V, 7000mAh (25.20 Wh); Optional Freezer Capacity battery — 5000mAh (18.80 Wh); Optional 7000mAh (25.20 Wh) Non-Incendive battery; Hot swap battery backup with temporary session persistence
Connectivity
- Bluetooth
- Class 2, Bluetooth v5.3 and Secondary BLE for beaconing within BLE battery
- Location / GPS
- MC9450 only : GPS, GLONASS, Galileo, QZSS Dual-Band GNSS — Concurrent L1/G1/E1 (GPS/QZSS, GLO, GAL) + L5/E5a/BDSB2a (GPS/QZSS, GAL) a-GPS Supports XTRA
- Ports / interfaces
- USB 2.0 (bottom pogo connector) — high speed (host and client)
Rugged
- IP / sealing
- IP65 and IP68 with battery per applicable IEC sealing specifications
- Drop specification
- Exceeds per MIL-STD-810H: 12 ft./3.65 m to concrete; Enterprise drop standard 8 ft. (2.4 m) to concrete across temperature (-20°C to 50°C) exceeding MIL-STD-810H Freezer version : 7 ft. (2.1 m) to concrete (-30°C to 50°C) exceeding MIL-STD810H
- Tumble specification
- 6,000 3.3 ft. (1m) tumbles; meets or exceeds IEC tumble specification
- Operating temperature
- Standard : -4°F to 122°F/-20°C to +50°C, Freezer : -22°F to 122°F/-30°C to +50°C
- Storage temperature
- -40°F to 158°F/-40°C to 70°C
- Humidity
- Standard : 5%-95% non-condensing; Freezer : 5%-95% condensing (condensation resistant model with heaters for scanner exit window and touch panel glass)
Size
- Weight
- 26.2 oz./743 g with battery
- Dimensions
- 9.4 in. L x 3.5 in. W x 7.4 in. H 240 mm L x 88 mm W x 189 mm H
